A replacement marine charge air cooler core bundle must match more than the outer dimensions of an old cooler. It must suit the engine’s compressed-air flow, charge-air temperature, cooling-water or seawater circuit, allowable pressure drop, connection positions, mounting arrangement and vessel operating conditions. A core that fits the shell but restricts airflow, leaks into the air path or cannot reject the required heat may create a new engine problem instead of solving the original one.
At CSTHEATEXCHANGER, we manufacture marine charge-air coolers, aftercoolers, engine coolers and custom heat-exchanger cores for replacement and new-equipment applications. Our public product range includes marine engine charge-air coolers, Yanmar and Cummins engine coolers, MAN 32/40 charge-air cooler products and other engine-specific cooler listings. The company also states that it can build heat exchangers for new jobs or replacement of existing equipment and provide customized manufacturing support.
In this article, we explain how we approach a replacement core bundle, what information we need before quotation, how we check seawater-side corrosion and fouling, and how we support installation and commissioning. We do not treat a model name or a photograph as enough evidence for a safe drop-in replacement.
A marine diesel engine compresses intake air before combustion. Compression raises the air temperature, so the charge air is cooled before it enters the engine. Cooler, denser air can support the engine’s intended combustion and operating conditions, but the cooler must be designed for the engine, turbocharger, air receiver, cooling medium and control limits.
The charge-air cooler normally separates the compressed-air side from a cooling-water or seawater-related circuit. Heat passes through the core wall while the two fluids remain separated. Depending on the vessel and engine arrangement, the cooling circuit may use seawater directly, treated fresh water, central cooling water or another approved medium. The replacement core must match the actual circuit, not an assumed marine configuration.
CSTHEATEXCHANGER’s charge-air-cooler information describes marine engine applications and identifies charge-air cooling as a way to cool compressed air from a turbocharger or supercharger before it enters the engine. The company’s product range also includes marine engine aftercoolers and engine coolers for named engine families. These pages are useful starting points for an enquiry, but the final core must be selected from the actual engine and cooler data.

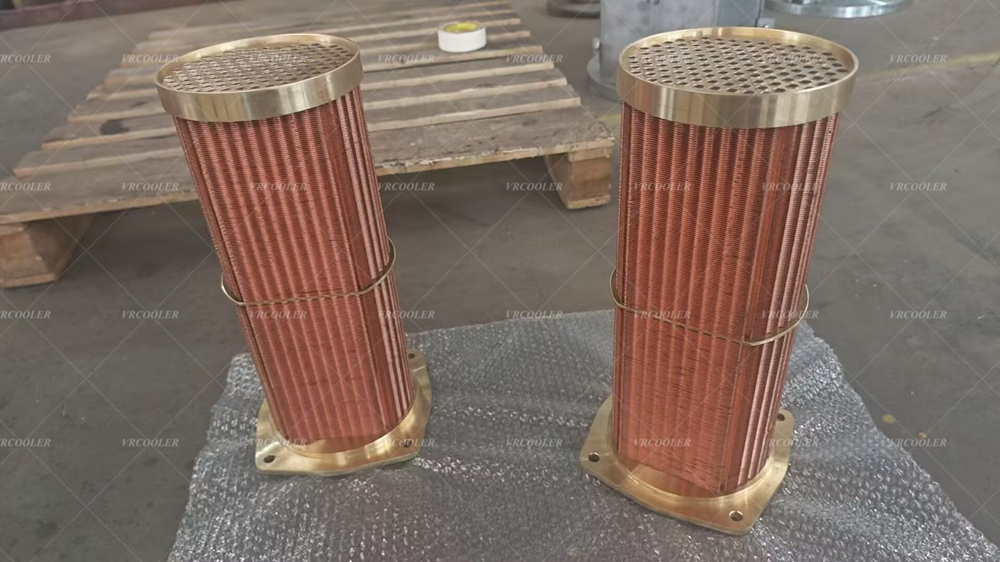

We distinguish the core bundle from the complete cooler assembly. The core may include tubes, fins, headers, tube sheets, side plates, supports and connection components, while the existing shell, end covers, water box or air housing remain onboard. The replacement scope must identify exactly which components are new and which will be reused.
A vessel may replace only the core when the existing housing, end covers, pipework and mounting structure remain serviceable. This can reduce the amount of dismantling and avoid changing connected systems, but only if the new bundle matches the original envelope and interfaces accurately.
We assess the existing cooler before recommending a core-only replacement. The inspection may identify leaking tubes, blocked passages, corroded headers, damaged fins, gasket-seat problems, erosion at water inlets or distortion caused by previous overheating or freezing. If the shell or water box is damaged, a new core alone may not restore reliable service.
CSTHEATEXCHANGER’s company information states that it builds replacement heat exchangers as well as new equipment and can provide production drawings. We use the replacement approach when the customer wants to preserve the vessel’s existing installation, but we still require the original drawings, nameplate data, inspection findings and engine conditions.
The economic benefit of a core replacement depends on the vessel’s downtime, access to the cooler, condition of reusable parts, need for new gaskets and fasteners, and the amount of onboard machining or alignment work. We do not promise a universal cost or time saving because each vessel has a different access and maintenance arrangement.
Before we quote a replacement marine charge air cooler core bundle, we request complete technical information. A part number alone may be useful, but it should be checked against the installed unit because modifications and previous replacements can change the actual dimensions.
Our matching checklist includes:
Engine manufacturer, model, rating and serial information.
Turbocharger or supercharger type and charge-air arrangement.
Original cooler manufacturer and cooler part number.
Core length, width, height, tube pattern and fin arrangement.
Air-side inlet and outlet dimensions and flange details.
Water-side or seawater-side inlet and outlet dimensions.
Tube-sheet, header, side-plate and support positions.
Charge-air flow, inlet and outlet condition where available.
Cooling-water or seawater flow, temperature and pressure.
Allowable air-side and water-side pressure drop.
Materials, coating, corrosion allowance and previous repair history.
Gasket, O-ring, fastener and seal requirements.
Vessel access, lifting limits and installation orientation.
Required drawings, inspection, pressure testing and documentation.
We ask the customer to send photographs with a scale reference, dimensional sketches and the existing nameplate. If the cooler is already removed, we also request tube-bundle photographs, leak locations, deposit samples and the water-box condition. The more reliable the input, the less risk there is of manufacturing a core that is dimensionally similar but technically unsuitable.
CSTHEATEXCHANGER can use customer drawings and design data to prepare a customized proposal. We distinguish confirmed dimensions from assumptions and identify any information that must be verified before production release.
A charge-air cooler must transfer heat without creating excessive restriction in the engine air path. If the replacement core has too much air-side resistance, the turbocharger and engine may not operate as intended. If the passages are too open but the heat-transfer area is insufficient, the charge air may remain too warm under load.
We review the air-side flow path, tube or fin arrangement, face area, headers, pass configuration and allowable pressure drop. The final design depends on the engine’s charge-air mass flow, turbocharger condition, intake arrangement and required outlet condition. We do not infer these values from the vessel type or cooler photograph.
The air-side passages must also remain clean. Oil mist from the turbocharger or crankcase ventilation, salt deposits, dust and combustion-related contamination can reduce heat transfer or restrict airflow. The vessel’s maintenance plan should identify how the air side will be inspected and cleaned without damaging the fins or tubes.
CSTHEATEXCHANGER’s charge-air cooler range includes engine-specific marine products and custom cooler options. We use those products as reference points, then confirm the actual core geometry against the engine and installed cooler data. If the replacement is a design change rather than a direct match, the customer should review the airflow, pressure drop, heat-transfer performance and engine acceptance criteria before approving manufacture.
A visual fit test is not enough. The replacement must be evaluated for both mechanical fit and air-side performance.
The water side of a marine charge-air cooler can be more difficult than the air side because seawater brings chlorides, marine organisms, suspended particles and changing temperature. Galvanic corrosion can occur when dissimilar metals are exposed to conductive water. Erosion can develop near high-velocity inlets, bends and tube entrances. Deposits can reduce the water passage and heat-transfer performance.
We first confirm whether the cooler uses direct seawater or a closed fresh-water circuit. This determines the material, coating, cleaning procedure, water velocity and corrosion review. A core designed for treated freshwater cannot automatically be transferred to direct seawater service.
CSTHEATEXCHANGER’s industrial heat-exchanger information lists material options such as stainless steel, copper, aluminum, Cu-Ni, brass and titanium for suitable designs. We select the material according to the water chemistry, pressure, temperature, flow velocity, galvanic arrangement and customer specification. A listed material is not a universal guarantee of seawater compatibility.
We also review sacrificial anodes, water-box material, tube-sheet isolation, gasket selection, coating condition and cleaning access where applicable. The vessel operator should maintain strainers, monitor water quality and follow the engine maker’s cooling-water procedure. The replacement core cannot compensate for blocked sea chests, damaged pumps, excessive water velocity or neglected anodes.
The customer should define the corrosion history of the removed core. Pinhole leakage, tube-wall thinning, dezincification, pitting and erosion may point to a system-level issue that needs correction before the new bundle is installed.

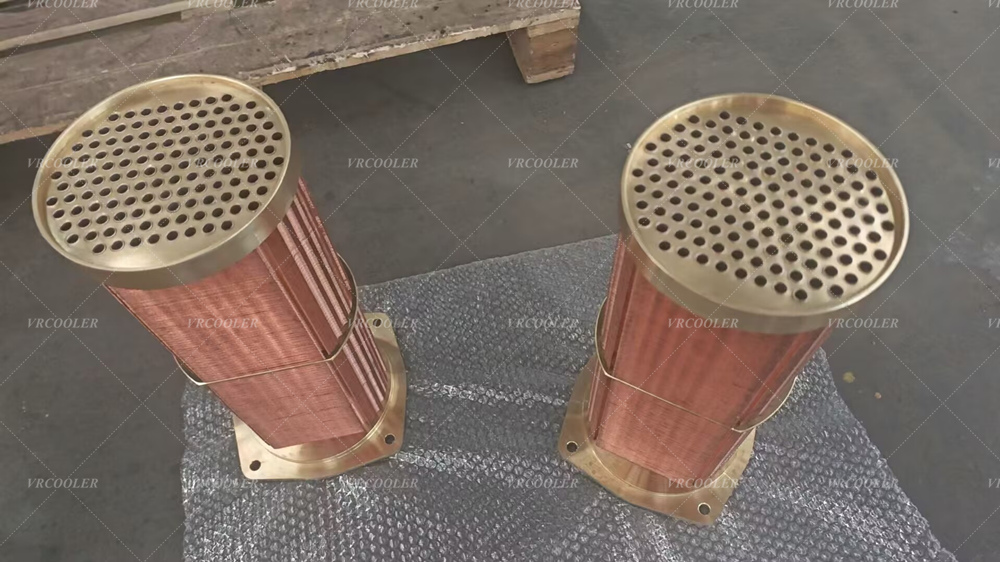

The replacement core’s materials should be shown on the technical quotation and drawings. We identify the tube material, fin or plate material, header and tube-sheet construction, side plates, brazed or expanded joints, coating and gasket interfaces. If a special alloy or coating is required, the customer should approve it against the engine and seawater system specification.
CSTHEATEXCHANGER’s company information describes industrial heat-exchanger manufacturing, automatic welding and tube-expanding production capabilities. The quality policy states that the company works from customer technical parameters and uses design software to support performance requirements. These statements describe the available engineering process; the actual replacement bundle still requires project-specific drawings and inspection documents.
We also check whether the old core used a removable bundle or a bonded assembly. The installation method affects lifting, alignment, gasket compression and the ability to reuse end covers. We verify tube-sheet thickness, bolt-circle dimensions, support rails, locating pins and clearances before releasing the drawing.
If the customer wants to change material, tube diameter, fin density or pass arrangement, we mark the item as a design change rather than a like-for-like replacement. This protects the customer from unintentionally changing pressure drop or cooling performance while expecting the old engine settings to remain unchanged.
The final scope should identify whether it includes the core, end covers, water boxes, gaskets, O-rings, fasteners, anodes, sensors, inspection reports, packing and installation instructions.
A marine replacement core should be inspected before it is shipped to the vessel. The test plan depends on the core construction, fluids, design pressure, purchaser requirements and applicable marine or engine documentation.
Our pre-delivery discussion may include:
Dimensional and visual inspection against approved drawings.
Material certificates and traceability where specified.
Tube-to-header or tube-to-tube-sheet joint inspection.
Air-side and water-side pressure testing.
Leak detection for separating the two fluid circuits.
Cleanliness inspection and protection of open passages.
Coating or surface-condition inspection where applicable.
Gasket, seal and accessory verification.
Packing and lifting-mark inspection.
Final drawing, test report and installation-document review.
CSTHEATEXCHANGER’s published quality information states that coils are leak tested and describes pressure or helium leak testing for relevant exported products. We do not automatically transfer a published test method or pressure value to every marine charge-air cooler. The order documents must identify the actual test pressure, test medium, test duration, acceptance criteria and reports supplied for the specific core.
The customer should also confirm whether a class society, engine manufacturer or vessel operator requires additional inspection or documentation. We do not claim OEM authorization or classification approval unless it is explicitly stated in the project documents.
A replacement core installation begins with safe isolation and removal of the old bundle. The crew should document the original orientation, connection labels, gasket locations and support arrangement before dismantling. The water side should be drained and the air side protected from debris entering the engine.
We check the existing housing for corrosion, distortion, cracks, damaged bolt threads, gasket-seat defects and blocked drains. We also inspect the water box and pipework. If the housing is not suitable for reuse, the customer should resolve that issue before installing the new core.
Our installation checklist includes:
We verify the core orientation, tags and dimensions against the approved drawing.
We inspect gasket seats, seals, fasteners, supports and alignment points.
We confirm that air and water connections match the vessel piping.
We check the condition of strainers, anodes, valves and flexible connections.
We tighten fasteners according to the approved procedure and sequence.
We pressure-test or leak-check the installed circuits before engine start.
We monitor charge-air and cooling-water conditions during a controlled trial.
The vessel’s chief engineer and authorized service personnel control engine start-up, load increase, alarm verification and sea-trial acceptance. We provide the core documentation and technical support included in the order. Final acceptance should use the engine maker’s operating limits and the approved replacement specification rather than an informal comparison with the old cooler.
A new core will not remain reliable if the cooling system continues to operate with poor water quality, blocked strainers, damaged anodes or excessive flow velocity. We recommend combining core maintenance with the vessel’s planned engine and seawater-system inspections.
Routine checks may include:
Inspecting charge-air temperature and engine operating trends.
Checking water pressure, temperature, flow and differential pressure.
Cleaning seawater strainers and inspecting the sea chest system.
Inspecting anodes and water-box corrosion.
Checking for air-to-water or water-to-air leakage.
Cleaning air-side oil or dust deposits using an approved method.
Inspecting fins, tubes, headers, gaskets and supports.
Recording pressure-test, repair and cleaning history.
If charge-air temperature rises, we investigate the air filter, turbocharger, fuel load, cooler air passages, water flow and fouling before assuming the core has failed. If water appears on the air side, the core should be isolated and tested by qualified personnel. Continued operation with an internal leak may damage the engine or contaminate the intake system.
CSTHEATEXCHANGER can support replacement cooler and tube-bundle enquiries, but the vessel operator remains responsible for onboard maintenance, safety, class requirements and engine operation.
When we prepare a replacement charge-air cooler proposal, we connect the new core to the existing engine and cooler housing. We define the engine model, air flow, cooling-medium conditions, pressure drop, dimensions, connection points, materials, corrosion history, inspection, testing and delivery requirements.
CSTHEATEXCHANGER’s Charge Air Cooler product category includes marine engine charge-air coolers, engine coolers and aftercooler products. Its Marine Engine Charge Air Cooler page provides a direct reference for marine applications, while the Cummins Engine Cooler and Yanmar Engine Cooler pages show engine-specific replacement directions. The About Us page describes new and replacement heat-exchanger manufacturing and custom design support.
We ask the customer to provide the engine nameplate, cooler drawings, core dimensions, air and water conditions, photographs, corrosion history, installation limits, inspection requirements and delivery port. Contact CSTHEATEXCHANGER to discuss a replacement marine charge air cooler core bundle for your vessel.
A correctly matched replacement core can help the vessel restore the intended charge-air cooling arrangement while preserving a serviceable housing. Final suitability depends on accurate engine data, material compatibility, pressure testing, installation quality, water-system maintenance and controlled commissioning. We recommend confirming every dimension, material, test and acceptance criterion in the approved replacement drawing and quotation.
