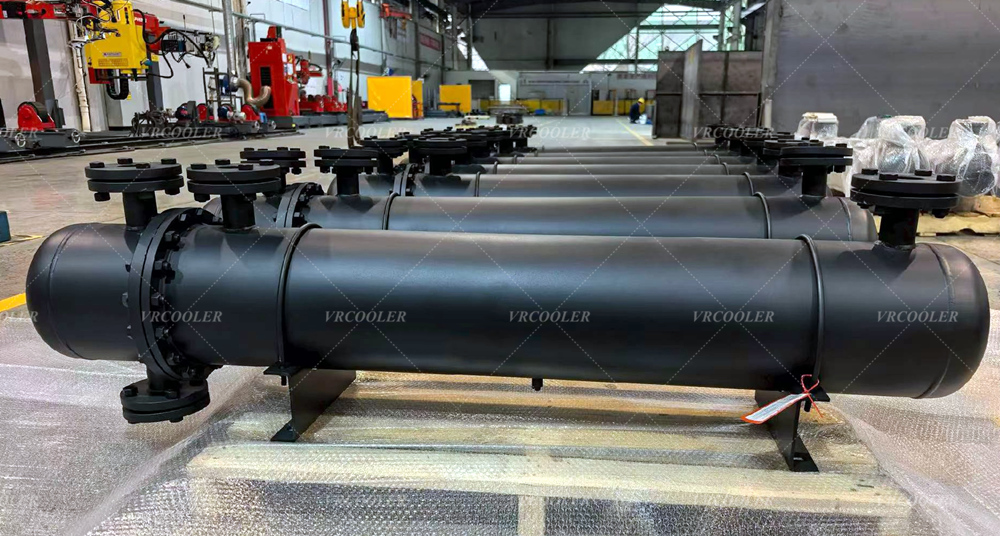

A high-pressure floating-head heat exchanger for an American oil and gas project must be designed around the process fluids, pressure boundary, temperature difference, corrosion risk, fouling mechanism and maintenance plan. A floating-head shell-and-tube exchanger is often considered when the process creates significant differential thermal expansion or when the operator needs to remove the tube bundle for inspection and cleaning. The configuration can support refinery, petrochemical, gas-processing and related applications, but the final pressure rating and compliance scope must be established in the project datasheet.
At CSTHEATEXCHANGER, we build industrial heat exchangers for process applications and support both new equipment and replacement work. Our published technical information describes the floating-head exchanger as having one fixed tube sheet and one movable floating head, allowing the bundle to expand inside the shell and be removed for maintenance. CSTHEATEXCHANGER also publishes industrial shell-and-tube capabilities, custom design support, production drawings and a Hastelloy C-22 shell-and-tube option for oil-and-gas applications.
For American oil and gas projects, we start with the purchaser’s process datasheet and engineering specification. We then review the thermal duty, pressure and temperature conditions, metallurgy, tube-bundle arrangement, inspection requirements, documentation and delivery interfaces. This article explains how we approach that work without presenting generic product information as a project-specific certification or pressure guarantee.
Oil and gas process equipment can experience large temperature differences between the shell-side and tube-side fluids. During start-up, shutdown and changing operating conditions, the shell and tubes may expand at different rates. If the exchanger cannot accommodate that movement, thermal stress can affect the tubesheet, tubes, shell, joints or supports.
The floating-head configuration allows one tube sheet to move relative to the shell. CSTHEATEXCHANGER’s published classification explains that one tube sheet is fixed while the floating head can slide inside the shell. This arrangement helps accommodate differential thermal expansion and allows the bundle to be pulled out for cleaning and inspection. Those features are relevant to oil refinery and petrochemical services where fouling, high temperature differences or demanding maintenance requirements are expected.
We do not select a floating head simply because a project uses the phrase “high pressure.” The EPC or owner’s mechanical engineer must evaluate pressure, temperature, thermal cycling, nozzle loads, vibration and maintenance needs. A U-tube or fixed-tubesheet exchanger may be more appropriate for another service. The configuration should follow the process and mechanical design rather than a keyword.
A floating-head exchanger also has trade-offs. Its construction is more complex, its envelope may be larger and its fabrication and inspection requirements can be more demanding. The floating-head seal and internal components require careful design and maintenance. We include these points in the technical review so the owner can compare lifecycle implications instead of focusing only on heat-transfer area.

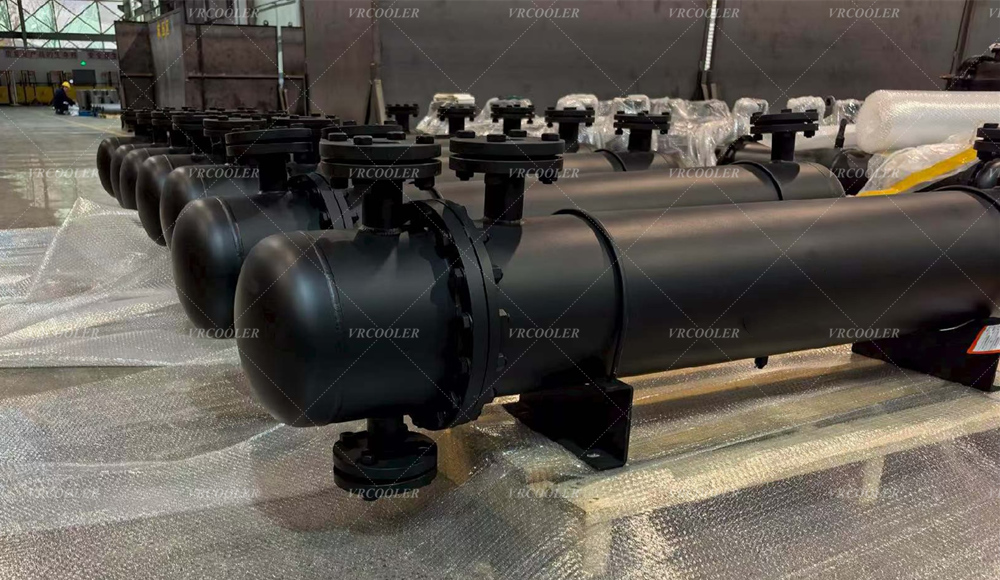

Before we prepare a quotation, we ask the EPC contractor or end user to provide a controlled process datasheet. The exchanger cannot be reliably designed from flow rate and outlet temperature alone. We need to know the composition, phase condition, pressure, temperature, fouling tendency and operating envelope on both sides.
Our review normally covers:
Equipment tag, service description and process location.
Shell-side and tube-side fluid names and compositions.
Normal, minimum and maximum flow rates.
Inlet and outlet temperatures for both fluids.
Operating and design pressure and temperature.
Heat duty, approach temperature and required design margin.
Allowable pressure drop on the shell and tube sides.
Vapor fraction, flashing, condensation or boiling conditions.
Fouling factors and expected contaminants.
Chlorides, sulfur compounds, water, acids and other corrosion drivers.
Corrosion allowance and specified materials.
Thermal cycling, start-up, shutdown and upset conditions.
Orientation, plot space, nozzle positions and maintenance access.
Required documents, inspection points, testing and preservation.
We also clarify whether the exchanger is part of a crude unit, hydrotreating train, gas-processing package, compressor system, utility system, product cooler or another process. The service name affects the questions we ask, but it does not replace the actual fluid data.
CSTHEATEXCHANGER’s public information states that its design team uses professional heat-exchanger software and can provide design data and production drawings. We use that capability to create a thermal and mechanical proposal tied to the supplied process conditions. The EPC contractor remains responsible for confirming the data and approving the final design basis.
A floating-head heat exchanger uses a fixed tube sheet at one end and a floating tube sheet or head at the other. The floating end can move within the shell, allowing the tube bundle and shell to respond more freely to different thermal expansion rates. The bundle can also be removed from the shell when the design provides suitable access and pulling space.
We review the floating-head arrangement together with the shell diameter, tube length, bundle weight, seal design, cover, channel, baffles, supports and maintenance envelope. The mechanical engineer must verify that the design accommodates the specified pressure and temperature loads without compromising the pressure boundary or serviceability.
For high-temperature or high-pressure oil and gas service, we also consider thermal transients. The exchanger may not experience a single stable condition throughout its life. Repeated cycling can affect joints, tubesheets, seals and supports. The operating procedure should define warm-up and cool-down rates where required, and the design review should consider the expected number and severity of cycles.
CSTHEATEXCHANGER’s published shell-and-tube classification identifies the floating-head exchanger as suitable for oil-refinery heat exchange, high-fouling industrial systems and applications with a large temperature difference. We use this as application guidance, not as a blanket statement that every floating-head design is acceptable for every American refinery service.
The approved calculation should document the thermal expansion approach, pressure-boundary design, support arrangement and any required stress review. The purchaser should request the applicable calculations and drawings defined by the project document register.
Material selection depends on the process chemistry, pressure, temperature, corrosion mechanisms, erosion risk and project specification. Oil and gas streams can include water, hydrogen sulfide, chlorides, organic acids, sulfur compounds and other contaminants. Cooling water and utility fluids introduce their own corrosion considerations.
We review the material requirements for tubes, shell, channel, tubesheets, floating head, baffles, supports, gaskets, bolting and weld consumables. A corrosion allowance may be specified, but it should be supported by the project corrosion study and materials-selection basis. The same alloy may perform differently under different temperatures, concentrations and flow conditions.
CSTHEATEXCHANGER publishes material options including stainless steel, copper, aluminum, Cu-Ni, brass and titanium for suitable industrial designs. Its oil-and-gas content also identifies Hastelloy C-22 shell-and-tube exchangers for highly corrosive process streams. We treat Hastelloy C-22 as a project option that requires a specific corrosion assessment and purchaser approval, not as an automatic solution for every hydrocarbon service.
For an American project, the EPC specification may also require traceability, supplementary testing, welding qualifications, toughness documentation, hardness control, positive material identification or special corrosion compliance. The actual requirements must be listed in the purchase specification. We do not infer ASME, API, NACE or other compliance from a material name or product page.
CSTHEATEXCHANGER’s quality information states that the company provides controlled manufacturing and test records for specified projects. The final documentation package should identify the actual material certificates, heat numbers, weld records, NDE reports, pressure-test records and any additional inspection required by the purchase order.
The exchanger’s thermal design establishes the required heat-transfer area, but high-pressure service requires a parallel mechanical review. We calculate or verify the heat-transfer coefficient, duty, temperature approach, fouling allowance, tube count, tube length, shell diameter, baffle arrangement and pressure drop. We then review pressure-boundary thickness, tubesheet design, gasket seating, channel cover, nozzles, supports and external loads according to the applicable design basis.
We also ask whether the service involves phase change. A condenser, reboiler or evaporator needs appropriate vapor distribution, liquid drainage, level control and pressure-drop analysis. A two-phase process should not be treated as a simple single-phase cooler merely because both sides flow through a shell and tube exchanger.
High pressure can influence tube diameter, wall thickness, tube material, tube-to-tubesheet joint, pass arrangement and inspection access. The correct design depends on which side carries the higher pressure and whether a leak between fluids creates a safety or environmental concern.
CSTHEATEXCHANGER states that its engineers use design software to assess technical parameters and share design data with customers. We use the approved process data and purchaser requirements as inputs to that engineering work. The final pressure rating is not determined by the phrase “high pressure” in an article title; it must appear on the approved datasheet and nameplate documentation.
The EPC contractor should also review nozzle loads and piping flexibility. A correctly designed exchanger can still be overstressed if connected piping imposes excessive forces or moments. We provide the agreed equipment geometry and interface data so the piping and stress teams can complete their checks.
Fouling is a major consideration in refinery and gas-processing service. Deposits can reduce heat transfer, increase pressure drop, promote under-deposit corrosion and complicate process control. The fouling mechanism may involve coke, scale, salts, polymers, sludge, catalyst fines, corrosion products or biological growth in utility systems.
We ask how the owner intends to clean the exchanger. The answer affects the floating-head arrangement, tube access, shell-side access, bundle pulling space, gasket selection and material compatibility. Cleaning may be mechanical, hydroblasting, chemical, online or a combination of methods. The selected method must be safe for the fluid, tube material and pressure boundary.
One of the main practical benefits of the floating-head design is that the tube bundle can be removed from the shell. CSTHEATEXCHANGER’s published information identifies this removable-bundle feature and connects it with cleaning and maintenance. The site still needs enough space, lifting capacity, platforms and access to perform the work safely.
CSTHEATEXCHANGER also lists tube bundles and replacement heat exchangers within its product structure. These capabilities can support a retrofit or turnaround project, but the supplier needs the existing drawings, inspection findings, tube condition, current process duty and any modified operating requirements before recommending a replacement.
We recommend establishing baseline inlet and outlet temperatures, flow, pressure drop and leak-test results after commissioning. Comparing future readings with the baseline can help the owner identify fouling, flow change, tube damage or control problems before the exchanger reaches a critical condition.
A high-pressure exchanger for an American oil and gas project must be delivered with documentation that matches the purchaser’s requirements. The document package may be reviewed by the EPC contractor, owner, inspector, engineering consultant and quality department. The required code, standard, third-party inspection and record format must be agreed before fabrication.
Our typical technical submittal discussion includes:
Technical quotation and deviations list.
Thermal design summary and equipment datasheet.
General-arrangement drawing and nozzle orientation.
Tube-bundle, shell, channel and floating-head details.
Weight, center of gravity, lifting and support information.
Materials list and traceability documents where specified.
Welding procedures, qualifications and weld maps where required.
Non-destructive examination plan and reports.
Tube-to-tubesheet inspection and joint information.
Hydrostatic, pneumatic, leak or pressure-test records as applicable.
Coating, preservation, packing and shipping requirements.
Operation, maintenance and spare-parts information.
Final manufacturing record book or data dossier.
CSTHEATEXCHANGER’s quality policy states that its products are designed with customer technical parameters and that the company provides design support, production data and leak testing information. It also states that the company is ISO 9001 certified and that coils are tested according to the published quality process. These statements should not be expanded into an automatic claim of ASME, API, NACE, National Board or other American project certification unless the relevant certification and scope are explicitly included in the contract documents.
For each project, we ask the EPC contractor to define hold points, witness points, inspection agency involvement, acceptance criteria and document-revision control. A clear inspection plan reduces disagreement during fabrication and final approval.
Procurement planning should begin with the approved datasheet and document register. Special alloys, forgings, tubes, gaskets, floating-head components, valves or non-standard fabrication may affect the schedule. We do not promise a lead time before reviewing the design, material availability, inspection scope and purchase-order requirements.
We provide the agreed equipment weight, dimensions, center of gravity, lifting points, nozzle positions and support loads so the EPC team can coordinate transportation and site installation. The purchaser should check road access, crane capacity, bundle-pulling space, maintenance platforms and final equipment orientation before release.
After delivery, the site team should inspect the exchanger for transport damage and verify the tag, nameplate, nozzles, covers and temporary preservation. The exchanger should not be forced into piping alignment. Piping stress and nozzle loads must be checked against the approved equipment data.
Our installation and commissioning interface checks include:
We verify the equipment tag, orientation, supports and nozzle connections.
We inspect the floating-head cover, channel, bundle access and protective covers.
We confirm that piping, valves, strainers and instruments match the approved P&ID.
We review flushing, cleanliness and removal of construction debris.
We check pressure-test and leak-test records before introducing process fluid.
We confirm the approved warm-up, cool-down and start-up sequence.
We record initial temperatures, flow rates and pressure drops.
The owner and EPC contractor remain responsible for site safety, hazardous-energy isolation, process commissioning and final acceptance. We provide the equipment information and technical support included in the agreed scope.
When we prepare a proposal for an American oil and gas project, we connect the floating-head exchanger to the process datasheet, mechanical specification, materials basis, inspection plan and delivery schedule. We define the pressure boundary, temperature range, heat duty, fouling, thermal expansion, removable-bundle requirement, materials, interfaces and documentation before freezing the commercial offer.
CSTHEATEXCHANGER’s main types of shell-and-tube heat exchangers information describes the floating-head configuration, removable tube bundle, thermal-expansion capability and refinery applications. Its Hastelloy C-22 shell-and-tube information provides a reference for discussing highly corrosive oil-and-gas streams. The About Us page describes custom industrial process heat exchangers, new and replacement work, production drawings and OEM/ODM service.
We ask the customer to provide the process datasheet, pressure and temperature conditions, fluid composition, fouling basis, corrosion study, materials specification, applicable code, inspection plan, plot constraints, nozzle loads, document register and delivery schedule. Contact CSTHEATEXCHANGER to discuss a high-pressure floating-head heat exchanger for your American oil and gas project.
A properly selected floating-head exchanger can support demanding process heating and cooling service while improving access for inspection and cleaning. Final suitability depends on the approved thermal and mechanical design, materials compatibility, fabrication quality, inspection, installation, operation and maintenance. We recommend documenting all pressure ratings, code requirements, certifications, acceptance criteria and deviations in the controlled project package.
