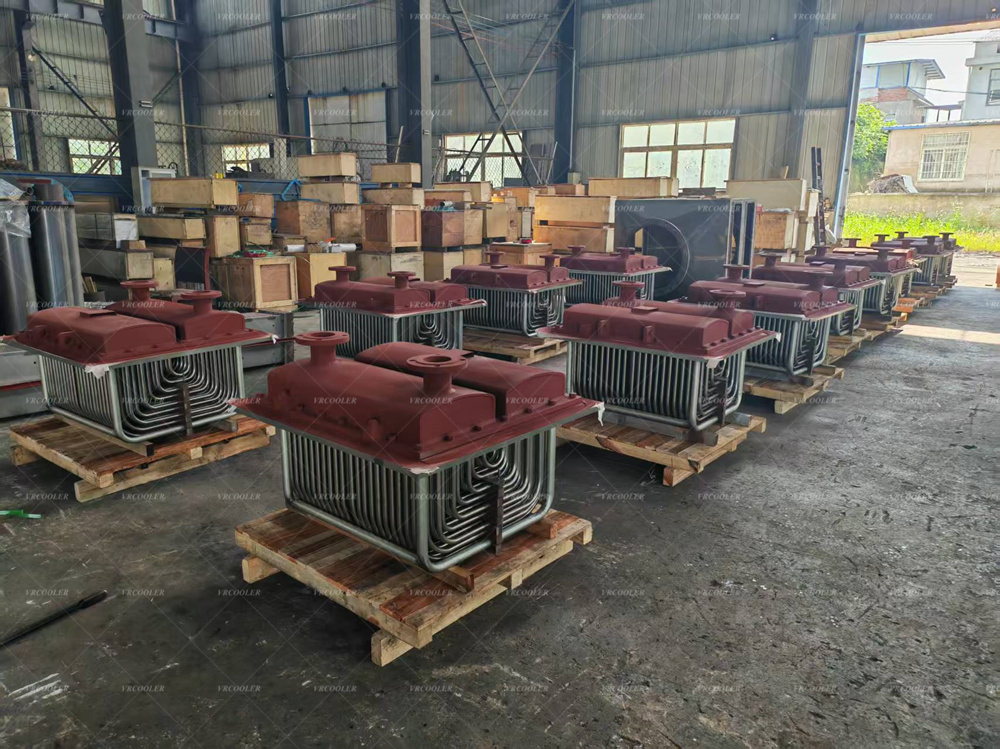

A shipboard box cooler for auxiliary engine cooling of an oil tanker transfers heat from the vessel’s closed cooling-water circuit into seawater through a cooler installed in a sea chest or box cooler chamber. This arrangement can reduce the need for a separate seawater pump and long seawater pipe runs to an external cooler, but the design must account for the auxiliary engine load, seawater temperature, hull structure, fouling, corrosion, pressure drop and maintenance access.
At CSTHEATEXCHANGER, we design and manufacture marine heat exchangers, box coolers, engine coolers and related cooling components for new vessels and replacement applications. Our public product range includes Marine Box Cooler, Box Cooler, Yanmar Engine Cooler and other marine engine cooling products. CSTHEATEXCHANGER also states that it can build heat exchangers for new jobs or replacements and provide custom production support.
In this article, we explain how we evaluate a box cooler for an oil tanker’s auxiliary diesel engines, how the closed-loop and seawater circuits work, and what the owner, shipyard and marine engineer should confirm before purchase. We do not present a standard product page as proof of a particular tanker’s engine performance, class approval or guaranteed cooling result.

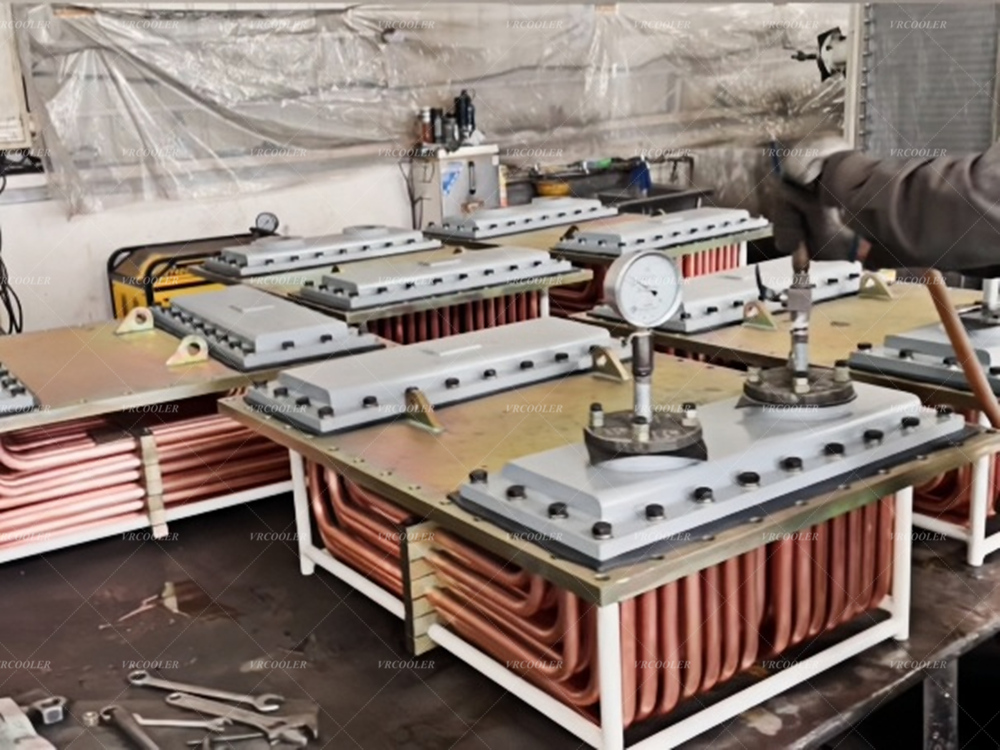

A box cooler is typically installed in a sea chest or hull-side box. The cooler’s tube bundle is exposed to seawater outside the closed engine-cooling circuit, while the vessel’s treated cooling water passes through the tubes or the specified internal circuit. Heat from the auxiliary-engine cooling loop is transferred through the tube wall and released into the surrounding seawater.
The arrangement allows the seawater side to remain local to the hull rather than being pumped through a long onboard seawater circuit. Depending on the ship’s design, the box cooler may serve a central cooling-water system, an auxiliary-engine jacket-water loop, lubricating-oil cooling, charge-air cooling or other shipboard services. The exact arrangement must be defined by the vessel’s piping and instrumentation diagram.
CSTHEATEXCHANGER’s marine box-cooler information provides a basis for discussing shipboard cooling applications. Its marine engine cooler pages identify cooling products for diesel engines and auxiliary engines. These references do not determine the cooler size or connection arrangement for a particular oil tanker.
We first distinguish the auxiliary engine’s closed freshwater or treated-water loop from the external seawater environment. The engine loop needs stable flow, temperature control and water chemistry. The seawater side needs protection against marine growth, silt, corrosion and excessive flow restriction. Treating both sides as one fluid circuit would lead to an incorrect design and maintenance plan.
An oil tanker’s auxiliary engines may power generators, pumps, cargo-support systems, hotel loads and emergency or standby services. The cooling demand can change with electrical load, seawater temperature, engine operating profile, fouling and the number of engines running. A cooler selected only from engine name or approximate power may not provide enough information for a reliable design.
We request the auxiliary-engine cooling duty and the vessel’s operating envelope. The project team should identify normal and maximum heat rejection, cooling-water flow, inlet and outlet temperatures, seawater design temperature, allowable pressure drop, startup condition and any redundancy requirement. If the box cooler is part of a central cooling system, we also need the combined load and the effect of other connected consumers.
Our design review normally includes:
Auxiliary-engine manufacturer, model and rating.
Number of engines connected to the cooling system.
Jacket-water or central-freshwater flow and conditions.
Lubricating-oil, charge-air or other connected cooler loads.
Normal, maximum and standby operating scenarios.
Seawater temperature, salinity, sediment and fouling conditions.
Required heat-transfer duty and design margin.
Allowable pressure drop on the closed-water side.
Sea-chest dimensions, hull location and immersion depth.
Box-cooler flange, support and mounting details.
Anode arrangement, coating specification and corrosion history.
Cleaning access, inspection method and docking schedule.
Required drawings, tests, class documentation and spare parts.
CSTHEATEXCHANGER can use customer drawings and process data to design a customized heat exchanger. We identify missing information before production release instead of assuming that an existing box-cooler shell or sea-chest opening is identical to a published product.
A typical marine auxiliary-engine cooling system separates the engine coolant from seawater. The closed loop circulates treated freshwater or another specified coolant through the engine and then through the box cooler. Seawater flows around the external surfaces of the cooler in the sea chest, carrying heat away from the tube bundle.
This separation protects the engine circuit from direct seawater contamination and can simplify onboard seawater piping. However, it does not remove the need to manage water chemistry, corrosion, marine growth or seawater flow. A failed tube or damaged joint could allow one fluid to enter the other, so leak prevention and testing are critical.
We review whether the box cooler operates with natural flow, forced flow created by vessel movement, or a sea-chest arrangement that depends on the hull’s seawater flow. The design should consider the ship’s speed range, berth condition, shallow-water operation, sea-chest location and possible blockage by debris or marine organisms.
CSTHEATEXCHANGER’s marine cooling product range includes box coolers and engine coolers for shipboard applications. The final system should still be checked against the tanker’s P&ID, pump curve, sea-chest drawing and engine manufacturer’s cooling requirements. A box cooler cannot compensate for insufficient freshwater circulation, a blocked sea chest, incorrect valve alignment or a failed expansion tank.
We also check whether the auxiliary-engine cooling loop requires a thermostatic valve, bypass, expansion tank, air separator, preheating arrangement or standby cooler. These items belong to the complete cooling system, even when the box cooler is the main heat-rejection component.
A box cooler operates in one of the most demanding environments for heat-transfer equipment. Seawater contains chlorides and biological activity, while the vessel may operate in warm, polluted, muddy or high-salinity waters. Galvanic corrosion can occur if dissimilar metals are connected without suitable isolation. Erosion can appear at tube entrances or areas of high local velocity.
We select the tube, tube sheet, header, support, frame, coating, fastener and anode arrangement together. CSTHEATEXCHANGER’s industrial heat-exchanger information lists material options such as stainless steel, copper, aluminum, Cu-Ni, brass and titanium for suitable designs. We do not treat one listed material as a universal seawater solution. The correct selection depends on water chemistry, flow velocity, temperature, corrosion history, design pressure and owner specification.
We ask the tanker operator to provide the removed cooler’s failure evidence when replacing an existing unit. Pitting, dezincification, tube-wall thinning, erosion, coating loss, marine growth or cracking may identify a system-level issue. The new cooler may need a changed material, better isolation, different velocity, improved anode protection or a revised cleaning procedure.
CSTHEATEXCHANGER’s company information describes custom heat-exchanger manufacturing, replacement work and production support. The final quotation should state the actual materials, coating system, anodes, gaskets, pressure boundary and inspection documents. “Marine grade” by itself is not enough information for a procurement decision.
The operator should maintain the closed-loop coolant according to the engine and system procedure. Low-quality freshwater, incorrect inhibitor concentration or trapped air can reduce cooling performance and accelerate internal corrosion.
Box-cooler sizing starts with the heat that must be rejected, not only the engine’s rated output. The cooling duty may include jacket-water heat, lubricating-oil heat, charge-air heat, generator auxiliary loads and other consumers connected to the central cooling loop.
We calculate or verify the required heat-transfer area using the coolant flow, inlet and outlet temperatures, seawater design condition, heat-transfer coefficients, fouling allowance and pressure-drop limit. We also consider the difference between the ship’s design seawater condition and actual operating conditions in tropical, temperate, cold or shallow waters.
The closed-water side must maintain enough flow through the cooler to carry heat away from the engine. Excessive resistance can reduce pump flow, while an oversized or poorly distributed bundle may increase cost and installation space without improving the complete system. The sea-chest side also needs sufficient exposure to flowing seawater, with attention to blockage and fouling.
CSTHEATEXCHANGER uses design software and customer technical data for heat-exchanger projects, according to its published company and quality information. We use the approved engine conditions, vessel drawings and heat-load scenarios to prepare the design. We do not publish a universal capacity or temperature value for all oil-tanker auxiliary engines.
If two or more auxiliary engines share a box cooler, the project team should define whether all engines operate simultaneously, whether one cooler is redundant, and how the system behaves during maintenance. These operating cases can change the required area, valves, bypasses and alarm strategy.
Installation planning begins with the hull and sea-chest arrangement. We verify the box dimensions, flange or support arrangement, immersion depth, access opening, lifting route, internal clearance and connection position. The cooler must be installed without damaging the hull structure or creating an obstruction that increases marine-growth risk.
The yard should protect the tube bundle during handling and confirm that the mounting supports distribute the load correctly. The closed-water connections should be aligned without forcing the piping into position. Air vents, drains, isolation valves, strainers and expansion provisions should be installed according to the approved drawing and P&ID.
Our installation review includes:
We verify cooler tag, orientation, dimensions and mounting points.
We inspect tube bundle, headers, supports, coating and anodes.
We confirm closed-water inlet and outlet connections.
We check sea-chest access, grilles, covers and hull-side clearances.
We inspect gaskets, fasteners, valves and pipe supports.
We pressure-test and leak-check the specified circuit before operation.
We record freshwater and seawater-side temperatures and pressures during trial.
CSTHEATEXCHANGER can provide production drawings and design information for customized marine coolers. The shipyard and marine contractor remain responsible for hull work, welding, pipe installation, class inspection, onboard safety and final commissioning.
The tanker’s cargo, pump-room and machinery-space procedures must also be considered. The box cooler should not be treated as an isolated component when its removal or installation affects tank access, docking work, sea-chest isolation or the vessel’s operational schedule.
Marine box coolers can accumulate shell growth, weeds, silt, scale and biological deposits. The rate depends on the ship’s trading route, water temperature, berth time, hull condition, sea-chest design and local water quality. Fouling reduces the effective heat-transfer surface and may restrict seawater flow around the bundle.
We recommend monitoring trends rather than waiting for an engine alarm. The crew can compare auxiliary-engine load, cooling-water temperatures, pressure drop, pump condition and sea-chest inspection findings. A rising outlet temperature at the same engine load may indicate fouling, reduced freshwater flow, air in the circuit, a control problem or a change in seawater condition.
Maintenance may include:
Inspecting and cleaning sea-chest grilles and covers.
Removing marine growth from accessible cooler surfaces.
Checking anodes and coating condition.
Inspecting for pitting, erosion, cracks and tube leakage.
Checking closed-loop coolant quality and air removal.
Verifying pump flow, valves and bypass operation.
Inspecting gaskets, supports and pipe connections.
Recording temperatures, pressures, alarms and corrective work.
The cleaning method must match the material and coating. Aggressive tools or chemicals can damage tubes, fins, coatings or anodes. The vessel should use trained personnel and follow the manufacturer’s maintenance instructions, docking plan and applicable marine procedures.
CSTHEATEXCHANGER’s company information supports new and replacement heat-exchanger work. If a box cooler requires a replacement bundle, the owner should retain the inspection findings, drawings, previous repairs and operating history so the new design addresses the original failure mechanism.
A shipboard box cooler for an oil tanker may require more than a dimensional drawing. The owner, shipyard, engine supplier, piping contractor, inspector and class society may each require specific documents. The final scope should define which party supplies calculations, material certificates, drawings, pressure-test reports, coating records, anode information and installation instructions.
Our technical submission may include:
Thermal design data and heat-duty calculation.
General arrangement and mounting drawing.
Closed-water and seawater connection details.
Material list and certificates where specified.
Tube, header, support and anode information.
Welding, inspection and dimensional records where required.
Pressure-test and leak-test reports.
Coating and preservation details.
Packing, lifting and installation instructions.
Recommended spare parts and maintenance information.
CSTHEATEXCHANGER’s quality information states that its coils are leak tested under specified procedures and that it can provide design and production documents. We do not transfer a published test pressure or test method to every box cooler automatically. The purchase order must state the actual test medium, pressure, duration, acceptance criteria and inspection scope.
We also avoid claiming classification approval unless the project documents confirm the relevant class society, product scope and certificate. Oil-tanker service creates a demanding operating context, but the final compliance requirements come from the owner, shipyard, flag, class and applicable marine rules.
When we prepare a shipboard box-cooler proposal, we connect the cooler to the oil tanker’s auxiliary-engine cooling system. We define engine load, closed-loop coolant, seawater condition, heat duty, pressure drop, sea-chest geometry, materials, anodes, installation, inspection, testing and maintenance access.
CSTHEATEXCHANGER’s Marine Box Cooler page provides a direct reference for shipboard box-cooler applications. Its Box Cooler product page supports the broader cooling-equipment discussion, while the Yanmar Engine Cooler page identifies marine and auxiliary diesel-engine cooling applications. The About Us page describes custom heat-exchanger manufacturing, replacement work and production support.
We ask the customer to provide auxiliary-engine details, cooling-system P&IDs, heat load, freshwater flow, seawater condition, sea-chest drawings, hull connection details, corrosion history, classification requirements and delivery schedule. Contact CSTHEATEXCHANGER to discuss a shipboard box cooler for auxiliary-engine cooling on your oil tanker.
A correctly matched box cooler can support reliable auxiliary-engine heat rejection while limiting the length of onboard seawater piping. Final performance depends on the cooler design, freshwater circulation, seawater exposure, corrosion control, fouling management, installation quality and operating maintenance. We recommend documenting every thermal, mechanical, material, testing and class requirement in the approved marine project package.
