A flue gas heat recovery system for a food processing plant can capture part of the heat leaving a boiler, oven, dryer, furnace or other combustion process and transfer it to a useful load. The recovered heat may preheat boiler make-up water, process water, combustion air, drying air, wash water or another compatible stream. By reusing energy that would otherwise leave through the stack, the plant may reduce the fuel or utility demand required from the primary heating system.
At CSTHEATEXCHANGER, we design and manufacture finned-tube and industrial heat exchangers for flue-gas waste-heat recovery. Our published product information describes gas-to-water recovery for domestic water or boiler make-up water and gas-to-gas recovery for combustion or drying air. It also identifies boilers, dryers, kilns, printing and dyeing equipment and other industrial heat sources as application contexts.
For a food-processing plant, we begin with measured exhaust conditions and the actual heat demand. We do not promise a standard energy-saving percentage or install a heat exchanger without checking condensation, corrosion, pressure drop, food-safety separation, emissions and bypass requirements. In this article, we explain how we approach a flue-gas recovery retrofit and how CSTHEATEXCHANGER can support the equipment design.
Food factories often use combustion-based equipment for steam, hot water, baking, cooking, drying, frying, sterilization, cleaning or process heating. The available heat depends on the source, fuel, operating schedule, exhaust temperature, air flow and existing stack system.
Potential recovery sources may include:
Boiler flue gas leaving the economizer or boiler outlet.
Thermal-oil or hot-water heater exhaust.
Baking ovens and roasting ovens.
Spray dryers, belt dryers and dehydration equipment.
Kilns or combustion chambers used in ingredient processing.
Frying, smoking or thermal-treatment exhaust where applicable.
Emergency or seasonal heating equipment with regular operating hours.
We first map the exhaust stream and the heat demand separately. A plant may have a hot flue gas source during production but need hot water at another time. If the schedules do not match, a buffer tank, thermal storage or a controlled auxiliary heater may be required.
CSTHEATEXCHANGER’s flue-gas recovery information states that gas-to-water devices can recover heat for domestic water or boiler make-up water, while gas-to-gas devices can heat combustion air or drying air. These are design routes, not universal guarantees. The best route depends on the food plant’s utility system and the quality of the exhaust gas.
We also identify whether the recovered heat must remain physically separated from food, potable water or product-contact services. A heat exchanger can transfer energy without allowing the flue gas to mix with the process stream, but the plant still needs suitable materials, controls, leak detection and sanitation procedures.

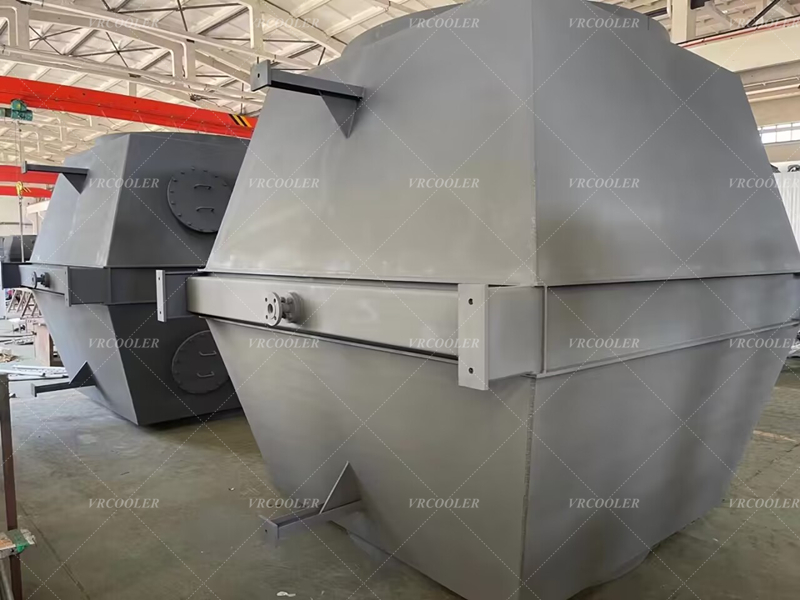

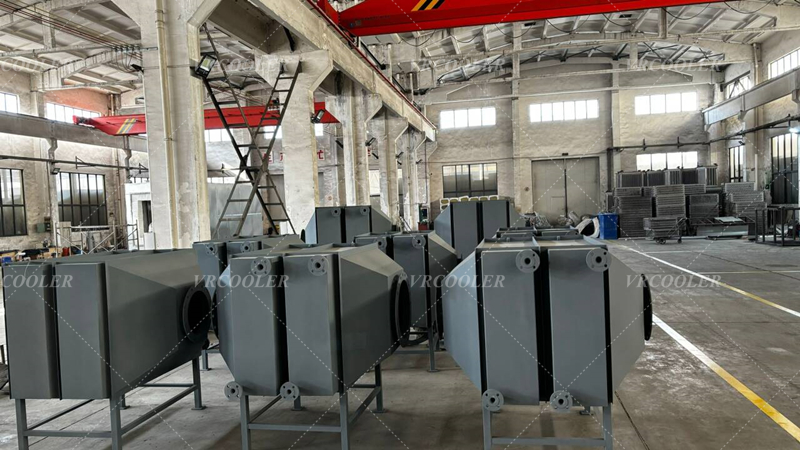

The two most common recovery arrangements are gas-to-water and gas-to-gas. We compare both before selecting the heat exchanger.
In a gas-to-water system, hot flue gas passes across the heat-transfer surface while water flows through tubes or another sealed circuit. The recovered hot water may preheat boiler feedwater or make-up water, support cleaning, preheat process water or feed a low-temperature heating circuit.
This arrangement can be practical when the food plant has a steady hot-water demand. We review water flow, inlet temperature, target outlet condition, water quality, pressure, storage capacity and the consequences of a flue-gas-side leak. If the water is potable or used in a product-related process, the plant must define the required heat exchanger arrangement and separation controls.
In a gas-to-gas system, hot flue gas transfers heat to combustion air, fresh process air or drying air. The two gas streams remain separated through the heat exchanger. This route may suit a boiler burner, oven, dryer or air-preheating process that operates at the same time as the exhaust source.
We review air flow, fan pressure, dust loading, filter condition, humidity and the temperature limits of the receiving equipment. A gas-to-gas exchanger can increase resistance in the flue and air systems, so fan capacity and draft must be checked before installation.
CSTHEATEXCHANGER’s published flue-gas recovery product identifies both gas-water and gas-gas recovery approaches. We use the application as a starting point, then select the exchanger, material and control system from the measured plant data.
Before we calculate a recovery exchanger, we survey the existing combustion equipment and stack. We need to know how the system behaves at minimum, normal and maximum production rather than relying on a single nameplate value.
Our survey normally includes:
Boiler, oven, dryer or furnace type and fuel.
Fuel composition and combustion-air arrangement.
Flue-gas flow rate, temperature and oxygen or excess-air condition.
Moisture, dust, ash, oil mist, sulfur or acid-forming components.
Stack pressure, draft, fan capacity and existing dampers.
Current economizer, air preheater or heat-recovery equipment.
Operating hours, seasonal demand and production schedule.
Available hot-water, steam, process-air or drying-air loads.
Water chemistry, pressure and temperature for a gas-to-water system.
Air quality, filtration and pressure requirements for gas-to-gas recovery.
Space, structural supports, access, drains and cleaning clearance.
Control system, alarms, bypass and emergency shutdown interfaces.
We ask the plant to provide flue-gas test data from representative operating conditions. The data should show whether the source is stable and whether the gas contains contaminants that can foul or corrode the exchanger. If the exhaust stream changes substantially between recipes or production rates, the design should account for that variation.
CSTHEATEXCHANGER can provide design data and production drawings for customized heat exchangers, according to its published company information. We use the survey and measured data to select the heat-transfer surface, gas-side pressure drop, water circuit and maintenance arrangement.
Cooling flue gas below its dew point can cause water or acid condensation. Condensation may be useful in a purpose-designed condensing heat-recovery system, but it can also corrode carbon steel, damage ducts, contaminate drains or create unstable operation if it is not controlled.
We evaluate the fuel, moisture content, acid-forming components, gas temperature, material, drain arrangement and permitted stack condition. The plant should decide whether the recovery exchanger will operate above the condensation limit or intentionally recover latent heat with suitable corrosion-resistant materials and condensate treatment.
CSTHEATEXCHANGER’s published flue-gas recovery page states that stainless-steel construction is used to reduce the impact of flue-gas corrosion. We treat stainless steel as a material option that must be selected for the actual gas chemistry, temperature, pressure and condensate condition. The grade, wall thickness, weld details, coating and inspection scope must be defined in the project documents.
Food-processing facilities also need to control the relationship between combustion exhaust and clean process areas. The recovery exchanger should keep flue gas separate from water or air used in food-related operations. The plant needs to assess leak consequences, drainage, access, cleaning and any risk of odor or combustion-product migration.
A heat exchanger located near a food production area should be designed and maintained so that dust, condensate, soot and insulation particles do not enter hygienic zones. The plant’s safety, engineering and quality teams should approve the layout and sanitation procedure.
Energy savings come from reducing the load on the primary boiler, heater, burner or drying system. To estimate the benefit, we calculate the recoverable heat and compare it with the plant’s real demand.
The basic assessment considers:
Flue-gas mass flow and temperature at the recovery point.
Receiving-water or receiving-air flow and inlet condition.
Target outlet condition and allowed approach temperature.
Operating hours and production schedule.
Heat-transfer coefficients and fouling allowance.
Gas-side and receiving-side pressure drop.
Condensation and corrosion limits.
Heat demand profile and backup-heater operation.
Cleaning, maintenance and availability assumptions.
Fuel price, utility price and project operating cost.
We do not convert a theoretical heat value directly into a guaranteed fuel saving. The actual benefit depends on whether the plant can use the recovered heat, whether the primary heater turndown is suitable, whether the recovery system operates during demand, and whether fouling reduces performance.
CSTHEATEXCHANGER’s product information contains general statements about energy efficiency and boiler fuel reduction for flue-gas recovery devices. Those published figures are not automatically applicable to every food plant. We provide project-specific calculations only after receiving the actual exhaust and heat-demand data.
The plant may also compare a simple gas-to-water exchanger with gas-to-gas air preheating, a condensing system, a heat-pump integration or a staged recovery arrangement. The most economical option is not always the one with the highest theoretical recovery temperature.
A flue-gas heat recovery exchanger changes the resistance and temperature profile of the exhaust system. If the pressure drop is too high, the boiler or furnace may experience draft problems, fan overload or combustion instability. The heat recovery unit must therefore include a bypass or control strategy that protects the original process.
We review:
Flue-gas bypass damper and fail-safe position.
Gas-side fan capacity and draft limits.
High-temperature protection at the exchanger inlet.
Low-temperature and condensation alarms.
Receiving-water high-temperature and low-flow protection.
Differential-pressure monitoring across the exchanger.
Isolation, drain and vent arrangements.
Automatic shutdown during boiler trip or fan failure.
Access doors and safe cleaning isolation.
Stack-emissions and environmental monitoring interfaces.
If the receiving water is unavailable, the flue gas must still have a safe route. If the exchanger fouls, the system should alarm or bypass before draft becomes unacceptable. If a control valve closes, the water circuit needs suitable relief and expansion protection.
CSTHEATEXCHANGER provides the heat exchanger and project data specified in the quotation. The boiler controls, burner management system, stack fan, environmental controls and plant safety interlocks must be reviewed by the responsible combustion and controls engineers.
A heat recovery device must not compromise boiler safety, combustion, emissions control or food-plant operation. This is why we design the bypass and operating sequence at the beginning of the project rather than after installation.
We plan installation around production schedules, hygienic zoning, stack access, lifting, ductwork, pipework, drains and maintenance space. The exchanger may be installed in the flue, between the boiler and stack, or in a parallel recovery branch, depending on the plant layout.
Before delivery, we verify the structural support, flue dimensions, duct connection, water or air connection, thermal expansion, insulation, access doors and drain route. The plant should keep construction debris and insulation materials away from food areas and protect open process connections during work.
Our commissioning sequence includes:
We inspect the exchanger, casing, tubes, fins, supports, doors and drains.
We verify gas-side and receiving-side connections against approved drawings.
We pressure-test and leak-check the water or air circuit where required.
We confirm bypass-damper operation, fan capacity and control signals.
We check water flow, air flow, temperature and differential pressure.
We start at controlled boiler or process load and monitor draft and combustion.
We record flue-gas inlet/outlet conditions and recovered-heat delivery.
We test high-temperature, low-flow, high-differential-pressure and shutdown alarms.
CSTHEATEXCHANGER’s quality information describes design support, production drawings and leak-testing practices for specified products. The final test pressure, test medium, acceptance criteria and inspection documents must come from the approved project specification.
The plant should evaluate performance at representative production loads. A commissioning test under one clean, stable condition cannot prove annual savings or long-term performance if recipes, fuel, moisture, dust or operating hours change.
Flue gas carries dust, soot, ash, oil, food residue or combustion by-products depending on the equipment and fuel. Deposits reduce heat transfer and increase pressure drop. Condensation can create corrosion or sludge. A maintenance plan is therefore necessary to preserve energy performance and combustion safety.
Our maintenance review includes:
Inspecting gas-side pressure drop and temperature trends.
Checking tubes, fins, casing, welds and corrosion condition.
Cleaning deposits with an approved mechanical or chemical method.
Inspecting drains, condensate traps and treatment arrangements.
Checking water-side or air-side flow and fouling.
Testing bypass dampers, actuators, alarms and control valves.
Inspecting insulation, expansion joints and support structures.
Reviewing fuel changes, combustion settings and production schedules.
Recording recovered heat, operating hours, faults and cleaning work.
Cleaning method and frequency depend on the fuel, dust load, gas velocity, surface temperature and exchanger material. The plant should isolate the boiler and exchanger safely before opening access doors or entering the flue system. Water or chemical cleaning must be managed so that condensate and residues do not enter food or wastewater systems improperly.
CSTHEATEXCHANGER can support industrial and replacement heat-exchanger projects. If performance falls, we investigate fouling, gas flow, water or air flow, sensor accuracy, bypass position and heat demand before assuming the exchanger needs replacement.
When we prepare a food-processing flue-gas recovery proposal, we connect the equipment to the combustion source and the plant’s useful heat demand. We define flue-gas composition, flow, temperature, dust, condensation risk, receiving-water or air conditions, pressure drop, materials, bypass, controls, access and maintenance.
CSTHEATEXCHANGER’s Flue Gas Waste Heat Recovery page describes gas-to-water and gas-to-gas recovery routes, including boiler make-up water, domestic water, combustion air and drying air applications. Its Industrial Heat Recovery application page provides a reference for broader industrial heat-recovery projects. The About Us page describes industrial heat-exchanger manufacturing, new and replacement work, production drawings and OEM/ODM support.
We ask the customer to provide boiler or furnace data, flue-gas measurements, fuel type, stack drawings, heat-use demand, water or air conditions, pressure limits, corrosion basis, environmental requirements, controls, shutdown window and required testing. Contact CSTHEATEXCHANGER to discuss a flue gas heat recovery system for your food processing plant.
A properly designed recovery system can help a food factory reuse exhaust heat and reduce the load on its primary heating equipment. The actual energy saving depends on measured flue-gas conditions, useful heat demand, exchanger performance, operating hours, fouling, controls and maintenance. We recommend documenting the design basis, bypass logic, condensation limits, emissions requirements, test procedure and acceptance criteria in the approved project package.
