To add a heat recovery unit to an existing air compressor, we first identify where the compressor releases useful heat, how much heat is available during real operation and where the plant can use it. We then insert a properly sized heat exchanger into the appropriate oil, cooling-water or hot-air circuit, add isolation and bypass protection, connect the recovered heat to a controlled load and commission the system without compromising compressor safety.
At CSTHEATEXCHANGER, we manufacture air-compressor coolers, intercoolers, aftercoolers, oil coolers and custom industrial heat exchangers. Our public product range includes replacement coolers for compressor brands and a centrifugal air-compressor waste-heat-recovery case study. Our company information also states that we can build heat exchangers for new and replacement applications and provide design data and production drawings.
A retrofit is not simply a matter of placing a water pipe beside a compressor. The correct solution depends on compressor type, operating load, oil circuit, cooling arrangement, heat-use temperature, water quality, control logic and available space. In this guide, we explain the retrofit sequence and the information we need before proposing a heat recovery unit.
An air compressor converts electrical or mechanical power into compressed air, and much of the input energy eventually becomes heat. The useful heat may be available from several sources, depending on the compressor design.
The main sources we review are:
Compressor oil leaving an oil-injected screw compressor.
Cooling water from a water-cooled compressor or intercooler.
Hot compressed air before or after an aftercooler.
Intercooler or aftercooler circuits on multistage compressors.
Compressor discharge air or exhaust air where direct air recovery is appropriate.
Heat rejected by an existing air or water cooler.
We do not assume that all of these sources are available at the same time. An air-cooled compressor may reject heat into the compressor room, while an oil-injected machine may offer a more practical oil-to-water recovery route. An oil-free centrifugal compressor may have several cooling stages and a different recovery temperature profile.
CSTHEATEXCHANGER’s Air Compressor Cooler category includes compressor aftercoolers, intercoolers, oil coolers and replacement products. Its centrifugal-compressor waste-heat-recovery case study provides a reference for considering recovery from a working compressor system. These product and case-study references do not establish the recoverable heat for a different compressor; we calculate that from operating measurements and equipment data.
The first objective is to recover useful heat without reducing the compressor’s required cooling performance. The compressor’s original cooler, fan, pump, thermostat and protective controls must remain within their approved operating limits.
We begin with a site survey rather than a heat-exchanger quotation. The compressor may operate at full load, part load, unloaded, sequenced with other machines or stopped during certain shifts. A heat recovery system connected to a compressor that rarely runs may not deliver the expected useful heat.
Our survey normally records:
Compressor manufacturer, model, type and rated power.
Oil-injected, oil-free, reciprocating, screw or centrifugal design.
Normal pressure, flow, operating hours and load profile.
Oil circuit, cooling-water circuit and existing cooler arrangement.
Discharge-air temperature and aftercooler conditions where relevant.
Compressor room temperature and existing ventilation.
Cooling-water flow, temperature, pressure and water chemistry.
Current oil temperature, alarm limits and control-valve operation.
Heat-use demand, flow, temperature and operating schedule.
Available space, pipe route, drain points and maintenance clearance.
Electrical supply, control system and emergency shutdown interface.
Existing drawings, P&IDs, manuals, service history and fault records.
We also ask whether the recovered heat will be used for domestic hot water, process water, space heating, boiler make-up water, wash water or another load. The required temperature and flow determine whether direct heat recovery is practical or whether a secondary loop, buffer tank, booster heater or additional heat pump is needed.
A plant that has a large heat demand only during compressor downtime may need thermal storage or a different heat source. We define this operating relationship before choosing the heat exchanger.
The heat-recovery point determines the equipment, materials, controls and risk. We compare oil-to-water, cooling-water-to-water, air-to-water and direct hot-air options.
Oil-to-water recovery can be considered when the compressor’s oil circuit operates at a useful temperature and the oil flow is stable. A heat exchanger transfers heat from the compressor oil to a clean secondary-water loop. The original oil cooler and temperature-control system must remain protected, often through a bypass or three-way valve arrangement.
The oil circuit is a critical compressor system. A heat exchanger that creates excessive oil pressure drop, restricts flow, leaks or changes oil temperature beyond the compressor’s approved range can trigger alarms or damage the machine. We therefore match the exchanger to oil viscosity, flow, pressure and temperature rather than using a generic water coil.
If the compressor already has a water-cooling circuit, we may recover heat from that circuit through a second heat exchanger. This approach can keep the recovered-water system separated from the compressor’s internal water circuit and make water treatment easier to control. The design still needs enough flow and temperature difference for the required heat transfer.
Air-to-water recovery can use hot air from the compressor room or a hot-air discharge stream. The arrangement may require ductwork, an air coil, a fan, filters and a safe discharge path. Direct recovery from compressed air must be evaluated carefully because pressure, moisture, oil carryover and product-air quality may be affected.
CSTHEATEXCHANGER’s heat-exchanger range includes air coolers, tube-and-fin coils and industrial heat exchangers. We select the heat-recovery point based on process data and maintenance access, not simply on the hottest available surface.
The heat exchanger should be sized for the compressor’s real operating profile and the heat consumer’s demand. We calculate the recoverable heat using oil or water flow, inlet and outlet temperatures, fluid properties, heat-transfer coefficients, fouling allowance and allowable pressure drop.
The recovered heat may vary with compressor load. A compressor running at partial load will not necessarily provide the same heat as one operating continuously at full load. We therefore review normal, minimum and maximum recovery conditions, as well as the temperature available during compressor start-up and unloading.
The secondary-water loop may include:
A circulation pump sized for the exchanger and piping resistance.
A buffer tank for balancing supply and demand.
Isolation valves and a bypass around the heat exchanger.
Temperature-control valves or three-way mixing valves.
Expansion vessel, air separator and safety relief devices.
Strainers and water-treatment provisions.
A backup heater or alternative heat source where required.
Sensors for supply temperature, return temperature, flow and pressure.
CSTHEATEXCHANGER uses design software and customer technical data for heat-exchanger projects, according to its published company information. We use the compressor data and heat-use profile to determine coil or exchanger area, tube material, circuiting, connections, pressure drop and service access.
We do not publish a universal recovered-heat quantity or efficiency value. The output belongs to the compressor, operating schedule, heat exchanger, secondary loop and plant demand.
A retrofit heat recovery unit must not become a single point of failure for the compressor. The original cooling path should remain available if the heat consumer is unavailable, the recovery exchanger is isolated or the recovered-water temperature becomes too high.
We normally review a bypass arrangement that allows the compressor to reject heat through its original oil cooler, water cooler or air cooler. The bypass may be automatic, manual or controlled through the compressor’s existing logic, depending on the machine and project requirements. The final arrangement must be approved by the compressor manufacturer or responsible engineer.
Protection and control checks include:
High oil-temperature and low oil-temperature limits.
Compressor oil-flow or cooling-water-flow protection.
High secondary-water temperature and low-flow alarms.
Heat-exchanger differential-pressure monitoring.
Leak detection where cross-contamination is a risk.
Isolation valves accessible for service.
Relief and expansion protection on closed water circuits.
Fail-safe valve position during power loss or compressor trip.
Emergency shutdown interface and alarm logging.
Protection against freezing, scaling or stagnant water where relevant.
The heat recovery unit should transfer heat only when the compressor and heat consumer can accept it. If the hot-water tank is already at its limit, the system should bypass or divert the heat rather than force the compressor outside its approved cooling condition.
CSTHEATEXCHANGER provides the heat exchanger and project data defined in the quotation. The compressor controls, plant PLC, safety interlocks and final operating sequence must be reviewed by the plant’s controls and mechanical teams.
Material selection depends on the fluid, temperature, pressure, contamination, corrosion risk and cleaning method. Compressor oil, treated water, glycol, process water and hot air each create different material and maintenance requirements.
CSTHEATEXCHANGER’s industrial heat-exchanger information lists material options such as copper, aluminum, carbon steel, stainless steel, Cu-Ni, brass and titanium for suitable applications. We select the material after reviewing oil compatibility, water chemistry, chloride level, temperature, pressure, galvanic contact, fouling and project specification.
The customer should also identify whether the water is potable, process, closed-loop, open-loop, glycol-based or treated with corrosion inhibitors. A heat exchanger designed for clean closed-loop water may not be suitable for untreated process water. A potable-water application may require additional material and hygiene requirements.
We review tubes, fins, headers, shell, plates, gaskets, brazed joints, supports, coatings and drainability as one assembly. If the heat recovery unit is installed in a dusty compressor room, the air side may require filtration and cleaning access. If it is installed outdoors, weather protection, freezing risk and corrosion exposure need to be considered.
CSTHEATEXCHANGER states that it builds new and replacement heat exchangers and provides production drawings and design support. The final quotation should identify actual materials, pressure ratings, testing, coating and warranty scope. “Heat recovery unit” is not enough to define a safe material specification.
We plan the retrofit around compressor downtime and the plant’s piping route. Before installation, we verify connection sizes, available space, lifting access, support structure, drain points, electrical supply, controls and maintenance clearance. The original compressor cooler should remain protected while the new recovery circuit is installed.
The installation team should flush new pipework, remove welding debris, install strainers and confirm that the flow direction matches the approved drawings. Oil-side modifications require particular cleanliness and correct sealing. Water-side systems need air removal, expansion protection and safe drainage.
Our commissioning sequence includes:
We inspect the heat exchanger, valves, supports, sensors and pipe connections.
We verify oil, air and water circuits against the approved P&ID.
We pressure-test and leak-check the new circuit before operation.
We confirm bypass position, valve response and fail-safe behavior.
We start circulation at low or controlled load and check flow and pressure.
We record compressor and recovered-water temperatures at several load points.
We test high-temperature, low-flow, leak and shutdown alarms included in the design.
We confirm that the original compressor cooler remains available when recovery is bypassed.
CSTHEATEXCHANGER’s quality policy describes customer-parameter review, design support and testing documentation. The actual test medium, pressure, duration and acceptance criteria must be taken from the approved project documents. Compressor start-up and final acceptance should follow the compressor manufacturer’s procedure.
The plant should verify the recovered heat under realistic load and demand. A commissioning test at one operating point cannot prove performance for every season, compressor load or heat-use condition.
Heat recovery should be managed as part of both the compressor maintenance plan and the hot-water or process-heating plan. The operator should trend compressor oil or cooling-water temperatures, recovered-water supply and return temperatures, flow, pressure drop and bypass position.
Routine maintenance includes:
Inspecting filters, strainers and heat-exchanger surfaces.
Checking oil-side or water-side differential pressure.
Cleaning the exchanger according to the fluid and material.
Checking pumps, valves, actuators and sensor calibration.
Inspecting gaskets, joints, drains, insulation and supports.
Reviewing water chemistry, glycol concentration or inhibitor levels.
Testing bypass and emergency operation.
Checking for oil-to-water or water-to-oil leakage.
Recording recovered heat, compressor load and system alarms.
If recovered-water temperature falls, we investigate compressor load, oil flow, water flow, fouling, sensor accuracy and heat demand before assuming the exchanger has failed. If compressor oil temperature rises after the retrofit, we first confirm valve position, bypass operation, pressure drop, cooler flow and original protection settings.
CSTHEATEXCHANGER offers compressor cooler, intercooler, aftercooler and replacement heat-exchanger products. A replacement or redesign should be based on the operating history, inspection findings, current compressor conditions and any changes to the heat-use system.
When we prepare a retrofit proposal, we connect the new heat recovery unit to the existing compressor without compromising the original cooling and protection functions. We define the compressor model, heat source, operating load, oil or water conditions, heat-use demand, exchanger material, bypass, controls, installation space, testing and maintenance access.

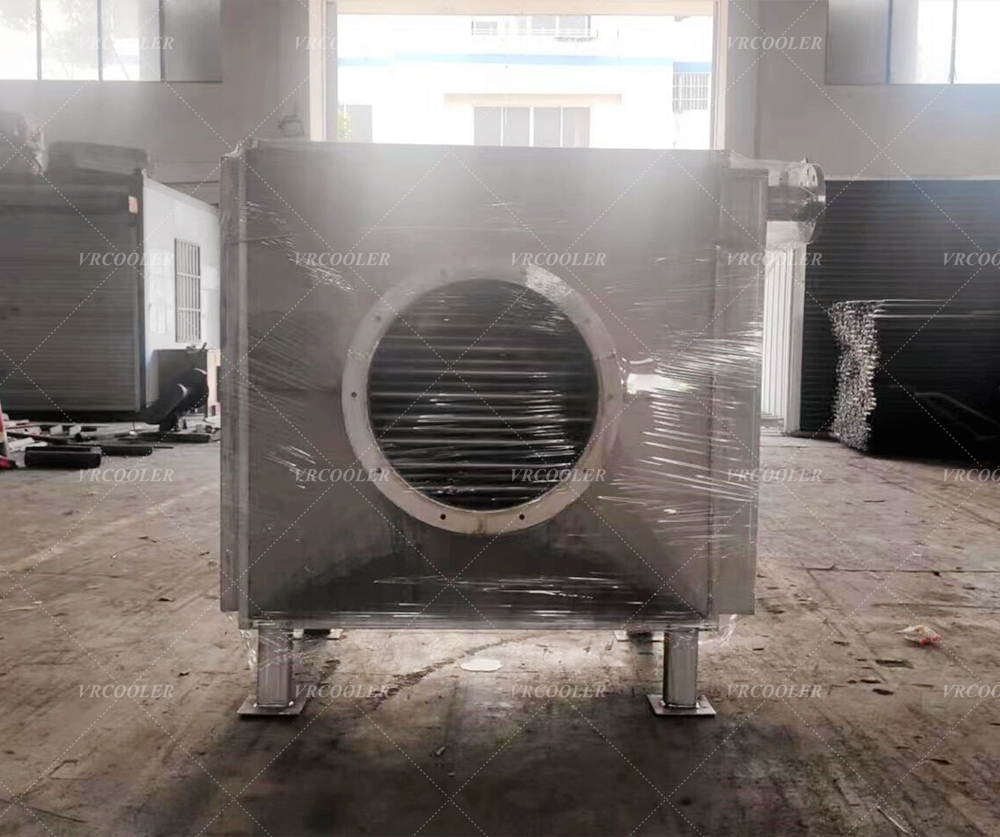

CSTHEATEXCHANGER’s Air Compressor Cooler category includes air-compressor aftercoolers, intercoolers, oil coolers and replacement products. Its Centrifugal Air Compressor Waste Heat Recovery Case Study provides a reference for industrial compressor heat recovery. The About Us page describes new and replacement heat-exchanger manufacturing, design data, production drawings and OEM/ODM support.
We ask the customer to provide compressor drawings, model and operating data, oil and cooling-water conditions, heat-use requirements, existing P&IDs, control philosophy, available space, plant shutdown window and required test documents. Contact CSTHEATEXCHANGER to discuss how to add a heat recovery unit to your existing air compressor.
A correctly engineered retrofit can make useful compressor heat available to a water or process-heating load. Final recovered heat, efficiency, operating safety and economic benefit depend on the compressor’s actual load, exchanger design, controls, plant demand, maintenance and commissioning. We recommend confirming all design conditions, bypass logic, protection limits and acceptance criteria in the approved retrofit package.
