A pharmaceutical warehouse operating within a 15–25°C temperature band needs a controlled HVAC system that can respond to outdoor weather, door opening, product loading, lighting, people and warehouse heat gain. A packaged air handling unit can combine the main air-treatment functions in a coordinated enclosure, helping the facility manage temperature, humidity, cleanliness, airflow and monitoring from one engineered system.
At CSTHEATEXCHANGER, we design air handling units with functional section combinations selected around customer requirements. Our published AHU information identifies medical and health facilities, biopharmaceuticals, scientific research and precision manufacturing among its application areas. It also states that the air handler can adjust temperature, humidity, cleanliness and airflow. For a pharmaceutical warehouse, we use those capabilities as the basis for a project review, but we do not treat a standard packaged AHU as an automatic guarantee of GMP, GDP, validated storage or regulatory compliance.
In this article, we explain how we approach a packaged AHU for a pharmaceutical warehouse with a 15–25°C design brief, including zoning, temperature control, humidity, filtration, fresh air, installation, commissioning, monitoring and maintenance.

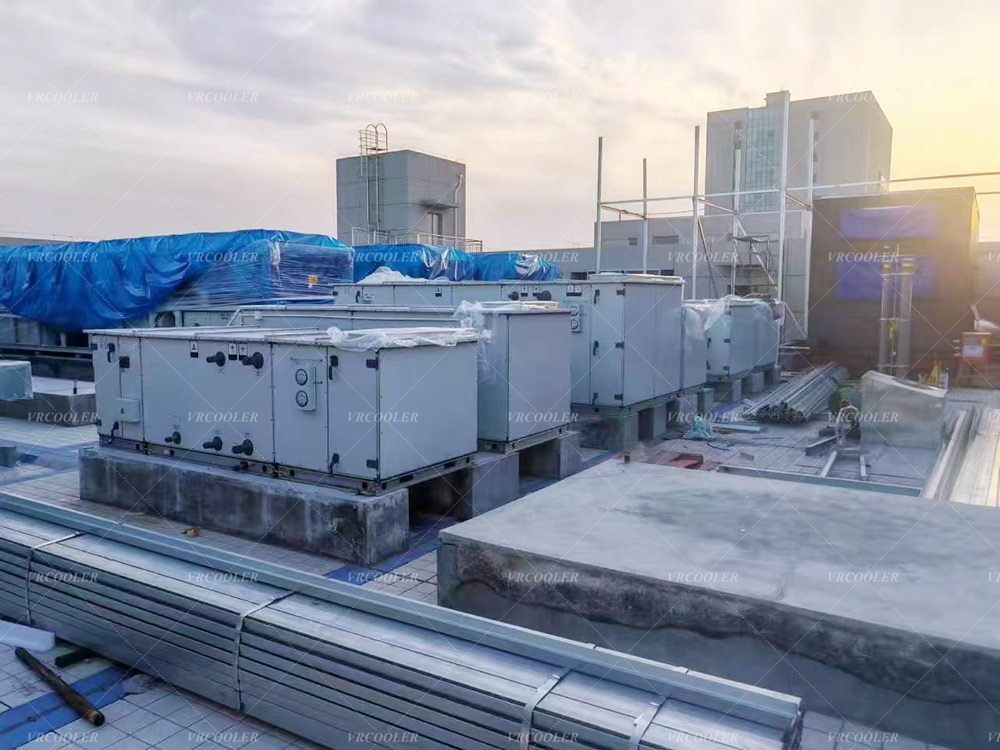

A pharmaceutical warehouse is not simply a large room that needs cooling. The facility may contain pallet racks, quarantine areas, receiving and dispatch zones, sampling spaces, returns, packaging materials and temperature-sensitive products. Each activity can influence the warehouse environment. Doors open during deliveries, warm air enters from loading docks and stored products can create a changing thermal load.
We therefore begin by defining the storage process and the required environmental conditions. The requested 15–25°C range may be appropriate for a particular product group or operating procedure, but the responsible quality team must confirm the actual labelled storage condition, alarm limits, excursion response and monitoring requirements. Some products may require a narrower range, a different humidity limit or an independent cold-chain system.
CSTHEATEXCHANGER’s AHU product information describes configurable air-treatment sections for temperature, humidity, cleanliness and airflow. We can use a packaged arrangement to coordinate the fan, filters, heating or cooling coils, dampers, drain pan and control interface. The exact package depends on whether the unit is installed indoors, outdoors or in a dedicated mechanical space, and whether it uses chilled water, hot water, steam, refrigerant or another approved medium.
The AHU is one part of the temperature-control system. The building envelope, insulated doors, loading procedures, racking layout, monitoring system, emergency power and operating procedures all affect the final result. We make these boundaries clear before quotation so the customer can define the equipment scope and the qualification plan correctly.
Before we select a packaged AHU, we collect information about the building, products and operation. We begin with the warehouse dimensions, ceiling height, insulation, roof exposure and door locations. We then map the pallet racks, aisles, receiving areas, dispatch docks and any zones with different requirements.
Our site survey normally includes:
Warehouse length, width, height and construction details.
Product types, packaging, pallet quantity and storage density.
The requested operating band of 15–25°C and the approved alarm limits.
Humidity requirements, if defined by the product or quality system.
Outdoor design conditions and seasonal weather changes.
Door size, opening frequency and loading-dock arrangement.
Internal heat from lighting, forklifts, conveyors, people and equipment.
Fresh-air, return-air and exhaust-air requirements.
Filtration objectives and access for filter inspection.
Available chilled water, hot water, steam, refrigerant or electrical services.
Temperature and humidity sensor locations and data-logging requirements.
Available mechanical-room space, lifting route and service clearances.
We also ask how the warehouse will be loaded. Airflow can be blocked by pallets placed against supply outlets or by racks that are too close to return grilles. A unit may operate normally while a poorly arranged aisle experiences a different temperature. We therefore review the air path through the actual storage layout instead of calculating the AHU only from floor area.
CSTHEATEXCHANGER’s published company information says that it can provide design data and production drawings and support new or replacement heat exchanger projects. For a replacement AHU, we request the existing drawings, coil data, fan information, control points, alarm history and maintenance records to reduce uncertainty during the design review.
A packaged AHU for a pharmaceutical warehouse may include several functional sections arranged to suit the selected air-side sequence. The correct configuration depends on the local climate, outdoor-air fraction, warehouse pressure, humidity target, filtration requirement and available utilities.
A project specification may include:
Fresh-air and return-air mixing or separate air paths.
Pre-filtration to protect downstream coils and fan components.
Final filtration selected for the warehouse cleanliness requirement.
Cooling coil for sensible heat removal and, where required, dehumidification.
Heating coil for cold-weather operation or supply-air trim.
Humidification where dry seasonal air must be controlled.
Fan section sized for the required air volume and system resistance.
Dampers, actuators and access panels for inspection and balancing.
Insulated casing and thermal bridges controlled for the installation environment.
Drain pan, condensate trap and discharge route for wet-coil operation.
Temperature, humidity, pressure and filter-status monitoring points.
CSTHEATEXCHANGER states that its AHU can combine functional sections according to customer needs. This supports a packaged design in which the principal air-treatment components are coordinated rather than selected as unrelated items. We still need to confirm the actual coil capacity, airflow, external static pressure, filter class, fan motor, controls and casing construction in the project quotation.
The 15–25°C range should be interpreted as a room operating target for the design brief. It is not a claim that every pharmaceutical product can be stored across that entire band. The quality and regulatory teams should confirm whether the warehouse needs a narrower control range, independent zones or a redundant system.
Holding a warehouse within 15–25°C requires more than cooling the air leaving the AHU. We need to manage temperature stratification, door-related heat gain and the way air moves through pallet racks. A high warehouse ceiling can allow warm air to collect above the storage level, while blocked return paths can create local hot or cold areas.
We review supply-air discharge direction, duct layout, return-air position, rack height and aisle clearance. Our objective is to deliver air across the occupied and storage zones without creating strong drafts that disturb packaging or bypassing the areas where products are stored. The final arrangement should be balanced under representative loading, not only tested in an empty building.
CSTHEATEXCHANGER’s AHU information identifies airflow as one of the controllable air indicators. We use this as a design starting point and then calculate the actual air volume and pressure requirement. The fan must overcome duct resistance, filters, coils, dampers and any terminal devices. If the system is under-sized, the warehouse may respond slowly to door opening or product loading. If it is overpowered without proper control, the result may be unnecessary energy use, noise or uncomfortable air movement.
We also consider whether the warehouse requires more than one control zone. Receiving and dispatch areas may experience a different heat load from a closed storage zone. Separate sensors, dampers or AHUs may provide better control than trying to force one unit to handle every condition. The final zoning plan must remain consistent with the facility’s monitoring and quality procedures.
Temperature and humidity are related but not identical. Cooling the air may remove moisture when the coil operates below the air dew point, while heating can reduce relative humidity if no moisture is added. A pharmaceutical warehouse may need humidity limits for product quality, packaging integrity, label performance or building protection.
We ask the customer to define the humidity target and allowable deviation before selecting the coil and control sequence. If dehumidification is required, the cooling coil, drain pan, condensate line and possible reheat section must be considered together. If humidification is required during a dry season, the humidifier, water quality, hygiene controls and maintenance procedure become part of the AHU specification.
CSTHEATEXCHANGER’s published AHU information states that the air handler can adjust humidity as well as temperature, cleanliness and airflow. That statement describes configurable functionality, not a universal humidity guarantee. Actual performance depends on outdoor-air conditions, infiltration, product load, coil selection, sensor placement and control tuning.
We place sensors where they represent the warehouse rather than directly in the supply-air stream. A single sensor close to the AHU outlet can show a stable value while the high rack level, loading dock or far end of the warehouse has a different condition. The final sensor map and alarm strategy should be agreed with the quality team and included in the monitoring plan.
A pharmaceutical warehouse may require controlled cleanliness even when it is not a cleanroom. Dust, packaging fibers, outdoor particles and forklift activity can affect the air and load the AHU filters. The filtration system should protect the coil and fan while meeting the facility’s defined cleanliness objectives.
We distinguish general warehouse filtration from process or cleanroom filtration. An AHU filter section does not automatically make a warehouse a classified cleanroom, nor does it replace cleaning procedures, pest control, material segregation or pressure management. The responsible facility team must define the applicable requirements.
CSTHEATEXCHANGER’s AHU information identifies cleanliness as a configurable air indicator. Its automatic dust-removal AHU page describes a reusable automatic cleaning concept intended to reduce manual filter replacement and daily maintenance for certain applications. We can discuss conventional filters or automatic dust-removal configurations, but the selected solution must be evaluated for the warehouse’s particles, filter performance, cleaning validation and maintenance records.
We also review filter access and differential-pressure monitoring. As filters load, airflow resistance increases and the temperature-control response can change. A maintenance team needs a clear method to identify when a filter requires inspection or replacement. The project documentation should state the actual filter arrangement and performance; buyers should not infer a pharmaceutical-grade classification from a generic AHU description.
We plan packaged AHU installation around the warehouse’s operating schedule. Before delivery, we confirm the base or support frame, lifting route, service clearance, duct connections, coil-piping connections, drain route, electrical supply and control network. If the unit is installed outdoors, the casing and weather protection must match the site conditions. If it is installed indoors, the mechanical room must provide adequate access and ventilation.
The AHU should be mounted securely and connected according to approved drawings. Cooling and heating coils need correctly supported pipework, insulation and valves. The drain pan and condensate trap must discharge safely without creating standing water or contaminating warehouse areas. Duct penetrations and access panels should be sealed to control leakage and maintain the intended pressure balance.
Our commissioning sequence includes:
We inspect the casing, panels, coils, filters, fans, dampers and access doors.
We verify electrical connections, motor rotation, control response and safety devices.
We check the drain pan, trap, condensate line and wet-coil operation.
We measure supply, return and outdoor-air volumes after balancing.
We verify the 15–25°C control sequence using calibrated test instruments.
We test humidity control, alarms, sensor signals and filter-status monitoring included in the design.
We record baseline readings across representative warehouse zones.
CSTHEATEXCHANGER states that it can provide design data and production drawings. We use the approved drawings, control narrative and equipment schedule as the commissioning reference. Temperature mapping, alarm verification, qualification and release remain project activities that must be planned and approved by the responsible pharmaceutical organization.
A controlled pharmaceutical warehouse needs a monitoring plan that reflects the actual storage risk. We recommend measuring more than one location, especially near doors, corners, high rack levels, the return-air path and areas furthest from supply outlets. The quality team should define the sampling frequency, alarm delay, excursion response, calibration interval and data-retention requirements.
We distinguish three activities that are sometimes incorrectly combined. First, we commission the AHU to confirm that the equipment operates according to the design. Second, the facility can perform temperature mapping to understand the warehouse distribution under defined conditions. Third, the pharmaceutical organization determines whether qualification, validation or regulatory documentation is required for its products and jurisdiction.
CSTHEATEXCHANGER can provide equipment information, drawings and manufacturing documents specified for the project. We do not claim that purchasing a packaged AHU alone establishes GMP, GDP, validated storage or product-release compliance. The final documentation package should identify the equipment data, factory tests, site tests, calibration records and customer acceptance criteria that are actually included.
For the requested 15–25°C range, the warehouse should define what happens when the temperature approaches 15°C or 25°C, how alarms are communicated and who decides whether stock must be moved or quarantined. These decisions belong to the facility’s quality and operating procedures, not to an unqualified marketing statement.
Long-term temperature control depends on maintenance. Filters collect particles, coils accumulate dirt, fans wear, sensors drift and drain systems can block. A pharmaceutical warehouse also needs traceable service records so that environmental trends can be reviewed alongside maintenance activities.
Our routine maintenance plan may include:
Inspecting filters and replacing them at the approved pressure-drop limit.
Cleaning cooling and heating coils using an approved method.
Checking fan motors, bearings, belts, vibration and guards.
Inspecting dampers, actuators and outdoor-air positions.
Cleaning the drain pan and verifying condensate flow.
Checking temperature, humidity and pressure sensors against references.
Reviewing humidifier hygiene and water-treatment controls where installed.
Inspecting casing seals, insulation, access doors and duct leakage.
Recording alarms, repairs, calibration and temperature excursions.
We compare maintenance work with warehouse temperature trends. If an excursion occurs after filter loading, a fan fault, a door change or a control adjustment, the event should be investigated using the records rather than attributed automatically to the cooling coil. Preventive maintenance cannot remove every risk, but it makes the system’s condition easier to understand.
CSTHEATEXCHANGER’s company information describes replacement and new-job heat exchanger work, design support, OEM/ODM service and coil testing information. The customer should retain the actual quotation, drawings, test reports, warranty terms and maintenance instructions supplied for the packaged AHU.
When we prepare a packaged AHU proposal, we connect the equipment to the pharmaceutical warehouse process. We define the required 15–25°C operating band, humidity requirement, building zones, product load, outdoor conditions, filtration objective, monitoring plan and available utilities before finalizing the functional sections.
CSTHEATEXCHANGER’s Air Handling Unit product page describes configurable sections for temperature, humidity, cleanliness and airflow, with applications including medical and health facilities and biopharmaceuticals. Its automatic dust-removal AHU information provides an additional option for discussing maintenance and air-cleaning requirements where suitable.
We ask the customer to send warehouse drawings, pallet layout, product storage conditions, 15–25°C alarm limits, humidity requirements, outdoor design conditions, door schedule, fresh-air needs, filter specification, available heating and cooling media, electrical supply and control preferences. Contact CSTHEATEXCHANGER to discuss a packaged air handling unit for your pharmaceutical warehouse.
A properly specified AHU can support stable warehouse conditions, but final performance depends on the building envelope, operating procedures, monitoring, maintenance and quality-system requirements. We recommend documenting the design conditions, testing scope, alarm limits and acceptance criteria in the project quotation and commissioning plan.
