Internal tank blasting and painting in shipbuilding requires more than abrasive equipment and a coating crew. The tank must be prepared, dried and coated under controlled environmental conditions. Moisture can condense on steel, interfere with surface preparation, slow drying and affect coating application. An air cooled dehumidifier for shipbuilding tank internal blasting and painting can help remove water vapor from the tank atmosphere, support surface drying and maintain a more stable work environment during preparation and coating operations.
At CSTHEATEXCHANGER, we provide dehumidification equipment for shipyards, marine drydocks, blast-paint halls, tank coating and internal blasting and painting. Our published product information describes an all-weather air cooled dehumidifier with air-cooled condensing, supply-air dehumidification, an efficient desiccant rotor, anti-corrosion casing protection and a movable structure that can be hoisted or forked. These features allow the equipment to be considered for permanent or temporary shipbuilding work, subject to a project-specific review.
In this article, we explain how we evaluate an industrial dehumidifier for internal tank work, how it supports the sequence from blasting to coating, and what the equipment does not replace. Ventilation, abrasive-dust collection, coating-vapor extraction, gas testing, electrical safety and hazardous-area controls must be designed and managed by qualified shipyard and coating professionals.
A ship tank is a difficult environment to condition. It may have a large steel surface, limited openings, changing outdoor weather, residual water, high humidity and restricted access. The interior can also be exposed to salt-laden air in a marine location. When warm humid air meets a cooler steel surface, condensation can develop. Even when visible water is absent, the environmental condition may not be suitable for the next stage of surface preparation or coating.
We therefore treat dehumidification as part of the work-control plan. The tank atmosphere needs to be monitored for temperature, relative humidity and dew-point relationship, while the steel surface is checked with suitable instruments before blasting and coating. The applicable coating specification and project procedure must define the acceptance conditions. We do not invent a universal RH or surface-temperature limit because the correct criteria depend on the coating manufacturer, steel temperature, product system and site procedure.
CSTHEATEXCHANGER’s published blast-paint-hall information identifies shipyard, marine offshore and heavy-engineering applications where temperature and RH control are required. Its tank-coating information identifies internal tank surface treatment and coating as an application. These published applications show where the equipment can be considered; they do not replace the project’s coating specification or inspection plan.
Our goal is to help the shipyard maintain a drier and more stable atmosphere so the coating team can work within its approved environmental window. The dehumidifier is one part of that system, not a substitute for steel inspection, surface cleanliness verification or coating supervision.
Before we recommend an air cooled dehumidifier, we ask how the tank will be accessed and how the work will proceed. We review the tank geometry, volume, openings, staging, duct route, power supply and the expected sequence of blasting, cleaning, inspection, priming and final coating.
Our site review normally includes:
Tank length, diameter, height, volume and internal obstructions.
Number and size of manways, access openings and temporary closures.
Steel condition, residual water and expected moisture sources.
Blasting media, dust-control method and waste-removal procedure.
Coating system, solvent type and planned application stages.
Required environmental conditions from the coating manufacturer.
Outdoor temperature, humidity, rain, wind and marine salt exposure.
Dehumidifier position, air inlet, dry-air supply and return-air route.
Available electrical supply and cable routing.
Lifting points, forklift access and temporary platform requirements.
Gas testing, ventilation and coating-vapor extraction arrangements.
Monitoring points for air temperature, RH, dew point and steel temperature.
We also identify which stages can operate at the same time. Blasting produces dust and can conflict with air circulation or equipment placement. Coating may require a different airflow pattern from drying. A single dehumidification setting may not be suitable for every stage, so the site team should define the operating sequence before the equipment is selected.
CSTHEATEXCHANGER’s published product information emphasizes simple operation, a movable structure, a large maintenance door and an integral design. These features can be useful for project-based shipyard work, but the final layout must consider safe access, equipment protection and the shipyard’s approved work permit system.
During internal blasting, the main environmental objective is usually to keep the prepared steel and surrounding air within the approved preparation condition while the surface is inspected and coated. Dehumidified air can reduce the moisture load entering the tank and help the work team respond to changing outdoor conditions.

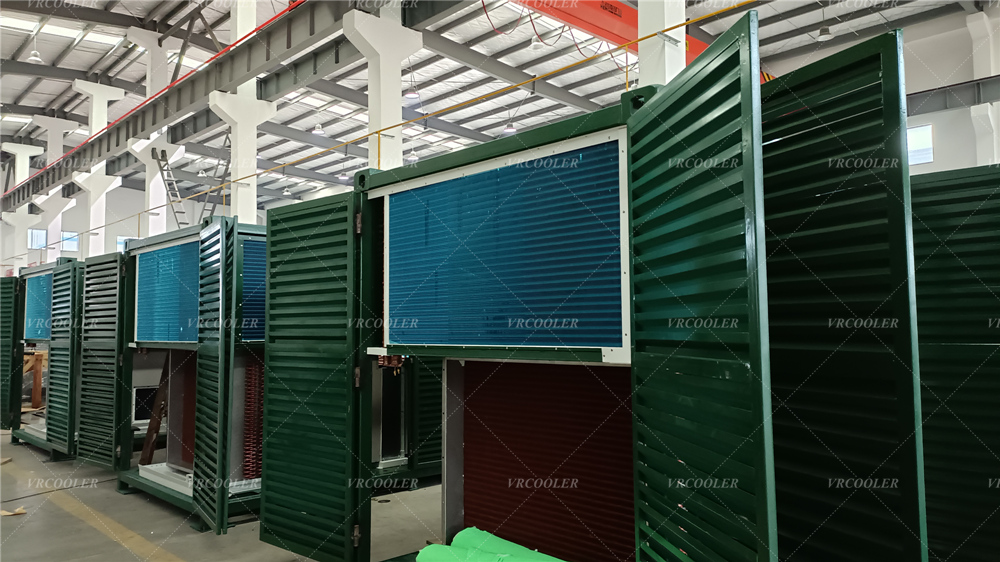

CSTHEATEXCHANGER describes the air cooled dehumidifier as using air-cooled condensing and a high-efficiency desiccant rotor with a large surface area for vapor absorption. In operation, the equipment processes humid air and supplies drier air to the working area. The actual moisture-removal capacity depends on the machine, airflow, tank leakage, outdoor conditions, residual water and the operating configuration selected for the project.
We route dry air so it reaches the tank interior rather than short-circuiting directly back to the dehumidifier. The return-air path must also allow the machine to process the humid air released from the tank. Temporary ducting should be supported and protected from damage, with joints sealed sufficiently to limit avoidable leakage.
The dehumidifier does not collect abrasive dust, remove blasting debris or replace local exhaust. Dust extraction and ventilation must be designed separately so that the air movement required for blasting does not carry contaminants into unsafe areas or damage the dehumidifier. Where the work procedure requires the dehumidifier to stop during blasting, we follow that procedure and restart it for the approved drying or environmental-control stage.
After blasting, the shipyard should inspect the steel and confirm that the surface condition remains within the coating procedure before continuing. Dehumidification supports the environment; it does not certify the surface profile, cleanliness or coating readiness.
The transition from blasting to coating is a sensitive stage. The tank may look dry while its steel temperature and the surrounding air remain close to a condensation condition. The work team should measure air temperature, relative humidity, dew point and steel temperature at representative locations. The coating manufacturer’s written requirements should determine whether painting can begin.
We operate the dehumidifier continuously for the period defined in the project procedure and monitor the environmental trend rather than relying on a single reading near the dry-air outlet. Large tanks may contain corners, stiffeners, bottom sections and upper areas that respond differently. The equipment arrangement and air path must be reviewed to avoid leaving isolated wet or humid zones.
CSTHEATEXCHANGER’s product information says the equipment is used to reduce humidity and temperature in special coating-operation spaces and to support a comfortable working environment. We present this as an application benefit, not as a guarantee that a particular coating will cure at a particular speed. Cure time depends on coating chemistry, film thickness, substrate, ventilation, temperature, humidity and the product manufacturer’s instructions.
When coating begins, airflow must be balanced with the coating method. Excessive air movement can disturb spray application or create overspray-management problems, while insufficient air exchange can allow solvent vapor to accumulate. The shipyard’s ventilation and coating safety plan must control these hazards. The dehumidifier should not be used as an unapproved solvent-extraction or explosion-protection system.
We keep the dry-air supply, return-air route and monitoring points clear throughout the coating operation. If manways are opened or weather changes, the environmental condition may shift quickly. The operating team should record such changes and follow the project’s response procedure.
The air volume required for a tank project depends on the tank geometry, leakage, moisture load and desired air changes. A larger machine is not automatically the best choice if the dry air is delivered to only one area. We focus on the complete path: dehumidifier outlet, temporary duct, tank distribution, return route and equipment inlet.
We place the supply duct to promote circulation through the tank rather than sending the air directly to the nearest opening. Depending on the tank shape, the project may require flexible duct branches, a distribution plenum or staged duct positions. The arrangement must leave space for scaffolding, blasting hoses, coating equipment and worker access.
CSTHEATEXCHANGER’s product information describes an integral design and a movable structure that can be lifted or moved by forklift. This supports flexible deployment between tanks, but mobility also requires a clear plan for cable protection, duct connection, lifting, weather exposure and daily inspection. We verify that the air outlet and return air are not blocked by equipment, temporary covers or stored materials.
During commissioning, we check air temperature, humidity and airflow at several tank locations. The test should represent the expected work layout, because scaffolding and coating enclosures can change the air path. If the tank contains separate compartments, the team may need more than one supply or return point.
Air distribution must also be coordinated with blasting and painting ventilation. The dehumidifier’s role is to control moisture; the separate ventilation system controls contaminants and provides safe working conditions. Combining the two functions without engineering review can produce an unsafe or ineffective arrangement.

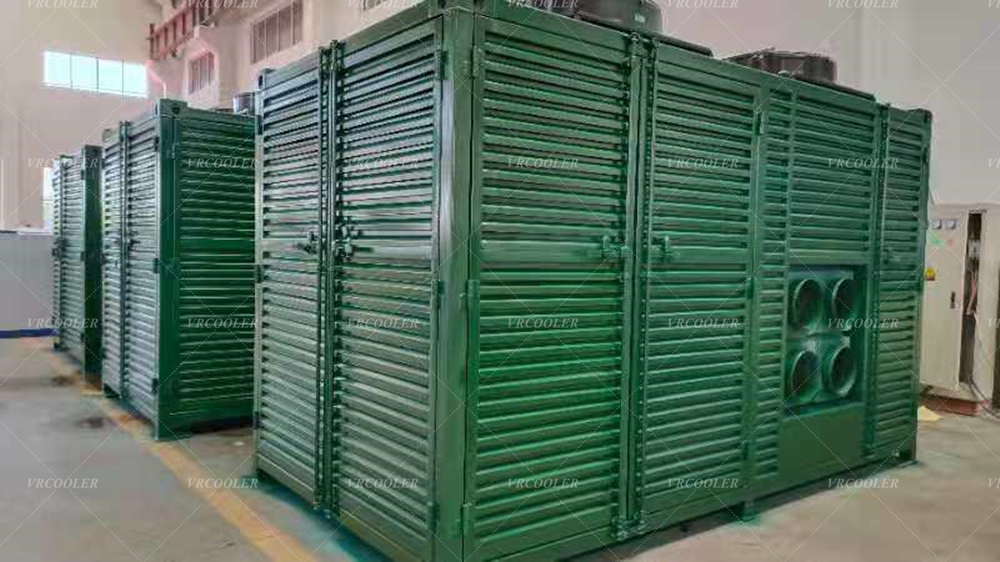

CSTHEATEXCHANGER’s published blasting-and-painting dehumidifier uses a desiccant rotor as the core moisture-absorption component and describes air-cooled condensing and supply-air dehumidification. The product range also includes a dehumidifier with a desiccant rotor and other shipbuilding and marine options.
We compare the available configuration with the project’s climate and process. A desiccant-based system can be considered when the shipyard needs moisture removal in a demanding or changing environment, but the final selection depends on the required dew-point control, airflow, temperature, energy supply, installation conditions and operating schedule. We do not claim that one dehumidification technology is suitable for every shipyard.
The air-cooled configuration can be useful where a water-cooled condenser or permanent chilled-water system is not practical. The machine’s heat rejection, ambient operating limits and placement must still be checked. In a hot marine climate, the customer should confirm the design ambient condition and available ventilation around the equipment.
CSTHEATEXCHANGER also describes anti-corrosion processes for the casing and a robust structure for shipyard-related applications. The customer should request confirmation of the actual coating, casing material, protection system, electrical enclosure and service scope. Corrosion protection for the dehumidifier does not eliminate the need to protect ducting, cables, controls and temporary supports.
For a project with frequent tank changes, movable equipment may reduce installation time. The shipyard should still plan safe transport, lifting, grounding, cable routing, condensate management and pre-start inspection for each relocation.
A dehumidifier can improve humidity control, but it is not automatically a dust collector, ventilation fan, solvent-vapor extractor, gas monitor or explosion-proof machine. This distinction is essential in shipbuilding tank work.
Before blasting or painting, the shipyard should define the hazardous-area classification, ignition-control requirements, electrical equipment suitability, ventilation rate, gas testing, respiratory protection, access control and emergency procedures. The coating and safety teams must determine whether the dehumidifier can operate during each stage and where it may be positioned.
We follow the customer’s approved method statement and do not recommend using a standard air cooled dehumidifier inside an area where the equipment’s electrical or mechanical construction has not been approved for the identified hazard. The machine should normally remain outside the tank or in a location defined by the safety plan, with properly selected ducting delivering conditioned air inside.
A separate dust and fume extraction system may be required. The air must be discharged and replaced in a controlled way so that contaminants do not migrate to workers, neighboring work areas or ignition sources. Condensate and water produced by the dehumidification process must also be routed safely.
CSTHEATEXCHANGER can provide equipment information and project-specific design support, but the shipyard, coating contractor and safety professionals remain responsible for the complete worksite risk assessment and compliance with applicable rules.
We begin installation by confirming the dehumidifier position, lifting route, power supply, grounding, ducting, return-air path, condensate arrangement and maintenance access. The movable structure described by CSTHEATEXCHANGER allows the unit to be lifted or forked for project deployment, but the machine must be secured and protected during operation.
Our commissioning checks include:
We inspect the casing, anti-corrosion protection, access doors and fan section.
We verify electrical supply, controls, alarms and safe isolation.
We check the desiccant rotor, air filters, duct connections and airflow path.
We confirm condensate drainage and any required drain protection.
We measure supply and return air conditions at representative tank locations.
We verify humidity and dew-point instruments against the project procedure.
We record baseline readings before blasting and again before coating.
Maintenance should include filter inspection, rotor and air-path cleaning, fan and motor checks, casing corrosion inspection, drain cleaning, sensor verification and review of operating alarms. Blasting dust can load filters quickly, so the maintenance interval must reflect the actual work stage. Coating vapors and salt air may also affect equipment surfaces and should be considered in the cleaning plan.
CSTHEATEXCHANGER’s public product information describes a large maintenance door and simple operation. We use those features to support service access, but we still require the operator to isolate the machine safely before opening panels or performing maintenance.
When we prepare an air cooled dehumidifier proposal, we connect the equipment to the tank work sequence. We define tank volume, openings, moisture sources, outdoor climate, blasting method, coating system, duct route, air distribution, power supply, mobility requirements, ventilation and monitoring points.
CSTHEATEXCHANGER’s Air Cooled Dehumidifier for Blasting and Painting information specifically identifies internal tank blasting and painting as an application. Its Blast Paint Hall Dehumidifier information covers shipyards, marine offshore and heavy engineering, while the Air Dehumidifier category lists shipbuilding, tank coating and marine drydock options.
We ask the customer to provide tank dimensions, access openings, work sequence, coating requirements, environmental acceptance criteria, outdoor design conditions, available power, ducting limitations, lifting method, ventilation plan and safety classification. Contact CSTHEATEXCHANGER to discuss an air cooled dehumidifier for shipbuilding tank internal blasting and painting.
A properly selected dehumidifier can support a more stable and controllable surface-preparation environment. Final coating quality still depends on steel preparation, inspection, coating selection, application technique, ventilation, safety controls and compliance with the coating manufacturer’s instructions.
