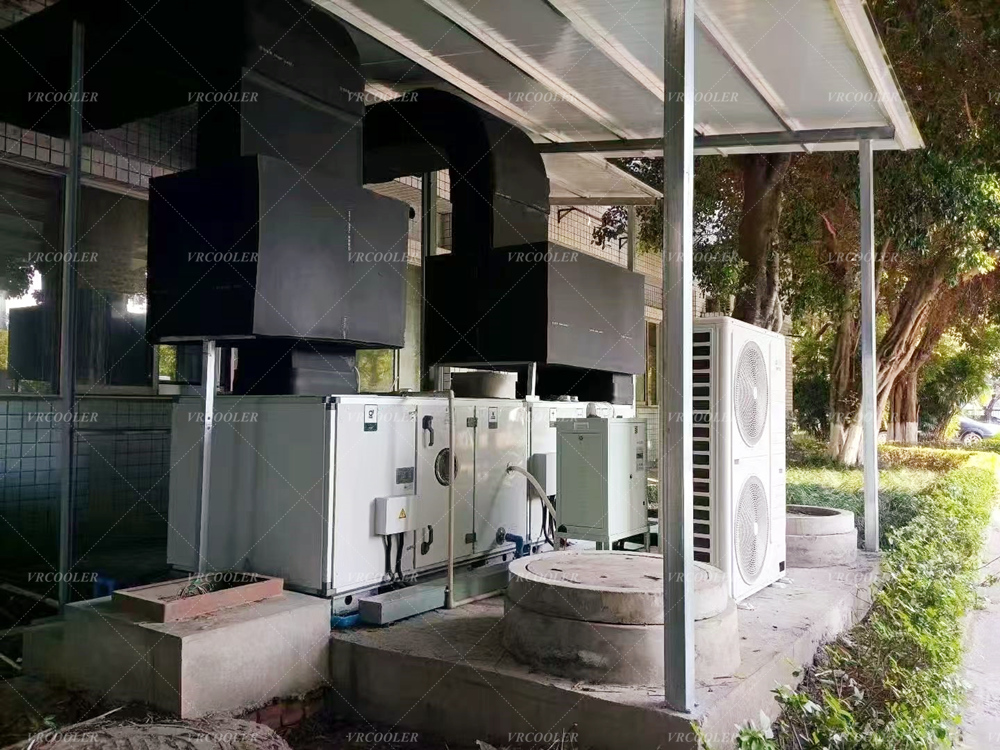

An industrial printing plant needs more than general comfort air conditioning. Paper, ink, solvents, printing presses, dryers, people and production schedules all influence the indoor environment. An industrial air handling unit for printing plant temperature and humidity control can combine cooling, heating, dehumidification, filtration, fresh-air management and controlled air distribution to create a more stable press-room environment.
At CSTHEATEXCHANGER, we design air handling units with functional section combinations selected around the customer’s requirements. Our published AHU information says the equipment can adjust air temperature, humidity, cleanliness and airflow, and lists precision manufacturing, electronics, chemical industries and commercial facilities among its applications. Our air-cooled heat exchanger information also identifies printing and dyeing among the industries served by air heating, cooling, dehumidification and drying equipment.
In a printing plant, the AHU should be selected as part of the production environment rather than as an isolated cooling box. We review paper storage, press heat, outdoor air, exhaust systems, filtration, room layout and the operating schedule before recommending a configuration. The final temperature and humidity conditions must come from the printing process, material supplier, local climate and responsible HVAC designer—not from a generic marketing target.
Paper and many other printing materials respond to changes in the surrounding air. When the plant becomes too dry or too humid, paper dimensions, static behavior, curl and handling can change. These changes may affect registration, feeding, stacking and the interaction between paper, ink and press equipment. Temperature also influences how people, machines, inks, coatings and drying systems operate.
We therefore treat the press room, paper storage area, finishing area and production support spaces as related but not always identical zones. A paper store may require a different air strategy from a heat-producing printing hall. A room with solvent or coating exhaust may require dedicated ventilation and make-up air rather than simple recirculation. The AHU must work with the plant’s process exhaust, not fight it.
CSTHEATEXCHANGER’s AHU product information describes configurable sections for temperature, humidity, cleanliness and airflow. These functions give us a basis for discussing a printing plant’s needs, but they do not establish one universal setpoint. We ask the customer to identify the print process, substrate, ink system, production speed, equipment heat release and acceptable operating range.
The objective is stable and measurable conditions. We do not promise that an AHU alone will eliminate every paper or print defect. Production calibration, paper handling, press settings, ink formulation and maintenance remain important parts of the result.
Before we prepare an AHU proposal, we collect site and process data. We begin with the building: room dimensions, insulation, roof exposure, windows, doors, air leakage and the location of existing supply and return ducts. We then map the production equipment and identify where the largest heat and contaminant loads occur.
Our survey normally includes:
Press type, quantity and operating schedule.
Paper and substrate types, roll or sheet format and storage arrangement.
Ink, coating, solvent or adhesive systems used in production.
Heat released by presses, dryers, compressors and electrical equipment.
Outdoor design conditions and seasonal humidity changes.
Existing ventilation, exhaust, make-up air and dust-collection systems.
Required fresh-air volume and the relationship with process exhaust.
Temperature and humidity monitoring locations.
Filtration objectives and access for filter replacement.
Available chilled water, hot water, steam, refrigerant or other utilities.
Electrical supply, control interface and plant-management system requirements.
Maintenance access, lifting route and available AHU room or roof space.
We also ask where paper is opened, conditioned, printed and finished. The most important conditions may be different at the press feed, near a high-speed dryer or in a paper storage aisle. A single sensor near the AHU outlet cannot represent the entire plant.
CSTHEATEXCHANGER’s published AHU information says the unit can be configured according to customer needs. We use that flexibility to connect the equipment selection to the production layout. If a customer is replacing an existing AHU, we request drawings, coil data, fan information, control points and recent operating records so that the new proposal addresses both dimensional constraints and updated process needs.

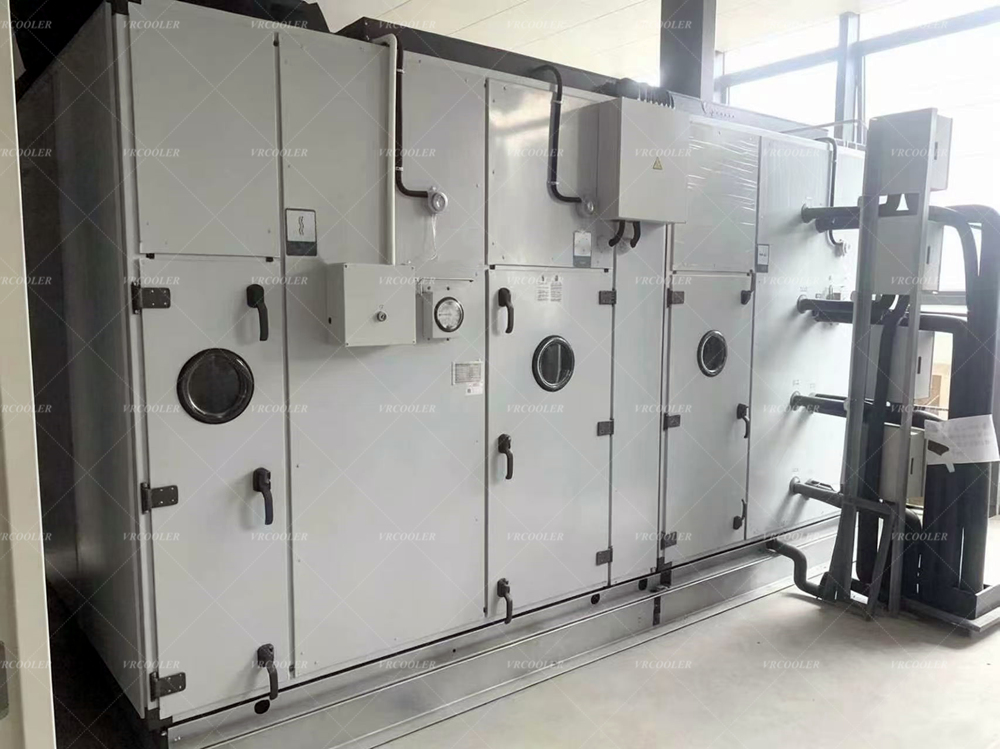

A printing-plant AHU may combine several functional sections. The correct sequence depends on the outdoor-air percentage, process exhaust, local climate, room pressure and required supply-air condition.
A typical discussion may include:
Mixing or fresh-air section for outdoor and return-air management.
Pre-filtration and final filtration selected for the room’s cleanliness needs.
Heating coil for winter or low-temperature make-up air.
Cooling coil for sensible heat removal.
Dehumidification through controlled cooling and moisture removal.
Humidification where dry-season conditions require added moisture.
Fan section sized for the air volume and system resistance.
Heat recovery or energy-management components where appropriate.
Supply and return dampers with access for inspection and balancing.
Drain pan and condensate system for wet-coil operation.
Controls for temperature, humidity, airflow, alarms and scheduling.
CSTHEATEXCHANGER’s published functional-section guidance explains that the surface-cooling section can cool and dehumidify fresh air to control supply-air temperature and humidity. It also notes that higher-efficiency filters may be configured for applications with greater indoor-air-quality requirements. We use these principles as part of the design review, while keeping the final filter class, coil condition and control sequence specific to the project.
The AHU should not be asked to perform a process-exhaust function it was not designed for. Solvent vapors, ink odors, combustion products and dryer exhaust need a suitable capture and exhaust strategy. The HVAC designer and plant safety team should define these systems and confirm how the AHU will provide replacement air without creating drafts or pressure problems.
Printing presses and dryers can introduce a variable heat load. The load may change with production speed, substrate, ink coverage, dryer settings, shift pattern and the number of machines operating at the same time. An AHU selected only from the building’s floor area may be unable to respond to the actual process conditions.
We calculate or review the heat load from presses, dryers, motors, lighting, people, outdoor air and the building envelope. We also consider the effect of process exhaust. If hot air is exhausted from the plant, the replacement air must be conditioned or the room may experience temperature swings and unwanted drafts.
CSTHEATEXCHANGER’s air-cooled heat exchanger information describes equipment for heating, cooling, dehumidification and drying air in industries that include printing and dyeing. We use this product knowledge to discuss heating and cooling coils, heat-transfer media and air-side resistance. The final coil size, tube material, fin configuration, face velocity and pressure drop must be determined from the selected design conditions.
Supply-air distribution is equally important. We position diffusers or duct outlets to avoid blowing directly across paper paths, freshly printed surfaces or operators. We look for short-circuiting between supply and return air and check whether heat accumulates above presses or near the roof. After installation, we verify the distribution under representative production conditions rather than relying only on an empty-room test.
Humidity control is often the reason a printing plant considers an industrial AHU rather than basic comfort HVAC. Paper is hygroscopic, so its moisture content can change as the surrounding air changes. A plant that alternates between humid outdoor air, dry heated air and heavily conditioned press-room air may see inconsistent material behavior.
We design humidity control around the plant’s climate and production process. In humid weather, the cooling coil can lower the air temperature below its dew point so that moisture is removed through the condensate system. In dry weather, a humidification section may be required to maintain the specified operating range. Reheat may also be used after dehumidification when the supply air needs to be delivered at a higher temperature, but this must be evaluated for energy use and system control.
CSTHEATEXCHANGER’s AHU information identifies humidity as one of the adjustable air indicators, while its functional-section guidance describes cooling and dehumidification through the surface-cooling section. We treat the AHU controller, humidity sensor, coil, drain pan, humidifier and reheat function as a coordinated system. A cooling coil cannot add moisture, and a humidifier cannot correct a room that is continuously receiving uncontrolled humid air through open doors or process exhaust.
We place humidity sensors where they represent the press-room environment and protect them from direct supply-air jets. The control sequence should prevent rapid cycling and avoid creating a local condition that looks acceptable at the sensor while paper stacks or press feeders experience something different.
Printing plants can generate paper dust, trim waste, ink aerosols, odors and other airborne contaminants. The filtration strategy must be matched to the source, concentration, particle size, maintenance capability and applicable workplace requirements.
We distinguish general AHU filtration from local process capture. A return-air filter can protect the coil and reduce recirculated dust, but it should not replace dedicated extraction at a trim station, dryer, coating line or solvent source. The plant’s safety and environmental team should define the appropriate exhaust and treatment system for process contaminants.
CSTHEATEXCHANGER’s published AHU information lists cleanliness as a configurable air indicator and states that functional sections can be combined according to customer needs. Its related guidance notes that more efficient filters can be configured for areas with higher indoor-air-quality requirements. We therefore discuss pre-filter and final-filter arrangements, access doors, pressure monitoring and replacement schedules as part of the AHU specification.
Filter selection affects fan energy and airflow. As filters load, pressure drop increases and the delivered air volume can fall. We include differential-pressure monitoring or another practical inspection method where the project requires it. The final filter performance should be stated in the technical documents; buyers should not infer a cleanroom classification or contaminant-removal guarantee from the presence of an AHU filter section alone.
Installing an industrial AHU in a printing plant requires coordination with production. We confirm the lifting route, structural supports, service clearance, duct connections, drain route, coil-piping connections, electrical supply and control network before delivery. If the unit is installed above or beside a press hall, we also plan isolation and protection against dust, ink and construction debris.
The AHU should be mounted on a stable base or support frame with access to filters, coils, fans, dampers, actuators and controls. Cooling coils need an appropriate drain pan and condensate route. Heating and cooling media connections should be supported, insulated and labelled according to the approved drawings. Duct penetrations and access panels should be sealed to control leakage and maintain the intended air balance.
Our commissioning sequence includes:
We inspect the casing, panels, filters, coils, fans and access doors.
We verify electrical connections, motor rotation, controls and safety devices.
We check the cooling-coil drain pan, trap and condensate discharge.
We measure supply, return and outdoor-air volume after balancing.
We confirm temperature and humidity sensor locations and calibration.
We test heating, cooling, dehumidification, humidification and alarm sequences included in the design.
We record baseline readings with representative press and exhaust operation.
CSTHEATEXCHANGER states that it can provide design data and production drawings for customer projects. We use the approved drawings and control narrative as the commissioning reference. The final operating values should be taken from the project specification and equipment documentation, not from an unrelated printing plant or a generic web article.
A printing-plant AHU requires regular maintenance because dust, paper fibers and production residues can load filters and foul coils. The maintenance program should be coordinated with press cleaning, plant shutdowns and seasonal changes in outdoor humidity.
Our routine checks include:
Inspecting filters and replacing them when pressure drop reaches the specified limit.
Cleaning cooling and heating coils using an approved method.
Checking fan bearings, belts, motors, vibration and guards.
Inspecting dampers, actuators and fresh-air positions.
Cleaning the drain pan and confirming free condensate drainage.
Checking temperature and humidity sensors against reference instruments.
Reviewing humidifier components, water treatment and hygiene where installed.
Inspecting duct access panels, insulation and visible leakage.
Recording alarms, comfort complaints and production-related observations.
We also compare HVAC trends with production events. If humidity rises whenever a dryer starts, the exhaust and make-up-air balance may need review. If temperature rises near one press only, local air distribution or process heat removal may be the issue. If paper behavior changes after a filter replacement, the plant should verify the air balance and control settings rather than assume the AHU coil has failed.
CSTHEATEXCHANGER’s company information describes heat exchanger manufacturing for new and replacement projects and OEM/ODM support. For replacement AHUs, we recommend retaining the original drawings, coil data, fan curves, control settings, filter records and maintenance history so future service decisions remain traceable.
When we prepare an AHU proposal, we connect the equipment to the printing process. We define the production zones, heat sources, humidity risks, outdoor-air requirements, exhaust systems, filter needs, utility conditions and maintenance access before finalizing the functional sections.
CSTHEATEXCHANGER’s Air Handling Unit product page describes configurable combinations for temperature, humidity, cleanliness and airflow. Its air-cooled heat exchanger information identifies heating, cooling, dehumidification and drying applications in industries that include printing and dyeing. We use these published capabilities as the starting point, then match the final coil and air-handler design to the customer’s actual plant.
Before requesting a quotation, send us the plant drawings, press and dryer schedule, paper types, production heat load, outdoor design conditions, process-exhaust information, target operating range, filtration requirements, available utilities, electrical supply and control preferences. Contact CSTHEATEXCHANGER to discuss an industrial air handling unit for printing plant temperature and humidity control.
A correctly specified AHU can support a more stable printing environment, but the final performance depends on the complete HVAC system, the building envelope, process exhaust, press operation, paper handling and ongoing maintenance. We recommend confirming all design conditions and acceptance criteria in the project quotation and commissioning documents.
