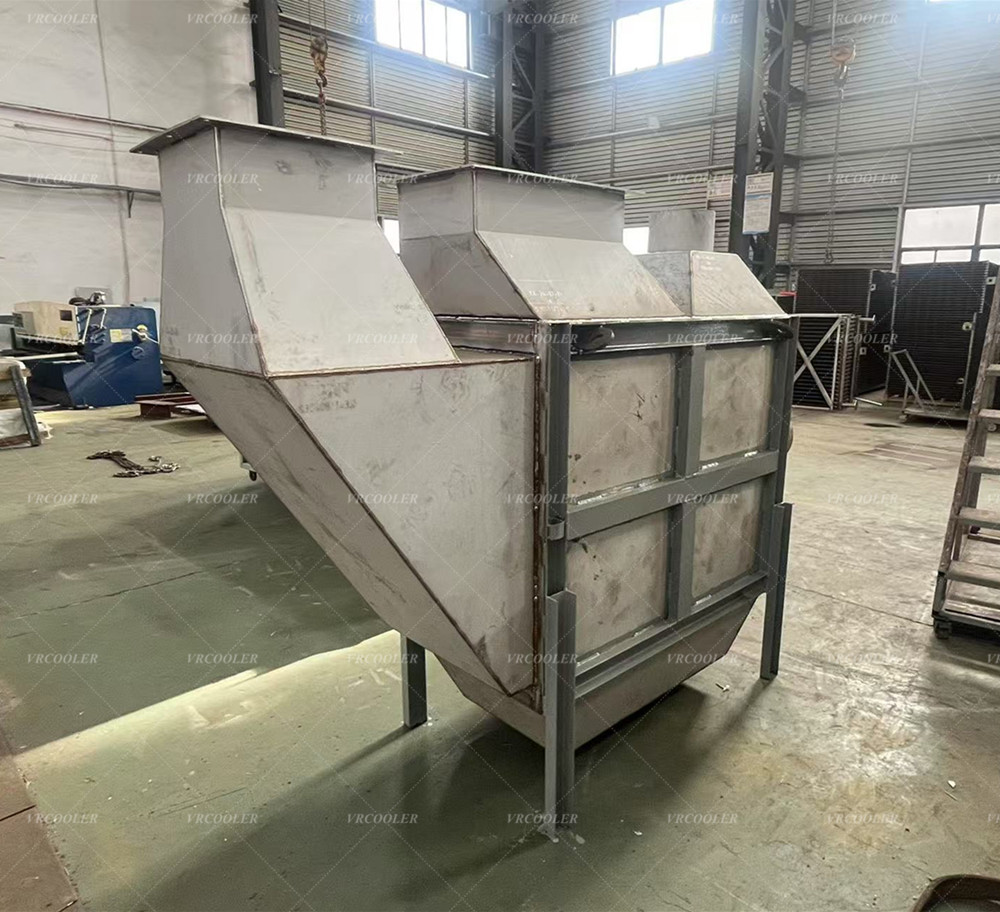

CSTHEATEXCHANGER Plate Air Preheaters for Synthesis Gas Cooling

At CSTHEATEXCHANGER, we design and manufacture fully welded plate air preheater heat exchangers specifically engineered for deep-thermal syngas cooling—lowering hot synthesis gas (syngas) from 700°C down to below 100°C in a single continuous or modular stage while preheating gasification combustion air or process air up to 350°C–550°C. Raw synthesis gas (CO+H2+CO2+H2O+H2S+HCl) from coal, biomass, waste gasification, and steam methane reforming carries extreme thermal enthalpy, abrasive fly ash, carburizing metal-dusting mechanisms, and low-temperature acid dew point condensation. CSTHEATEXCHANGER all-welded plate air preheaters utilize advanced multi-zone metallurgy (310S, 321, 2205 Duplex, and ND Steel), wide-gap smooth aerodynamic channels (10 mm to 25 mm), zero-cross-leakage fully welded plate packs, and multi-stage thermal expansion bellows to deliver reliable high-efficiency energy recovery and long service life.

The Extreme Thermodynamic & Chemical Challenges of 700°C to <100°C Syngas Cooling

Cooling raw synthesis gas over an extreme temperature gradient (a 600∘C+600∘C+ thermal span from 700°C down to <100°C) is one of the most demanding applications in chemical engineering and syngas cleaning.

Operating a gas-to-gas heat exchanger across this wide operational envelope involves three distinct metallurgical and thermodynamic degradation zones:

1. High-Temperature Zone (700°C down to 450°C): Metal Dusting & Thermal Expansion

• Severe Metal Dusting Attack: In carbon monoxide (COCO) and hydrogen (H2H2​) rich syngas streams between 450°C and 650°C with carbon activity ac>1ac​>1, standard carbon and low-alloy steels suffer catastrophic "metal dusting"—a destructive form of carburization where steel disintegrates into a fine powder of carbon soot and metal particles.

• Extreme Linear Thermal Expansion: At 700°C, large plate packs expand linearly by over 30 mm to 50 mm, generating destructive thermal stresses on rigid welds if not accommodated by floating structural architectures.

2. Intermediate Temperature Zone (450°C down to 200°C): Fly Ash Deposition & Fouling

• Raw syngas from gasifiers contains entrained fine char, unburned carbon, and abrasive sub-micron fly ash. Narrow, tortuous heat exchanger channels rapidly blind and foul, creating steep pressure drops and choking gasifier draft.

3. Deep Cooling & Condensation Zone (200°C down to <100°C): Severe Acid Dew-Point Corrosion

• Syngas contains water vapor and acid gases, primarily hydrogen sulfide (H2SH2​S), sulfur dioxide (SO2SO2​), and hydrogen chloride (HClHCl). As syngas cools below its acid dew point (typically 120°C to 140°C), hydrochloric and sulfuric acid vapors condense into concentrated, highly corrosive liquid acids that rapidly pit standard stainless steels.

4. Zero Cross-Leakage Safety Mandate

• Synthesis gas contains deadly toxic carbon monoxide (COCO) and highly explosive hydrogen (H2H2​). The air preheater must guarantee 100% physical isolation between the syngas stream and the oxygen-rich combustion air stream to prevent catastrophic internal explosions.

How CSTHEATEXCHANGER All-Welded Syngas Plate Air Preheaters Excel

At CSTHEATEXCHANGER, we engineer our synthesis gas plate air preheaters with multi-zone metallurgical grading, open aerodynamic channels, and 100% robotic laser-welded plate packs:

            CSTHEATEXCHANGER® MULTI-ZONE SYNGAS PLATE PREHEATER

     Hot Raw Synthesis Gas from Gasifier / Reforming Furnace (700°C)
                                    │
                                    ▼
   ┌────────────────────────────────────────────────────────────────────────┐
   │ ZONE 1 (700°C ──► 450°C): HIGH-TEMP METAL DUSTING RESISTANT SECTION    │
   │ • Heavy-Gauge 310S / 321 / Inconel 625 Fully Welded Plate Matrix       │
   │ • Multi-Ply High-Temperature Expansion Bellows & Floating Module Frame │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ZONE 2 (450°C ──► 200°C): WIDE-GAP AEROSOL & FLY ASH PASSAGE SECTION   │
   │ • 12 mm - 25 mm Unrestricted Smooth Channels (Zero Ash Bridging)       │
   │ • Continuous High-Velocity Self-Scouring Flow with Automated Soot Port │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ZONE 3 (200°C ──► <100°C): ANTI-ACID DEW POINT CONDENSATION SECTION    │
   │ • 2205 Duplex Stainless Steel / ND Steel (09CrCuSb) / Hastelloy Core   │
   │ • Acid Condensate Drain Sump (Cooling Gas to 80°C - 95°C for AGR Feed) │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Ambient Air (20°C) ──────► ►►► Preheated Combustion Air (350°-550°C)│
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Clean, Deep-Cooled Synthesis Gas Discharged (<100°C)
             (Zero Cross-Leakage · 100% Gas-Tight · Up to 8% CGE Boost)

1. Multi-Zone Graded Metallurgy for Complete Corrosion Defense

CSTHEATEXCHANGER divides the 700°C to <100°C thermal path into optimized metallurgical zones:

• Hot Inlet Zone (700°C–450°C): Fabricated from high-nickel/chromium alloys (AISI 310S, 321, or Inconel 625) that form a dense, self-healing protective chromium oxide (Cr2O3Cr2​O3​) scale, providing complete immunity to metal dusting attack and high-temperature creep.

• Acid Condensation Cold Zone (200°C–<100°C): Fabricated from 2205 Duplex Stainless Steel (UNS S32205), 254 SMO, or ND Steel (09CrCuSb), providing exceptional resistance to condensing hydrochloric acid (HClHCl) and sulfuric acid pitting.

2. 100% Fully Welded Monolithic Plate Pack (Zero Gaskets)

All plate-to-plate seams, corner headers, and casing transitions are 100% robotically laser-welded or TIG-welded without elastomer gaskets. Every unit undergoes vacuum chamber helium mass spectrometer testing, ensuring zero cross-leakage between syngas and combustion air streams.

3. Wide-Gap Smooth Channels (10 mm to 25 mm) for Anti-Fouling

Our plate packs feature open, smooth-corrugated channels with gap widths from 10 mm up to 25 mm. The wide, unobstructed flow path prevents sub-micron fly ash from bridging between plates, while high-velocity self-scouring gas dynamics (12 to 18 m/s12 to 18 m/s) continuously sweep particles downward into the ash collection hopper.

4. Multi-Stage Thermal Expansion Management

CSTHEATEXCHANGER integrates multi-ply high-temperature stainless steel expansion bellows between individual plate modules and the outer insulated structural casing. The hot alloy plate pack expands freely during rapid gasifier startup and thermal cycling, eliminating stress fatigue on corner welds.

Applications Across Gasification & Chemical Synthesis Plants

• Biomass & Waste-to-Syngas Gasification Plants: Deep-cooling raw producer gas from fluidized bed gasifiers to below 100°C while preheating gasification blast air to 400°C+, boosting Cold Gas Efficiency (CGE) by 4% to 8%.

• Coal Gasification & Entrained-Flow Gasifiers: Syngas convective coolers preheating primary and secondary combustion air for high-temperature slagging gasifiers.

• Steam Methane Reforming (SMR) & Hydrogen Plants: Preheating reforming furnace burner air using hot process syngas discharging from reforming tubes.

• Methanol & Fischer-Tropsch (GTL) Synthesis Pre-Treatment: Deep-cooling synthesis gas to 80°C–90°C directly upstream of acid gas removal (Rectisol, Selexol, or amine scrubbing) units.

• Direct Reduced Iron (DRI) Syngas Preheaters: High-capacity plate preheaters cooling reducing gas streams in metallurgical ironmaking facilities.

Technical Specifications & Manufacturing Standards

• Synthesis Gas Inlet Temperature: Up to 700°C–750°C (1,292°F–1,382°F).

• Synthesis Gas Outlet Temperature: Below 100°C (Typically 80°C to 95°C / 176°F to 203°F).

• Preheated Air Discharge Temperature: 250°C to 550°C (480°F to 1,020°F).

• Thermal Duty Range: 500 kW to 35,000+ kW per modular preheater assembly.

• Syngas Flow Rate Capacity: 2,000 Nm³/h to 120,000+ Nm³/h.

• Gas-Side Operating Pressure: Full vacuum up to 4.0 MPa (40 bar / 580 PSI).

• Permissible Pressure Drop: Low-resistance aerodynamic design (ΔP≤500 to 1,200 PaΔP≤500 to 1,200 Pa).

• Plate Metallurgy: Multi-zone graded 310S, 321, Duplex 2205, 316L, and ND Steel (09CrCuSb).

• Quality & NDT Certifications: 100% radiographic weld inspection (RT), dye penetrant (PT), hydrostatic pressure testing, and helium mass spectrometer leak detection (<1×10⁻⁷ mbar·l/s).

Frequently Asked Questions — CSTHEATEXCHANGER Syngas Plate Preheaters

How does CSTHEATEXCHANGER prevent metal dusting in the 450°C–650°C syngas zone?

Metal dusting occurs when carbon monoxide diffuses into steel and forms unstable iron carbides. CSTHEATEXCHANGER utilizes high-nickel and high-chromium alloys (such as 310S, 253 MA, and Inconel 625) with specialized surface passivation that forms an impermeable, continuous chromium oxide protective layer, blocking carbon penetration.

How does the unit resist acid dew point corrosion when cooling below 100°C?

In the cold exit section (where gas cools below 140°C), we switch plate metallurgy to 2205 Duplex Stainless Steel or specialized ND Steel (09CrCuSb), which provides certified resistance to condensing hydrochloric and sulfuric acids.

Why is an all-welded plate preheater superior to a shell-and-tube syngas cooler?

All-welded plate preheaters provide up to 3 to 4 times higher volumetric heat transfer density than shell-and-tube exchangers, require a much smaller plot area, achieve closer approach temperatures, and provide smooth, wide-gap gas channels that resist fly ash accumulation.

Specify Your Syngas Plate Air Preheater with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your syngas cooling and gasification parameters:

• Gasification Feedstock: Biomass, Coal, Municipal Solid Waste (MSW), or Natural Gas Reforming

• Raw Syngas Composition (% Vol): CO,H2,CO2,H2O,CH4,N2,H2S,HClCO,H2​,CO2​,H2​O,CH4​,N2​,H2​S,HCl

• Syngas Flow Rate (Nm3/hNm3/h or kg/h) & Operating Pressure (bar/PSI)

• Inlet & Required Outlet Syngas Temperatures (e.g., 700°C ──► 85°C)

• Combustion Air Flow Rate & Target Preheated Air Temperature (°C)

• Allowable Gas-Side & Air-Side Pressure Drops (kPa or Pa)

Our syngas thermodynamic engineering team will provide comprehensive process energy-balance simulations, multi-zone metallurgical analysis, 3D CAD dimensional drawings, and factory-direct equipment proposals.
