CSTHEATEXCHANGER AQC Air Quenching Cooler Waste Heat Recovery Heat Exchangers

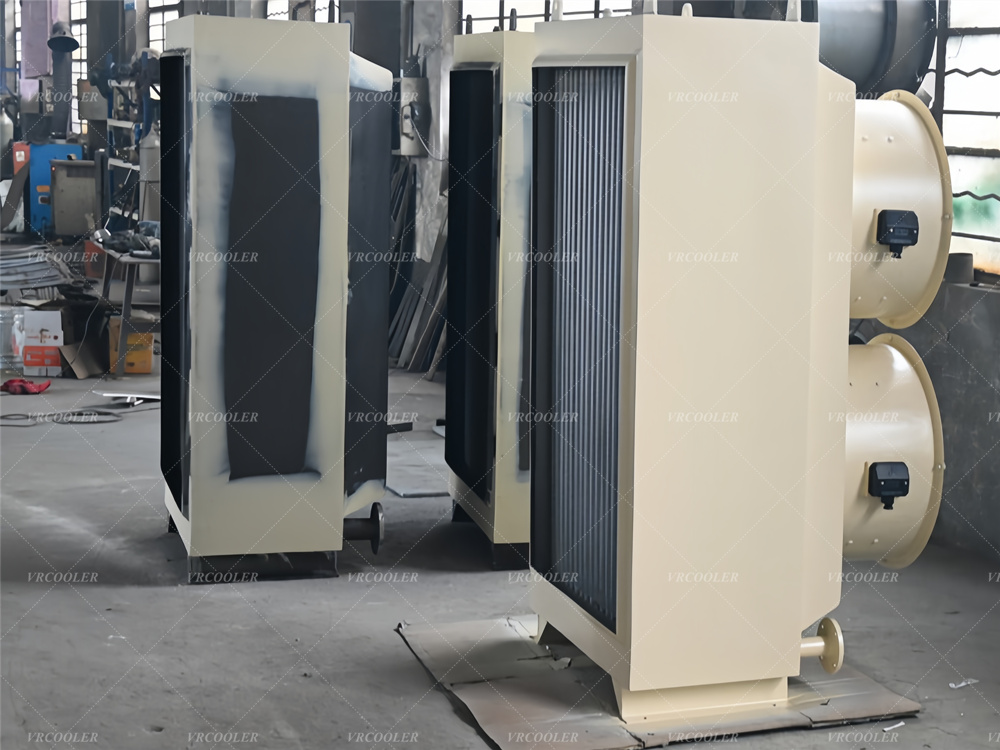

At CSTHEATEXCHANGER, we engineer and manufacture industrial-grade AQC (Air Quenching Cooler) waste heat recovery heat exchangers, boiler tube bundles, and dual-pressure heat recovery modules specifically tailored for cement clinker production lines (2,500 TPD to 12,000+ TPD). Designed to withstand abrasive clinker dust and high thermal fluctuations from rotary kiln grate coolers (250∘C to 400∘C exhaust air), CSTHEATEXCHANGER AQC heat exchangers feature anti-erosion H-finned and Double-H finned boiler tubes (SA-210C, 15CrMoG), high-hardness sacrificial stainless wear guards, optimized low-velocity gas corridors (6.5 m/s−8.5 m/s), and integrated mechanical rapping/sonic soot-blowing systems. Our solutions recover up to 45% of clinker sensible heat to generate clean steam for ORC systems, steam turbine generators, or raw mill drying—slashing cement plant carbon emissions while delivering a 25+ year operating life.

Thermodynamics and Clinker Cooler Waste Heat Recovery in Cement Plants

In modern dry-process cement manufacturing, red-hot cement clinker discharges from the rotary kiln into the Air Quenching Cooler (grate cooler) at temperatures exceeding 1,350∘C−1,450∘C1,350∘C−1,450∘C. High-pressure ambient air is blasted upward through the moving grate to rapidly freeze the clinker mineral crystalline structure (quenching C3SC3​S alite crystals to ensure hydraulic strength).

While primary high-temperature tertiary air (850∘C−950∘C850∘C−950∘C) is directed to the calciner and secondary air (1,050∘C1,050∘C) enters the kiln as combustion air, the remaining mid-temperature exhaust air (250∘C−400∘C250∘C−400∘C) discharges from the middle and tail sections of the AQC cooler. Historically, this vast thermal energy was simply vented to atmosphere after passing through electrostatic precipitators (ESP) or bag filters.

       CEMENT ROTARY KILN & AQC CLINKER COOLER HEAT RECOVERY CIRCUIT

   ┌────────────────────────────────────────────────────────────────────────┐
   │ ROTARY KILN CLINKER DISCHARGE (~1,400°C)                              │
   │ ┌────────────────────────────────────────────────────────────────────┐ │
   │ │ AQC GRATE COOLER (Reciprocating / Cross-Bar Air Quenching Grate)   │ │
   │ └───────┬─────────────────────────────────┬──────────────────────────┘ │
   │         │ Tertiary Air (900°C Calciner)   │ Mid-Temp Exhaust (250–380°C)│
   └─────────┼─────────────────────────────────┼────────────────────────────┘
             │                                 │
             ▼                                 ▼
     ┌───────────────┐        ┌───────────────────────────────────────────────┐
     │ KILN CALCINER │        │ CSTHEATEXCHANGER® AQC HEAT RECOVERY BOILER    │
     │ PREHEATER     │        │ • High-Pressure Superheater & Evaporator      │
     │ (SP BOILER)   │        │ • Low-Pressure Dual-Stage Economizer          │
     └───────┬───────┘        │ • Anti-Erosion H-Finned Boiler Steel Tubes    │
             │                │ • Integrated Pneumatic Rapping & Sonic Blower │
             │                └───────────────────────┬───────────────────────┘
             │                                        │
             └───────────────────┬────────────────────┘
                                 │
                                 ▼
      Steam Turbine Generator / ORC Waste Heat Power Plant (30–42 kWh/ton Clinker)

The Waste Heat Power Potential of AQC Exhaust

For a standard 5,000 TPD (tonnes per day) cement production line, the exhaust gas volume from the AQC cooler ranges from 180,000 Nm3/h180,000 Nm3/h to 280,000 Nm3/h280,000 Nm3/h at temperatures between 300∘C300∘C and 360∘C360∘C.

Recovering this heat via a CSTHEATEXCHANGER AQC Waste Heat Recovery Heat Exchanger generates:

• High-Pressure Superheated Steam: 1.25 MPa−2.45 MPa1.25 MPa−2.45 MPa at 300∘C−340∘C300∘C−340∘C for main steam turbine driving.

• Low-Pressure Saturated Steam / Hot Water: 0.25 MPa−0.45 MPa0.25 MPa−0.45 MPa at 130∘C−150∘C130∘C−150∘C for deaeration, dual-pressure turbine admission, or organic Rankine cycle (ORC) working fluids.

• Total Power Generation Yield: Contributes 18 to 26 kWh18 to 26 kWh of clean electricity per ton of clinker (out of total 32−40 kWh/t32−40 kWh/t generated in combined SP + AQC systems), cutting external plant electricity bills by 25%−35%25%−35%.

Extreme Operational Challenges in AQC Air Quenching Coolers

Unlike conventional industrial flue gas heat recovery, AQC exhaust gas presents one of the most hostile operating environments in heavy manufacturing:

          AQC FLUE GAS THREATS VS. CSTHEATEXCHANGER SOLUTIONS

   ┌──────────────────────────────┬─────────────────────────────────────────┐
   │ AQC Operating Challenge      │ CSTHEATEXCHANGER Engineering Solution   │
   ├──────────────────────────────┼─────────────────────────────────────────┤
   │ Severe Clinker Dust Erosion  │ Heavy-wall tubes (SA-210C) + 3mm thick  │
   │ (Mohs hardness 5–7 dust)     │ 1Cr18Ni9Ti stainless wear-guard tiles   │
   ├──────────────────────────────┼─────────────────────────────────────────┤
   │ High Dust Loading            │ Self-cleaning H-Finned straight-gas     │
   │ (20–45 g/Nm³ abrasive dust)  │ corridors + acoustic & rapping blowers  │
   ├──────────────────────────────┼─────────────────────────────────────────┤
   │ Gas Velocity-Induced Wear    │ Controlled gas velocity (6.5–8.5 m/s)   │
   │ (Erosion rate proportional v³)│ preventing kinetic impact failure      │
   ├──────────────────────────────┼─────────────────────────────────────────┤
   │ Thermal Shock & Cycling      │ Floating serpentine tube bundle design  │
   │ (Kiln upsets 200°C ↔ 420°C)  │ with individual expansion slip joints   │
   └──────────────────────────────┴─────────────────────────────────────────┘

1. Abrasive Clinker Dust Impingement: Cement clinker particulates consist of crystallized tricalcium silicate (C3SC3​S), dicalcium silicate (C2SC2​S), and calcium aluminate. With a Mohs hardness of 5.5 to 7.0, unconditioned high-velocity clinker dust acts like sandblasting media against boiler tubes. Because erosion wear is proportional to the cube of gas velocity (E∝v3E∝v3), improperly designed coils fail from wall-thinning blowouts in less than 12 months.

2. Heavy Dust Accumulation & Ash Bridging: Clinker dust concentrations in AQC exhaust air reach 20 to 45 g/Nm320 to 45 g/Nm3. On standard helical spiral-finned tubes, dust bridges rapidly between fin gaps, creating dense thermal insulating crusts that reduce heat transfer coefficients by over 60% within weeks.

3. Severe Thermal Expansion & Thermal Shocks: Kiln operating disturbances, ring collapse, or clinker flooding cause abrupt gas temperature swings between 200∘C200∘C and 420∘C420∘C in minutes, inducing massive mechanical stress across rigid tube sheets and headers.

CSTHEATEXCHANGER AQC Heat Exchanger Engineering Solutions

At CSTHEATEXCHANGER, our AQC waste heat recovery systems and replacement tube modules are engineered specifically to conquer cement plant abrasion, fouling, and thermal fatigue:

          CSTHEATEXCHANGER® AQC MODULAR CASING & TUBE GEOMETRY

   ┌────────────────────────────────────────────────────────────────────────┐
   │ REINFORCED HEAVY STRUCTURAL CASING (INTERNAL HIGH-ALUMINA REFRACTORY)  │
   │ ┌────────────────────────────────────────────────────────────────────┐ │
   │ │ HIGH-PRESSURE SUPERHEATER (SA-213 T11 / 15CrMoG ALLOY TUBES)       │ │
   │ │ • 1Cr18Ni9Ti Full-Coverage Wear-Resistant Sacrificial Guard Tiles  │ │
   │ ├────────────────────────────────────────────────────────────────────┤ │
   │ │ DUAL-CIRCUIT EVAPORATOR (HEAVY-WALL SA-210C SEAMLESS BOILER STEEL) │ │
   │ │ • Optimized H-Finned (Square) Geometries (Straight Gas Lanes)      │ │
   │ │ • High-Frequency Resistance Welded (HFRW) Metallurgical Bond       │ │
   │ ├────────────────────────────────────────────────────────────────────┤ │
   │ │ LOW-PRESSURE ECONOMIZER & DEAERATING HEATER TUBE BUNDLES           │ │
   │ │ • Extended High-Area Double-H Fins for Maximum Tail Heat Scavenge  │ │
   │ └────────────────────────────────────────────────────────────────────┘ │
   ├────────────────────────────────────────────────────────────────────────┤
   │ MULTI-STAGE CLEANING: PNEUMATIC MECHANICAL RAPPING + SONIC SOOT BLOWER │
   ├────────────────────────────────────────────────────────────────────────┤
   │ PYRAMIDAL ASH HOPPERS WITH ROTARY AIRLOCK DISCHARGE VALVES             │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Zero Tube Leaks · Sustained >92% Thermal Recovery · 25+ Year Life

1. Advanced H-Finned and Double-H Finned Tube Geometries

Instead of spiral-wound helical fins that trap clinker dust, CSTHEATEXCHANGER utilizes H-finned (square fin) and Double-H finned boiler tubes:

• Aerodynamic Straight Dust Channels: The square fin profile creates continuous, unobstructed straight flue gas lanes parallel to gas flow. Clinker dust particles pass smoothly through without dead zones or eddy turbulence, preventing ash settling.

• Superior Thermal Contact: Fins are bonded to the heavy-wall seamless base tube via high-frequency resistance welding (HFRW), creating a continuous fusion bond with >98%>98% weld line integrity for maximum conduction.

• Double-H Fin Geometry: For low-temperature economizer sections, Double-H fins provide double the heat transfer surface area while maintaining identical straight-lane self-cleaning aerodynamics.

2. Multi-Tier Anti-Erosion Armor Protection

• Sacrificial Stainless Steel Wear Guards: Every tube in the first three windward rows of the superheater and evaporator bundles is fitted with 3.0 mm−4.0 mm3.0 mm−4.0 mm thick 1Cr18Ni9Ti1Cr18Ni9Ti (AISI 321) or Hardox stainless steel wear-resistant armor tiles. These tiles absorb direct abrasive particle impact, extending base tube lifespan beyond 20 years.

• Controlled Gas Velocity Aerodynamics: CSTHEATEXCHANGER sizes the heat exchanger flow cross-section to maintain gas velocities strictly between 6.5 m/s6.5 m/s and 8.5 m/s8.5 m/s. This sweet spot provides high turbulent convective heat transfer while keeping mechanical erosion rates near zero.

• Thickened Anti-Wear Deflector Baffles: Aerodynamic stainless deflector plates are installed at gas entry plenums to eliminate gas flow maldistribution and prevent localized high-velocity gas jetting.

3. Integrated Dual-System On-Line Ash Removal

To ensure continuous, uncompromised thermal efficiency without requiring plant shutdowns:

• Mechanical Rapping Systems: Motor-driven or pneumatic hammer rapping mechanisms strike the tube bundle support beams at programmed intervals, transmitting acoustic and mechanical shockwaves that instantly crack and shed clinging dust cakes.

• Sonic Soot Blowers: Non-contact acoustic horns emit high-energy, low-frequency sound waves (75 Hz−150 Hz) that fluidize clinker dust boundaries across fin surfaces, allowing dust to fall by gravity into lower collection hoppers.

4. Floating Header Stress-Relief Construction

All tube circuits utilize a serpentine horizontal arrangement supported by floating structural comb plates. Inlet and outlet manifolds are mounted outside the gas casing with flexible metallic expansion bellows, allowing unrestricted thermal expansion and contraction during kiln emergency trips without generating weld fatigue cracks.

Technical Specifications — CSTHEATEXCHANGER AQC Heat Exchangers

• Applicable Cement Line Scale: 2,500 TPD,5,000 TPD,7,500 TPD,10,000 to 12,000 TPD Rotary Kilns.

• Flue Gas Volume Capacity: 50,000 Nm3/h to over 500,000 Nm3/h.

• Inlet Gas Temperature: 250∘C to 420∘C (Designed for emergency spikes to 450∘C).

• Outlet Gas Temperature: C95∘C to 130∘C (Optimized above acid dew point).

• Base Tube Metallurgy: Seamless Boiler Steel SA-210C, SA-192, 20G, 15CrMoG, SA-213 T11 / T22.

• Fin Geometry & Metallurgy: High-Frequency Welded H-Fins / Double-H Fins (2.0 mm−3.0 mm thickness, Q235B / 09CrCuSb ND Steel / SS304).

• Steam Pressure Classes: High-Pressure Loop: 1.25 MPa−2.5 MPa (300∘C−350∘C); Low-Pressure Loop: 0.25 MPa−0.6 MPa (140∘C−160∘C).

• Dust Concentration Tolerance: Up to 50 g/Nm350 g/Nm3 abrasive clinker dust loading.

• Gas-Side Pressure Drop: ΔPgas≤450 Pa−750 PaΔPgas​≤450 Pa−750 Pa (Optimized for induced draft fan power savings).

• Manufacturing Standards: ASME Section I / Section VIII Div. 1, EN 12952, GB/T 151, ISO 9001:2015.

Frequently Asked Questions (FAQ)

What is the primary difference between an SP boiler and an AQC boiler in a cement plant?

In a cement waste heat recovery system, the SP (Suspension Preheater) boiler recovers high-temperature flue gas (300∘C−350∘C300∘C−350∘C) exiting the kiln preheater tower at the kiln inlet, which contains fine, sticky raw meal dust. The AQC (Air Quenching Cooler) boiler recovers mid-temperature clean hot air (250∘C−380∘C250∘C−380∘C) from the clinker grate cooler at the kiln outlet, which contains coarse, extremely abrasive clinker dust requiring heavy-duty anti-erosion tube shielding and H-finned geometries.

How do H-finned tubes prevent clinker dust clogging compared to standard spiral fins?

Spiral-wound fins create circular crevices and dead-flow zones where turbulent eddies deposit clinker dust, leading to severe bridging and blinding. H-finned tubes feature square fins aligned in a continuous straight-plane grid. Flue gas flows in parallel, unobstructed straight corridors, allowing dust particles to pass through without settling while maintaining high convective heat transfer.

Can CSTHEATEXCHANGER provide drop-in replacement tube bundles for existing AQC boilers?

Yes. At CSTHEATEXCHANGER, we regularly engineer and supply modular replacement superheater, evaporator, and economizer tube bundles for aging AQC waste heat boilers. We precisely match existing casing structural dimensions, header centerline spacing, and support rail locations while upgrading base tube wall thicknesses, fin metallurgy, and anti-wear guard shielding to solve recurring tube leak problems.

Partner with CSTHEATEXCHANGER for AQC Waste Heat Recovery

Upgrade your cement plant energy efficiency, lower power consumption per ton of clinker, and eliminate chronic boiler tube wear with CSTHEATEXCHANGER:

• New Turnkey AQC Waste Heat Recovery Heat Exchangers & Boilers

• Drop-In Replacement Superheater, Evaporator & Economizer Tube Bundles

• Upgraded Anti-Erosion H-Finned & Double-H Finned Tube Modules

• Custom Organic Rankine Cycle (ORC) Clinker Cooler Heat Exchangers

Contact our industrial waste heat engineering division today with your kiln capacity (TPD), AQC exhaust gas volume, and temperature parameters for a complete thermodynamic sizing calculation and technical proposal.
