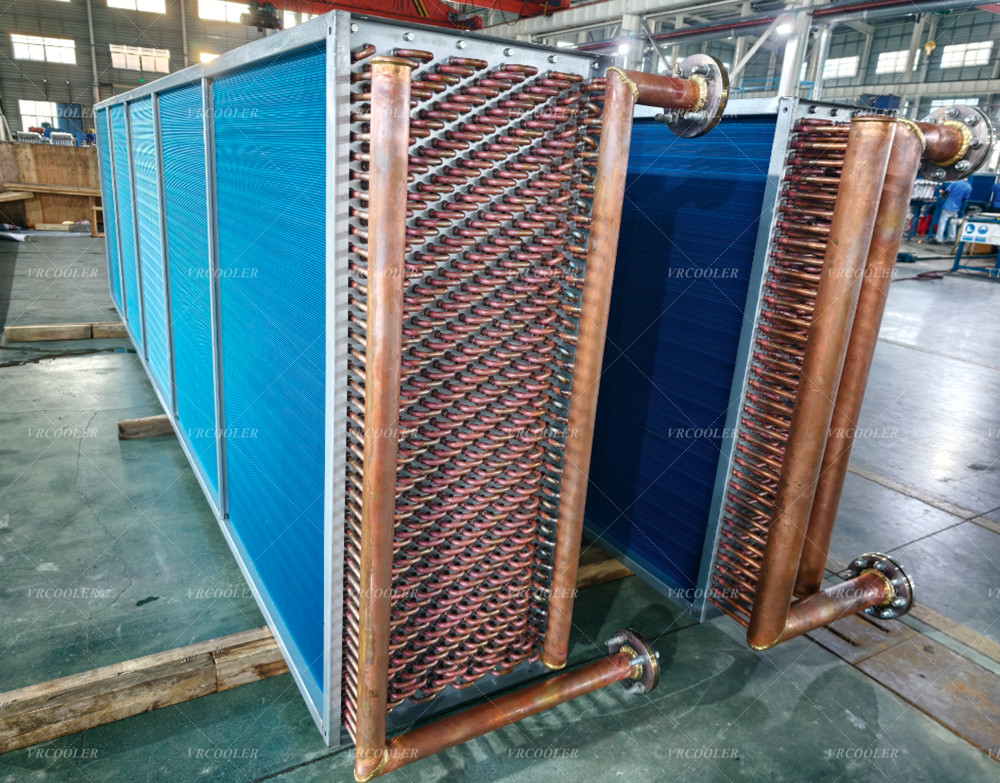

At CSTHEATEXCHANGER, we are a globally certified OEM and custom manufacturer of high-reliability water-to-air finned tube heat exchanger coils for commercial, industrial, and hygienic Air Handling Units (AHU), Makeup Air Units (MAU), and Dedicated Outdoor Air Systems (DOAS). Custom-engineered for both chilled water (CHW) cooling/dehumidification and hot water (HW) supply heating, CSTHEATEXCHANGER coils feature seamless copper or stainless steel tubes mechanically expanded into corrugated hydrophilic aluminum, epoxy-coated, or copper fins with 100% metal-to-metal thermal contact. Built with precision multi-circuit water distribution manifolds and heavy-gauge galvanized or AISI 304 stainless steel casings, our water-to-air coils deliver AHRI-standard thermal performance, low air/water pressure drops, and 25+ years of dependable ventilation climate control across hospitals, cleanrooms, data centers, and commercial complexes.

The Critical Role of Water-to-Air Finned Coils in Modern Ventilation & AHUs

In central HVAC and industrial mechanical ventilation systems, the Air Handling Unit (AHU) is the primary engine delivering filtered, thermally conditioned, and moisture-controlled fresh supply air to building occupants and critical industrial processes.

The water-to-air finned tube heat exchanger coil represents the thermodynamic heart of the AHU, executing two vital continuous heat transfer functions:

            CSTHEATEXCHANGER® WATER-TO-AIR AHU COIL THERMODYNAMICS

   ┌────────────────────────────────────────────────────────────────────────┐
   │ CHILLED WATER COOLING & DEHUMIDIFICATION MODE                          │
   │ • Water In: 6.0°C–7.0°C │ Water Out: 12.0°C–13.0°C (ΔT = 5.0K–6.0K)   │
   │ • Fresh Outdoor Air (32°C DB / 26°C WB) Cooled Down to 12°C–14°C DB   │
   │ • Latent Condensation: Dehumidifies supply air with zero moisture carry│
   ├────────────────────────────────────────────────────────────────────────┤
   │ HOT WATER HEATING & FROST PROTECTION MODE                              │
   │ • Water In: 60.0°C–80.0°C │ Water Out: 40.0°C–60.0°C                   │
   │ • Winter Sub-Zero Air (-15°C to 0°C) Heated Up to 20°C–24°C Comfort   │
   │ • Uniform air discharge without freeze-stat trips or cold stratification│
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Precise Temperature & Humidity · Low SFP · 100% Leak-Free

Why HVAC Engineers & Contractors Require a Reliable OEM Manufacturer

1. Accurate Thermal Rating & Zero Capacity Shortfalls: Undersized coils fail to maintain indoor comfort and humidity during peak summer wet-bulb spikes or winter freezes. CSTHEATEXCHANGER utilizes advanced thermodynamic simulation software validated against AHRI Standard 410, guaranteeing that every coil delivers 100% of its rated thermal duty.

2. Preventing Water Condensate Carryover ("Air Spitting"): In cooling mode, condensate water on bare aluminum fins can form droplet bridges that get ripped off by high face air velocities (>2.5 m/s>2.5 m/s), flooding downstream ductwork and breeding hazardous mold.

3. Optimized Hydraulic & Aerodynamic Energy Balance: Poorly circuited coils cause excessive water-side pressure drop (ΔPwater>60 kPaΔPwater​>60 kPa), overloading building circulation pumps, or excessive air-side resistance (ΔPair>200 PaΔPair​>200 Pa), driving up AHU fan electrical consumption (Specific Fan Power - SFP).

4. Hermetic Pressure Integrity & Frost Burst Resistance: Water coils must withstand continuous working pressures up to 1.6−2.5 MPa1.6−2.5 MPa (230−360 psig230−360 psig) and incorporate self-draining header designs to prevent disastrous winter freeze-ups.

CSTHEATEXCHANGER Manufacturing Excellence & Engineering Architecture

At CSTHEATEXCHANGER, our automated coil production lines and rigorous quality assurance protocols ensure industry-leading build quality and thermal efficiency:

          CSTHEATEXCHANGER® WATER-TO-AIR AHU COIL ARCHITECTURE

   ┌────────────────────────────────────────────────────────────────────────┐
   │ CNC BRASS / SEAMLESS COPPER WATER MANIFOLDS (SCH 40 / HEAVY-WALL PIPE) │
   │ • Precision Orifice Balancing · High-Point Air Vent & Low Drain Ports  │
   ├────────────────────────────────────────────────────────────────────────┤
   │ INTERNALLY EXPANDED SEAMLESS COPPER / STAINLESS STEEL TUBE MATRIX      │
   │ ┌────────────────────────────────────────────────────────────────────┐ │
   │ │ Deoxidized Seamless Cu-DHP (9.52 mm, 12.7 mm, 15.88 mm OD)        │ │
   │ │ 100% Mechanical Ball/Hydraulic Expansion (>99.8% Metal Bond)       │ │
   │ │ Optional AISI 304/316L Stainless Tubes for Corrosive Environments │ │
   │ └────────────────────────────────────────────────────────────────────┘ │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ADVANCED HYDROPHILIC BLUE/GOLD WAVE-SLIT CORRUGATED ALUMINUM FINS      │
   │ • Super-Hydrophilic Silicate Coating (Water Contact Angle <15°)        │
   │ • Sine-Wave / Louvered Geometry Maximizing Boundary Layer Turbulence   │
   │ • Optional Blygold / Epoxy / E-Coating for C5M Coastal Environments    │
   ├────────────────────────────────────────────────────────────────────────┤
   │ HEAVY GALVANIZED (Z275) / SS304 CASING WITH INTERMEDIATE TUBE SUPPORTS │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             100% Factory Hydro-Tested @ 3.0 MPa · Zero Air Spitting · Max EER

1. Seamless Copper & Stainless Steel Tube Matrix

• Deoxidized Seamless High-Purity Copper (Cu-DHP): Outer tube diameters of 9.52 mm9.52 mm (3/8"), 12.7 mm12.7 mm (1/2"), and 15.88 mm15.88 mm (5/8") with heavy wall thicknesses (0.35 mm−0.8 mm0.35 mm−0.8 mm).

• 100% Precision Mechanical Expansion: Tubes are expanded using bullet mandrels or high-pressure hydraulic expansion into precision-extruded full-collar fin holes, achieving >99.8%>99.8% continuous metal-to-metal contact that permanently eliminates air gap thermal contact resistance across decades of thermal expansion.

• Stainless Steel AISI 304 / 316L Options: For pharmaceutical cleanrooms, marine vessels, or industrial exhaust makeup air systems exposed to corrosive chemical fumes.

2. Advanced Hydrophilic Blue & Gold Wave-Slit Fins

• Zero Water Spitting: Our super-hydrophilic coating reduces water droplet contact angles to under 15∘15∘. Condensate spreads into a continuous, micro-thin sheet that flows smoothly down fin channels into the drain pan, completely eliminating droplet blow-off even at face velocities of 2.8−3.2 m/s2.8−3.2 m/s.

• Enhanced Convective Heat Transfer: Corrugated sine-wave and louvered slit profiles continuously disrupt boundary air layers, maximizing convective heat transfer coefficients while keeping air pressure drop exceptionally low (<80−140 Pa<80−140 Pa).

• C5M Marine & Industrial Coatings: For coastal projects or industrial chemical atmospheres, we offer Blygold PoluAl, Heresite, or ElectroFin E-coatings withstanding over 3,000 to 5,000 hours of ASTM B117 salt spray testing.

3. Counter-Crossflow Circuiting & Hydraulic Balancing

• Custom multi-pass circuiting ensures balanced internal water velocities between 0.9 m/s0.9 m/s and 1.8 m/s1.8 m/s—sufficiently turbulent (Re>4,000Re>4,000) to maximize internal heat transfer without creating excessive pumping head.

• Manifolds are equipped with integrated high-point manual/automatic air vent plugs and low-point brass drain plugs for complete gravity drainability during winter maintenance.

4. Heavy Structural Casing with Anti-Sag Intermediate Supports

• Fabricated from heavy 1.5 mm−2.5 mm1.5 mm−2.5 mm hot-dip galvanized steel sheet (Z275 zinc coating) or heavy AISI 304/316L stainless steel.

• Incorporates precision pre-punched slotted mounting holes on all four perimeter flanges.

• Features internal intermediate tube support plates every 1.0 m−1.2 m1.0 m−1.2 m of coil length to eliminate tube sagging, dampen fan-induced vibrations, and prevent fin edge buckling.

Applications Across Commercial, Industrial & Healthcare AHUs

• Commercial Office & Shopping Mall Central AHUs: High-capacity chilled water cooling and hot water heating coils providing year-round occupant comfort.

• Hospital & Healthcare Hygienic Operating Room AHUs: Cleanable, anti-microbial hydrophilic and stainless steel coils compliant with DIN 1946-4 and HTM 03-01 standards.

• Pharmaceutical & Semiconductor Cleanroom MAUs: Precision chilled water cooling coils controlling temperature to within ±0.5∘C±0.5∘C and relative humidity to ±2.0% RH±2.0% RH.

• Data Center & Server Hall Ventilation (DOAS): High sensible heat ratio (SHR ≥0.95≥0.95) water cooling coils for high-density compute facilities.

• 100% Fresh Air Makeup Units (MAU) in Severe Climates: Heavy-duty hot water coils with non-freeze distributing circuits heating −25∘C−25∘C arctic fresh air.

Technical Specifications — CSTHEATEXCHANGER Water-to-Air Coils

• Thermal Capacity Range: 5.0 kW5.0 kW to 1,500.0+ kW1,500.0+ kW (1.5 TR1.5 TR to 450+ TR450+ TR per coil bank).

• Airflow Capacity: 1,000 m3/h1,000 m3/h to 150,000+ m3/h150,000+ m3/h (600−90,000+ CFM600−90,000+ CFM).

• Operating Water Pressure: Up to 2.5 MPa2.5 MPa (360 psig360 psig); Hydrostatically tested at 1.5×1.5× design pressure (3.75 MPa/540 psig3.75 MPa/540 psig).

• Operating Fluid Temperature: +4.0∘C+4.0∘C (Chilled Water) up to +140.0∘C+140.0∘C (High-Temperature Hot Water / Steam).

• Tube Diameters: ∅9.52 mm∅9.52 mm (3/8"), ∅12.7 mm∅12.7 mm (1/2"), and ∅15.88 mm∅15.88 mm (5/8").

• Fin Spacing / Pitch: 1.6 mm1.6 mm to 4.2 mm4.2 mm (6 to 16 fins per inch / FPI6 to 16 fins per inch / FPI).

• Coil Rows Deep: 1, 2, 3, 4, 6, 8, 10, or 12 rows with staggered triangular tube pitching.

• Casing Materials: Heavy Galvanized Steel (Z275), Marine Aluminum, or Stainless Steel AISI 304/316L.

• Quality Assurance: ISO 9001:2015, CE certified, 100% underwater pneumatic bubble testing, and dry nitrogen holding charge.

Frequently Asked Questions (FAQ)

What makes CSTHEATEXCHANGER a reliable coil manufacturer for global AHU OEMs?

With over 20 years of dedicated heat exchanger manufacturing, CSTHEATEXCHANGER provides:

1. Automated mechanical expansion technology guaranteeing >99.8%>99.8% metal-to-metal thermal contact.

2. Verified thermodynamic performance matching AHRI 410 standards with zero capacity deficit.

3. 100% factory hydrostatic pressure and helium/underwater pneumatic leak testing on every single coil.

4. Fast custom engineering turnarounds with flexible batch or OEM production volumes.

How does CSTHEATEXCHANGER prevent winter freeze damage in hot water heating coils?

We incorporate several anti-freeze engineering measures:

• Multi-pass counter-crossflow circuiting that maintains high water velocity (>1.0 m/s>1.0 m/s) even during partial modulating valve positions.

• Low-point brass drain valves and high-point air vents that allow fast, complete gravity draining prior to seasonal freeze shutdowns.

• Optional inner distributing tube designs for 100% fresh makeup air units operating in sub-zero climates down to −30∘C−30∘C.

Can CSTHEATEXCHANGER manufacture exact-fit replacement coils for existing AHUs?

Yes. We specialize in custom retrofit coils built to match exact existing casing height, finned length, depth, casing flange bolt patterns, and connection stub locations of all international AHU brands, enabling seamless slide-in replacement during maintenance shutdowns.

Partner with CSTHEATEXCHANGER for Custom AHU Water-to-Air Coils

Contact CSTHEATEXCHANGER today with your air handling coil requirements:

• Application Type: Chilled Water Cooling, Hot Water Heating, or Dual-Temperature Coil

• Airflow Volume (m3/hm3/h or CFM) & Entering/Leaving Air Temperatures (∘C/∘F∘C/∘F)

• Entering & Leaving Water Temperatures (∘C/∘F∘C/∘F) and Allowable Water Pressure Drop (kPakPa)

• Dimensional Envelope: Finned Length ×× Finned Height ×× Max Depth (mm/inches)

• Metallurgy & Coating Preference (Copper/Aluminum, Hydrophilic Blue, Epoxy, or SS316L)

Our specialized commercial HVAC coil engineering team will provide comprehensive thermodynamic performance selection sheets, 3D CAD dimensional models, and competitive factory-direct manufacturing proposals.
