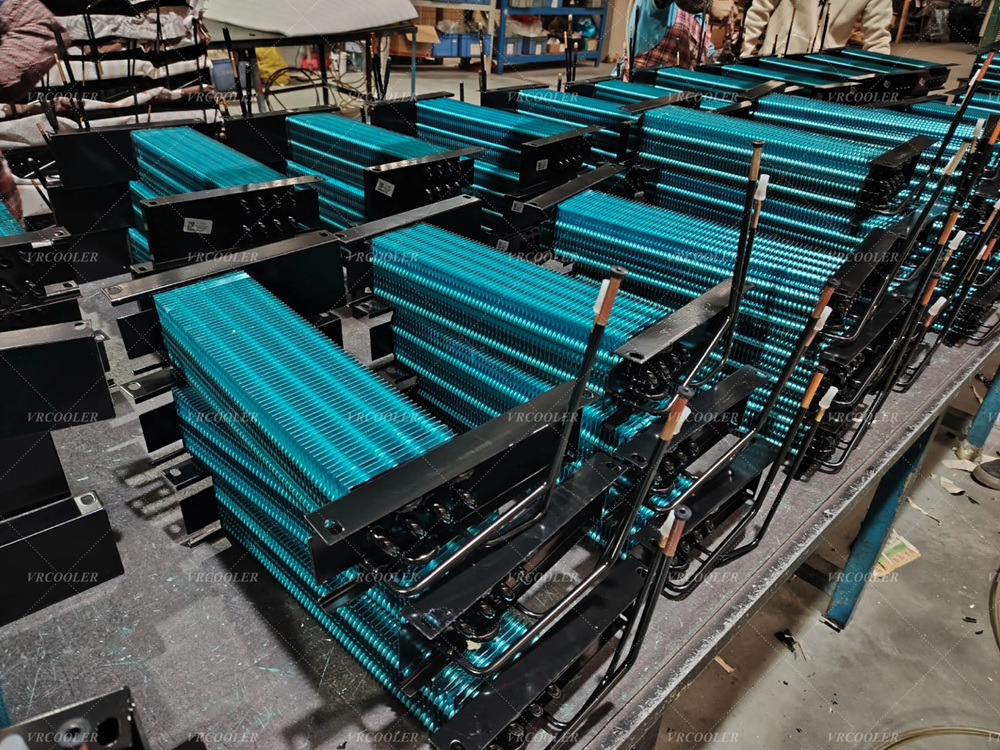

CSTHEATEXCHANGER Small Tube and Fin Heat Exchangers for Wine Coolers

At CSTHEATEXCHANGER, we design and manufacture ultra-quiet, low-vibration small tube and fin heat exchangers (gentle-air evaporators and compact condensing coils) engineered specifically for luxury residential wine coolers, dual-zone wine preservation cabinets, commercial restaurant wine walls, and bespoke wine cellar refrigeration systems. Utilizing 5 mm, 7 mm, and 5/16′′ (7.94 mm) inner-grooved seamless Cu-DHP copper tubes mechanically expanded into sine-wave corrugated hydrophilic aluminum fins, CSTHEATEXCHANGER wine cooler coils maintain precise temperature stability (+12∘C to +16∘C for reds, +5∘C to +8∘C for whites) and stable relative humidity (50% to 70%) with whisper-quiet acoustics (<38 dBA) and zero cork-drying moisture extraction.

1. Sommelier-Grade Thermal and Humidity Requirements for Wine Preservation

Fine wine requires strict, delicate storage conditions: constant temperature, stable humidity (50%−70% RH50%−70% RH to prevent cork shrinkage and oxidation), zero mechanical vibration (which disturbs sediment aging), and ultra-quiet acoustics for luxury living spaces.

       WINE COOLER DELICATE THERMAL & HUMIDITY DYNAMICS

   DUAL-ZONE STORAGE (+5°C to +8°C Whites / +12°C to +16°C Reds)
              │
              ▼
   ┌────────────────────────────────────────────────────────┐
   │ CSTHEATEXCHANGER® GENTLE-AIR EVAPORATOR COIL           │
   │ • Sized with Low TD (3K – 5K) to Retain 50–70% Humidity │
   │ • Hydrophilic Blue Fins Prevent Water Droplet Drainage │
   │ • Low-Velocity Airflow Eliminates Bottle Vibration     │
   └───────────────────────────┬────────────────────────────┘
                               │ Hot Discharge Vapor Loop
                               ▼
   ┌────────────────────────────────────────────────────────┐
   │ COMPACT BOTTOM-MOUNT CONDENSING COIL                   │
   │ • 5mm Micro-Groove Copper Matrix (R600a / R290 Ready)  │
   │ • Ultra-Quiet Acoustic Profile (<38 dBA with EC Fan)   │
   │ • Vibration-Isolated Mounting Brackets                 │
   └────────────────────────────────────────────────────────┘

Key Engineering Features of CSTHEATEXCHANGER Wine Cooler Coils

1. Humidity Preservation via Low Temperature Difference (TD≤3K−5KTD≤3K−5K): Sized with generous surface area to operate at higher evaporating temperatures, cooling air gently without stripping essential moisture required to keep natural corks supple.

2. Vibration-Isolated Architecture: Precision-balanced tube geometry and rubber-isolated mounting brackets eliminate compressor and fan vibration transmission to wine racks.

3. Ultra-Quiet Acoustic Profile (<38 dBA<38 dBA): Low aerodynamic static resistance allows ultra-low-RPM EC fans to operate inaudibly in luxury dining rooms and living spaces.

2. Technical Specifications — CSTHEATEXCHANGER Wine Cooler Coils

================================================================================
CSTHEATEXCHANGER WINE COOLER COIL PARAMETERS
================================================================================
Specification Parameter         Evaporator Specification    Condenser Specification
--------------------------------------------------------------------------------
Tube Outer Diameter             5.0 mm / 7.0 mm / 7.94 mm   5.0 mm / 7.0 mm Micro-Groove
Tube Metallurgy                 Cu-DHP Seamless Copper      Cu-DHP Seamless Copper
Fin Thickness                   0.110 mm – 0.125 mm         0.115 mm – 0.130 mm
Fin Surface Treatment           Hydrophilic Blue Coating    Bare Al / Epoxy Pre-Coated
Fin Spacing (Pitch)             3.0 mm – 4.0 mm (6.5–8 FPI) 2.2 mm – 3.0 mm (8.5–11 FPI)
Operating Temperature Range     +3 °C to +18 °C (Dual-Zone) +35 °C to +50 °C
Target Humidity Range           50% to 70% Relative Humidity N/A
Acoustic Operating Level        < 38 dBA (Quiet Living Spec)< 40 dBA
Refrigerant Compatibility       R600a, R290, R134a, R513A   R600a, R290, R134a, R513A
Helium Leak Integrity Rate      < 1 x 10^-6 mbar·L/s        < 1 x 10^-6 mbar·L/s
================================================================================

3. Frequently Asked Questions (FAQ)

Why is a low temperature difference (ΔTΔT) critical for wine cooler evaporators?

A high ΔTΔT causes heavy condensation, stripping moisture from the air and dropping cabinet humidity below 40%40%, which dries out wine corks and allows oxygen to spoil the wine. Sizing coils for a low ΔTΔT (3K−5K3K−5K) preserves the ideal 50%−70%50%−70% humidity.

Can CSTHEATEXCHANGER provide dual-circuit coils for dual-zone wine coolers?

Yes. We manufacture dual-circuit evaporator blocks that independently regulate temperatures in separate red and white wine preservation compartments.

Contact CSTHEATEXCHANGER for Custom Wine Cooler Coils

Elevate your wine cooler and cellar refrigeration with precision coils from CSTHEATEXCHANGER:

• Website: https://www.cstheatexchanger.com/

• Technical Inquiries: info@cstheatexchanger.com
