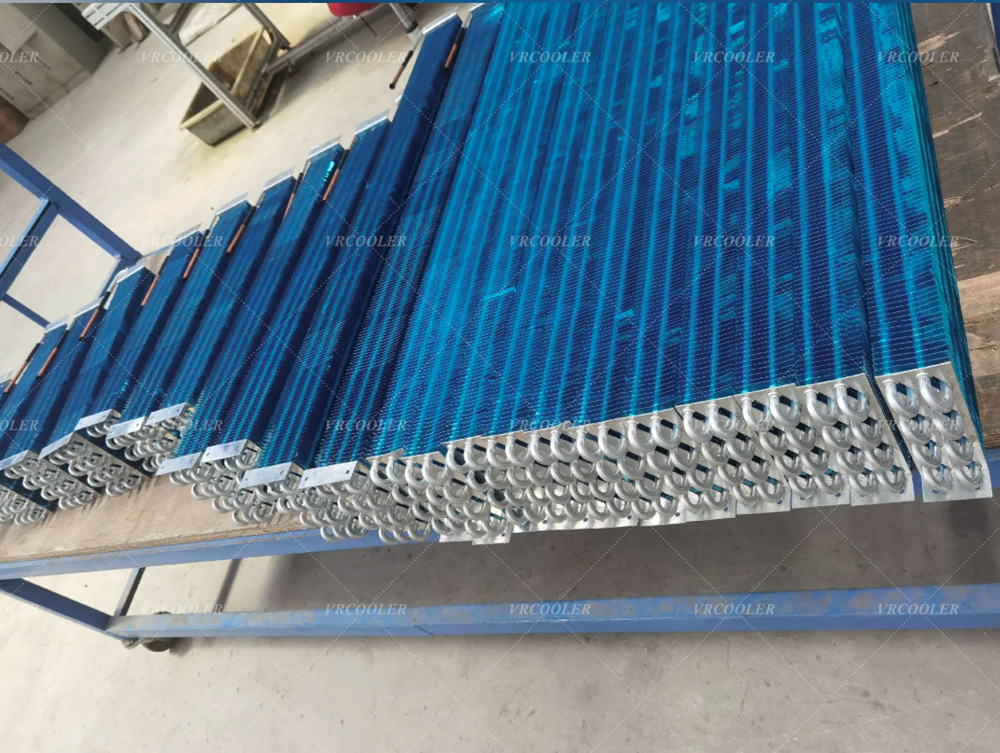

At CSTHEATEXCHANGER, we design, engineer, and manufacture precision-engineered drop-in replacement automotive AC evaporator coils, laminated drawn-cup plate-fin cores, and multi-tank serpentine evaporator assemblies for passenger vehicles, heavy-duty commercial trucks, transit buses, off-highway construction machinery, and electric vehicle (EV) heat pump systems. Engineered to match exact vehicle HVAC dashboard housing envelopes and mounting flanges, CSTHEATEXCHANGER automotive evaporator coils feature vacuum-brazed Controlled Atmosphere Brazed (CAB) aluminum alloys (AA3003/AA4343 clad), super-hydrophilic anti-microbial coatings, and optimized multi-pass micro-port refrigerant channels. Tested to withstand burst pressures exceeding 4.5 MPa and 100% verified via helium mass spectrometry, our replacement evaporators eliminate dashboard leaks, prevent musty AC odors, and restore ice-cold cabin air delivery across the global automotive aftermarket.
Located deep inside the vehicle's dashboard HVAC air distribution module, the automotive air conditioning evaporator core serves as the vital thermodynamic heat sink for the entire cabin.
Low-pressure, low-temperature liquid refrigerant (such as R134aR134a, eco-friendly R1234yfR1234yf, or high-pressure R744 CO2R744 CO2 in modern EV heat pumps) enters the evaporator through a precision Thermal Expansion Valve (TXV / Block Valve). As the cabin blower fan pushes warm, humid outside or recirculated air across the evaporator's ultra-dense aluminum fin matrix, the refrigerant boils into vapor, absorbing heat and extracting up to 3.5 kW to 12.0+ kW3.5 kW to 12.0+ kW of thermal energy while dehumidifying the passenger cabin:
AUTOMOTIVE HVAC CABIN EVAPORATOR AIR & REFRIGERANT CIRCUIT
┌────────────────────────────────────────────────────────────────────────┐
│ DASHBOARD HVAC AIR DISTRIBUTION MODULE (UNDER-DASH CASING) │
│ ┌────────────────────────────────────────────────────────────────────┐ │
│ │ CABIN BLOWER FAN (Warm, Humid Ambient / Recirculated Air Flow) │ │
│ ├────────────────────────────────────────────────────────────────────┤ │
│ │ CSTHEATEXCHANGER® REPLACEMENT AUTOMOTIVE EVAPORATOR CORE │ │
│ │ • Laminated Drawn-Cup Plate-Fin / Parallel Microchannel Geometry │ │
│ │ • Core Alloys: Clad AA4343 / AA3003 / AA7072 Anti-Corrosion Foil │ │
│ │ • Super-Hydrophilic Blue Resin (Water Contact Angle <15° No Odor) │ │
│ │ • Precision Block TXV / Flange Inlets (O-Ring / Pad Fittings) │ │
│ ├────────────────────────────────────────────────────────────────────┤ │
│ │ CONDENSATE DRAIN PLENUM (Molded Water Tray & Firewall Drain Hose) │ │
│ └────────────────────────────────────────────────────────────────────┘ │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Ice-Cold Cabin Discharge · Zero Freon Leaks · Anti-Bacterial AirBecause replacing an automotive evaporator requires a labor-intensive 6 to 10 hour6 to 10 hour complete dashboard removal, aftermarket workshops and fleet operators demand zero-defect replacement parts that prevent recurring failures:
Formicary & Exterior Chloride Corrosion: Road salt spray, airborne pollutants, and organic acids from rotting cabin leaves combine with constant condensation on wet aluminum fins, causing microscopic pinhole corrosion that discharges refrigerant gas into the passenger cabin.
"Dirty Sock" Bacterial Odor & Mold Accumulation: When generic non-coated aluminum fins corrode, standing condensate water pools in fin crevices. Fungi and bacteria colonize the damp core, emitting foul, sour odors and blowing airborne mold spores through the dashboard vents.
Internal Channel Blockage & Oil Trapping: Compressor wear debris and degraded polyalkylene glycol (PAG/POE) lubricating oil accumulate in narrow refrigerant passes, starving the core of refrigerant and causing cabin cooling capacity to drop by 30% to 50%30% to 50%.
Thermal Stress & Header Weld Cracking: Constant high-pressure cycling between operating mode and defrost/soak cycles induces cyclic fatigue across brazed inlet/outlet manifold joints.
At CSTHEATEXCHANGER, we utilize advanced Controlled Atmosphere Brazing (CAB) technology and multi-layer metallurgical cladding to engineer replacement evaporator cores that exceed OEM durability benchmarks:
CSTHEATEXCHANGER® AUTOMOTIVE EVAPORATOR ARCHITECTURE
┌────────────────────────────────────────────────────────────────────────┐
│ PRECISION CNC MACHINED BLOCK TXV MANIFOLD / O-RING PAD CONNECTIONS │
│ • Exact Port Spacing Matching Vehicle Thermal Expansion Block Valves │
├────────────────────────────────────────────────────────────────────────┤
│ VACUUM CAB BRAZED LAMINATED DRAWN-CUP / MICROCHANNEL CORE │
│ ┌────────────────────────────────────────────────────────────────────┐ │
│ │ Clad Aluminum Plates: AA3003 Core + AA4343 Brazing Cladding │ │
│ │ Internal Waffle Turbulators Inducing High-Shear Micro-Vortices │ │
│ │ Multi-Pass Cross-Counterflow Circuiting for Maximum Enthalpy Drop │ │
│ └────────────────────────────────────────────────────────────────────┘ │
├────────────────────────────────────────────────────────────────────────┤
│ ADVANCED SUPER-HYDROPHILIC & ANTI-MICROBIAL LOUVERED FINS │
│ • Ultra-Dense Louvered Aluminum Fin Matrix (16 to 22 FPI) │
│ • Hydrophilic Resin Coating Eliminating Water Droplet Bridging │
│ • Silver-Ion / Zinc-Alloy Sacrificial Layer (ASTM B117 1,000+ Hours) │
├────────────────────────────────────────────────────────────────────────┤
│ HIGH-STRENGTH REINFORCED SIDE PLATES & VIBRATION MOUNTING BRACKETS │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
100% Helium Leak Tested · Direct Drop-In Fit · 10+ Year LifeLaminated Drawn-Cup Technology: Precision-stamped aluminum plate pairs form interlocking refrigerant flow chambers with internal high-surface-area turbulators. This induces high-shear micro-turbulent boiling, achieving overall heat transfer coefficients U≥850 to 1,200 W/(m2⋅K)U≥850 to 1,200 W/(m2⋅K) in an ultra-compact 38 mm−58 mm38 mm−58 mm core depth.
Parallel-Flow Microchannel Multi-Port Extrusions: For next-generation EV heat pump chillers and high-efficiency systems, we utilize multi-port microchannel aluminum tubes with hydraulic diameters <1.0 mm<1.0 mm, slashing refrigerant charge requirements by 35%35% while maximizing sensible cooling.
Sacrificial Zinc-Enriched Diffusion Layer: CSTHEATEXCHANGER plates incorporate an inner AA7072AA7072 zinc-rich sacrificial alloy layer. Even in high-chloride marine or road-salt environments, galvanic corrosion spreads laterally across the sacrificial layer rather than penetrating the core tube wall.
Permanent Hydrophilic Blue Resin: Our post-braze silicate-resin immersion treatment reduces the water contact angle to under 15∘15∘. Condensate sheets smoothly down fin louvers into the drain pan without forming stagnant droplet bridges, completely eliminating water spit-off and starving odor-causing bacteria of moisture.
Because dashboard removal is costly, every single CSTHEATEXCHANGER automotive evaporator undergoes a rigorous multi-stage quality protocol:
Dry Helium Vacuum Chamber Leak Test: Tested at vacuum thresholds with mass spectrometer sensitivity down to <1.0×10−6 mbar⋅L/s<1.0×10−6 mbar⋅L/s—guaranteeing zero refrigerant micro-leaks.
High-Pressure Hydro-Pneumatic Proof Test: Subjected to hydrostatic proof pressures up to 3.5 MPa−4.5 MPa3.5 MPa−4.5 MPa (500−650 psig500−650 psig) with zero permanent core deformation.
Every replacement evaporator is engineered to match the original vehicle's CAD envelope:
Pre-fitted with CNC-machined aluminum block connection pads, female pilot threads, and high-temperature HNBR O-ring seals.
Precision side mounting rails, foam cushioning strips, and temperature sensor brackets ensure immediate, hassle-free slide-in installation into original dashboard HVAC boxes.
CSTHEATEXCHANGER manufactures direct-fit replacement evaporator coils across the entire global vehicle and heavy-equipment spectrum:
Passenger Sedans, SUVs & Crossovers: Ultra-thin 38 mm−48 mm38 mm−48 mm laminated cores offering whisper-quiet cabin airflow and rapid pull-down cooling.
Heavy-Duty Commercial Trucks (Class 6, 7 & 8): Reinforced heavy-gauge side plates and double-wall braze joints engineered to withstand continuous engine vibration, chassis twist, and 1,000,000+ kilometer fleet lifespans.
Transit Buses & Motorcoaches: High-capacity 15 kW−35 kW15 kW−35 kW front dash and roof-mounted dual-evaporator replacement assemblies.
Agricultural Tractors & Harvesters: Anti-clogging wider fin spacing (12−14 FPI12−14 FPI) designed to resist heavy field dust, chaff, and chemical fertilizer airborne contamination.
Construction & Mining Heavy Machinery: Shock-mounted, ruggedized evaporator cores for excavators, wheel loaders, bulldozers, and underground mining trucks.
Electric Vehicles (EV) & Hybrids: High-pressure dual-circuit evaporator/chiller cores designed for cabin cooling and high-voltage battery thermal management loops (R1234yfR1234yf and R744 CO2R744 CO2).
Core Types: Laminated Drawn-Cup Plate-Fin, Serpentine Tube-and-Fin, Parallel-Flow Microchannel.
Cooling Capacity Range: 2.5 kW2.5 kW to 35.0+ kW35.0+ kW (8,500 to 120,000+ BTU/hr8,500 to 120,000+ BTU/hr).
Applicable Refrigerants: R134a,R1234yf,R404A,R407C,R134a,R1234yf,R404A,R407C, and high-pressure Transcritical CO2CO2 (R744R744).
Core Metallurgy: High-Purity Aluminum Alloy Core (AA3003AA3003) with Clad Brazing Layer (AA4343AA4343) and Anti-Corrosion Sacrificial Cladding (AA7072AA7072).
Surface Protection: Inorganic Super-Hydrophilic Blue Coating / Anti-Bacterial Bio-Cote (Water contact angle <15∘<15∘; ASTM B117 salt spray >1,000 hours>1,000 hours).
Operating Pressure: Up to 2.5 MPa2.5 MPa for Fluorocarbon refrigerants; up to 10.0 MPa10.0 MPa for CO2CO2 Heat Pump systems.
Burst Pressure Rating: ≥4.5 MPa≥4.5 MPa (650 psig650 psig).
Refrigerant Connections: Direct Block TXV Mounting Flange, Spring-Lock Connectors, O-Ring Female Pad Fittings, or Threaded Male Flare Sockets.
Manufacturing Standards: IATF 16949:2016, ISO 9001:2015, SAE J2064, REACH & RoHS Compliant.
Replacing an automotive evaporator core requires dismantling the vehicle's entire dashboard, steering column, and center console—a job requiring 6 to 10 hours6 to 10 hours of skilled labor. Installing a cheap or generic replacement coil risks premature pinhole leaks or fin odor, resulting in costly warranty comebacks and duplicated labor expenses. CSTHEATEXCHANGER 100% helium-tested coils ensure a fit-and-forget, decade-long service life.
Uncoated aluminum fins cause condensation to bead into standing water droplets that bridge across fin louvers. When the car is parked, this stagnant moisture breeds fungi, mildew, and bacteria. CSTHEATEXCHANGER super-hydrophilic coating forces water to sheet into a microscopically thin film that drains immediately into the HVAC drain tube, keeping the core dry and eliminating bacterial growth.
Yes. In addition to high-volume automotive aftermarket production, CSTHEATEXCHANGER operates a dedicated rapid-prototyping line. We can reverse-engineer and manufacture custom replacement evaporator cores from physical sample parts, 2D technical drawings, or 3D CAD files for vintage classic cars, specialized military vehicles, customized mining rigs, and commercial fleet overhauls.
Upgrade your automotive thermal product catalog, fleet reliability, and repair shop satisfaction with CSTHEATEXCHANGER:
High-Volume Passenger Car & Truck Replacement Evaporator Cores
Heavy-Duty Commercial Truck, Bus & Off-Highway Machine Evaporators
Custom OEM/ODM Rapid Prototyping & Reverse Engineering
100% Helium Leak-Tested Zero-Defect Quality Assurance
Contact our automotive thermal management division today with your OEM part numbers, vehicle applications, or technical drawings for a comprehensive catalog and factory-direct wholesale quotation.
