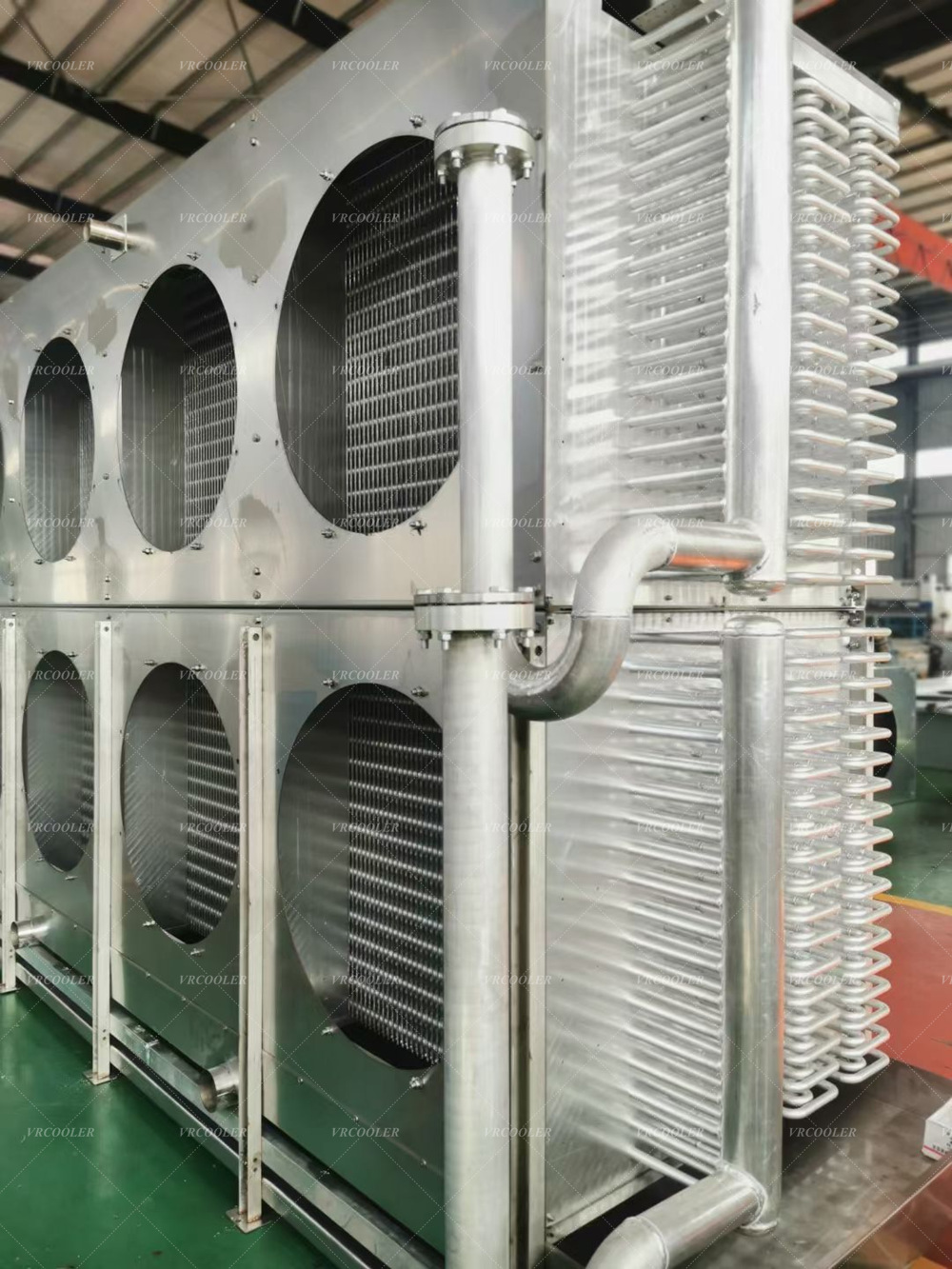

A blast freezer needs more than a low-temperature coil. It needs a refrigeration system that can absorb the product’s heat load, deliver the required air movement and maintain the freezing process without creating unacceptable frost, dehydration or temperature variation. A custom ammonia evaporator for a blast freezer is designed around the chamber, product, freezing load, airflow path, defrost method and ammonia refrigeration circuit rather than selected only from a standard catalogue.
At CSTHEATEXCHANGER, we develop heat exchanger and unit cooler solutions for industrial and commercial refrigeration applications. Our published information describes ammonia evaporators for refrigeration, ammonia air coolers that use forced air circulation, and blast-freezer evaporators for rapid food freezing. We use these product capabilities as the starting point for an engineering review, then adapt the evaporator arrangement to the customer’s actual freezer duty.
In this article, we explain how we approach custom ammonia evaporator design, which information we need before quotation, how the evaporator works inside a blast freezer and what buyers should check during installation, commissioning and maintenance.
A blast freezer removes heat quickly by combining a low-temperature refrigeration circuit with high-volume air circulation around the product. The evaporator coil absorbs heat from the air as ammonia evaporates inside the refrigeration circuit. Fans then move the cooled air across the product, and the warmer return air passes back over the coil for another cooling cycle.
The refrigeration principle is straightforward, but the equipment duty changes from one freezer to another. Seafood, meat, poultry, vegetables, prepared foods and ice cream can have different starting temperatures, product thickness, packaging and final-core-temperature requirements. A spiral freezer, tunnel freezer, batch blast room and plate-freezing system also create different airflow and installation conditions.
We therefore do not define a suitable evaporator by room volume alone. We review the product mass per hour or per batch, incoming product temperature, required freezing condition, target process time, chamber dimensions and heat leakage. CSTHEATEXCHANGER can then evaluate coil area, circuiting, fan arrangement, materials, headers, connections and defrost provisions as one integrated design.
A standard unit may be appropriate for a repeatable and well-defined duty. A custom unit becomes more valuable when the freezer has restricted installation space, an unusual airflow path, a special ammonia connection, a corrosive food environment, a high product throughput or a replacement requirement that must match existing pipework and controls.
Inside the evaporator, liquid ammonia enters the coil through the designed inlet and absorbs heat as it changes state. The resulting vapor returns through the refrigeration circuit toward the compressor. This continuous evaporation process reduces the temperature of the coil surface and allows the fans to cool the air circulating through the freezer chamber.
CSTHEATEXCHANGER’s public blast-freezer information describes the evaporator as a critical heat-exchange component for quick-freezing food products. It also identifies high-velocity fans as part of the blast-freezer system. The evaporator and fans must be considered together: a coil with sufficient heat-transfer area can still perform poorly if the air distribution creates dead zones, bypasses the coil or sends excessive air directly at vulnerable products.
We review whether the freezer uses one evaporator bank or multiple coil sections. We also consider whether air should move in a co-current, counter-current or mixed arrangement relative to product travel. In a tunnel or spiral freezer, the airflow may need to cover the full belt width and maintain an even process across several product positions. In a batch room, the evaporator and fans may be arranged to circulate air around loaded trolleys, pallets or racks.
The final operating condition depends on the refrigeration system, expansion and control components, coil circuiting, fan performance and product load. We do not use a general evaporator description to promise one universal freezing temperature or process time.
When a customer asks us for a custom ammonia evaporator for a blast freezer, we first request process data. The more complete the information, the more accurately we can match the evaporator and reduce changes during installation.
Our design review normally includes:
Product type, dimensions, density and packaging.
Product temperature at freezer entry.
Product throughput per hour or batch load.
Required outlet or core condition and target process time.
Freezer chamber length, width, height and internal layout.
Belt, rack, trolley or pallet arrangement.
Available ammonia supply and return conditions.
Evaporating temperature, pressure and control method.
Fan quantity, air volume, static pressure and airflow direction.
Defrost method, drainage route and expected frost load.
Available installation space, access route and service clearance.
Environmental exposure, washdown practice and corrosion risks.
Required drawings, inspection documents and commissioning records.
CSTHEATEXCHANGER’s company information states that its engineers provide customized products, design data and production drawings. These capabilities help us move from a general product request to a project-specific evaporator proposal. We ask customers to provide their existing drawings for replacement projects, because coil dimensions, pipe connections, supports and control points can determine whether a new evaporator will fit without major site modifications.
The cooling-load calculation should be completed by the responsible refrigeration designer. It should account for product sensible heat, phase-change heat where freezing occurs, product heat entering the room, fan and motor heat, wall and ceiling heat transfer, door opening and any defrost recovery load. We do not replace that project engineering with a simplified marketing estimate.
Material selection depends on the ammonia circuit, temperature, pressure, cleaning environment, corrosion exposure and customer specification. CSTHEATEXCHANGER’s ammonia evaporator information lists tube options including stainless steel, copper, aluminum, Cu-Ni, brass and titanium, while the published blast-freezer information notes that steel or stainless-steel tubes may be used for ammonia blast-freezer evaporators.
We select the tube material and wall thickness only after confirming compatibility, design pressure, operating temperature and applicable engineering requirements. We also review the fin material, fin spacing, surface treatment, cabinet, headers and support frame. A compact fin spacing may increase surface area, but it can also become more sensitive to frost and cleaning conditions. A wider spacing may improve maintainability in a wet or dusty process, but the required coil size may change.
CSTHEATEXCHANGER also lists fin options such as aluminum, copper and stainless steel, together with coatings including e-coating, aluminum epoxy and hydrophilic treatment for certain product configurations. These are options to be reviewed, not a universal recommendation for every freezer. The customer’s sanitation chemicals, salt exposure, washdown pressure and corrosion risk should guide the final specification.
For seafood and other wet food processes, we pay close attention to the drain pan, drain outlets and accessible surfaces. For dry packaged products, airflow and frost behavior may receive greater emphasis. The design should balance heat transfer, food-environment hygiene, service access and total operating cost.
A blast freezer must move enough air across the product to remove heat, but more air is not automatically better. Excessive velocity can increase product dehydration or disturb lightweight products, while insufficient circulation can extend the process and leave warmer areas inside the chamber.
We review the distance between the evaporator, fan and product surface. We check whether the air path passes evenly through the product load and returns to the coil without bypassing major sections. We also consider belt openings, rack spacing, packaging, curtains, doors and internal partitions.
CSTHEATEXCHANGER’s ammonia air cooler description explains that forced air circulation through an axial fan enhances convection outside the evaporator tube. In a custom blast-freezer design, we match fan selection and coil resistance with the chamber airflow plan. Depending on the application, the system may use axial or centrifugal fans, multiple air paths or separated evaporator banks. The final choice should be supported by the freezer layout and the required static pressure.
We ask the customer to define where product enters and exits the freezer. A multi-zone process may need different air patterns at the warm inlet side and colder outlet side. A spiral freezer may require a coil layout that follows the chamber geometry. A batch blast room may require a distribution arrangement that reaches the center of loaded racks rather than only the exposed outer surfaces.
After installation, airflow should be verified with the actual product arrangement or a representative load. We do not claim freezing uniformity from coil specifications alone.
Moisture in the product and incoming air can freeze on a low-temperature evaporator coil. As frost accumulates, it increases air resistance and reduces heat transfer. A custom ammonia evaporator therefore needs a defrost and drainage plan matched to the freezer duty.
We review the expected frost rate, operating cycle, defrost trigger, drain temperature and time available for defrost. The design may use hot-gas defrost or another method approved for the refrigeration system. The selection must be made by qualified refrigeration professionals, especially when ammonia pressure, hot gas and isolation procedures are involved.
CSTHEATEXCHANGER’s blast-freezer and spiral-freezer information identifies hot-gas or electric defrost as possible approaches in relevant low-temperature applications. It also describes drainage provisions for meltwater. We use the actual freezer operating profile to determine which arrangement is appropriate, rather than copying a defrost interval from another installation.
Drain pans should be sloped toward the outlets, and drain lines should be protected from blockage and refreezing. The freezer design should provide enough space to inspect the pan, coil face and drain route. During commissioning, we check the complete defrost sequence and confirm that meltwater leaves the freezer without creating an ice hazard.
A defrost system is not a substitute for correct door management, humidity control or cleaning. If warm humid air enters continuously, the frost load may exceed the design assumption and require an operating review.
Before delivery, we confirm the lifting points, support structure, coil orientation, pipe connections, fan power, control wiring and service clearance. A custom evaporator may have different dimensions from the original unit, so the customer should verify ceiling height, access doors, structural loading and the route for ammonia piping.
Qualified contractors should complete ammonia refrigeration installation, pressure testing, evacuation or system preparation, charging, leak checks and commissioning according to the applicable local requirements and approved safety procedures. Our role is to provide the evaporator design and project documentation specified in the order; the refrigeration contractor remains responsible for the site installation and system safety work within its scope.
Our pre-start inspection covers:
We verify the coil, headers, supports and protective guards.
We confirm the ammonia inlet and outlet connections against the approved drawings.
We inspect fans, motor wiring, rotation and vibration.
We check the drain pan, drain lines and defrost connections.
We verify sensors, valves, alarms and control signals.
We review pressure-test and leak-test documentation required by the project.
We conduct an initial operating check before introducing the full product load.
CSTHEATEXCHANGER states that its products can be customized and that it can provide design data and production drawings. The final quotation and technical documents should define the actual material, pressure rating, capacity, refrigerant conditions, testing, warranty and delivery scope. Buyers should not infer a certification or test result that is not included in those documents.
Maintenance begins with a safe work procedure. Ammonia systems must be serviced by trained and authorized refrigeration personnel, with appropriate isolation, detection, ventilation and emergency procedures in place. Cleaning and inspection work should not expose unprotected staff to refrigerant, pressure or rotating equipment hazards.
Our recommended maintenance review includes:
Inspecting the coil face for frost, dirt, corrosion or mechanical damage.
Checking fan blades, motors, bearings, guards and vibration.
Confirming that the defrost cycle completes correctly.
Cleaning the drain pan and verifying free drainage.
Reviewing suction, liquid and discharge-side operating conditions.
Checking valves, sensors, alarms and control response.
Inspecting insulation, supports, pipe connections and visible leaks.
Recording operating hours, faults, defrost events and corrective work.
CSTHEATEXCHANGER’s published quality information describes leak testing for coils and company support for customized products. We recommend that customers keep the supplied test reports, drawings, nameplate information and maintenance records with the refrigeration system documentation. This record helps technicians compare future conditions against the original design.
The maintenance interval should follow the freezer’s humidity, product, dust and operating hours. A seafood freezer, a vegetable freezer and a packaged-food freezer may not accumulate frost or contamination at the same rate. The operating team should use observed conditions and the supplier’s instructions to refine the schedule.

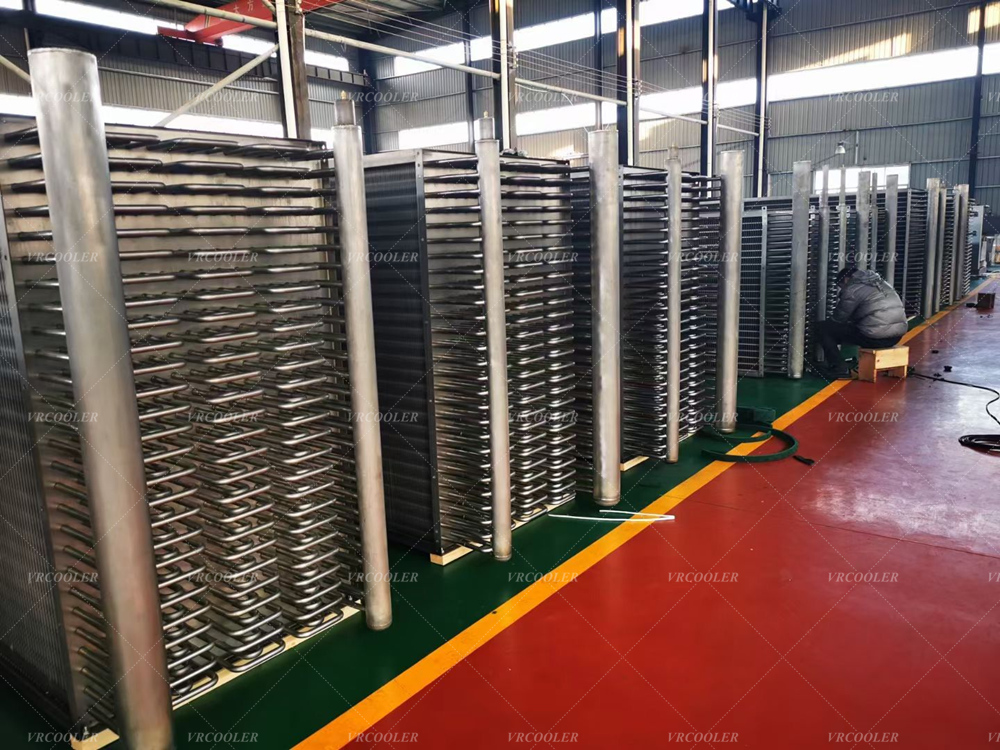

We work with the customer’s process data rather than treating a blast-freezer evaporator as a one-size-fits-all component. Our engineering discussion covers the product, chamber, ammonia system, coil materials, airflow, defrost, drainage and installation constraints.
CSTHEATEXCHANGER’s public product range includes Ammonia Evaporator, Blast Freezer Unit Coolers and Ammonia Air Cooler. These pages provide a starting point for discussing commercial refrigeration, industrial cold rooms and low-temperature food-freezing applications.
We can support a new blast-freezer design, a replacement evaporator or a custom coil that must connect with an existing refrigeration plant. The appropriate configuration depends on the approved design conditions. Contact CSTHEATEXCHANGER to discuss a custom ammonia evaporator for your blast freezer. Please include the product, throughput, entry and exit temperatures, chamber dimensions, ammonia conditions, airflow arrangement, defrost method and available drawings.
