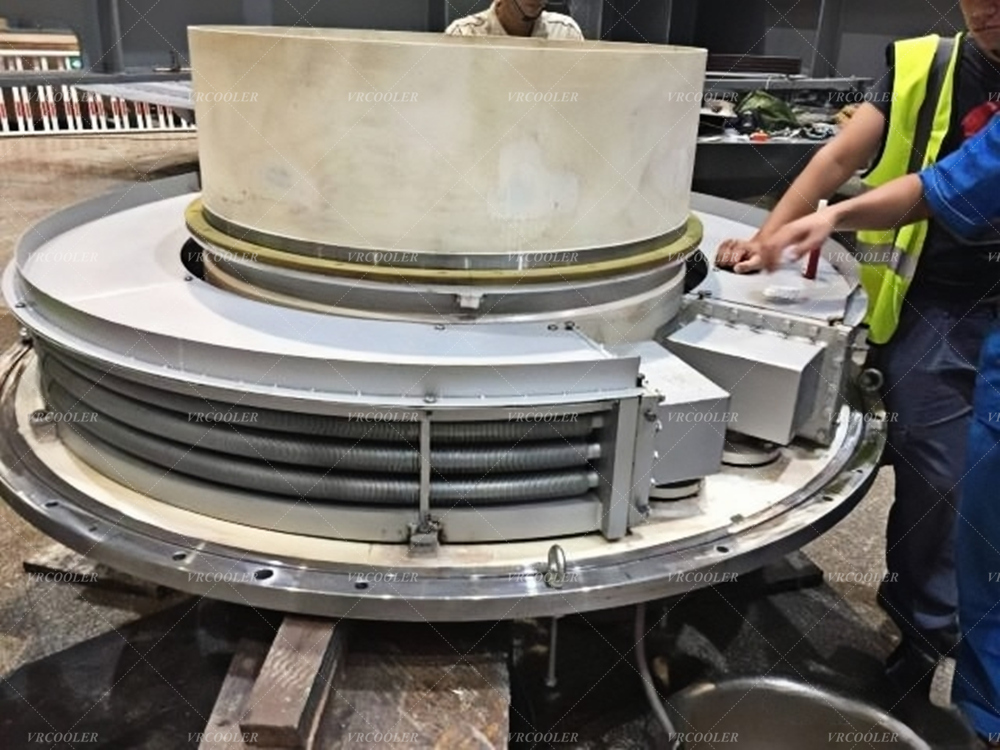

Reliable steam turbine bearing cooling in a thermal power plant depends on maintaining the condition of the lubricating oil that carries heat away from the turbine and generator bearing system. A lube-oil cooler or oil-to-water heat exchanger transfers heat from the circulating oil to a controlled cooling medium, helping the lubrication system deliver oil within its approved operating range. The cooler must be designed together with the oil pump, filters, temperature-control valves, instrumentation, cooling-water circuit and turbine protection logic.
At CSTHEATEXCHANGER, we manufacture lube-oil coolers, generator coolers and industrial heat exchangers for process and power-related applications. Our published lube-oil cooler information explains that lubricating oil reduces friction and carries heat away from moving mechanical parts, including power-generation turbines. The company also lists thermal power plant generator air coolers and states that it can build heat exchangers for water, steam, glycol, refrigerant, ammonia, CO₂ and other media.
In this article, we explain how we approach a turbine bearing-oil cooler, what information is needed before selection, how the cooling-water side affects performance, and how operators can monitor and maintain the system. The cooler is one component of a complete turbine lubrication and protection system; it is not a substitute for turbine OEM controls, oil filtration, trip logic or plant operating procedures.
Steam turbine bearings support rotating shafts and control their position during operation. The lubricating oil forms a film between moving surfaces, reduces friction and transports heat away from the bearing housing. If the oil becomes too hot, its viscosity and film behavior can change. If the oil is contaminated, aerated or poorly circulated, the bearing system may be exposed to additional risk.
The oil cooler helps remove the heat picked up by the oil as it passes through the bearings, gears, pumps or other connected components. In a power plant, the actual oil-cooling load depends on turbine size, shaft speed, bearing arrangement, generator configuration, oil flow, ambient conditions and the design of the lubrication system.
We therefore begin with the plant’s lube-oil schematic rather than selecting a cooler from a nominal turbine output. We review the oil pump arrangement, cooler duty, filter location, temperature-control valve, bypass, standby cooler, alarms and drains. The approved operating range must come from the turbine OEM and plant design documents.
CSTHEATEXCHANGER’s lube-oil cooler information identifies copper, aluminum, carbon-steel and stainless-steel material options for suitable designs. The final selection depends on the oil, cooling medium, pressure, temperature, corrosion conditions, fouling and project specification. We do not assign a universal oil or water temperature to every steam turbine.
Before we prepare a proposal, we ask the plant or EPC contractor for the complete design basis. The oil cooler must remove the heat generated by the specific turbine and connected lubrication system while maintaining acceptable pressure drop and serviceability.
Our design review normally includes:
Turbine and generator type, rating and bearing arrangement.
Oil type, viscosity range, density and additive package.
Normal, minimum and maximum oil flow.
Oil inlet and outlet conditions at the cooler.
Cooling-water or air-side inlet and outlet conditions.
Heat duty and required design margin.
Allowable oil-side and coolant-side pressure drop.
Cooling-water chemistry, salinity, suspended solids and fouling tendency.
Operating and design pressure and temperature.
Start-up, shutdown, trip and emergency-cooling conditions.
Duty/standby cooler arrangement and changeover procedure.
Available space, pipe connections, lifting and maintenance access.
Instrumentation, alarms, control valves and plant-management interfaces.
Inspection, pressure testing, cleaning and documentation requirements.
We also clarify whether the cooler is for a new turbine island, a retrofit, a replacement bundle or a temporary operating arrangement. A replacement may need to fit an existing shell, flange, water box, supports and pipework. A new unit may allow more freedom to optimize surface area, materials and maintenance access.
CSTHEATEXCHANGER states that its engineers use design software and can provide design data and production drawings. We use that engineering process after the process data is confirmed. The plant engineer remains responsible for checking the proposed duty against the turbine lubrication and protection system.
Many turbine plants use an oil-to-water heat exchanger, in which the circulating lube oil passes through one side and cooling water passes through the other. The cooler must keep the fluids separated while transferring heat through tubes, plates or another approved surface. Water quality, pressure and leakage consequences are important because water entering the oil system can damage lubrication performance.
Other installations may use an air-cooled or generator-air-cooler arrangement. CSTHEATEXCHANGER’s generator-cooler range includes thermal power plant generator air cooler information, while its lube-oil cooler information addresses oil cooling for turbine-related systems. The plant should decide whether the required duty is best served by water cooling, air cooling or a combination of systems based on ambient conditions, utilities, space, noise and redundancy.
We review the cooling-medium circuit together with the oil circuit. For water-cooled service, we check pump head, flow control, strainers, isolation valves, bypasses and water chemistry. For air-cooled service, we assess ambient design temperature, fan performance, air-side fouling, electrical supply and maintenance access.
CSTHEATEXCHANGER’s company information says it can build heat exchangers using water, steam, refrigerant, glycol, ammonia, CO₂ or other media and can manufacture equipment for new or replacement jobs. These capabilities support a project discussion, but the final cooler type must follow the turbine plant’s approved design and operating conditions.
We also identify whether the plant requires two coolers in duty/standby service. Redundancy can support maintenance and operational availability, but the standby arrangement needs correct valves, alarms, automatic or manual changeover, pressure balancing and a tested procedure.
The thermal design establishes the required heat-transfer area. We verify the oil-side heat-transfer coefficient, coolant-side coefficient, flow regime, fouling allowance, temperature approach and pressure drop. Oil is often more viscous than water, so the cooler may require careful pass selection, surface design and flow distribution.
The mechanical design must address pressure boundary, temperature, thermal expansion, vibration, supports, tube-to-tubesheet joints, gaskets, nozzles and cleaning access. If the oil and water pressures differ significantly, the design and leak-detection strategy should consider the consequences of an internal leak.
CSTHEATEXCHANGER’s industrial heat-exchanger information lists material options including stainless steel, copper, aluminum, Cu-Ni, brass and titanium for suitable designs. We select materials according to oil compatibility, cooling-water chemistry, temperature, pressure, corrosion risk, galvanic effects and the customer’s material specification. A material listed on a general product page is not a universal approval for a turbine bearing-cooling circuit.
We also review thermal cycling during turbine start-up and shutdown. The shell and tubes may expand at different rates, and rapid temperature changes can increase stress on joints and supports. The final design should be checked against the plant’s operating procedure and expected cycling frequency.
The cooler should be designed for safe drainage, venting and isolation. Air trapped in a water circuit can reduce heat transfer and cause unstable operation, while trapped oil or water during maintenance can create a safety hazard. The piping and instrument diagram should show the required vents, drains and isolation points.
Cooling-water conditions directly affect the turbine oil cooler. Closed-loop treated water may have a different corrosion and fouling profile from raw river water, cooling-tower water or seawater. Suspended solids can block passages, scale can insulate the heat-transfer surface and microbiological growth can increase pressure drop or corrosion.
We ask the plant for water analysis and cleaning history. The design review may consider water hardness, chlorides, conductivity, suspended solids, biological treatment, corrosion inhibitors and operating temperature. The plant should also identify whether the cooler can be isolated and cleaned online or only during a scheduled outage.
CSTHEATEXCHANGER’s published material options include Cu-Ni, stainless steel and titanium for suitable industrial heat-exchanger designs. The choice should follow the water chemistry and corrosion assessment. In a seawater or high-chloride application, the owner may require a different alloy, coating, anode or isolation strategy from a treated closed-water circuit.
Fouling is not only a maintenance issue. As the heat-transfer surface becomes dirty, the oil outlet condition may rise, pressure drop may increase and the temperature-control valve may move toward a different operating position. We recommend trending oil inlet and outlet temperatures, coolant temperatures, flow and differential pressure.
The plant’s water-treatment program remains essential. A more corrosion-resistant cooler cannot compensate for blocked strainers, failed chemical dosing, poor filtration or uncontrolled biological growth.
A lube-oil cooler supports temperature control, but it does not replace turbine monitoring or protection. The complete system may include oil-temperature sensors, bearing-metal-temperature sensors, oil-pressure transmitters, differential-pressure switches, filter alarms, pump status, vibration monitoring and trip logic.
We define the cooler’s instrumentation interface in the project documents. Useful measurements may include oil inlet and outlet temperature, cooling-water inlet and outlet temperature, oil pressure, water pressure, flow and differential pressure. The plant should decide which values are displayed, alarmed, recorded or used in automatic control.
CSTHEATEXCHANGER can provide design data and production drawings for customer projects, according to its published company and quality information. We identify the sensor pockets, connection sizes, valve interfaces and alarm points included in the equipment scope. The turbine OEM or plant control engineer defines the final trip and permissive logic.
The operating team should avoid interpreting one temperature reading in isolation. A high oil outlet temperature could result from low water flow, a fouled cooler, a failed control valve, excessive bearing load, a pump problem, an oil-level issue or an instrument fault. The diagnosis should compare the complete trend and operating condition.
For duty/standby coolers, the plant should test the changeover procedure under controlled conditions. A standby unit that is installed but not periodically isolated, vented, filled and verified may not be ready when needed.
Installation planning starts with the equipment arrangement and maintenance route. We check the cooler’s dimensions, weight, supports, nozzle orientation, lifting points, drain and vent locations, pipe flexibility and space for tube cleaning or bundle removal.
The oil system should be clean before the cooler is placed into service. Construction debris, welding slag, rust and sealant can damage bearings or block the oil circuit. The cooling-water side should also be flushed and checked for strainers, valves, chemical treatment and correct flow direction.
Our installation and commissioning checklist includes:
We verify cooler tag, orientation, supports and connections against approved drawings.
We inspect tubes, headers, covers, gaskets, drains and vents.
We confirm oil and cooling-water piping, valves and bypass arrangements.
We review flushing, cleanliness and removal of temporary materials.
We pressure-test and leak-check the specified circuits before operation.
We verify sensor signals, control valves, alarms and standby changeover.
We record initial oil and coolant temperatures, flow and pressure drop.
CSTHEATEXCHANGER’s quality policy states that the company works from customer technical parameters, uses design support and provides testing documentation according to the project. The final test pressure, test medium, acceptance criteria and inspection scope must be taken from the approved equipment specification.
The plant owner and turbine OEM control start-up, oil flushing, turbine rolling, load increase, bearing-temperature acceptance and protection testing. We provide the cooler documentation and technical support included in the agreed scope.

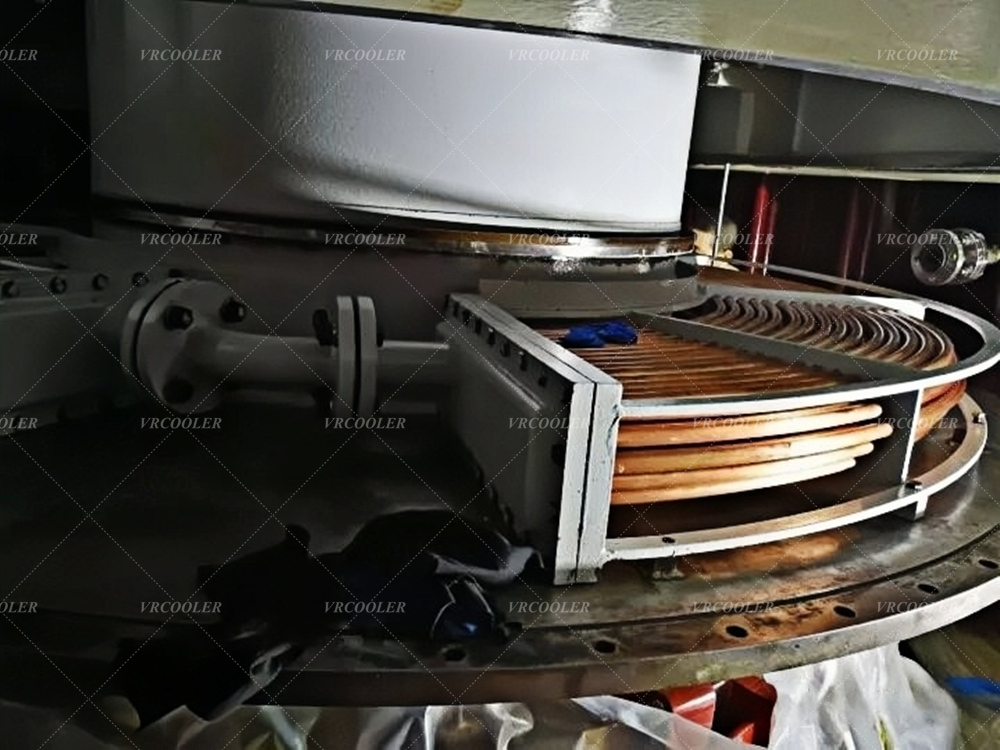

Preventive maintenance helps the oil cooler continue to transfer heat without excessive restriction or internal leakage. The maintenance interval depends on the oil, cooling-water quality, operating hours, fouling rate and plant outage schedule.
Our maintenance review includes:
Trending oil inlet and outlet temperatures.
Checking cooling-water flow, temperature and differential pressure.
Inspecting filters, strainers, valves and bypass operation.
Cleaning the oil side and water side according to approved procedures.
Checking tubes, tube sheets, headers, covers, gaskets and supports.
Inspecting for oil-to-water or water-to-oil leakage.
Verifying temperature, pressure, flow and alarm instruments.
Reviewing standby-cooler readiness and changeover records.
Recording cleaning, repair, plugging and pressure-test history.
If the oil outlet temperature rises, we investigate operating load, oil flow, cooling-water flow, fouling, control-valve position, bearing heat and instrument accuracy before assuming the cooler must be replaced. A tube leak may require immediate isolation and testing because water contamination can affect the lubrication system.
CSTHEATEXCHANGER states that it builds replacement heat exchangers and can provide design data and production drawings. For a replacement cooler or tube bundle, we ask for the original drawings, inspection report, current operating conditions, oil analysis, water analysis and any modification history.
A replacement should be checked for heat duty, pressure drop, materials, dimensions, supports, gasket interfaces and control connections. A visually similar unit is not automatically a technically equivalent unit.
When we prepare a proposal for steam turbine bearing cooling, we connect the cooler to the plant’s lubrication and cooling-water system. We define oil flow, heat load, oil and coolant conditions, allowable pressure drops, water chemistry, materials, redundancy, instrumentation, inspection, testing and maintenance access.
CSTHEATEXCHANGER’s Lube Oil Cooler page identifies turbine and power-generation lubrication applications and lists material options for suitable designs. Its Thermal Power Plant Generator Air Cooler information provides a reference for power-plant cooling equipment. The Generator Cooler category and About Us page describe related power-generation coolers, industrial heat-exchanger manufacturing, new and replacement work and design support.
We ask the customer to provide the turbine and generator data, lube-oil schematic, oil properties, heat duty, oil flow, cooling-water conditions, water analysis, allowable pressure drops, redundancy plan, plot constraints, instrumentation, inspection plan and delivery schedule. Contact CSTHEATEXCHANGER to discuss a turbine bearing oil cooler for your thermal power plant.
A properly designed cooler can support stable bearing-oil temperature and help the plant manage turbine lubrication heat. Final performance depends on the complete oil system, cooling-water quality, pumps, valves, instrumentation, turbine operation and maintenance. We recommend confirming all design conditions, protection interfaces, testing and acceptance criteria in the approved project documentation.
