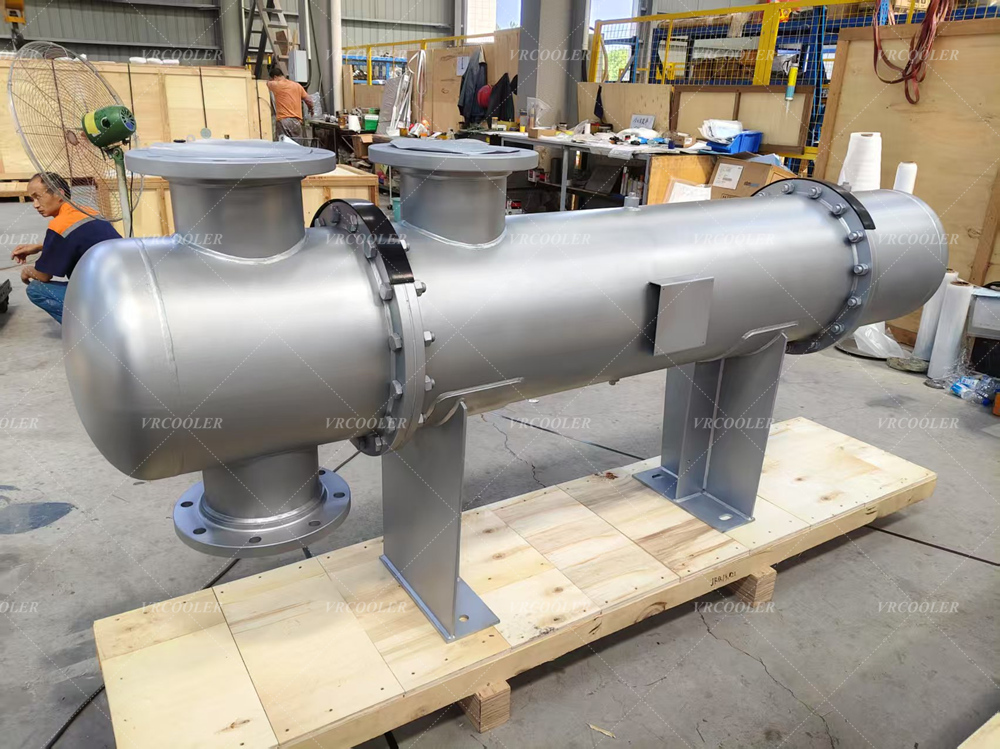

A shell and tube heat exchanger for a refinery EPC project must be engineered as part of the process package, not selected as a generic catalogue item. The exchanger may be required for feed preheating, product cooling, reboiler duty, condenser service, hot-oil circulation, cooling-water service or another refinery process. Each service has its own fluid properties, pressure, temperature, fouling risk, metallurgy and inspection requirements.
At CSTHEATEXCHANGER, we build industrial heat exchangers for process applications and support new projects as well as replacement work. Our public company information states that we can build heat exchangers using water, steam, refrigerant, glycol, ammonia, CO₂ or other media, and that we provide design data, production drawings and OEM/ODM support. Our published industrial shell-and-tube information places the equipment in the Unit Cooler and Industrial Coil product structure, while the site also discusses heavy industrial heat exchangers for process applications.
For refinery EPC work, we start with the process datasheet and purchaser specification. We then review thermal duty, mechanical design, materials, nozzle orientation, maintenance access, inspection, documentation and delivery interfaces. In this article, we explain how we can support an EPC project without replacing the EPC contractor’s process design authority, code review or final approval responsibility.

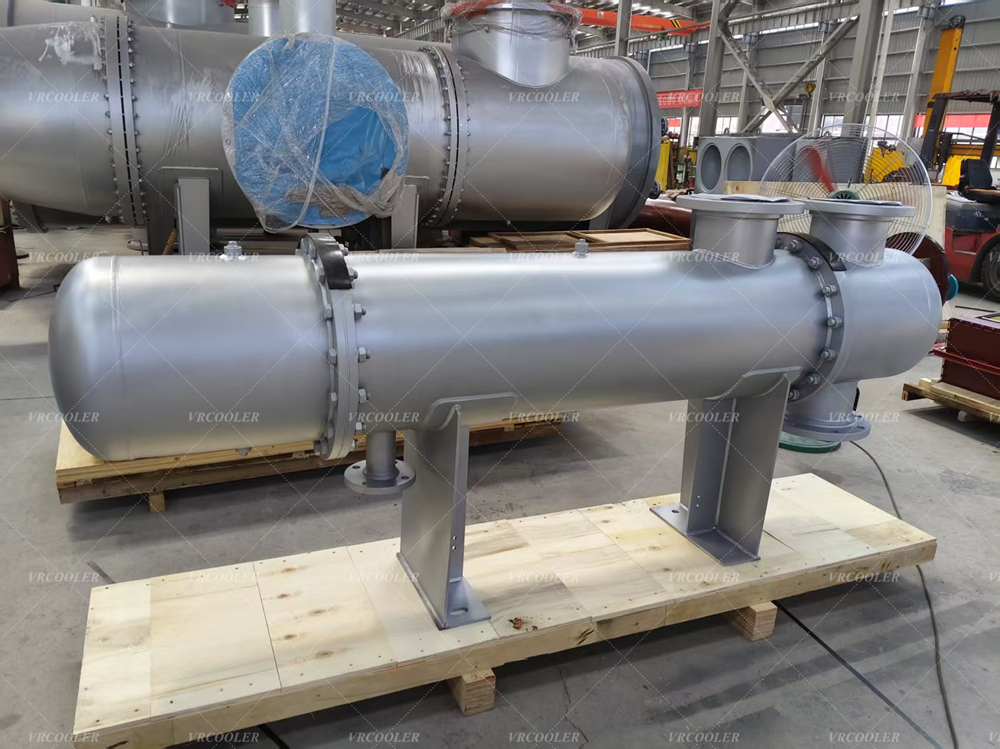

Refinery heat-exchanger service is defined by more than heat duty. The fluids may be hot, pressurized, corrosive, toxic, flammable or prone to fouling. The exchanger may sit in a crude-distillation, hydrotreating, reforming, sulfur, hydrogen, utilities or product-handling area. A failure can affect safety, production, environmental control and the maintenance schedule.
We therefore need to understand the service on both the shell and tube sides. The process datasheet should identify fluid composition, flow, inlet and outlet temperatures, operating and design pressure, allowable pressure drop, density, viscosity, vapor fraction, fouling tendency and any corrosion or erosion concern. The EPC specification should also state the applicable design code, material requirements, welding qualifications, inspection, testing, coating, preservation and documentation.
CSTHEATEXCHANGER’s public company information says that it builds heavy industrial heat exchangers for process applications and can manufacture equipment for water, steam, refrigerant, glycol, ammonia, CO₂ and other media. These capabilities indicate the basis for a technical discussion, but they do not establish that one exchanger design is suitable for every refinery service. We develop the final configuration from the approved project data.
Our objective is to deliver an exchanger that meets the thermal and mechanical requirements defined by the EPC project. We do not publish a universal pressure, temperature, material or performance value because the correct value belongs to the individual datasheet and contract.
We begin the equipment review with a controlled datasheet. If the EPC contractor issues a revised process condition, we track the change before freezing the design. Small changes in flow, phase condition or allowable pressure drop can affect surface area, tube count, shell diameter, pass arrangement and nozzle size.
Our review normally covers:
Service name and equipment tag.
Shell-side and tube-side fluid identification.
Normal, minimum and maximum flow conditions.
Inlet and outlet temperatures for both sides.
Operating and design pressure and temperature.
Heat duty and heat-transfer margin required by the project.
Allowable pressure drop on each side.
Fluid composition, contaminants, chlorides, sulfur compounds and water content.
Fouling factors and cleaning philosophy.
Corrosion allowance, metallurgy and material compatibility.
Horizontal or vertical orientation and plot-space limitations.
Nozzle sizes, orientation, loads and piping interfaces.
Thermal expansion, support arrangement and lifting requirements.
Inspection, testing, preservation, packing and documentation requirements.
We also ask whether the exchanger is a new item, a replacement or a retrofit into an existing train. For a replacement, the old nameplate and drawings are useful but not sufficient. The EPC team should confirm whether the process duty, fluid composition, piping stress, control philosophy or operating envelope has changed.
CSTHEATEXCHANGER’s design information says its engineers use professional design software and can provide design data and production drawings. We use those engineering outputs to communicate the proposed geometry and interfaces. The EPC contractor and end user remain responsible for checking the design against the project’s process model, piping layout and equipment list.
A shell-and-tube heat exchanger transfers heat between two fluids without mixing them. One fluid flows through tubes while the other passes across the tube bundle inside the shell. Baffles guide the shell-side fluid and support the tubes, while the number of tube passes, flow arrangement and surface selection influence heat transfer and pressure loss.
We evaluate whether a fixed-tubesheet, U-tube, floating-head or another configuration is appropriate for the service. The choice depends on temperature difference, thermal expansion, cleaning method, shell-side fouling, tube-side access and project maintenance requirements. We do not recommend a configuration from the service name alone.
For the thermal design, we calculate or verify the required heat-transfer area using the process duty, fluid properties, temperature approach, heat-transfer coefficients, fouling allowance and design margin defined by the EPC specification. We then check tube count, tube length, shell diameter, pass arrangement, baffle spacing and pressure drop.
CSTHEATEXCHANGER’s public material options for industrial heat exchangers include stainless steel, copper, aluminum, Cu-Ni, brass and titanium for suitable designs. In refinery service, the selected material must be tied to the fluid chemistry, design code, corrosion assessment, welding procedure and purchaser’s material specification. A material listed on a product page is not an approval for a specific hydrocarbon or corrosive process.
We also review the possibility of phase change. Condensers, reboilers and evaporators require appropriate separation, vapor distribution, drainage, level control and pressure-drop analysis. The EPC datasheet should clearly define the two-phase duty so that the exchanger is not designed as a simple single-phase cooler or heater.
Material selection is one of the most important decisions in a refinery exchanger. Hydrocarbon streams may contain water, hydrogen sulfide, chlorides, acids or other contaminants. Cooling water may create a different corrosion risk from process fluid. Steam service may introduce condensate, erosion or thermal cycling. The tube, tubesheet, shell, channel, baffles, gaskets, bolting and nozzles must be considered as one pressure-boundary system.
We ask the EPC contractor to provide the material specification and corrosion basis. We then review tube material, shell and channel material, cladding or lining where required, corrosion allowance, gasket selection, weld material, tube-to-tubesheet joint and surface treatment. If the service requires a special alloy, the project documents should identify it explicitly rather than relying on a general phrase such as “industrial grade.”
CSTHEATEXCHANGER’s company information states that it uses controlled production equipment and can provide process and test documentation. The relevant evidence for a refinery project should include the actual material certificates, welding records, non-destructive examination reports, pressure-test report and any other documents specified by the EPC inspection plan.
We also consider mechanical integrity during operation. Differential pressure, vibration, thermal expansion, flow-induced erosion and repeated start-up can affect tube and support performance. The exchanger may require a tube vibration review, nozzle-load evaluation, expansion analysis or removable bundle arrangement depending on the service.
The final mechanical design must be reviewed and approved according to the applicable code and project authority. We do not claim a code certification or pressure-vessel approval unless it is expressly included in the project scope and documentation.
Refinery streams can foul heat-transfer surfaces with coke, polymers, scale, salts, sludge or biological deposits. Fouling reduces heat transfer and can increase pressure drop. The exchanger should therefore be designed around the expected fouling mechanism and the maintenance philosophy of the plant.
We ask how the EPC project plans to clean the shell side and tube side. Possible methods may include mechanical tube cleaning, hydroblasting, chemical cleaning, online cleaning or bundle replacement. The final method depends on fluid compatibility, access, tube material, bundle arrangement and site procedures.
CSTHEATEXCHANGER lists tube bundles and tube cleaners within its product structure and states that it builds replacement heat exchangers as well as new equipment. These capabilities can be relevant when a refinery needs a replacement bundle or wants to preserve an existing exchanger envelope. We still require the original drawings, inspection findings and updated process conditions before recommending a replacement.
We review removable covers, channel access, bundle pulling space, lifting lugs, platforms, drain points and vent points. A thermally efficient exchanger that cannot be safely opened or serviced may create a long-term plant problem. Maintenance access should be checked against the plot plan and lifting study, not assumed from an outline drawing alone.
The EPC documentation should also include recommended spare gaskets, tube plugs, critical parts and inspection intervals where required. The operating company should establish a baseline for temperatures, pressure drop and leak checks so that fouling or tube failure can be identified early.
A refinery EPC project moves through several technical interfaces. The heat-exchanger supplier may receive process data from the process engineering team, mechanical requirements from the equipment engineer, piping information from the layout team, inspection requirements from quality control and documentation requirements from procurement.
We support this interface by organizing the technical submittal around the purchaser’s document register. A typical package may include:
Technical quotation and deviations list.
Thermal design summary and performance datasheet.
General arrangement and nozzle-orientation drawing.
Tube, shell, baffle and tubesheet information.
Weight, center-of-gravity and lifting data.
Materials list and material certificates where specified.
Welding procedure and welder qualification documents where required.
Non-destructive examination and inspection plan.
Hydrostatic, pneumatic, leak or pressure-test records as applicable.
Painting, coating, preservation and packing details.
Operation, maintenance and spare-parts information.
Final manufacturing record book or dossier required by the contract.
CSTHEATEXCHANGER states that it can provide production drawings and OEM/ODM support. We use the purchaser’s document requirements to define what will be submitted for review and what will be delivered as final documentation. The exact list, format, approval status and revision control must be agreed with the EPC contractor.
We also identify long-lead items early. Special tubes, forgings, plates, gaskets, valves, instruments or non-standard fabrication may affect the schedule. We do not promise a delivery date before checking the approved design, materials, inspection scope and procurement plan.
Inspection requirements should be agreed before fabrication begins. A refinery exchanger may require hold points for material verification, fit-up, tube expansion or welding, dimensional checks, non-destructive examination, pressure testing, cleanliness inspection and final review.
We apply the project inspection and test plan to the actual equipment. Our company information states that coils are leak tested and describes 40-bar pressure testing or dual-chamber helium leak detection for exported coils. Those statements relate to the company’s published quality information and should not be automatically transferred to every shell-and-tube exchanger. The refinery EPC contract must define the required test pressure, test medium, test duration, acceptance criteria and records for the specific item.
For a shell-and-tube exchanger, the final inspection may include tube-to-tubesheet joint checks, shell and channel dimensional inspection, bundle verification, weld examination, hydrostatic testing and leak testing, depending on the design and code. The inspection agency, purchaser and EPC quality team may also require witness or review points.
CSTHEATEXCHANGER can provide test and production documents specified in the order. We recommend that the buyer confirm whether the package includes material certificates, NDE reports, pressure-test records, calibration certificates, coating records, nameplate data and final drawings. A document list should be controlled by revision so that the EPC team can distinguish approved, superseded and final records.
Delivery planning begins with the exchanger’s dimensions, weight, lifting points, transport route and site access. We provide the agreed weight and center-of-gravity data so the EPC contractor can coordinate the lifting plan and foundation or support design.
Before installation, the site team should inspect the equipment for transport damage, verify nozzles and orientation, remove preservation materials according to the instructions and confirm that temporary covers remain in place until piping is ready. Piping loads should be checked against the equipment design, and the exchanger should not be forced into alignment by the connected pipework.
Our commissioning support focuses on the equipment interfaces:
We verify the nameplate, tag number, orientation and nozzle connections.
We inspect supports, anchor points, vents, drains and lifting features.
We confirm that piping, valves, strainers and instruments match the approved P&ID.
We check flushing, cleanliness and removal of construction debris.
We review pressure-test and leak-test records before introducing process fluid.
We confirm the start-up sequence, warm-up rate and operating limits.
We record initial temperatures, flow conditions and pressure drops.
The EPC contractor and refinery operating team control plant commissioning, hazardous-energy isolation and process introduction. We provide the equipment information and technical support defined in the contract. The final acceptance should be based on the approved datasheet, inspection plan and commissioning criteria.
When we prepare a proposal for a refinery EPC project, we connect the exchanger design to the process duty and procurement documents. We define shell-side and tube-side fluids, flow, temperatures, pressures, heat duty, fouling, materials, geometry, inspection, testing, delivery and documentation before freezing the commercial scope.
CSTHEATEXCHANGER’s Industrial Shell-and-Tube Heat Exchanger information provides a starting point for discussing industrial exchanger requirements. Its About Us page describes heavy industrial heat exchangers for process applications, new and replacement equipment, design support, OEM/ODM services and manufacturing documentation. The Tube Bundle product structure is also relevant when an EPC project considers replacement or retrofit work.
We ask the EPC contractor to provide the process datasheet, equipment specification, applicable design code, inspection and test plan, material specification, plot constraints, nozzle requirements, document register, delivery schedule and commercial terms. Contact CSTHEATEXCHANGER to discuss a shell and tube heat exchanger for your refinery EPC project.
A properly engineered exchanger can support refinery heating and cooling duties, but the final result depends on the complete process design, materials, fabrication quality, inspection, installation, operation and maintenance. We recommend confirming all design conditions, deviations, acceptance criteria and documentation requirements in the approved EPC package.
