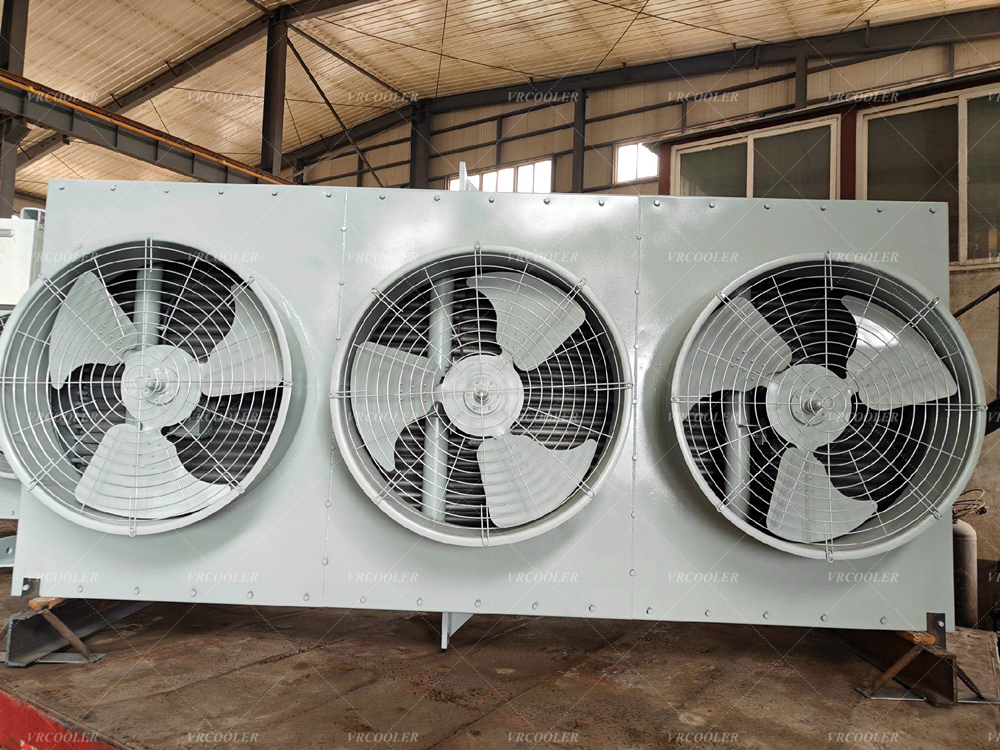

A transformer oil cooler is a radiator or heat exchanger that removes heat from insulating oil circulating through an oil-filled transformer. The transformer’s core and windings produce heat during operation. The oil absorbs that heat, moves through an external cooling device and returns to the transformer after giving up heat to air or water.
The basic cycle is simple: hot oil leaves the transformer, the cooler transfers heat to a secondary medium, and cooled oil returns to the tank. Depending on the transformer design, oil movement and cooling-air movement may be natural or forced. Common cooling arrangements include ONAN, ONAF, OFAF and OFWF.
At CSTHEATEXCHANGER, we work with transformer oil coolers, air-cooled oil coolers, forced-oil systems, marine transformer heat exchangers and related industrial cooling equipment. We design the cooler around the transformer’s oil flow, heat load, cooling medium, ambient conditions, space and control requirements. A transformer oil cooler is one part of a complete transformer cooling and protection system, not a replacement for the transformer manufacturer’s controls or protection devices.
A transformer oil cooler maintains the oil and transformer components within their approved operating conditions by removing heat from the circulating oil. Oil-filled transformers use insulating oil to provide electrical insulation and transfer heat away from the core and windings. As transformer load increases, losses generally increase and the oil absorbs more heat.
If heat is not removed effectively, oil temperature and winding temperature can rise. Excessive temperature may accelerate insulation ageing, increase maintenance risk and trigger transformer alarms or protective action. The cooler helps the transformer reject heat to the surrounding air, cooling water or another approved medium.
A typical transformer oil cooler may include:
Oil inlet and outlet connections.
Finned tubes, radiator panels or a tube bundle.
Cooling fans for forced-air operation.
An oil pump for forced-oil circulation.
Water connections for water-cooled designs.
Isolation valves and drain points.
Temperature, flow and pressure sensors.
Fan and pump control panels.
Supports, guards and weather protection.
CSTHEATEXCHANGER’s published transformer-oil cooler information describes applications in power generation, transmission and distribution. Its transformer-cooling product references include oil coolers, air coolers and marine transformer heat exchangers. The exact construction depends on the transformer design and the required cooling mode.
The transformer oil cooler works through a controlled heat-transfer loop. Oil heated by the transformer flows to an external radiator or heat exchanger. The cooler exposes the oil to a larger heat-transfer surface. Air or water removes the heat from the other side of that surface, and the cooler oil returns to the transformer tank.
In a natural-circulation arrangement, hot oil rises because its density changes as its temperature increases. Cooler oil falls back toward the transformer tank after heat is rejected. This process can work through radiator banks without an oil pump, provided the transformer and cooler are designed for natural circulation.
In a forced-oil arrangement, a pump drives the oil through the cooler. Forced circulation gives the designer more control over oil flow and can support a compact heat exchanger or higher-duty cooling system. The pump must be selected and protected so it does not create unacceptable pressure drop, vibration or oil leakage.
For forced-air cooling, fans move air across the radiator or finned-tube surface. The air carries heat away from the oil. Fan control may operate continuously or in stages according to oil temperature, winding temperature, load or the transformer control philosophy.
CSTHEATEXCHANGER’s published OFAF explanation describes hot oil being pumped from the transformer tank into a finned-tube cooler, with fans forcing air over the tubes. After cooling, the oil returns to the tank and repeats the cycle. The article describes an OFAF operating principle; it does not define the settings for every transformer.
The cooling-mode abbreviations describe how oil moves and how heat leaves the cooler. The exact designation must be confirmed from the transformer nameplate and manufacturer documentation.
In ONAN cooling, oil circulates naturally inside the transformer and heat moves from the tank or radiator surface to surrounding air through natural convection. No forced oil pump or cooling fan is used for the normal cooling path.
This arrangement is relatively simple, but the available cooling duty depends strongly on radiator area, ambient air movement, transformer load and installation conditions. If the transformer is later upgraded or the site load changes, the original cooling arrangement may need review.
In ONAF cooling, oil continues to circulate naturally while fans force air across the radiator or oil cooler. The fans increase air movement and improve heat rejection compared with natural air convection.
Fan staging may provide different cooling levels. The transformer control system can start fans in response to temperature or load, subject to the manufacturer’s approved sequence. Fan failure alarms and airflow checks are important because oil circulation may continue while cooling performance is reduced.
In OFAF cooling, an oil pump forces hot transformer oil through an external cooler and fans force air across the cooling surface. The pump creates the oil circulation loop; the fans provide the air-side heat rejection.
The forced oil path typically follows this sequence:
Transformer core and windings heat the insulating oil.
An oil pump draws or receives hot oil from the transformer tank.
The pump pushes oil through the external radiator or heat exchanger.
Fans move air across the tubes, fins or radiator panels.
Heat transfers from the oil to the air.
Cooled oil returns to the transformer tank.
OFAF requires coordination between pump operation, fan operation, oil flow and transformer protection. If the pump stops, the transformer may need to reduce load or switch to another approved cooling stage.
In OFWF cooling, a pump forces transformer oil through a water-cooled heat exchanger, while another circuit forces cooling water through the exchanger. Water generally provides a different heat-transfer condition from air, but water quality, leakage protection, pressure balance and maintenance become especially important.
The transformer oil and cooling water must remain separated. A leak can affect insulation quality or cooling-water handling. Water flow, inlet temperature, outlet temperature, pressure and water chemistry need to be monitored according to the approved design.
The oil cooler is more than a radiator. The components work together to maintain oil flow, heat transfer and safe operation.
The radiator or core provides the heat-transfer surface. It may use finned tubes, radiator panels, a tube bundle or another exchanger construction. The selected surface depends on oil viscosity, flow, heat duty, air or water conditions, corrosion exposure and cleaning requirements.
An oil pump is used in forced-oil cooling modes such as OFAF and OFWF. It drives the hot oil from the transformer tank through the cooler. Pump selection must consider oil viscosity, flow, pressure, temperature, seals, motor power and protection.
Fans force air over the external cooling surface in ONAF and OFAF systems. Fan size, air volume, noise, motor protection, controls and weather exposure affect the cooler’s operation.
Water-cooled transformer oil coolers include a separate water circuit, pump or plant-water connection, control valve, strainer and monitoring points. The circuit requires a suitable water-quality and leak-management plan.
Isolation valves allow service without draining the entire transformer system where the design permits. Temperature, oil-flow, water-flow, pressure and fan/pump status sensors provide the signals used for alarms and control.
CSTHEATEXCHANGER lists materials including copper, aluminum, stainless steel, Cu-Ni, brass, titanium and carbon steel for different heat-exchanger applications. We select the material from the oil, air or water service, temperature, corrosion, pressure and project specification rather than applying one material to every transformer.
Transformer oil does two jobs at the same time: it provides insulation and carries heat. If the oil becomes too hot, insulation ageing and transformer stress can increase. If the oil is too cold, viscosity changes can affect circulation and starting conditions. The correct operating range belongs to the transformer manufacturer and project design.
The oil cooler supports temperature control, but it does not determine every part of the transformer’s thermal performance. Winding hot-spot temperature, oil circulation, radiator condition, ambient temperature, load, fan operation and pump performance all matter.
We monitor trends rather than looking at one temperature value in isolation. A rising oil temperature at the same load may indicate a dirty radiator, failed fan, low oil flow, blocked strainer, water-side issue, sensor error or a change in ambient conditions.
CSTHEATEXCHANGER’s transformer-oil cooler news explains that high oil temperature can create operating risks. We use the transformer manufacturer’s alarm and trip settings when defining the cooler controls. We do not assign universal temperature limits in a general product article.

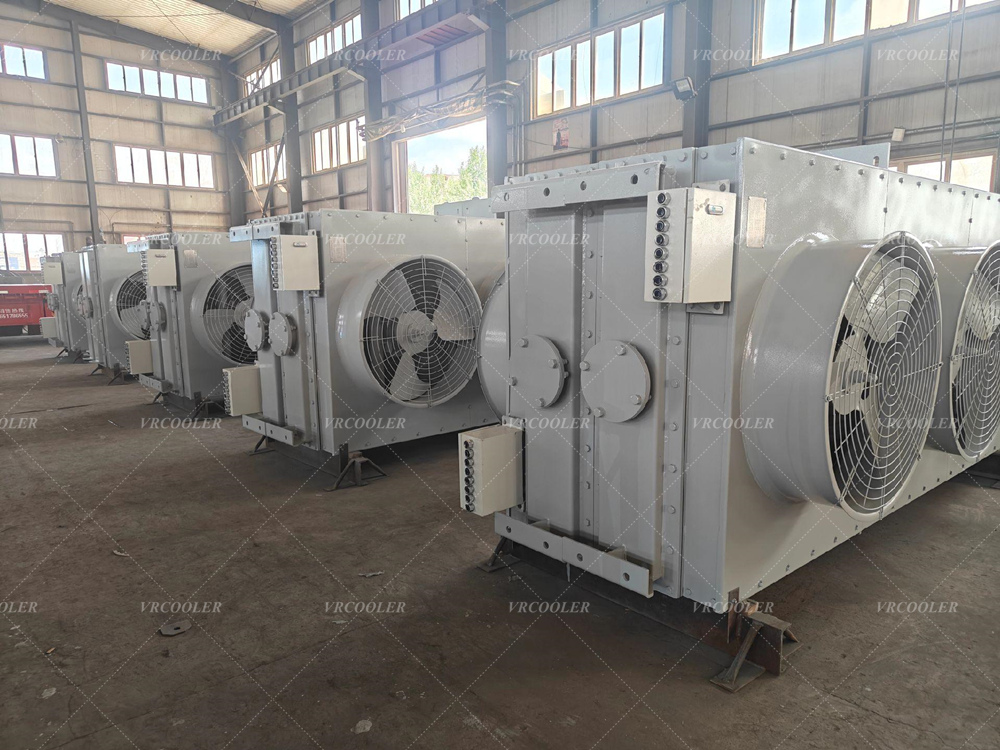

We begin with transformer and site data. The cooler must match the transformer’s required heat-rejection duty and the selected cooling mode.
The selection review normally includes:
Transformer rated power and cooling designation.
Transformer oil type, viscosity and flow rate.
Oil inlet and outlet temperature conditions.
Ambient air temperature and altitude.
Required heat-rejection duty.
Air volume and fan arrangement for air-cooled systems.
Water flow, inlet temperature and water chemistry for water-cooled systems.
Allowable oil-side, air-side and water-side pressure drop.
Corrosion, marine or outdoor exposure.
Installation space and maintenance clearance.
Pump, fan and control-panel requirements.
Required alarms, redundancy and testing.
Transformer manufacturer’s drawings and approved standards.
For a replacement cooler, we also request the existing unit’s dimensions, oil and water connections, nozzle position, fan arrangement, tube or radiator material, nameplate and maintenance history. A replacement must fit the transformer system physically and thermally; matching the outside length alone is not enough.
CSTHEATEXCHANGER provides new and replacement heat exchangers and design drawings according to its published company information. We use the customer’s transformer data to develop the required cooler rather than quoting a generic heat exchanger without a design basis.
Installation begins with a safe isolation plan and a review of the transformer’s cooling circuit. We check supports, piping, oil cleanliness, valve positions, cable routing, fan guards, pump direction, drain points and access for future cleaning.
During commissioning, we verify:
Oil and water or air connections against the approved drawings.
Pump and fan rotation.
Oil flow, water flow and air movement.
Temperature sensors and alarm signals.
Fan and pump staging or variable-speed control.
Isolation valves, drains and vents.
Leak-test and pressure-test records.
Transformer response at approved load conditions.
Maintenance depends on the cooling mode. Air-cooled radiators need inspection and cleaning of fins, tubes, guards and fan blades. Forced-oil systems need pump checks, oil-flow verification, seal inspection and strainer maintenance. Water-cooled systems need water-quality control, heat-exchanger cleaning, leak detection and pressure monitoring.
A decline in cooling performance does not automatically mean the cooler must be replaced. We first check fan operation, pump flow, oil level, radiator fouling, water conditions, sensor accuracy and valve position. Any repair must follow the transformer manufacturer’s procedure and the approved maintenance plan.
When we review a transformer oil-cooler request, we separate the transformer’s thermal duty from the cooler’s construction. We ask for the transformer nameplate, cooling designation, oil data, heat load, ambient condition, air or water conditions, connections, existing cooler drawings and required documentation.
CSTHEATEXCHANGER’s transformer-oil cooler news center covers transformer oil coolers used in power generation, transmission and distribution. Its OFAF oil-pump explanation describes forced oil circulation from the transformer tank through a finned-tube cooler, with fans removing heat from the oil. The Generator Cooler category also includes related oil, air and hydrogen cooling products for power equipment.
We support new and replacement heat-exchanger work, design data and production drawings. Contact CSTHEATEXCHANGER to discuss a transformer oil cooler, OFAF cooler, air-cooled oil cooler or water-cooled transformer heat exchanger.
A transformer oil cooler removes heat from insulating oil and transfers it to air or water. Natural circulation may be assisted by fans, pumps or both, depending on the ONAN, ONAF, OFAF or OFWF cooling arrangement. The correct cooler must match the transformer’s thermal duty, oil circuit, cooling medium, pressure drop, materials, controls and maintenance requirements. Final settings and ratings should always come from the transformer manufacturer and approved project documents.
