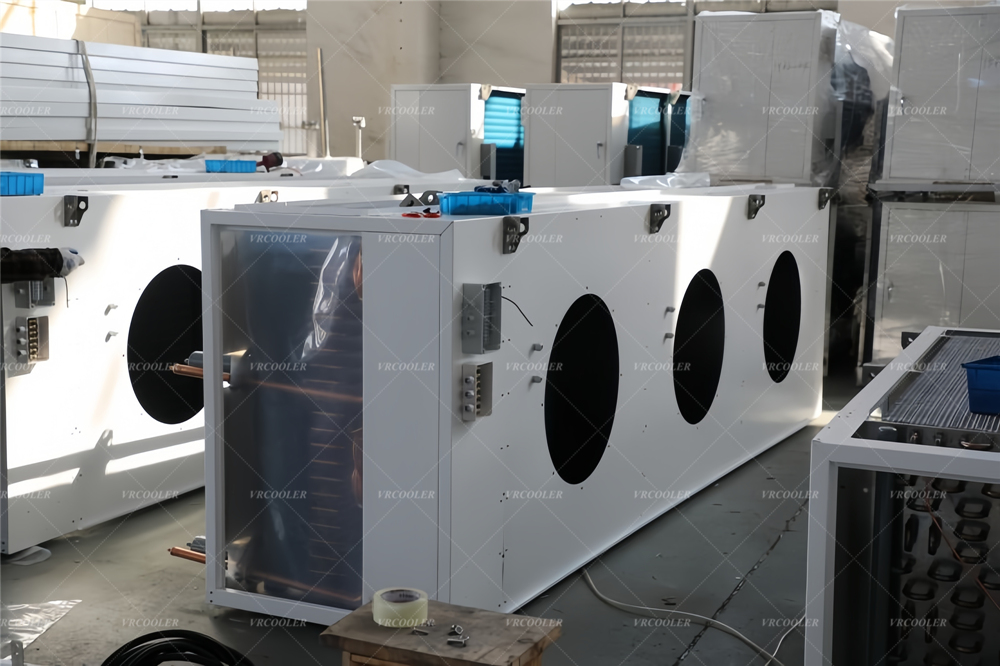

A stainless steel evaporator for an ice cream cold store or chocolate tempering room at -18 to -25°C must do more than remove heat. It must maintain a stable low-temperature environment, withstand repeated defrost cycles, manage condensate and frost, support hygienic cleaning and distribute air without creating unnecessary product dehydration or local hot spots.
At CSTHEATEXCHANGER, we custom-build unit coolers and glycol evaporators for ice-cream cold storage and chocolate-related applications. Our published application page identifies an operating range of -18 to -25°C for ice-cream cold storage and chocolate tempering rooms. It also points to stainless-steel evaporator construction as a way to support low-temperature, humid and hygiene-sensitive rooms.
The final evaporator still depends on the room volume, product load, target condition, refrigerant or glycol circuit, defrost method, door use, ambient temperature and maintenance plan. In this article, we explain how we approach the selection and design.
Ice cream storage and chocolate processing do not place the same demand on a cold-room evaporator. Ice cream storage normally requires stable low-temperature holding and protection against temperature rise during door opening and product movement. A chocolate tempering room may require a controlled process condition, low temperature variation and careful management of moisture and airflow around sensitive surfaces.
At -18 to -25°C, the room can experience frost when humid air enters through doors or imperfect seals. Frost reduces the effective coil surface and blocks airflow. Defrost water must be drained without freezing in the pan or pipe. The evaporator must have enough heat-transfer capacity to handle the room load while still operating within the selected refrigeration system’s limits.
We review:
Room dimensions and internal volume.
Target operating temperature and allowable variation.
Product type, product temperature and loading schedule.
Door size, opening frequency and traffic.
Panel thickness, floor insulation and air leakage.
Internal lights, fans, people and equipment.
Refrigerant, glycol concentration or secondary-fluid condition.
Defrost method and available defrost energy.
Drain routing and low-temperature freeze protection.
Cleaning method and hygiene requirements.
CSTHEATEXCHANGER’s published product information gives us an application reference, not a universal capacity table. A room that stores already-frozen ice cream has a different load from a room receiving warm product. A chocolate room with frequent process access also has a different moisture and recovery load from a closed storage room.
The evaporator absorbs heat from the cold-room air. Refrigerant or chilled glycol flows through the coil, and the fan moves room air across the heat-transfer surface. Heat passes from the air into the fluid circuit. The cooled air then returns to the room and lowers the room temperature.
The evaporator assembly may include:
Stainless-steel casing or housing.
Stainless-steel or compatible coil components.
Finned-tube or other heat-transfer coil.
Axial or EC fans.
Drain pan and drain connection.
Defrost arrangement.
Air-discharge and return-air sections.
Temperature and defrost sensors.
Mounting supports and service panels.
Stainless steel can be selected for corrosion resistance, cleanability and durability in a damp or hygiene-sensitive room. The exact grade, tube material, fin material, coating, weld detail and gasket must be confirmed from the project requirements. “Stainless steel evaporator” does not automatically identify every material in the assembly.
We select the evaporator so the coil, fan, drain pan, casing and controls work together. A stainless-steel casing will not solve a drainage problem, a blocked airflow path or an undersized refrigeration circuit.

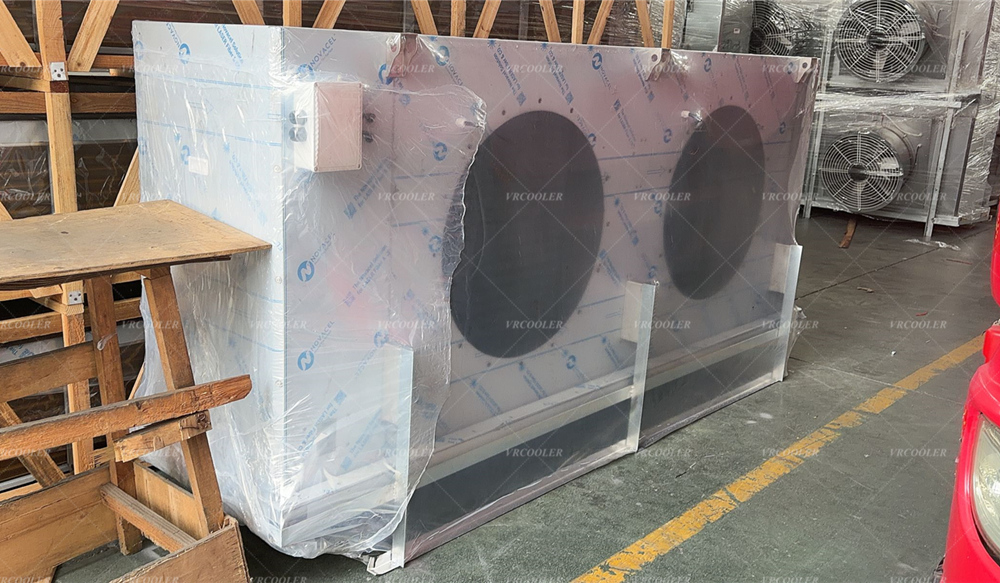

The refrigeration circuit affects the evaporator design. A direct-expansion evaporator receives refrigerant directly from the expansion device. A glycol evaporator receives a chilled secondary fluid from a separate chiller or refrigeration system.
In a direct-expansion system, refrigerant enters the evaporator coil, absorbs heat and leaves as vapor before returning to the compressor. The coil circuiting, refrigerant distribution, superheat control, oil return and defrost method must be matched to the refrigeration system.
We need the refrigerant type, design evaporating condition, compressor arrangement, expansion device, defrost source, allowable pressure drop and operating schedule. Refrigerant-side service must follow the selected system’s design and applicable regulations.
A glycol evaporator cools a secondary fluid that circulates through the room unit cooler. This arrangement can simplify refrigerant distribution across several rooms and keep the primary refrigeration equipment away from the storage area. The evaporator must match glycol concentration, viscosity, inlet temperature, flow rate and freezing protection.
Glycol concentration affects heat transfer and pressure drop. Too little protection can allow freezing; too much concentration can reduce heat-transfer performance and increase pumping requirements. We confirm the fluid condition with the system engineer before selecting the coil.
CSTHEATEXCHANGER’s published ice-cream and chocolate-room reference mentions both custom unit coolers and glycol evaporators. We use direct expansion or glycol according to the project’s central refrigeration design, room layout, maintenance preference and temperature control requirements.
Airflow must remove heat evenly without creating unnecessary product surface drying or temperature differences. The evaporator location, fan speed, discharge direction, product stacking and return-air path all affect room performance.
We check:
Air discharge throw and return-air clearance.
Fan speed and low-temperature motor suitability.
Product distance from the evaporator outlet.
Pallet, rack and carton arrangement.
Door location and warm-air infiltration path.
Air circulation between storage aisles.
Possible short-circuiting from supply to return.
Fan heat added to the room.
A high-airflow setting may improve pull-down but can increase surface moisture movement or product dehydration in some applications. A low-airflow setting may reduce circulation and create warmer areas behind racks. The right balance depends on the product, packaging, room geometry and operating goal.
For chocolate, we pay close attention to where the air crosses surfaces and how the room responds to door openings and process heat. For ice cream, we focus on maintaining the requested storage condition and avoiding warm zones during loading and retrieval.
We do not claim a universal temperature-uniformity value from the evaporator alone. Uniformity must be checked after installation with the actual room, product arrangement, sensor locations and operating cycle.
At -18 to -25°C, moisture entering the room can freeze on the evaporator coil. Frost acts as an insulating layer, narrows the air passages and reduces the coil’s ability to transfer heat. If frost is allowed to accumulate, fan airflow and room temperature stability will decline.
The defrost method may be electric, hot gas, water or another approved arrangement. We select the method according to the evaporator, refrigerant system, room condition, drain design and available utilities.
A defrost review includes:
Defrost initiation and termination method.
Coil frost pattern and expected moisture load.
Drain-pan design and heater requirement.
Drain-pipe slope, insulation and freeze protection.
Defrost-water collection and discharge.
Product protection during defrost.
Fan delay and restart sequence.
Sensor position and alarm response.
Over-defrosting wastes energy and can add unwanted heat to the room. Under-defrosting allows frost to block the coil. We use operating data and inspection results to refine the schedule rather than choosing an arbitrary interval.
CSTHEATEXCHANGER’s published application information identifies low-temperature ice-cream and chocolate-room use, but the detailed defrost method belongs to the selected evaporator and refrigeration system. The final design must include the approved drain and defrost documents.
Stainless steel is often selected where the evaporator may encounter moisture, cleaning, condensation or hygiene requirements. It can provide a cleanable surface and corrosion resistance, but the complete assembly still needs careful design.
We review:
Stainless-steel grade for the casing, pan and exposed components.
Coil tube and fin material.
Welds, corners and drainable surfaces.
Fasteners, brackets and dissimilar-metal contact.
Gasket and sealant compatibility.
Cleaning chemicals and water quality.
Surface finish and access to the coil.
Condensate and defrost-water drainage.
An evaporator installed in a food-related room should not create inaccessible pockets where water or residue can collect. The drain pan should be cleanable, and the drain should remain functional at low temperature.
We also check whether the customer needs an exposed stainless-steel finish, coated coil, hydrophilic surface or another material combination. CSTHEATEXCHANGER’s personalized-product information identifies different materials, coatings and fin surfaces for different environments. The final selection comes from the room’s cleaning and corrosion conditions, not from the word “stainless” alone.
The evaporator capacity must cover the room’s heat load under the selected operating condition. We calculate or review heat entering through the panels, warm product, door openings, people, lighting, fan motors, defrost and any equipment inside the room.
We need:
Room length, width and height.
Panel thickness and insulation condition.
Target room temperature from -18 to -25°C.
Product load and entering temperature.
Pull-down or holding requirement.
Door-opening frequency and duration.
Design ambient temperature.
Refrigerant or glycol data.
Coil inlet and outlet conditions.
Required air volume and fan arrangement.
Defrost method and schedule.
Required safety margin and redundancy.
The room area alone does not determine the evaporator. Two rooms with the same area may have very different loads if one receives warm product every day and the other stores already-frozen cartons with limited access.
We also check whether one larger evaporator or multiple smaller evaporators will provide better airflow and redundancy. Multiple units may improve distribution, but they add fans, drains, controls and maintenance points. The selection should be based on the room layout and operating risk.
CSTHEATEXCHANGER provides custom unit coolers and glycol evaporators for ice-cream and chocolate-related applications. We request the complete design basis before confirming coil area, circuiting, fan size, material and defrost arrangement.
Installation begins with the selected evaporator drawing and the room layout. We verify mounting supports, ceiling clearance, air-discharge path, return-air space, drain location, refrigerant or glycol connections, electrical supply and service access.
Before start-up, we check:
The evaporator is securely mounted and protected from impact.
Coil, casing, fan and drain-pan materials match the approved documents.
Refrigerant or glycol connections are correctly routed and supported.
The drain has suitable slope, insulation and freeze protection.
Fans rotate correctly and guards are secure.
Sensors are positioned to measure representative room conditions.
Defrost, fan delay and restart controls operate correctly.
Refrigeration pressures, flow and temperatures match the commissioning plan.
The room is sealed and the door gaskets close properly.
Airflow reaches the storage zones without unacceptable short-circuiting.
We record room temperature at more than one position after the room stabilizes. A single sensor beside the evaporator cannot show whether the back of the room or the product core is at the required condition.
The commissioning team should also check frost formation, drain discharge, defrost recovery and fan noise. Refrigerant charging, electrical work and pressure testing must be performed by qualified personnel according to the system design and local requirements.
A low-temperature evaporator needs regular inspection. We monitor room temperature, evaporator frost, fan operation, drain condition, defrost duration, compressor or glycol-pump operation and product-zone temperatures.
Routine maintenance includes:
Cleaning the coil and casing with compatible methods.
Checking fan blades, motors, guards and bearings.
Inspecting drain pan, drain line and heater where provided.
Reviewing defrost frequency and termination.
Checking refrigerant or glycol leakage.
Inspecting insulation and connection supports.
Verifying sensors and controller readings.
Reviewing room-door seals and panel joints.
Checking frost pattern and air distribution.
Recording recurring alarms and temperature deviations.
If ice forms quickly on one part of the coil, we investigate refrigerant distribution, airflow, moisture entry, sensor position and defrost operation. If the room runs warm, we check product load, door use, condenser conditions, compressor capacity, glycol flow or refrigerant conditions before replacing the evaporator.
CSTHEATEXCHANGER supports new and replacement heat-exchanger work. A replacement evaporator should be matched to the original connections, refrigerant or glycol system, room load, material requirement and defrost arrangement.
When we review an ice-cream cold-storage or chocolate-room project, we ask for the room dimensions, target temperature, product load, door operation, insulation, ambient conditions, refrigerant or glycol information, airflow requirements, cleaning method, defrost preference and installation drawings.
CSTHEATEXCHANGER’s Ice-Cream Cold Storage / Chocolate Tempering Room Evaporator page identifies the -18 to -25°C application and states that VRCOOLER custom-builds unit coolers and glycol evaporators for ice-cream cold-storage and chocolate-related rooms. The Unit Cooler category provides related cold-room equipment, while the Personalized Products page explains that materials, coatings and fin surfaces can be selected for different application conditions.
We support new and replacement evaporator projects, including coil, fan, casing, drain, material and defrost review. Contact CSTHEATEXCHANGER to discuss a stainless steel evaporator for your ice-cream or chocolate room.
For an ice-cream cold storage or chocolate tempering room operating from -18 to -25°C, the right stainless-steel evaporator must balance low-temperature capacity, airflow, defrost, drainage, cleanability, corrosion resistance and service access. The requested temperature range identifies the design condition, but room load and refrigeration data determine the final evaporator.
