To install a monoblock refrigeration unit, we first select the correct model for the cold-room heat load, then prepare the wall or roof opening, position and seal the integrated unit, connect drainage and power, and commission the system under controlled conditions. A monoblock unit combines the main refrigeration components in one assembled package, so installation can be simpler than arranging a separate condensing unit and evaporator. It still needs correct support, airflow, electrical protection, condensate management and service access.
CSTHEATEXCHANGER’s Monoblock Cold Room Unit is described as a compact refrigeration solution for small and medium cold rooms. The published range covers 1HP to 5HP models, with listed cooling capacities from 1,887 W to 10,825 W. The page identifies R404A models and wall-mounted or roof-mount installation options. Those figures and configurations apply to the published selection; actual suitability depends on insulation, target temperature, ambient conditions, product load, door use and the selected model.
This guide explains the installation sequence from model selection to maintenance. We also identify the work that should be performed by qualified refrigeration and electrical professionals.
A monoblock unit should be selected from the cold-room heat load, not from room area alone. CSTHEATEXCHANGER’s published model guide lists areas from 15 m² to 100 m², but the listed area is not a universal sizing rule. A heavily loaded room with frequent door opening may need more capacity than a lightly used room of the same size.
Before ordering, we collect:
Internal room length, width and height.
Target room temperature and operating range.
Ambient temperature around the condenser.
Panel thickness and insulation condition.
Product type, product temperature and loading schedule.
Product entering temperature and pull-down requirement.
Door size, opening frequency and traffic pattern.
Lighting, people, fans and other internal heat sources.
Defrost and condensate requirements.
Available electrical supply and phase.
Preferred wall-mounted or roof-mount arrangement.
Destination-country refrigerant and electrical requirements.
CSTHEATEXCHANGER’s published models include VR100MYC1 through VR500MYC1, with 1HP to 5HP nominal power and listed cooling capacities from 1,887 W to 10,825 W. We use these values for initial comparison only. The final model must match the actual design condition, including the evaporating condition, ambient temperature and expected product load.
A monoblock unit is a good candidate when the cold room needs a compact, integrated package and the building allows a practical wall or roof opening. If the equipment room, piping route or heat load requires the condensing section to be far from the cold room, a split system may be more appropriate.
The installation position affects airflow, drainage, service access and structural work. We decide the mounting arrangement before cutting the panel or preparing the support.

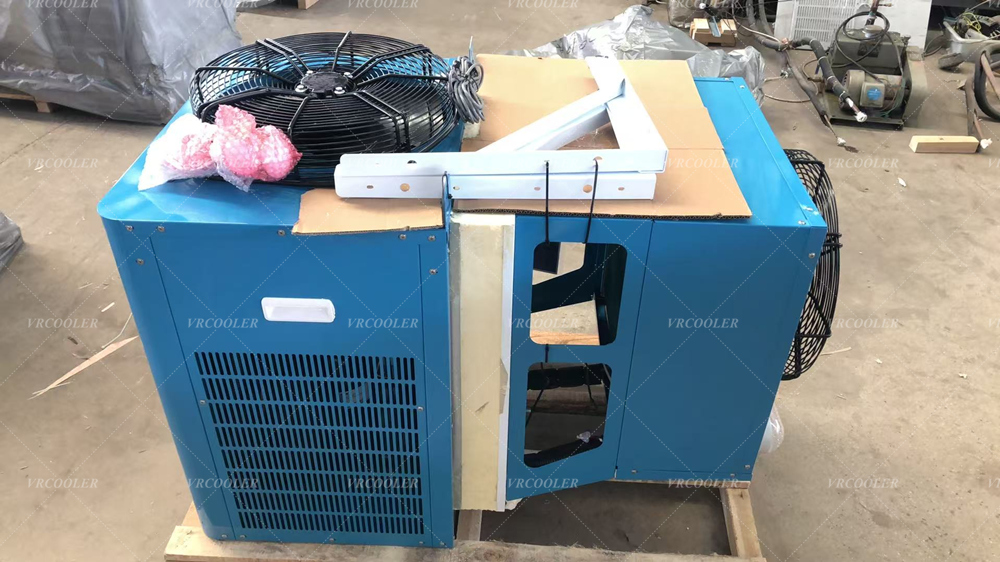

A wall-mounted monoblock unit is installed through or against an external cold-room wall. The evaporating side faces the cold room and the condensing side rejects heat outside. This arrangement can keep the refrigeration package compact and make the installation route clear.
Before cutting the wall, we verify the unit dimensions, opening size, panel thickness, mounting frame, clearances and seal details. The wall must support the equipment without crushing the insulated panel. A separate frame or reinforcement may be required, depending on the panel construction and unit weight.
The outdoor side needs enough free space for condenser airflow and service work. We avoid placing the condenser discharge against another wall or beside an obstruction that can recirculate hot air back into the coil.
A roof-mount configuration can be used when the cold-room roof and building structure can carry the equipment. The roof opening, curb or support frame must prevent water ingress and keep the insulated panel stable.
We check roof loading, weather sealing, wind exposure, condensate drainage, safe access and lifting arrangements before installation. The condenser needs clear airflow, while the evaporator section must sit correctly inside the cold room. Roof work and lifting should be planned by competent personnel.

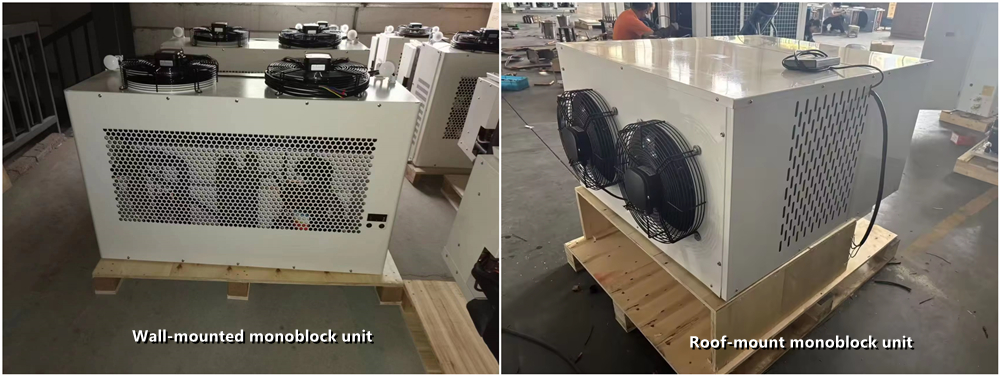

CSTHEATEXCHANGER identifies wall-mounted and roof-mount options for its monoblock unit range. The exact arrangement depends on the selected model and site conditions; we do not treat the two mounting methods as interchangeable without reviewing the installation drawings.
A clean opening is essential for a reliable installation. We mark the opening from the approved unit drawing, not from a rough measurement of the equipment casing. The opening should allow the unit to pass through without damaging the panel, evaporator coil, electrical parts or sealing surfaces.
Our preparation checklist includes:
Confirming the approved opening dimensions.
Checking the wall or roof panel thickness.
Locating structural members, wiring and other services.
Installing reinforcement or a mounting frame when required.
Preparing a level support surface.
Protecting the cut panel edges from moisture.
Providing a sealed weather and vapor barrier.
Planning the condensate drain route.
Leaving access for electrical and refrigeration service.
Checking the condenser and evaporator clearances.
The cold-room envelope must remain airtight and insulated around the unit. Gaps around the casing can allow warm, humid air to enter the room, increase frosting and create condensation around the opening. The outdoor seal must also stop rainwater from entering the panel or equipment enclosure.
We use the manufacturer’s specified gasket, sealant, flashing or trim method. Sealant should be compatible with the panel surface and the installation environment. The sealing work is part of the refrigeration installation, not simply a cosmetic finishing step.
After preparing the opening, we move the unit using suitable lifting and handling equipment. We protect the casing, coil, fan guards, drain pan and electrical enclosure during handling. The unit should not be lifted from a pipe, fan guard or fragile panel unless the manufacturer specifically allows it.
We check the following before tightening the supports:
The unit is level or positioned according to the approved instructions.
The evaporator section does not interfere with stored product or doors.
Air can circulate through the cold room without a blocked discharge.
The condenser has adequate intake and discharge clearance.
The mounting frame carries the load evenly.
Vibration is not transferred excessively to the panel.
Service panels and electrical connections remain accessible.
Drain connections point toward the planned drain route.
The evaporator fan should move air through the room rather than directly at a sensitive product load. Air distribution, product stacking and clearance around the evaporator all affect room temperature uniformity.
Once the unit is correctly positioned, we secure it to the support frame and complete the interior and exterior seals. We do not energize the equipment while the casing is unsecured or while the opening remains incomplete.
The evaporator removes moisture from the cold-room air. That moisture becomes condensate or frost and must leave the unit safely. A blocked, poorly sloped or uninsulated drain can lead to water leakage, ice buildup, panel damage or hygiene problems.
We confirm:
Drain outlet size and connection type.
Continuous fall toward the drain destination.
Trap or seal arrangement where required.
Insulation and heat tracing for low-temperature rooms.
Drain termination away from walkways and food-contact areas.
Access for cleaning and blockage removal.
Defrost-water capacity and discharge route.
Positive-temperature rooms may have mainly condensate drainage, while low-temperature rooms can require more attention to frost and defrost water. The correct arrangement depends on the selected unit, room temperature, humidity and defrost method.
The drain should not allow warm air to enter the cold room. We install the specified trap or air seal where the design requires one. We also protect the drain from freezing when the room operates below the freezing point.
CSTHEATEXCHANGER’s published monoblock page identifies the unit as an integrated refrigeration package, but it does not replace the selected model’s detailed drainage and defrost instructions. We confirm those details from the final technical documents before installation.
A monoblock unit integrates the main refrigeration package, but it still needs a correct electrical supply, protective devices, controls and commissioning procedure. Electrical work should be completed by a qualified electrician according to the unit data plate, local regulations and the approved wiring diagram.
Before energizing, we check:
Voltage, phase, frequency and rated current.
Disconnect and overcurrent protection.
Earthing and bonding.
Cable size, routing and mechanical protection.
Controller, thermostat and sensor connections.
Fan and compressor rotation where applicable.
Alarm and safety-device wiring.
Emergency isolation and service access.
The published CSTHEATEXCHANGER model guide identifies R404A for the listed unit range. Refrigerant handling, recovery, leak testing and charging must follow the selected unit documentation and local rules. We do not open a refrigerant circuit or change refrigerant type without approval from the manufacturer or responsible refrigeration engineer.
A monoblock design may reduce on-site refrigerant piping compared with a split system, but it does not remove the need for electrical inspection, refrigerant safety, ventilation and correct commissioning. The technician should confirm that valves, service ports, insulation and pipe connections are in the condition specified by the manufacturer.
We commission the unit only after the installation envelope, electrical supply, drain and mounting are complete. Starting too early can hide installation defects or expose the compressor and fans to unsafe conditions.
Our start-up sequence includes:
Inspect the casing, seals, mounting, fans, coil and drain.
Remove packaging, tools and foreign objects from the equipment.
Confirm the cold-room door and panel joints are closed.
Verify the electrical supply and protective devices.
Check controller settings against the project requirement.
Energize the unit and observe compressor and fan operation.
Check air movement on the evaporator and condenser sides.
Inspect condensate flow and drain discharge.
Record room temperature, ambient temperature and operating pressures where required.
Allow the room to stabilize before loading the intended product.
The commissioning technician should check abnormal vibration, unusual noise, icing, water leakage, fan interference, condenser-air recirculation and repeated trips. We also verify that the unit cycles correctly at the selected setpoint and that the cold-room door, insulation and loading practice do not overwhelm the refrigeration capacity.
The listed cooling capacity of a model is not a guarantee of a specific pull-down time in every room. Actual performance depends on heat load, ambient conditions, insulation, product load and operating practice.
A monoblock unit can be correctly installed and still perform poorly if the cold room is loaded incorrectly. The evaporator needs clear airflow. Boxes, pallets or shelves placed directly in front of the discharge can create warm zones and force the unit to run longer.
We review:
Clear space around evaporator intake and discharge.
Product stacking height and aisle arrangement.
Door-opening frequency and loading method.
Separation between warm incoming product and already cooled stock.
Condenser airflow outside the room.
Room temperature sensor location.
Frost pattern on the evaporator coil.
Temperature variation between different room positions.
The controller sensor should measure representative room air, not air directly leaving the evaporator or a warm area beside the door. For commercial cold rooms, we may recommend a simple temperature-mapping check after commissioning so the operator can identify hot spots.
CSTHEATEXCHANGER’s published model range covers chilled-food, beverage, fruit, vegetable, restaurant, catering and retail storage applications. The actual room use determines the heat load and required operating condition. We do not use the listed cold-storage area as a substitute for a room-by-room load calculation.
Routine maintenance keeps the monoblock unit’s air path, drain and refrigeration components working as intended. We establish a schedule based on dust, humidity, operating hours, room temperature and the consequences of a temperature excursion.
Regular checks include:
Cleaning the condenser coil and checking outdoor airflow.
Inspecting the evaporator coil for frost, dirt or damage.
Cleaning fan guards and checking fan operation.
Checking the condensate drain and trap.
Inspecting seals around the wall or roof opening.
Checking electrical terminals and protective devices.
Reviewing controller alarms and temperature history.
Inspecting unusual vibration, noise or cycling.
Confirming door gaskets and panel joints remain tight.
Arranging qualified leak and refrigerant checks when required.
A dirty condenser can raise condensing pressure and reduce refrigeration performance. A blocked evaporator or drain can cause icing and water leakage. A damaged wall seal can add moisture to the room and increase the load.
We isolate power before cleaning fans or electrical sections. Refrigerant-side service should be performed by qualified technicians using the correct recovery, leak-testing and charging procedures. The operator should record maintenance work and any repeated alarm rather than resetting the unit without finding the cause.
When we review a monoblock refrigeration project, we start with room dimensions, target temperature, insulation, product load, door use, ambient conditions, electrical supply and the preferred mounting method. We then check the selected model’s capacity, opening dimensions, drainage, clearances and service access.
CSTHEATEXCHANGER’s Monoblock Cold Room Unit page describes an integrated package for small and medium cold rooms, with listed models from 1HP to 5HP, cooling capacities from 1,887 W to 10,825 W, R404A configuration and wall-mounted or roof-mount options. The Unit Cooler category provides related cold-room cooling equipment.
We ask customers to confirm cold-room dimensions, target temperature, insulation, product load, ambient temperature, door operation, power supply, destination-country requirements and preferred installation method. Contact CSTHEATEXCHANGER to discuss a monoblock refrigeration unit for your cold room.
A monoblock unit can simplify a small cold-room installation because the main refrigeration package is assembled into one compact system. The installation still requires correct model selection, a sound wall or roof opening, proper sealing, safe electrical work, condensate drainage, refrigerant compliance, commissioning and regular maintenance. Final installation must follow the selected model’s manual and the requirements of qualified site personnel.
