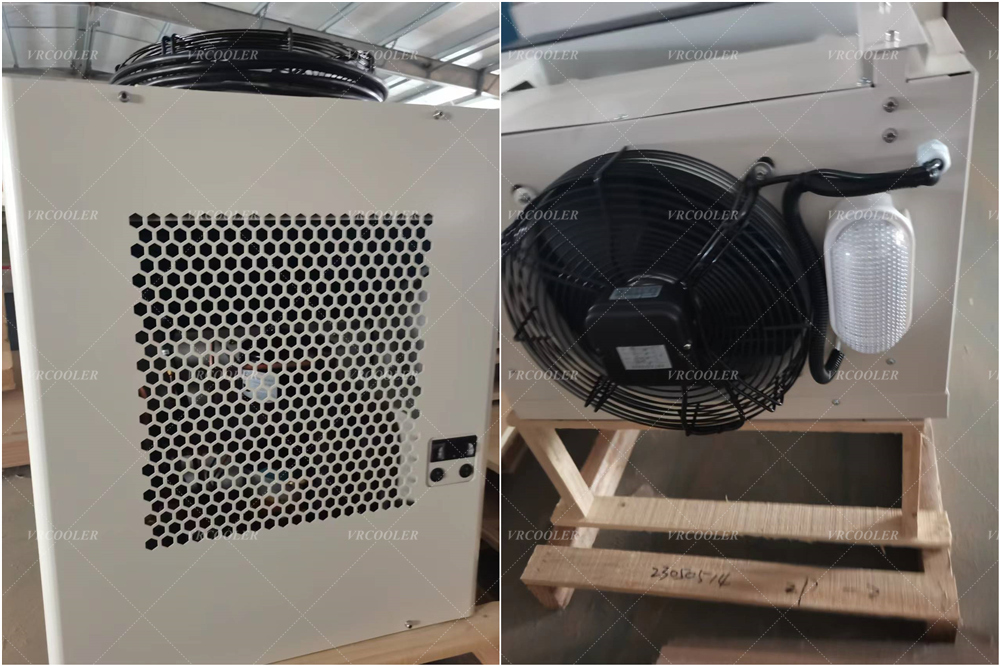

How to Choose the Right Monoblock Unit for a Cold Room

To choose the right monoblock unit for a cold room, start with the room’s total heat load rather than its floor area alone. We review room dimensions, insulation, target temperature, ambient temperature, product load, door opening, internal heat sources and operating schedule. We then compare the required cooling capacity with the selected monoblock model’s rated capacity and check whether the unit can be installed, drained, powered and serviced correctly.

CSTHEATEXCHANGER’s published Monoblock Cold Room Unit range lists five models from 1HP to 5HP, with cooling capacities from 1,887 W to 10,825 W and a listed cold-storage area range of 15 m² to 100 m². The listed models use R404A and are offered with wall-mounted or roof-mount installation options. These figures help us make a preliminary comparison; they do not replace a project-specific load calculation.

A small room can need a larger unit if warm product enters frequently or the door remains open. A larger, well-insulated room with a stable load may need less capacity than its floor area suggests. In this guide, we explain how we size the unit, how to read the published range and what information to send for a reliable selection.

1. Start with the Cold-Room Heat Load

The required refrigeration capacity is the rate at which the unit must remove heat from the room. That heat comes from the room envelope, warm products, door openings, people, lights, fans, motors, defrost and other equipment. Product load can be the largest factor in a room that receives goods above the target storage temperature.

We divide the load into several practical groups:

• Heat passing through walls, ceiling, floor and doors.

• Heat brought in by warm products.

• Warm air entering during door opening.

• Heat from lights, fans, people and equipment.

• Defrost or control-related heat.

• Safety margin required by the design method.

The unit must remove these loads during the available operating time. If a room receives a large product load in a short period, the required capacity will be different from a room that stores already-chilled products and opens its door only occasionally.

CSTHEATEXCHANGER’s published area figures are useful for an initial discussion, but the page specifically states that actual suitability depends on insulation, operating temperature, ambient conditions, product load and usage profile. We use the listed model capacity as a reference point, then check the complete room condition.

2. Use Room Size as a Starting Point, Not the Final Answer

Room dimensions still matter because they affect wall area, air volume, product storage and airflow. We record the internal length, width and height and calculate the room volume and envelope area. We also note the panel thickness, floor construction, door size and the location of the monoblock unit.

The published CSTHEATEXCHANGER range gives the following preliminary references:

These values are not a simple rule that says one horsepower always equals a particular room area. They belong to the published model guide and its stated conditions. A room with poor insulation, high ambient temperature, frequent door opening or warm product entry can exceed the expected load.

We also check whether the room’s height and storage layout allow the evaporator airflow to reach the stored product. A unit that has enough nominal capacity may still provide poor temperature uniformity if pallets or shelves block the discharge and return air path.

3. Check the Target Room Temperature

The required room temperature affects the refrigeration duty and the model selection. A chilled-food room, fruit and vegetable room, beverage store and frozen-food room do not necessarily operate at the same condition. The unit must be selected for the target evaporating condition and the product requirement, not just the name of the application.

Before we recommend a model, we ask:

• What temperature should the room maintain?

• Is the room for chilled or frozen storage?

• What temperature does the product enter at?

• Is pull-down cooling required, or only maintenance cooling?

• How quickly must the room recover after loading?

• How often will the door open during normal operation?

• Is the room operated continuously or only during a shift?

CSTHEATEXCHANGER’s published monoblock information identifies applications including chilled food and beverages, fruit and vegetable storage, restaurants, catering, retail storage and light-duty commercial refrigeration. A particular model must still be checked against the actual operating temperature and heat load.

We do not treat a unit’s listed wattage as a guaranteed pull-down time. Pull-down depends on product mass, product temperature, air movement, room insulation and the operating condition used for the capacity rating.

4. Account for Product Load and Loading Schedule

Product load is often the reason a room needs a larger unit than its area suggests. A room storing products that are already near the target temperature has a different duty from a room that receives warm produce, beverages, meat, dairy or prepared food every day.

We collect:

• Product type and mass loaded per day.

• Product entering temperature.

• Target product temperature.

• Loading time and frequency.

• Required pull-down period.

• Packaging, pallet and rack arrangement.

• Product clearance around the evaporator airflow.

A cold room may maintain air temperature while the product center remains warm. For that reason, we distinguish between room-air maintenance and product cooling. If the customer needs rapid product pull-down, a standard small-room monoblock may not be the correct solution without a detailed capacity review.

We also ask whether the room is loaded all at once or gradually. Large batch loading creates a temporary peak. The system may need enough capacity to handle that peak, a longer pull-down period, or a separate process-cooling solution.

5. Include Door Opening, People and Internal Heat

Every door opening allows warmer and more humid air into the cold room. The amount depends on door size, opening duration, traffic, ambient temperature, humidity and the pressure difference between spaces. A busy restaurant or wholesale room may have a higher infiltration load than a storage room that remains closed.

We review:

• Number of door openings per hour.

• Door opening duration.

• Door location and size.

• Strip curtains or air curtains.

• Door gasket condition and automatic closing.

• People working inside the room.

• Lighting and evaporator fan heat.

• Forklifts, pallet trucks or other equipment.

The operator can often reduce refrigeration demand by improving door discipline, sealing panel joints and using suitable curtains. These measures do not replace correct unit selection, but they prevent the equipment from being sized for avoidable heat gain.

Humidity entering through the door can also increase frost on the evaporator in low-temperature operation. That affects airflow and defrost demand. We therefore consider door use when choosing the unit and when planning drainage and maintenance.

6. Check Insulation, Ambient Temperature and Condenser Airflow

Insulation controls heat transfer through the cold-room envelope. We need to know panel thickness, insulation condition, floor insulation, ceiling construction and whether the room is exposed to direct sun or a hot production area.

Ambient temperature affects the condensing side of the monoblock unit. The condenser must reject heat to the surrounding air. If the outdoor side is enclosed, blocked or exposed to recirculated hot air, condensing pressure may rise and cooling performance may fall.

Before we choose a unit, we check:

• Outdoor ambient design condition.

• Condenser intake and discharge clearance.

• Wall or roof location.

• Direct sunlight and weather exposure.

• Dust, grease or flour near the condenser.

• Ventilation around a wall-mounted installation.

• Structural and weather-sealing requirements for roof mount.

CSTHEATEXCHANGER’s monoblock page includes wall-mounted and roof-mount options. The mounting choice affects condenser airflow, drainage, access and weather protection. It should be selected together with the building layout, not after the capacity decision.

A model with adequate listed capacity may not deliver the intended result if the condenser cannot reject heat. We include installation conditions in the selection review.

7. Compare the Published 1HP–5HP Model Range

The published selection guide provides five preliminary model options. We use them to narrow the discussion, then request project data before confirming the final choice.

When a 1HP or 2HP unit may be considered

The VR100MYC1 and VR200MYC1 models are listed at 1,887 W and 4,313 W, with listed storage areas of 15 m² and 30 m². They are considered for smaller, properly insulated chilled-storage rooms with moderate product loading. The actual room load, target temperature and ambient condition must still be checked.

When a 3HP or 4HP unit may be considered

The VR300MYC1 and VR400MYC1 models are listed at 5,843 W and 8,340 W, with listed areas of 50 m² and 75 m². They are considered for larger rooms or rooms with higher heat gains, but the final choice depends on product load, door use and operating condition.

When a 5HP unit may be considered

The VR500MYC1 model is listed at 10,825 W and 100 m². It suit a larger small-to-medium commercial cold room when the calculated load fits the selected operating condition. The highest listed model is not automatically the right choice: oversizing can affect cycling, humidity, cost and room operation.

We confirm the actual capacity basis, electrical supply, refrigerant configuration and installation arrangement with the technical team before ordering.

8. Avoid Both Undersizing and Oversizing

Undersizing is the easier problem to recognize. The unit runs for long periods, room temperature recovers slowly, product remains warm and the evaporator may frost heavily under high humidity. The condenser may also operate continuously at a high load.

Oversizing creates a different set of concerns. A unit that is much larger than the maintenance load may reach the setpoint quickly and cycle frequently. Short cycling can affect compressor operation and room humidity. The unit may also cost more than necessary and require a larger electrical supply or opening.

We do not add an arbitrary percentage to the room area and call that the final size. We calculate or review the heat load and compare it with the selected model capacity under the relevant design condition. Where the load changes sharply, we consider operating schedule, control range, storage practice and whether two smaller units provide better distribution or redundancy.

CSTHEATEXCHANGER’s published range is a selection reference. Final model selection belongs to the project conditions and approved technical data.

9. Check Installation and Service Constraints Before Ordering

Capacity is only one part of the decision. The unit must fit the building and remain serviceable after installation. We check the wall or roof opening, panel thickness, support frame, drain, electrical supply and condenser clearance before confirming the model.

Our pre-order checklist includes:

• Unit dimensions and mounting orientation.

• Wall-mounted or roof-mount preference.

• Structural support and lifting access.

• Condensate and defrost-water drainage.

• Electrical voltage, phase and frequency.

• Service panel access and working clearance.

• Ambient airflow around the condenser.

• Refrigerant and local compliance requirements.

• Cold-room hygiene and cleaning requirements.

• Replacement parts and maintenance access.

CSTHEATEXCHANGER’s published monoblock unit is an integrated package, which can simplify equipment coordination. Integrated construction does not remove the need to plan electrical isolation, drainage, sealing, airflow and maintenance.

If the unit cannot reject condenser heat, drain condensate or be safely serviced, changing the horsepower will not solve the installation problem.

How We Select the Right Monoblock Unit with CSTHEATEXCHANGER

When we review a monoblock unit request, we ask for room length, width and height; target temperature; insulation; ambient conditions; product type and load; door use; power supply; destination country; and preferred wall or roof installation. We compare the calculated or estimated heat load with the published model range and identify any missing information before making a recommendation.

CSTHEATEXCHANGER’s Monoblock Cold Room Unit page lists models from 1HP to 5HP, cooling capacities from 1,887 W to 10,825 W and a listed cold-storage area range of 15 m² to 100 m². The page also identifies R404A configuration and wall-mounted or roof-mount options. The Unit Cooler category provides related cold-room equipment.

We use those published values for preliminary selection, then confirm the actual design condition and installation requirements. Contact CSTHEATEXCHANGER to discuss what size monoblock unit your cold room needs.

The short answer is that the right size is the model whose rated capacity matches the room’s calculated heat load under its actual operating condition. Area helps us start the review, but product load, door opening, insulation, ambient temperature and target temperature determine the final selection. A qualified refrigeration professional should confirm the model before purchase and installation.
