A shell-and-tube heat exchanger has two separate fluid paths. One fluid flows through a bundle of tubes. The other flows around the tubes inside a larger shell. Heat passes through the tube walls while the two fluids remain separated. The shell, tube sheet, baffles and heads make that arrangement possible, but each part has a different job.
At CSTHEATEXCHANGER, we work with industrial heat exchangers for process, power, marine, refrigeration and food applications. When we review a shell-and-tube design, we look at the whole assembly rather than treating the shell, tubes or tube sheet as interchangeable pieces. Flow arrangement, thermal expansion, pressure containment, cleaning access and materials all affect the final design.
The four parts people usually ask about first are the shell, tube sheet, baffles and heads. We then look at the tubes, tube bundle, nozzles, supports, gaskets and pass partitions that complete the assembly.
The shell is the large cylindrical body around the tube bundle. It contains the shell-side fluid and provides the outer pressure boundary for the exchanger. Depending on the design, the shell may carry cooling water, process fluid, steam, refrigerant, oil or another medium.
The shell does more than hold the tubes. Its diameter determines how much room is available for the tube bundle and how the shell-side fluid moves around it. The shell also carries or connects to nozzles, supports, flanges, inspection openings and sometimes expansion or vent connections.
Inside the shell, the fluid can flow in one pass or across several sections of the tube bundle. Baffles guide that movement. The shell-side flow path affects velocity, turbulence, pressure drop, heat-transfer coefficient and the risk of dead zones where fluid may remain stagnant.
When we select or design a shell, we check:
Shell-side design pressure and temperature.
Fluid composition, viscosity and fouling tendency.
Required shell diameter and tube-bundle clearance.
Nozzle size, orientation and connection standard.
Corrosion allowance and material compatibility.
Thermal expansion and support loads.
Inspection, cleaning and drainage access.
Lifting, installation and maintenance limits.
CSTHEATEXCHANGER’s public information covers industrial heat exchangers and custom manufacturing for different media, including water, steam, refrigerant, glycol, ammonia and CO₂. That range does not mean one shell material suits every service. We specify the shell from the fluid, pressure, temperature, corrosion basis and project code.

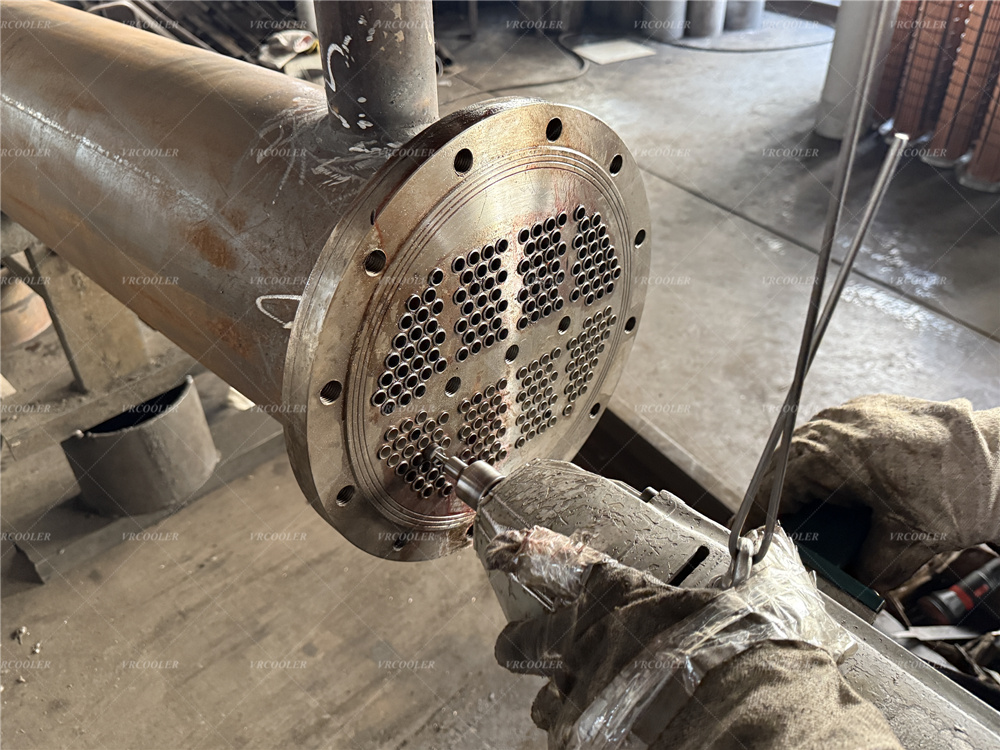

The tube sheet is a thick plate drilled with a pattern of tube holes. The tubes are expanded, welded, brazed or otherwise secured to those holes, depending on the construction method. The tube sheet holds the tube ends in position and separates the tube-side fluid from the shell-side fluid.
This separation is the tube sheet’s most important function. If a tube leaks, or if the tube-to-tube-sheet joint fails, the two fluids can mix. In a process plant, that may affect product quality, cooling-water chemistry, equipment safety or environmental handling.
The tube sheet also transfers loads. It carries forces from tube pressure, shell pressure, tube weight, differential expansion, vibration and the connected heads or flanges. The thickness, material, hole pattern and joint design therefore require mechanical and thermal review.

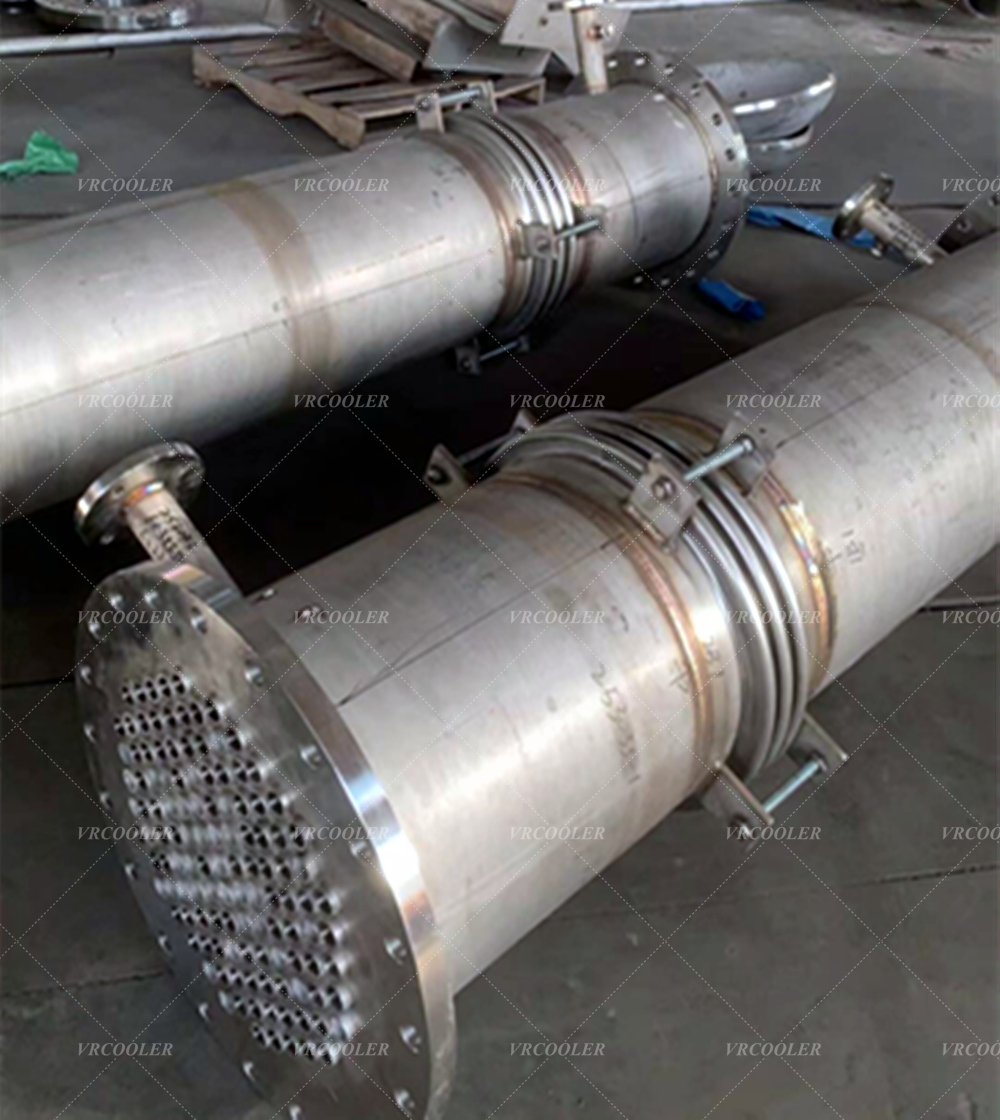

A fixed tube-sheet exchanger has tube sheets attached to the shell at both ends. This arrangement is relatively simple and compact, but the shell and tubes cannot expand independently without creating thermal stress. It works best when the temperature difference and fluid conditions remain within the design basis.
A floating-head exchanger uses one fixed tube sheet and one floating tube sheet or floating head. The floating side can move inside the shell as the shell and tube bundle expand at different rates. The bundle can also be pulled out for cleaning in designs that provide that access.
At CSTHEATEXCHANGER, we compare fixed tube sheet, floating-head and U-tube arrangements against fouling, temperature difference, cleaning requirements and cost. We do not choose a floating head only because it sounds more advanced, or a fixed tube sheet only because it is simpler. The service determines the arrangement.
Baffles are plates or support elements installed inside the shell. Their first job is to support the tubes and limit tube vibration. Their second job is to force the shell-side fluid across the tube bundle instead of allowing it to travel in a straight, low-resistance path from inlet to outlet.
A transverse baffle has a cut-out called a window. Alternating baffle windows creates a zigzag shell-side flow path. This increases mixing and can improve heat transfer, but it also adds pressure drop. A closer baffle spacing may support the tubes more often and create more turbulence; it may also make the exchanger harder to clean and increase pumping power.
Baffle design affects:
Shell-side velocity and turbulence.
Heat-transfer coefficient.
Pressure drop and pump or fan requirements.
Tube support and vibration risk.
Flow-induced erosion or fretting.
Dead zones and bypass streams.
Fouling distribution and cleaning access.
We also consider sealing strips, baffle-to-shell clearance, tube-to-baffle clearance and leakage through the baffle window. If too much fluid bypasses the intended path, the exchanger may deliver less heat transfer than a simple calculation suggests.
Baffles are not always identical. The number, spacing, cut percentage, orientation and support method depend on shell-side flow and tube-bundle geometry. A design for clean water may use a different baffle arrangement from one handling viscous oil, dirty cooling water or a gas with a high pressure-drop limit.
CSTHEATEXCHANGER uses thermal and design data to select the exchanger configuration. We treat the baffles as part of the flow design, not as filler plates added after the tubes have been selected.
The heads, also called channel heads or end bonnets, are located at the ends of the exchanger. They distribute fluid into the tubes and collect it again at the outlet. A head can be a removable cover, welded chamber, bonnet or channel arrangement, depending on the exchanger type.
A single-pass head sends the tube-side fluid through the tube bundle once. A multi-pass head uses a pass partition to divide the channel so the fluid travels through two or more groups of tubes before leaving the exchanger. Multi-pass flow can increase tube-side velocity and heat transfer when the pressure-drop limit allows it.
The head must provide:
A sealed connection to the tube sheet or channel.
Correct inlet and outlet nozzle arrangement.
Pass partition where multi-pass flow is required.
Inspection and cleaning access.
Suitable gasket or welded-joint design.
Pressure containment for the tube-side fluid.
Drain and vent points where required.
Head design also determines how easily operators can inspect or clean the tube side. A removable cover may simplify maintenance, while a welded bonnet can reduce leak paths but limit access. The choice depends on fluid cleanliness, inspection frequency, pressure, temperature and project requirements.
When we prepare a quotation, we confirm whether the customer needs removable covers, a specific pass arrangement, a particular flange standard or a cleaning method that requires direct tube access. CSTHEATEXCHANGER can provide production drawings for approved designs; the final head construction follows the project datasheet.
The tubes form the primary heat-transfer surface. One fluid flows inside them, while the other fluid passes over the outside surface on the shell side. Heat crosses the tube wall because of the temperature difference between the two fluids.
The tube bundle includes the tubes, tube sheets, baffles, tie rods, spacers and support elements. In some designs, the bundle can be withdrawn from the shell. In U-tube exchangers, each tube bends into a U shape and both ends connect to one tube sheet. In floating-head exchangers, the bundle arrangement allows differential thermal expansion and may permit shell-side cleaning.
Tube selection considers:
Tube-side and shell-side fluid compatibility.
Pressure and temperature.
Corrosion, erosion and fouling.
Required heat-transfer area.
Tube diameter, wall thickness and length.
Cleaning method and access.
Vibration and support spacing.
Tube-to-tube-sheet joint method.
CSTHEATEXCHANGER’s industrial product information lists material options for different heat-exchanger applications, including stainless steel, copper, Cu-Ni, brass, titanium and carbon steel where suitable. We select a material only after reviewing the actual fluid and project conditions. A material list on a general product page is not a substitute for a project material specification.
Nozzles connect the exchanger to the plant piping. Their location affects flow distribution, pressure drop, thermal expansion, maintenance access and the space required for removal. A nozzle should not be moved on a drawing without checking its effect on the internal flow path and the connected pipe loads.
Pass partitions sit inside a channel head and divide the tube-side flow. Their seals must prevent fluid from crossing between passes. A damaged partition gasket or poorly fitted partition can cause short-circuiting and reduce the intended tube-side velocity.
Supports carry the exchanger’s weight and transfer loads to the foundation or structure. They must accommodate installation, thermal movement, vibration and connected-pipe forces. Horizontal exchangers may use saddles; vertical units may use skirts, legs or other supports. The correct support depends on the vessel geometry and project loads.
Gaskets seal removable flanges, channel covers, floating heads and inspection openings. Their material must suit the fluid, temperature, pressure and cleaning chemicals. Gasket selection is part of the pressure-boundary design, not an afterthought.
When we review an exchanger layout, we check these small parts because they affect field installation and maintenance. A heat exchanger with adequate thermal area can still become difficult to operate if its drain, vent, cover or support arrangement is inaccessible.
Each part has a separate job, but the exchanger works as one system. The shell contains the shell-side flow. The tubes provide the heat-transfer surface. Tube sheets keep the two fluids apart, baffles control shell-side movement and support the tubes, and the heads distribute tube-side flow.
A typical operating sequence looks like this:
Fluid enters the shell-side nozzle or tube-side head.
The shell-side flow crosses the tube bundle as baffles direct it.
The tube-side fluid travels through one or more tube passes.
Heat moves through the tube walls from the warmer fluid to the cooler one.
The heads collect and redirect the tube-side fluid.
Outlet nozzles send both fluids back to the plant system.
The design is a balance between heat transfer and resistance. Increasing velocity can improve heat transfer, but it may raise pressure drop, erosion or pumping cost. Adding baffles can improve shell-side mixing, but tight spacing can increase fouling and cleaning difficulty. Choosing a thicker tube wall may improve mechanical margin, but it can change heat-transfer resistance and cost.
CSTHEATEXCHANGER uses professional design software and customer operating data for heat-exchanger projects, according to its public company information. We use the design basis to coordinate thermal area, tube arrangement, baffle layout, pressure boundary, materials and maintenance access.
The main exchanger arrangements include fixed tube sheet, floating head and U-tube. Each one solves a different combination of thermal expansion, fouling, pressure and maintenance requirements.
A fixed tube-sheet exchanger is compact and relatively straightforward. It suits services where shell-side cleaning is limited and differential thermal expansion is manageable. A floating-head exchanger costs more and has more parts, but the bundle can be removable and the design can accommodate a larger temperature difference. A U-tube exchanger has both tube ends on one tube sheet and handles differential expansion well; the U-bend can make internal tube cleaning or individual tube replacement more difficult.
We also consider whether the shell-side fluid is clean or fouling, whether the tube-side fluid needs frequent inspection, and whether the exchanger must fit an existing replacement envelope. For a replacement project, connection positions and face-to-face dimensions may matter as much as heat-transfer performance.
CSTHEATEXCHANGER supports new and replacement heat-exchanger work. We ask for the existing nameplate, drawings, photographs, operating data and maintenance history before proposing a replacement. That information helps us avoid changing a part that is constrained by the rest of the plant.
Inspection focuses on the pressure boundary, fluid separation, flow path and heat-transfer surface. Operators may monitor outlet temperatures, pressure drop, flow, vibration and signs of cross-contamination. A change in performance can indicate fouling, a leaking tube, damaged baffle supports, a blocked passage, a failed gasket or a control problem.
Common maintenance actions include:
Tube-side cleaning through the channel head.
Shell-side cleaning when the bundle can be removed.
Tube leak testing and tube plugging where permitted.
Gasket replacement during opening.
Inspection of tube sheets, tube ends and baffle supports.
Checking nozzles, drains, vents and support connections.
Verifying pass-partition seals and head covers.
Reviewing corrosion, erosion, vibration and fouling records.
CSTHEATEXCHANGER’s public company information describes new and replacement manufacturing, production drawings and leak-test documentation. The actual inspection method, test pressure, acceptance criteria and repair limits must come from the approved project specification and responsible engineer.
When we review a new or replacement exchanger, we start with the fluids, flow rates, inlet and outlet temperatures, pressure limits, fouling, materials, cleaning method, installation envelope and required documents. We then select the shell, tube sheet arrangement, tubes, baffles, heads, nozzles, supports and gaskets as one design.
CSTHEATEXCHANGER’s Industrial Shell-and-Tube Heat Exchanger page describes professional design, material options and custom configurations. Its Tube Bundle category is relevant when the customer needs a replacement bundle or maintenance solution. The company’s About Us page describes new and replacement heat exchangers, design data, production drawings and OEM/ODM support.
We ask customers to provide the existing exchanger datasheet, process conditions, fluid information, drawings, photographs, inspection history, connection dimensions, preferred material and required standards. Contact CSTHEATEXCHANGER to discuss shell-and-tube heat exchanger parts, replacement components or a complete custom unit.
The shell, tube sheet, baffles and heads are easy to name, but they cannot be selected independently. The pressure boundary, flow path, heat-transfer surface, expansion allowance and maintenance plan must fit the process together. Final dimensions, materials, pressure ratings, codes and tests belong in the approved technical documents.
