Generator heat recovery works by capturing heat that a generator set would normally reject through its cooling and exhaust systems, then transferring that heat to a useful water, air or process circuit. The main sources are engine jacket water, charge air, lubricating oil and exhaust gas. Heat exchangers keep the engine fluids and the useful heating medium separate while transferring energy between them.
At CSTHEATEXCHANGER, we work with generator cooling skids, lube-oil coolers, generator air coolers, hydrogen coolers and industrial heat exchangers. We also support engine exhaust heat-recovery applications. The recovered heat may preheat hot water, boiler make-up water, combustion air, drying air or another compatible process stream, depending on the generator and the plant’s demand.
A recovery system does not create extra electrical power. It reuses heat produced while the engine is running. The benefit depends on operating hours, the temperature of the available heat and whether the plant can use it at the same time.
A generator set contains an engine, alternator, cooling system, fuel system, exhaust system, controls and auxiliaries. Fuel energy becomes electrical output, mechanical losses and heat. That heat leaves through several routes rather than through one single pipe.
The main recovery sources are:
Engine jacket-water heat from the cylinder block and cylinder heads.
High-temperature charge-air or intercooler heat from a turbocharged engine.
Lubricating-oil heat from bearings, gears and moving engine parts.
Exhaust-gas heat leaving the engine and silencer.
Radiator or engine-room air heat from air-cooled systems.
Generator or alternator losses removed by generator air or hydrogen coolers.
Not every source should be recovered in every project. Jacket water is often easier to connect to a hot-water loop because it is already part of the engine’s controlled cooling circuit. Exhaust gas can offer higher-temperature heat, but it may contain soot, corrosive components or combustion by-products and usually requires more complex equipment. Lube-oil recovery has to protect oil viscosity, pressure and engine lubrication.
CSTHEATEXCHANGER’s Generator Cooler category includes generator cooling skids, lube-oil coolers, generator air coolers and hydrogen coolers. These products mainly protect the generator package by removing heat. A heat-recovery system uses a similar heat-transfer principle, but its purpose is to deliver part of that heat to a useful load while keeping the engine within its approved operating limits.
Jacket water circulates through passages in the engine block and cylinder heads. It absorbs heat from the engine and returns to a cooling or temperature-control circuit. Instead of rejecting all of that heat through a radiator or cooling tower, the plant can route part of the warm water through a heat exchanger.

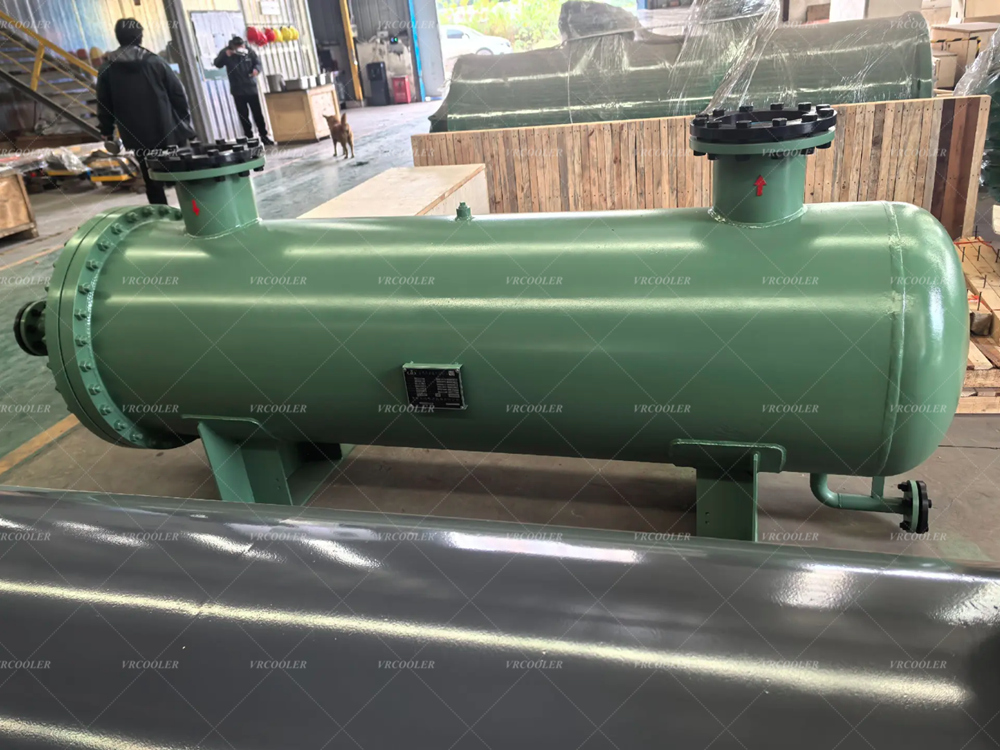

Inside the heat exchanger, the engine-water circuit remains separate from the recovered-water circuit. Heat passes through tubes, plates or another transfer surface. The recovered side may supply a hot-water loop for space heating, domestic hot water, cleaning, process preheating or a buffer tank.
We normally review the following before selecting the exchanger:
Engine jacket-water flow and temperature range.
Minimum, normal and maximum generator load.
Engine manufacturer’s permitted cooling-water conditions.
Required heat-use temperature and flow.
Pressure drop allowed on the engine side.
Water chemistry, glycol concentration and corrosion protection.
Bypass and three-way-valve requirements.
Heat demand when the generator is operating or stopped.
The original engine cooling system must remain protected. If the hot-water load disappears, the generator must still be able to reject heat through its approved radiator, cooling skid or other cooling equipment. A bypass or controlled diversion path is therefore part of the recovery design.
CSTHEATEXCHANGER’s Generator Cooling Skid page describes a diesel-generator jacket-water cooling skid using a plate heat exchanger or shell-and-tube heat exchanger. Such a skid can provide an interface between the engine cooling circuit and a remote radiator or secondary cooling system. For heat recovery, the exact exchanger arrangement depends on the engine package and the useful heat demand.

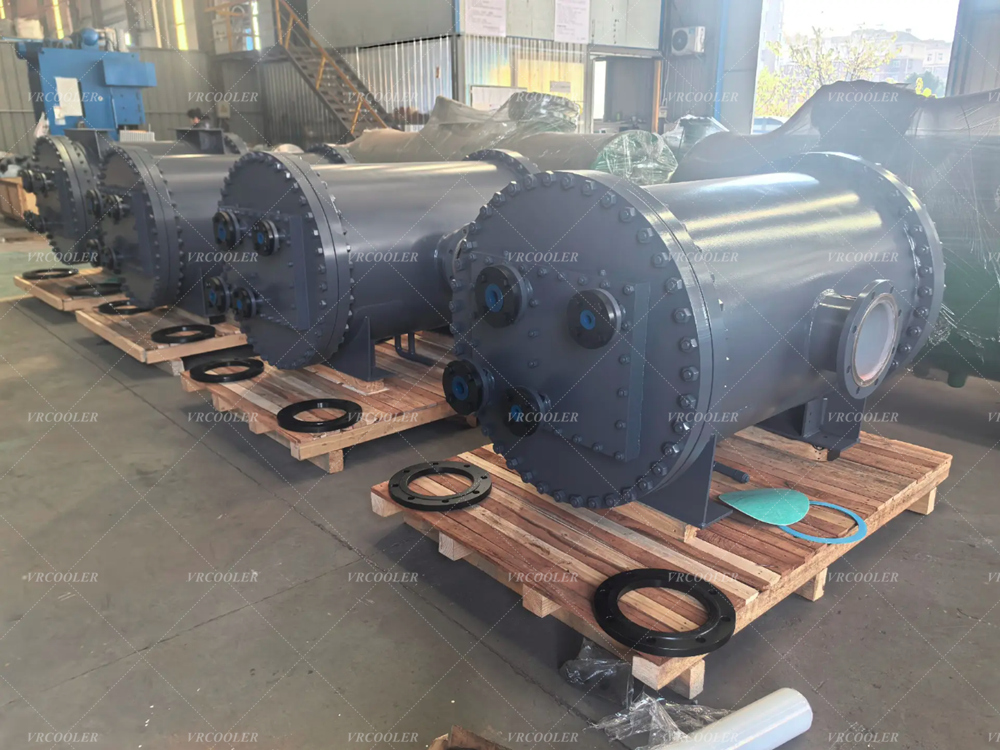

Exhaust-gas heat recovery uses a heat exchanger or waste-heat boiler installed in the engine exhaust path. Hot exhaust gas flows on one side, while water, steam, thermal oil or combustion air flows on the other. Heat crosses the exchanger surface without mixing the exhaust gas with the receiving medium.
The recovered heat can be used to:
Preheat boiler feedwater or make-up water.
Produce hot water for a process or building.
Generate low-pressure steam where the design supports it.
Heat combustion air.
Supply drying or process air.
Support a combined heat-and-power system.
Exhaust recovery needs a careful review of gas flow, temperature, back pressure, soot, moisture, fuel composition, corrosion and cleaning access. If the exchanger creates too much exhaust back pressure, engine performance and emissions can be affected. If the gas cools below a condensation limit, the resulting liquid may corrode the exchanger or exhaust system unless the design includes suitable materials and drainage.
CSTHEATEXCHANGER’s public information includes an engine exhaust heat-recovery case study and industrial flue-gas recovery products. The case study describes a specific gas-engine application; its operating values should not be treated as universal generator specifications. We use actual engine data, fuel, load profile and heat demand to define the exhaust exchanger.
An exhaust heat-recovery system also needs a bypass. During engine start-up, low-load operation, heat-demand interruption or exchanger maintenance, the exhaust must have a safe route that does not exceed the engine’s approved back-pressure limit.
Lube oil absorbs heat as it lubricates and cools bearings, gears and other moving parts. An oil cooler normally transfers this heat to cooling water or air. In some generator projects, the oil circuit can be connected to a recovery exchanger, but oil temperature and viscosity must remain within the engine manufacturer’s limits.
We approach lube-oil recovery cautiously. The oil circuit is part of the engine’s protection system, so the exchanger must not add excessive pressure drop, restrict flow, introduce contamination or create a leak path into the secondary water circuit. A dedicated oil cooler may remain in service, with controlled recovery placed before or after it according to the approved design.
Charge air from a turbocharged engine is also hot after compression. An intercooler or charge-air cooler removes heat before the air enters the cylinders. In some installations, the charge-air circuit can provide useful low- or medium-temperature heat, but recovery must not compromise intake-air temperature, engine power or combustion control.
CSTHEATEXCHANGER supplies air compressor coolers, charge-air coolers, lube-oil coolers and generator cooling equipment. We select a recovery point only after reviewing the engine manufacturer’s circuit diagram and operating limits. A hot surface alone is not enough reason to connect a heat exchanger.
Generator cooling keeps the engine, alternator and auxiliaries within their operating temperature limits. Heat recovery sends part of the rejected heat to another useful circuit. The two functions are connected, but they have different priorities.
Cooling remains the first priority. The generator must continue to operate safely when the recovered-water tank is full, the heating load stops, a pump or valve fails, the exchanger is isolated, the plant enters an emergency condition or the engine runs away from its design load.
A good system normally includes a bypass, isolation valves, temperature sensors, flow switches, pressure protection and alarm signals. The controls should divert heat or return to the original cooling path when the recovery side cannot accept it.
CSTHEATEXCHANGER’s generator cooling products include air coolers, hydrogen coolers, lube-oil coolers and cooling skids. These products should not automatically be described as complete CHP systems. The generator OEM, mechanical engineer, controls engineer and plant operator must define the complete cooling, recovery and protection arrangement.
We compare several recovery arrangements according to the generator and the heat consumer.
This is often suitable for hot-water heating because the jacket-water circuit is already controlled and the receiving side can use a closed secondary loop. The exchanger must be sized for engine-side flow, temperature difference, pressure drop and water chemistry.
This route can provide higher-temperature heat, hot water or steam. It needs exhaust back-pressure analysis, fouling control, corrosion review, bypass dampers and cleaning access. A waste-heat boiler may be considered where steam is genuinely required and the project includes the necessary pressure equipment and controls.
Gas-to-air recovery can preheat combustion or drying air. We check the air-side fan, filter, duct pressure, temperature limits and the separation between exhaust gas and the receiving air.
This can recover heat from the oil circuit, but the oil-side pressure drop, viscosity, sealing, filtration and temperature-control logic require close attention. It should be designed with the engine lubrication system, not added as an independent accessory.
A larger CHP system may combine jacket-water and exhaust heat through separate exchangers or a staged circuit. The sources have different temperatures and operating behavior, so controls must determine which source supplies the load and how the system reacts when the generator load changes.
The recovery calculation begins with the generator’s real operating profile. Rated electrical output alone does not tell us how much heat is available. We need fuel input, engine load, jacket-water flow and temperature, exhaust flow and temperature, lube-oil conditions, operating hours and the heat-use schedule.
We also collect information about the receiving circuit:
Required water, steam, thermal-oil or air temperature.
Flow rate and pressure.
Daily and seasonal heat demand.
Storage tank or buffer volume.
Backup heater or alternative heat source.
Pump and fan capacity.
Water treatment and corrosion protection.
Available space and maintenance access.
Control-system interface and alarm philosophy.
The control system may modulate a three-way valve, vary pump speed, open an exhaust bypass, limit recovery flow or divert heat to a radiator. The exact sequence should be written into the approved control description and tested during commissioning.
We do not promise a standard heat output, efficiency or fuel-saving percentage. Those figures depend on engine load, source temperature, exchanger design, receiving-side demand, operating hours, fouling and control settings. CSTHEATEXCHANGER uses engineering data and design software to develop the exchanger; the project team must confirm the system-level energy model.
We plan installation around the generator’s shutdown window and the available piping, ductwork and lifting access. The new exchanger or cooling skid needs proper supports, drains, vents, isolation valves, service clearance and protection from vibration.
Before start-up, we check:
Engine-side and recovery-side connections against the approved drawings.
Water, oil and air circuits for cleanliness and correct flow direction.
Pressure-test and leak-test records for the new exchanger.
Bypass-valve position and fail-safe behavior.
Temperature, pressure and flow sensors.
Engine alarms, shutdown logic and recovery-system interlocks.
Exhaust back pressure where an exhaust exchanger is installed.
Heat-recovery performance at several generator load points.
Maintenance includes checking heat-transfer performance, pressure drop, flow, water chemistry, lube-oil condition, fouling, corrosion, gaskets, valves, pumps, fans and bypass dampers. Exhaust exchangers may need soot or deposit cleaning. Water-side exchangers may need flushing or chemical cleaning appropriate to the material.
A change in recovered-water temperature does not automatically mean the exchanger has failed. We first check generator load, source flow, receiving-side demand, valve position, sensor accuracy and fouling. Any repair or replacement should be based on the operating history and inspection findings.
When we review a generator heat-recovery request, we separate the electrical generator, engine, cooling circuits and useful heat load. We ask for the engine model, generator rating, fuel, load profile, jacket-water data, lube-oil data, exhaust data, heat-use requirement, installation space, control philosophy and required testing.
CSTHEATEXCHANGER’s Generator Cooler category includes generator cooling skids, motor and generator coolers, lube-oil coolers, generator air coolers and hydrogen coolers. The Lube Oil Cooler and Thermal Power Plant Generator Air Cooler pages cover related cooling applications. CSTHEATEXCHANGER’s generator heat-recovery case study provides an example of an engine exhaust recovery project.
We can support new and replacement heat-exchanger work, design data and production drawings. Contact CSTHEATEXCHANGER to discuss a generator cooling or waste-heat-recovery application.
Generator heat recovery works by transferring jacket-water, lube-oil, charge-air or exhaust heat to a useful water, steam, air or process circuit. The best design keeps generator cooling as the first priority and adds recovery through controlled, bypassable heat exchangers. Actual heat output, energy savings, temperatures and safety limits must be calculated from the generator package and the receiving plant.
