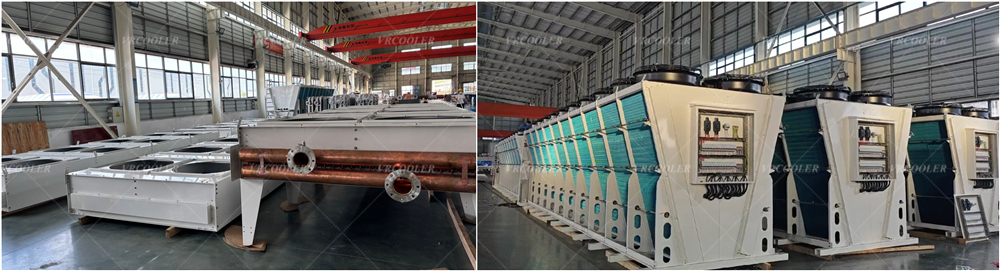

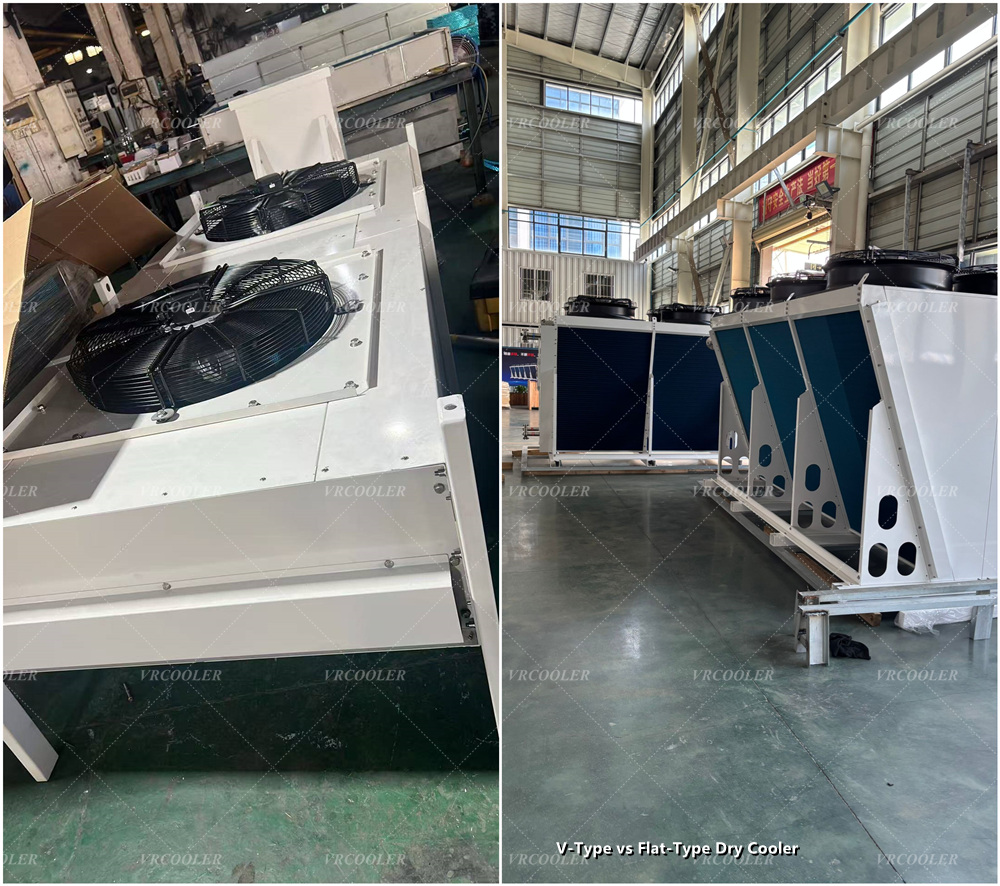

The main difference between a V-type and a flat-type dry cooler is the arrangement of the heat-transfer coil and fans. A V-type dry cooler places two coil banks at an angle, forming a V-shaped heat-rejection assembly. A flat-type dry cooler uses a flatter, generally horizontal or single-plane coil layout. Both systems circulate a hot fluid through a coil and use ambient air to remove heat; the right choice depends on capacity, available footprint, airflow, maintenance access, ambient conditions and project cost.
At CSTHEATEXCHANGER, we work with V-shaped air coolers, dry coolers, air-cooled heat exchangers and customized finned-tube equipment. The company’s public product information identifies V-type or top-discharge structures, configurable coil and fan arrangements, and dry-cooler applications for industrial cooling. We use the V versus flat comparison as a layout decision—not as a claim that one shape is always more efficient.
A V-type unit often offers a compact footprint for a large coil area and can discharge air upward. A flat unit can be simpler to access, position and clean, especially where the site has enough ground area. Neither arrangement should be selected from shape alone. The design must match fluid conditions, entering-air temperature, target leaving-fluid temperature, flow, pressure drop, fan power, noise limits and service requirements.
A dry cooler is an air-cooled heat exchanger that rejects heat from a circulating fluid to ambient air without using evaporative water during normal dry operation. The hot fluid—often water, water-glycol or another compatible process fluid—flows through tubes or a coil. Fans move air over the coil surface, and heat passes from the fluid through the tube wall and fins into the air.
A typical dry cooler includes:
Finned-tube or microchannel coil banks.
Headers and fluid connections.
Axial fans or EC fans.
Fan motors and speed controls.
A steel or aluminum frame.
Guards, supports and service access.
Sensors for fluid temperature, air temperature and fan status.
Optional adiabatic pads or spray components for hot-weather operation.
CSTHEATEXCHANGER’s public information describes dry coolers as systems in which hot fluid or gas passes through a heat exchanger while fans draw air across the heat-transfer surface. Unlike a chiller, a dry cooler normally does not use a compressor to produce a refrigerating effect. It rejects heat from the existing fluid circuit.
The dry-cooler shape determines how the coil banks and fans are arranged, but the heat-rejection result still depends on the coil area, fin design, fluid flow, entering-air temperature, fan airflow and allowable approach temperature.
A V-type dry cooler has two or more coil banks installed at an angle so the assembly forms a V. Fans are commonly positioned below or within the lower part of the V and discharge air upward. The arrangement creates two heat-transfer faces while keeping the base relatively compact compared with laying the same coil area out in one flat plane.
CSTHEATEXCHANGER’s published V-type dry-cooler material identifies V-shaped structures, customizable fin pitch, fan configuration and motor selection. Its V-type product and news pages also cover large-capacity air coolers and industrial dry-cooler applications.
A V-type layout may provide several practical benefits:
More coil area within a limited ground footprint.
Upward air discharge away from nearby equipment.
A compact plant layout for medium or large heat loads.
Two angled air-entry faces for the coil banks.
A modular arrangement that can be expanded or configured by project.
The V shape does not guarantee a particular capacity or efficiency. The coil angle, fan size, spacing, fin pitch, fluid circuiting and control method all affect the final result. A poorly located V-type unit can still suffer from hot-air recirculation if the discharge is blocked by a roof, wall or adjacent equipment.
In this comparison, a flat-type dry cooler means a unit with a flat or horizontal coil-bank arrangement rather than two angled V-shaped banks. The coil may be mounted in a horizontal plane with fans below or above it, or in a single broad vertical/flat face depending on the supplier’s terminology.
A flat layout can be useful when:
The site has sufficient ground area.
A low or simple profile is preferred.
Maintenance staff need direct access to one coil face.
The design must align with existing pipework or a roof/plant platform.
The project uses a smaller or moderate heat load.
Crane, lifting or modular replacement access is more important than footprint.
“Flat type” is not one universal construction. Before comparing quotations, we confirm whether the supplier means a horizontal coil with upward air discharge, a flat vertical coil with horizontal airflow or another single-plane arrangement. The fan position, coil face, support frame and airflow path can be different even when both suppliers call the unit flat.
CSTHEATEXCHANGER’s public product pages emphasize customized coil, fin and fan arrangements rather than one universal flat-type standard. We therefore use drawings and airflow data to compare a flat unit with a V-type unit on an equivalent duty basis.
The clearest difference is the space each unit occupies. A V-type dry cooler builds upward and uses angled coil faces. A flat unit spreads its coil area across a more level or single-plane arrangement.
A V-type cooler may reduce the ground footprint required for a given coil area, but it can be taller and may require more attention to lifting, access platforms and overhead clearance. The upward discharge can be useful where horizontal discharge would interfere with plant equipment, but the site must have enough vertical clearance to prevent hot-air recirculation.
A flat unit may require more ground or platform area for the same total coil area. In return, it may provide a simpler outline, easier access to one coil face and more straightforward support or replacement arrangements.
We compare:
Available ground length and width.
Total height and overhead obstructions.
Pipe-entry direction and header location.
Crane and lifting access.
Walkways and service clearances.
Distance from walls, roofs and adjacent dry coolers.
Future expansion and module replacement.
The better footprint is the one that leaves enough air, service and lifting clearance. A smaller plan area is not an advantage if it creates difficult maintenance or hot-air recirculation.
Both designs depend on air moving across the coil. The difference lies in how air reaches the coil banks and where the heated air leaves the unit.
V-type coolers commonly draw air through two angled coil faces and discharge the warmed air upward. The two faces can provide a large heat-transfer surface, while the fan array collects or pushes air through the V-shaped assembly. Fan selection and spacing influence the pressure distribution across each coil bank.
A flat cooler may draw air through one broad coil face or through a horizontal coil surface and discharge it in a defined direction. The airflow path can be easier to understand in a simple arrangement, but a broad coil may require more fan area or a larger plan footprint.
We review:
Coil-face velocity.
Fan airflow and static pressure.
Air-side pressure drop.
Fan staging and speed control.
Noise at the property boundary.
Hot-air discharge direction.
Air recirculation during high ambient conditions.
Dust, leaves and fouling at the coil face.
CSTHEATEXCHANGER’s V-type product information identifies customization options for fin pitch, fan configuration and motor selection. That is important because a V or flat label does not define the complete airflow design. We compare actual fan data and air-side pressure drop rather than assuming the V shape will deliver more airflow automatically.
A dry cooler’s capacity is determined by the temperature difference between the hot fluid and entering air, fluid flow, coil area, tube and fin design, air volume, fouling and the target leaving-fluid temperature.
A V-type arrangement can fit more coil surface into a compact footprint, which may help a designer package a larger duty in a restricted site. A flat arrangement may use a broader coil face that is easier to access or may fit an existing plant layout more naturally.
The shape alone does not determine heat-transfer performance. We need to compare equivalent design conditions:
Fluid type and concentration.
Fluid entering temperature.
Required fluid leaving temperature.
Fluid flow rate.
Design ambient temperature.
Allowable air-side pressure drop.
Coil material and circuiting.
Fin pitch and surface treatment.
Fan airflow and power.
Fouling and corrosion allowance.
CSTHEATEXCHANGER offers finned-tube, aluminum, copper and customized heat-exchanger options for different applications. We select the coil from the fluid, temperature, corrosion environment and project requirements. A V-type cooler with a smaller coil or lower airflow may not outperform a well-designed flat cooler with adequate surface area.
Fans are a major part of dry-cooler operation. They consume electrical power, create sound and determine how much air crosses the coil. Both V-type and flat-type units may use axial fans, EC fans, fixed-speed motors, variable-speed drives or staged fan groups.
A V-type layout can place multiple fans below or between angled coil banks. The fan array may be divided into modules so the system can reduce airflow at part load. A flat unit can use a row or grid of fans below or above the flat coil surface, depending on the airflow direction.
We compare:
Fan diameter and number.
Motor efficiency and control type.
Minimum stable speed.
Fan redundancy and failure response.
Sound power and nighttime operating limits.
Service access to motors and guards.
Control response to fluid temperature and ambient conditions.
Neither type has a universal noise advantage. Noise depends on fan size, speed, blade design, number of fans, casing, distance and control strategy. Lowering fan speed may reduce noise but also reduces heat rejection. The final selection should include a sound calculation where required by the site.
A dry cooler’s performance declines when the coil face becomes blocked by dust, leaves, fibers, insects or industrial residue. The maintenance team must be able to inspect and clean the coil without unsafe access or excessive dismantling.
A flat unit may offer a more direct coil face for cleaning, especially when one side is accessible from ground level or a platform. A V-type unit has two angled faces, which can increase total access area but may require work at height, angled platforms or special cleaning equipment.
We inspect:
Coil fin condition and blockage.
Header and connection leakage.
Fan blades, guards and motors.
Frame, supports and fasteners.
Fluid pressure and temperature trends.
Glycol concentration or water quality.
Corrosion and coating condition.
Drainage and winterization provisions.
CSTHEATEXCHANGER’s public dry-cooler information notes that dry coolers are relatively easy to install and maintain when designed for the application. That benefit depends on access, cleaning clearance and the site’s maintenance plan. We include these factors before confirming a V or flat layout.
Dry coolers reject heat to ambient air, so weather conditions strongly affect performance. A high ambient temperature reduces the temperature difference available for heat rejection. A cold climate introduces freezing risk in water or glycol circuits and may require low-ambient fan control, bypassing or antifreeze protection.
For hot climates, an adiabatic option may be considered. Water or wet pads can cool the incoming air before it reaches the dry-cooler coil, improving heat rejection during peak conditions. This adds water consumption, treatment, drainage and maintenance requirements, so it is not the same as a standard dry cooler.
V-type and flat-type units can both be adapted to different climates, but the final design should address:
Design summer ambient.
Winter minimum ambient.
Glycol concentration and freezing point.
Fan control at low temperature.
Coil corrosion and local air quality.
Water availability for adiabatic operation.
Water treatment and blowdown.
Weather protection and snow or dust exposure.
CSTHEATEXCHANGER’s public content includes V-type dry coolers, adiabatic coolers and coil customization. We match the configuration to the site climate rather than assuming the V layout alone solves high-ambient operation.
The purchase price depends on coil area, material, fin pitch, fans, controls, casing, support structure, testing, delivery and project documentation. It is not possible to say that every V-type dry cooler costs more or less than every flat-type unit.
A V-type unit may reduce civil footprint but require a taller frame, access platform or special lifting plan. A flat unit may have a simpler frame but need more ground area and longer pipe runs. Total installed cost includes:
Equipment purchase.
Foundation or steel support.
Piping and valves.
Electrical supply and controls.
Lifting and installation.
Service platform and guardrails.
Insulation and winterization.
Water treatment or adiabatic equipment.
Cleaning access and future replacement.
We compare both types using a lifecycle view. The lowest purchase price may not be the lowest operating cost if it requires more fan power, occupies valuable land, has difficult cleaning access or cannot be expanded easily.
A V-type dry cooler may be a strong candidate when the project has limited ground area, needs a large coil surface, prefers upward discharge or requires a modular industrial heat-rejection package. We still check height, air recirculation, service access and lifting.
A flat-type dry cooler may be suitable when the site has enough horizontal area, requires a lower or simpler arrangement, values direct coil access or must align with existing pipes, platforms or replacement dimensions. We confirm what “flat” means in the supplier’s drawing before comparing it with a V-type proposal.
We recommend a V-type layout when footprint and high-capacity packaging are the leading constraints. We recommend considering a flat layout when ground area is available and simplicity, low profile or cleaning access is more important. The final choice should be based on duty, ambient condition, airflow, noise, maintenance and total installed cost—not shape alone. Site access should be part of that decision.
When we prepare a dry-cooler proposal, we ask for fluid type, flow rate, entering and leaving temperatures, design ambient, altitude, site footprint, noise limits, electrical supply, water quality, corrosion exposure and required documentation. We then compare V-type and flat-type layouts using the same thermal and operating conditions.
CSTHEATEXCHANGER’s V-Type Dry Cooler page provides a reference for V-shaped industrial air cooling. The Standard V-Shaped Air Cooler page identifies a standard V-shaped air-cooler application. The Dry Air Cooler category and Personalized Products page provide related dry-cooler and coil-customization information.
We support new and replacement heat-exchanger projects, including coil, fan, material and configuration review. Contact CSTHEATEXCHANGER to compare a V-type or flat-type dry cooler for your project.
The short answer is that a V-type dry cooler usually prioritizes coil area and compact ground footprint, while a flat-type dry cooler may prioritize a lower or simpler layout and direct access. Both can work well when the coil, fans, fluid circuit, controls and installation conditions are correctly designed. Final capacity, efficiency, noise, cost and maintenance requirements must be confirmed from the project datasheet—not inferred from the shape alone.
