At CSTHEATEXCHANGER, we design and manufacture custom-engineered thrust bearing oil coolers (in-sump curved circular coils and external shell-and-tube coolers) engineered specifically for high-power vertical electric motors, power plant Circulating Water Pumps (CWP), vertical turbine pumps, and hydroelectric generators (1 MW to 15+ MW). Vertical motor thrust bearings (tilting pad Kingsbury type and spherical roller bearings) support massive downward axial thrust loads (10 to 100+ metric tons) combined with dynamic hydraulic impeller reaction forces, generating intense frictional shear heat in the lubricating oil sump. CSTHEATEXCHANGER thrust bearing oil coolers maintain oil bath temperatures strictly within the safe 45°C–55°C window, preserving hydrodynamic oil film thickness, preventing babbitt metal wiping, and utilizing marine-grade metallurgy (CuNi 90/10, 316L stainless steel, and Titanium) with double-leak-detection sealing to protect multi-million dollar utility assets.

The Critical Hydrodynamic & Thermal Demands of Vertical Motor Thrust Bearings

In nuclear and thermal power stations, municipal raw water pumping plants, and large drainage pumping stations, vertical Circulating Water Pumps (CWP) and cooling water pumps circulate millions of gallons per hour. The massive vertical electric motors driving these pumps house heavy-duty tilting pad thrust bearings in upper and lower oil reservoirs.

Dissipating bearing friction heat involves critical mechanical and hydrodynamic boundaries:

• Massive Axial Thrust & Hydrodynamic Wedge Vulnerability: Vertical thrust bearings carry both the continuous static deadweight of the motor rotor, pump shaft, and impeller (often 15 to 40 metric tons) plus dynamic hydraulic down-thrust (reaching 50 to 100+ tons during high-flow pumping). Frictional shearing of the oil film between the rotating thrust collar and stationary babbitt pads generates 25 kW to 300+ kW of continuous thermal dissipation in the oil bath.

• The Babbitt Metal Wiping Hazard (High-Temperature Breakdown): High-grade babbitt alloy (ASTM B23 Grade 2 white metal) softens rapidly above 90°C. If oil bath temperatures exceed 65°C–70°C, the kinematic viscosity of the lubricant (ISO VG 32, 46, or 68) drops precipitously (<10 cSt<10 cSt). The hydrodynamic oil wedge collapses below minimum film thickness (hmin<10 μmhmin​<10 μm), leading to metal-to-metal contact, catastrophic babbitt wiping, rotor seizure, and forced power plant outages.

• Water-in-Oil Contamination Disaster: Plant cooling water circulating through bearing coolers often originates from raw river water, cooling tower basins, or seawater. If a submerged cooling tube corrodes or cracks, high-pressure cooling water injects directly into the bearing oil sump, emulsifying the lubricant and causing total bearing failure within minutes.

• Aggressive Raw Water Biofouling & Silt Abrasion: Plant circulating water carries abrasive silt, biological slime, and chloride ions that cause rapid pitting corrosion in standard copper or carbon steel heat exchangers.

How CSTHEATEXCHANGER Thrust Bearing Oil Coolers Excel

At CSTHEATEXCHANGER, we engineer our vertical motor oil coolers with precision annular curved geometries, heavy-wall marine metallurgy, and advanced leak-containment architectures:

            CSTHEATEXCHANGER® IN-SUMP VERTICAL MOTOR OIL COOLER

   ┌────────────────────────────────────────────────────────────────────────┐
   │ Annular Horseshoe / Circular Segmented In-Sump Geometry                │
   │ • Submerged Directly Inside Motor Upper/Lower Oil Reservoir Sump       │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Hot Lubricating Oil Bath (ISO VG 32/46/68: 65°C - 80°C)            │
   │     (Pushed Across Bundle by Rotating Thrust Collar Natural Pumping)   │
   │                                                                        │
   │ ══════════════════════════════════════════════════════════════════════ │
   │ Heavy-Wall CuNi 90/10 / 316L Stainless / Titanium Low-Finned Tubes     │
   │ Continuous CNC Curved Hairpin Bends (Zero Wet-Sump Welded Joints)      │
   │ Double-Seal Tubesheet with Atmospheric Leak-Tell-Tale Inspection Port  │
   │ ══════════════════════════════════════════════════════════════════════ │
   │                                                                        │
   │ ►►► Cooled Oil Discharged Directly onto Tilting Babbitt Pads (45°-55°C)│
   ├────────────────────────────────────────────────────────────────────────┤
   │ Plant Cooling Water In/Out (River Water / Tower Water: 0.3 - 1.0 MPa)  │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Continuous Full-Load CWP Operation (Hydrodynamic Oil Film >15μm)
             (Zero Babbitt Wiping · 100% Water-Oil Isolation · 20+ Year Life)

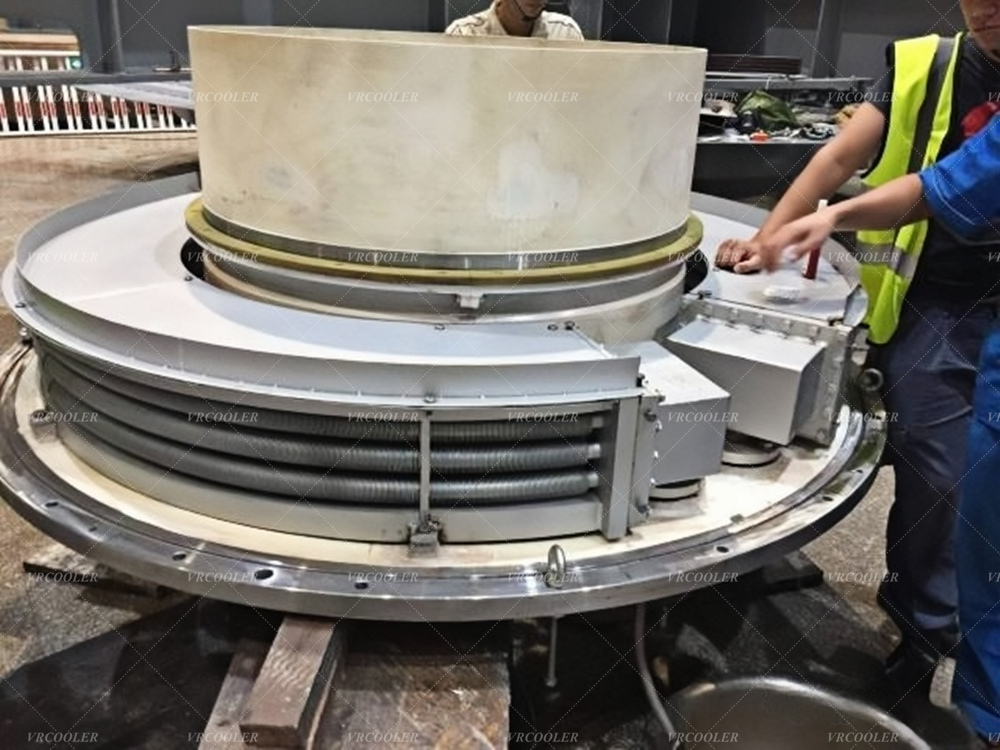

1. In-Sump Annular Circular & Horseshoe Topologies

CSTHEATEXCHANGER designs submerged in-sump coolers formed in precise circular, semi-circular (horseshoe), or multi-segment arcs that fit directly into the cramped annular space surrounding the motor shaft inside the oil pot:

• Utilizes the natural rotational pumping action of the spinning thrust collar to circulate oil across the tube bundle without requiring external oil pumps or external piping.

• Integral vertical baffles direct oil flow across tube surfaces in high-shear crossflow, maximizing oil-side heat transfer coefficients.

2. Double-Tubesheet & O-Ring Tell-Tale Leak Protection

To permanently eliminate the risk of cooling water contaminating the bearing oil reservoir, CSTHEATEXCHANGER equips coolers with double-tubesheet or dual-O-ring seal designs with atmospheric tell-tale drain ports. If an external seal weeps, cooling water discharges externally to an open drain port without ever penetrating the oil bath.

3. Severe Raw Water Metallurgy (CuNi 90/10, 316L & Titanium)

• Copper-Nickel 90/10 (C70600) & 70/30 (C71500): Heavy-wall seamless tubes offering natural resistance to biofouling, silt erosion-corrosion, and brackish river water.

• AISI 316L Stainless Steel & Titanium Grade 2: Engineered for seawater-cooled coastal power stations and nuclear safety-related CWP installations, providing total immunity to hot chloride pitting and stress corrosion cracking (SCC).

• Integral Low-Finned Tubes: Integrally extruded low-fin profiles that triple external oil-side surface area while maintaining smooth, cleanable root surfaces.

4. High-Vibration Structural Rigidity

Vertical motors experience continuous rotational vibration (500 to 1,500 rpm) and hydraulic turbulence. CSTHEATEXCHANGER oil coolers feature heavy-gauge CNC-machined support plates, anti-vibration tube collar grommets, and reinforced anchor brackets that prevent flow-induced vibration (FIV) and fatigue failure at tube-to-tubesheet joints.

Primary Applications Across Power Generation & Water Infrastructure

• Power Plant Circulating Water Pumps (CWP): Upper and lower thrust bearing coolers for 2 MW to 10 MW vertical CWP motors in coal-fired, combined-cycle gas turbine (CCGT), and nuclear power stations.

• Vertical Hydroelectric Generators: Segmented thrust and upper guide bearing oil coolers for vertical Francis, Kaplan, and Pelton hydro-turbines.

• Municipal Raw Water & Flood Control Pumping Stations: Heavy-duty bearing coolers for large vertical turbine lift pumps.

• Seawater Desalination & Intake Pumps: Titanium-tubed in-sump coolers operating on raw seawater intake pumps.

• Industrial Cooling Tower Vertical Pumps: Reliable continuous cooling for refinery and petrochemical auxiliary pump motors.

Technical Specifications & Operating Capabilities

• Thermal Capacity Range: 10 kW to 350 kW per in-sump cooler assembly (Multi-segment arrays up to 600 kW).

• Oil Bath Temperature Control: Maintains oil bath between +45.0°C and +55.0°C (Babbitt pad temperatures safely below 70°C).

• Cooling Water Flow Rate: 2 m3/h2 m3/h to 80 m3/h80 m3/h (Raw river water, potable water, or closed-loop cooling tower water).

• Water-Side Operating Pressure: 0.4 MPa to 1.6 MPa (4 to 16 bar / 60 to 230 PSI); factory hydrostatic test to 2.5 MPa.

• Lubricating Oil Grades: ISO VG 32, ISO VG 46, ISO VG 68, and synthetic turbine oils.

• Formed Geometries: Complete 360° Circular, 180° Horseshoe (Semi-Circular), Multi-Segment Arc Sections, or External Shell-and-Tube Skids.

• Quality & NDT Standards: 100% helium mass spectrometer leak testing (<1×10⁻⁷ mbar·l/s), dye penetrant weld inspection (PT), and hydrostatic pressure certification.

Frequently Asked Questions — CSTHEATEXCHANGER Thrust Bearing Coolers

How does an in-sump oil cooler circulate oil without an external pump?

As the vertical motor shaft rotates, the thrust collar acting as a centrifugal impeller draws cool oil from the bottom of the reservoir, pushes it across the thrust bearing pads where it absorbs heat, and discharges it radially across the CSTHEATEXCHANGER cooling coil bundle, creating continuous natural oil circulation.

How does CSTHEATEXCHANGER prevent water from leaking into the motor oil pot?

We manufacture our in-sump coils with continuous seamless U-tubes (zero internal welds in the oil bath) and utilize double-seal tubesheets with atmospheric drain relief ports. Any seal leakage is vented harmlessly outside the motor housing, preventing water from contacting the bearing oil.

Can CSTHEATEXCHANGER manufacture exact replacement coolers for existing vertical motors?

Yes. We specialize in custom reverse engineering and drop-in replacements. By providing existing motor nameplate data, oil pot inner/outer diameters, and water inlet/outlet flange dimensions, our engineering team fabricates exact 1-to-1 drop-in replacement cooler coils matching original OEM bolt circles.

Specify Your Vertical Motor Thrust Bearing Cooler with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your vertical motor or CWP specifications:

• Motor Rated Power (kW / MW) & Operating Speed (RPM)

• Thrust Bearing Type: Tilting Pad Kingsbury, Spherical Roller, or Hydrodynamic Shoe

• Estimated Bearing Heat Dissipation (kW or BTU/h)

• Oil Reservoir Sump Dimensions: (Inner Diameter, Outer Diameter, Max Height)

• Cooling Water Source & Temperature: (River Water, Seawater, Tower Water in °C/°F)

• Metallurgy Preference: CuNi 90/10, 316L Stainless Steel, or Titanium Gr. 2

Our specialized power generation thermal engineering team will provide detailed hydrodynamic heat transfer simulations, 3D CAD dimensional layouts, and factory-direct equipment proposals.
