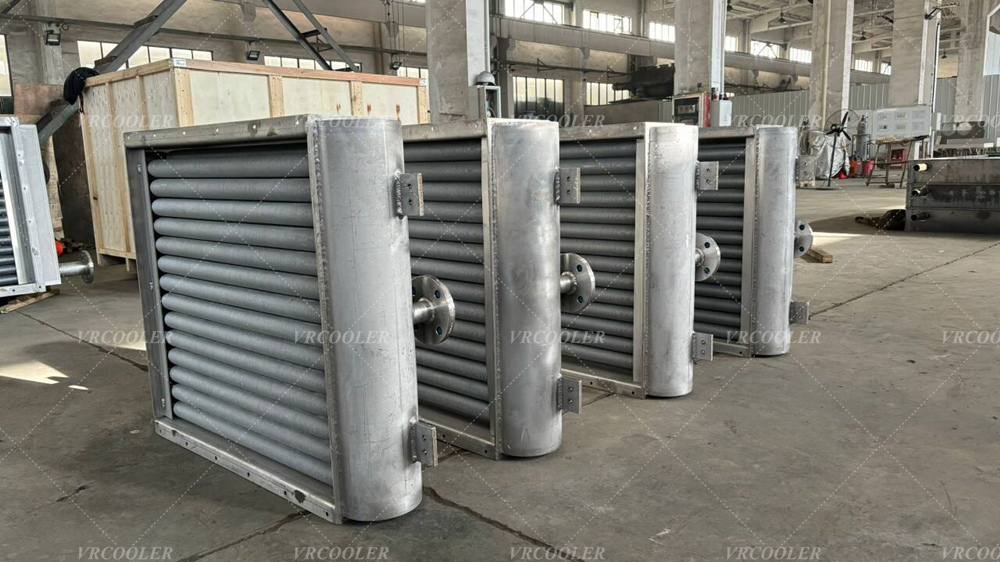

Steam Air Heater for Sugar Dryers | CSTHEATEXCHANGER

At CSTHEATEXCHANGER, we design and manufacture heavy-duty, food-grade steam air heaters engineered specifically for industrial sugar drying systems, including vibrating fluidized bed sugar dryers, rotary cascade drum dryers, and sugar conditioning silos. Drying refined white granulated sugar, raw cane sugar, and beet sugar demands precise, uniform air temperature control (typically 65°C to 85°C) and clean, uncontaminated air delivery. Excessive air temperatures melt crystal surfaces and cause irreversible yellow caramelization, while insufficient heat leaves residual moisture that causes severe sugar caking and agglomeration in storage silos. CSTHEATEXCHANGER steam air heaters feature sanitary SS304/SS316L stainless steel pressure tubes, wide-pitch anti-fouling fin geometries, and precise modulating steam headers, delivering reliable thermal performance while withstanding airborne sugar dust and daily sanitation washdowns.

The Critical Thermal Demands of Industrial Sugar Drying

In cane and beet sugar mills and modern white sugar refineries, wet sugar crystals discharge from centrifuges with a surface moisture content between 0.5% and 1.5%. To ensure free-flowing characteristics and long-term shelf stability without crystal agglomeration, the sugar must be dried to a final moisture content below 0.03% to 0.05% before cooling and packaging.

Supplying heated process air to fluidized bed or rotary drum sugar dryers involves strict operational and chemical constraints:

• Strict Temperature Ceiling (Anti-Caramelization): Sugar (sucrose) is highly heat-sensitive. If process air temperatures exceed 85°C–90°C, the thin moisture film on the crystal surface overheats, initiating localized melting, sucrose inversion, and non-enzymatic caramelization. This destroys crystal optical clarity (sparkle) and imparts an unacceptable yellowish-brown hue, causing high-value white refined sugar (ICUMSA 45) to be rejected.

• Airborne Sugar Dust & Sticky Fin Fouling: The air around sugar drying plants carries fine airborne sugar dust. When sugar dust contacts high-temperature finned tubes, it melts and bakes onto standard narrow-pitch fins, forming hard, caramelized insulating crusts that choke airflow and cause fire hazards.

• Sanitary & Food Safety Compliance: Process air contacts food-grade refined sugar directly. The steam air heater must be constructed with non-flaking, corrosion-resistant food-contact metallurgy (SS304 or SS316L) to eliminate rust flakes or chemical contamination.

• Steam Pressure Fluctuations in Sugar Mills: Sugar mill boilers run primarily on bagasse biofuel, creating variable steam header pressures (typically fluctuating between 0.3 MPa and 1.0 MPa). The steam air heater must maintain a steady discharge air temperature (±1∘C±1∘C) despite fluctuating upstream boiler supply pressures.

How CSTHEATEXCHANGER Steam Air Heaters Excel in Sugar Refineries

At CSTHEATEXCHANGER, we engineer every sugar dryer steam air heater with specialized sanitary, thermal, and mechanical features:

              CSTHEATEXCHANGER® SUGAR DRYER STEAM HEATING SYSTEM

       Mill Boiler Steam (Bagasse / Gas Fired: 0.3 MPa - 1.0 MPa)
                                      │
                                      ▼
   ┌────────────────────────────────────────────────────────────────────────┐
   │ Sanitary Food-Grade Stainless Steel Steam Header (SS304 / SS316L)      │
   │ • Modulating Steam Valve & Integrated Temperature Control Loop (PID)   │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Ambient Airflow from High-Efficiency Air Intake Filters            │
   │ (Filtered Ambient Air 25°C ──► Precision Process Air 65°C - 85°C)      │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Heavy-Wall Seamless Stainless Steel Tubes (SS304 / SS316L)             │
   │ Wide-Pitch Anti-Caking Extruded Aluminum or Stainless Helical Fins     │
   │ (3.5 mm to 5.0 mm Fin Pitch / 5 to 6 FPI for Easy CIP Washdown)        │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Sloped Condensate Drainage Manifold with Vacuum Breakers               │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Clean Hot Process Air to Fluidized Bed / Rotary Sugar Dryer
             (Drying Granulated Sugar from 1.0% down to <0.04% Moisture)

1. Food-Grade Sanitary Metallurgy & Certified Materials

CSTHEATEXCHANGER manufactures all sugar dryer coil base tubes and casings from high-purity SS304 or SS316L stainless steel. All welds are fully passivated and pickling-treated to ensure smooth, crevice-free surfaces that comply with international food hygiene and sanitary manufacturing regulations.

2. Wide-Pitch Anti-Caking Fin Geometries

To prevent airborne sugar dust from clogging heat transfer surfaces, we utilize wide fin spacing (3.5 mm to 5.0 mm / 5 to 6 Fins Per Inch) combined with smooth extruded aluminum sleeves or solid stainless steel fins. The smooth, wide-gap profile prevents sugar accumulation, allows easy clean-in-place (CIP) hot water washdowns, and maintains full airflow volume throughout continuous crushing seasons.

3. Precision Temperature Modulation (±1°C Control)

Our engineering team designs the coil circuit pass layout to pair seamlessly with modulating steam control valves and automated PLC temperature loops. The system rapidly responds to ambient air temperature swings, holding drying air within the target 65°C–80°C window to maximize moisture evaporation while completely avoiding crystal surface caramelization.

4. Positive Gravity Condensate Drainage & Water Hammer Elimination

CSTHEATEXCHANGER sugar dryer coils incorporate built-in tube pitching toward an oversized lower condensate manifold. High-capacity thermodynamic or float steam traps and atmospheric vacuum breakers prevent condensate stall, eliminating water hammer and protecting internal tube joints during continuous 24/7 milling campaigns.

Applications Across Sugar Mill & Refining Processes

• Vibrating Fluidized Bed Sugar Dryers: Providing high-volume, uniform hot air to the primary drying deck to lift, fluidize, and gently dry moist sugar crystals without attrition or dust generation.

• Rotary Cascade Sugar Drying Drums: Supplying high-enthalpy clean air to rotary drying cylinders for raw cane sugar and bulk commercial sugar grades.

• Sugar Conditioning Silos & Dehumidified Purge Air: Heating and dehumidifying sweep air used in long-term bulk sugar storage silos to prevent crusting and moisture migration.

• Byproduct Beet Pulp & Bagasse Dryers: Heavy-duty, high-capacity steam radiators for secondary agricultural drying streams.

Technical Specifications & Operating Parameters

• Thermal Capacity Range: 100 kW to 8,000 kW per assembled heater battery.

• Process Airflow Volume: 5,000 m³/h to 180,000 m³/h.

• Target Discharge Air Temperature: 65°C to 85°C (Controlled within ±1∘C±1∘C).

• Operating Steam Pressure: 0.2 MPa to 1.2 MPa (2 bar to 12 bar / 30 to 175 PSI).

• Base Tube Metallurgy: Seamless Stainless Steel SS304, SS304L, SS316, or SS316L.

• Fin Topologies: Smooth Bimetallic Extruded Aluminum Fins or All-Stainless Steel Welded Fins.

• Fin Pitch / Density: 3.5 mm to 6.0 mm (4 to 7 FPI) for anti-fouling performance.

• Casing Material: Heavy-gauge SS304 or Galvanized Steel with food-grade industrial coating.

• Testing & Quality Standards: 100% hydrostatic testing up to 2.5 MPa and helium leak detection prior to factory dispatch.

Frequently Asked Questions — CSTHEATEXCHANGER Sugar Dryer Steam Heaters

Why is 65°C to 85°C the critical air temperature window for sugar dryers?

Below 65°C, air lacks sufficient moisture-holding capacity, leaving residual moisture (>0.05%) on sugar crystals that triggers severe caking in packaging silos. Above 85°C, sucrose surfaces melt and caramelize, causing white sugar to lose its sparkle and turn yellow. CSTHEATEXCHANGER steam heaters deliver precise, stable temperatures within this critical window.

How does CSTHEATEXCHANGER prevent sugar dust from baking onto the heating fins?

We utilize smooth, non-serrated extruded fins with wide spacing (3.5 mm to 5.0 mm). This open aerodynamic geometry prevents sticky sugar particles from bridging between fins and allows fast cleaning with hot water washdown sprays during scheduled sanitation shut-downs.

Can CSTHEATEXCHANGER build replacement steam heaters to fit existing dryer ductwork?

Yes. We fabricate exact dimensional replacement steam air heaters matching existing bolt hole centers, casing flanges, and steam supply orientations for all major sugar dryer brands, enabling rapid drop-in installation during seasonal mill overhaul periods.

Specify Your Sugar Dryer Steam Air Heater with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your sugar drying process parameters:

• Airflow Volume (m3/hm3/h or CFM) & Fan Static Pressure (Pa)

• Inlet Air Temperature (°C) & Required Dryer Supply Temperature (e.g., 25°C ──► 75°C)

• Available Saturated Steam Pressure (bar / PSI)

• Sugar Dryer Type (Fluidized Bed, Rotary Drum, or Conditioning Silo)

• Duct Connection Dimensions (Width × Height × Depth)

Our thermal engineering team will provide comprehensive thermodynamic sizing calculations, airside pressure drop profiles, food-grade material certifications, 3D CAD drawings, and factory-direct pricing.
