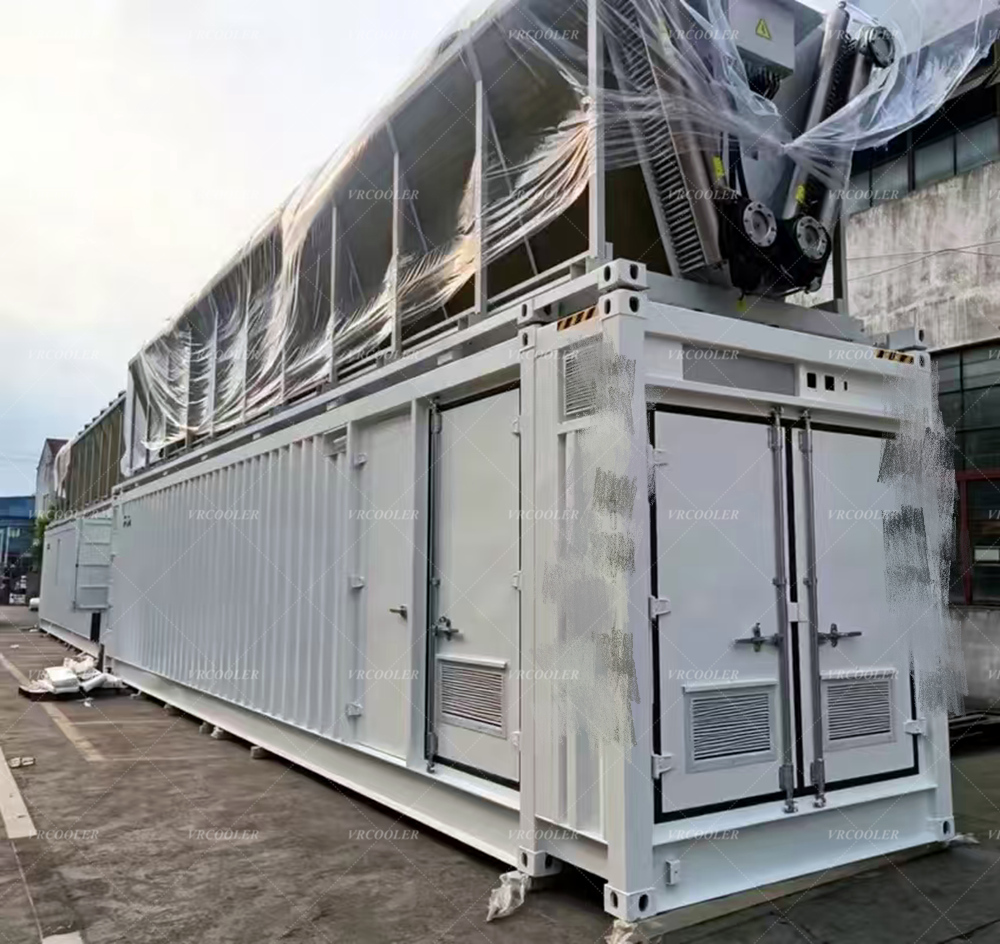

At CSTHEATEXCHANGER, we design and manufacture fully integrated, prefabricated 40ft container data centers (modular edge compute containers) equipped with high-efficiency closed-loop dry cooler heat rejection systems. A standardized 40ft High-Cube (HC) containerized data center houses 14 to 20 high-density 19-inch/21-inch server racks (supporting 150 kW to over 400 kW of total IT compute load), integrated modular UPS power rooms, Novec 1230 fire suppression, and DCIM environmental telemetry. CSTHEATEXCHANGER combines in-row precision air conditioners with outdoor variable-speed EC dry coolers or adiabatic free coolers, delivering 100% waterless, closed-circuit heat rejection with industry-leading Power Usage Effectiveness (PUE < 1.18) and reliable all-weather operation from -40°C arctic freezes to +50°C desert heatwaves.
Prefabricated modular container data centers have become the premier infrastructure solution for artificial intelligence (AI) edge computing, 5G telecommunication hubs, sovereign cloud installations, disaster recovery sites, mining camps, and oil and gas field operations.
Compared to traditional brick-and-mortar data center construction (which requires 18 to 24 months of planning and civil engineering), a 40ft container data center delivers decisive operational advantages:
Rapid Turnkey Deployment (Under 12 Weeks): Completely built, wired, plumbed, and factory-tested inside our specialized ISO manufacturing facilities, shipping directly to site ready for immediate plug-and-play operation.
Extreme High-Density Compute Packaging: Squeezing up to 20 server racks (each drawing 10 kW to 30+ kW) into a compact 30 m² footprint creates an intense heat flux that demands dedicated, high-performance thermal management.
Zero Water Consumption Mandate: Mobile, remote, and edge container sites are frequently located in water-scarce regions (deserts, remote mining sites, urban rooftops) where open evaporative cooling towers with continuous water makeup and chemical biocides are impossible.
Harsh Outdoor Environmental Stress: Container data centers must operate in unconditioned outdoor environments—enduring extreme solar radiation, driving monsoons, salt-spray coastal air, and blowing sand and dust.
At CSTHEATEXCHANGER, we engineer the complete thermal, mechanical, and electrical ecosystem for high-density containerized compute:
CSTHEATEXCHANGER® 40FT CONTAINER DATA CENTER THERMAL LOOP
┌────────────────────────────────────────────────────────────────────────┐
│ Outdoor Rooftop / Ground CSTHEATEXCHANGER EC Dry Cooler (150kW - 450kW)│
│ • Hydrophilic / Blygold Coated Coils with Modulating Inverter EC Fans │
│ • Closed-Loop Water-Glycol Loop (Zero Water Loss · Ambient up to 50°C) │
├────────────────────────────────────────────────────────────────────────┤
│ │
│ 40FT ISO HIGH-CUBE CONTAINER ENCLOSURE (IP55 / C5M / COR-TEN STEEL) │
│ ┌────────────────────────────────────────────────────────────────────┐ │
│ │ UPS & BATTERY POWER ROOM │ IT SERVER HALL (14 - 20 RACKS) │ │
│ │ • Modular N+1 UPS Modules │ • Hot Aisle Containment (HACS) │ │
│ │ • Lithium-Ion / VRLA Backup │ • High-Density In-Row Precision ACs │ │
│ │ • Dedicated Battery Cooling │ • Close-Coupled Airflow (<1m Travel) │ │
│ └─────────────────────────────┴──────────────────────────────────────┘ │
├────────────────────────────────────────────────────────────────────────┤
│ Central DCIM Intelligent Monitoring with Automatic Transfer Switch(ATS)│
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Continuous Full-Load 400 kW AI Compute (PUE < 1.18)
(Plug-and-Play · 100% Waterless · Rapid Worldwide Transport)Inside the container IT hall, CSTHEATEXCHANGER In-Row precision air conditioners are placed directly between server cabinets within Hot Aisle Containment (HACS) or Cold Aisle Containment (CACS):
Short-Distance Proximity Airflow: Draws 38°C–45°C hot exhaust air directly from the enclosed hot aisle and discharges 22°C–24°C chilled air into the server intakes with an airflow travel distance under 1 meter, eliminating air mixing.
High Sensible Heat Ratio (SHR ≈ 1.0): 100% of cooling capacity is dedicated to sensible temperature pulldown without energy-wasting dehumidification.
Inverter BLDC Compressors & EC Fans: Dynamically modulates cooling output from 20% to 100% to track fluctuating AI training workloads.
The indoor in-row cooling loop rejects heat directly to an outdoor CSTHEATEXCHANGER variable-speed EC dry cooler:
100% Closed-Loop Zero Water Consumption: Circulates clean, inhibited water-glycol solution in a sealed loop, requiring zero water consumption, zero chemical dosing, and zero Legionella risk.
Maximum Free-Cooling Economizer Hours: During winter and transition seasons, the dry cooler provides 100% direct economizer free cooling without running mechanical compressors, dropping facility PUE below 1.12.
Optional Adiabatic Pre-Cooling: For extreme desert regions (+45°C to +50°C), our dry coolers are equipped with automated adiabatic wet pads that lower incoming air temperature during peak afternoon hours.
The 40ft container shell is constructed from high-strength Cor-Ten weathering steel lined with 75 mm to 100 mm thick non-combustible rockwool or polyurethane thermal insulation sandwich panels. Exterior surfaces are coated with C5M marine-grade polyurethane paint, delivering complete IP55 dust and water-tight sealing and resisting harsh desert sandstorms and coastal salt fog.
Modular N+1 / 2N UPS Systems: Factory-installed modular online double-conversion UPS systems with high-density lithium-ion (LiFePO4LiFePO4) or VRLA battery cabinets providing 10 to 15 minutes of full-load backup.
Clean Agent Fire Suppression: Total flooding Novec 1230 or FM200 fire suppression system with early-warning optical smoke and VESDA aspirating smoke detection.
Intelligent Central DCIM Telemetry: Touch-screen environmental control monitoring rack temperatures, power usage effectiveness (PUE), liquid loop pressures, and multi-point water leak sensing with remote SNMP/Modbus connectivity.
CSTHEATEXCHANGER custom-engineers 40ft container data centers across three primary power density configurations:
Standard Density Cloud & Enterprise (100 kW to 180 kW IT Load): 18 to 20 server racks drawing 5 kW to 9 kW per rack, cooled by 4 to 6 In-Row DX/CW precision units.
High-Density AI & HPC Compute (200 kW to 350 kW IT Load): 14 to 16 server racks drawing 15 kW to 25 kW per rack, featuring high-capacity In-Row units with dual-circuit EC dry coolers.
Ultra-High-Density Hybrid Liquid-Air Compute (350 kW to 500+ kW IT Load): Integrated in-row Coolant Distribution Units (CDU) for direct-to-chip liquid cold plates paired with in-row precision air conditioners and external adiabatic dry coolers.
Standard Enclosure Dimensions: 40ft High Cube ISO Shipping Container (12,192 mm L×2,438 mm W×2,896 mm H12,192 mm L×2,438 mm W×2,896 mm H).
Rack Capacity: 14 to 20 standard 19-inch / 21-inch 42U or 48U server racks.
Total Thermal Rejection Capacity: 100 kW to 450+ kW (Custom sized to IT load).
Operating Ambient Temperature Range: -40°C to +50°C (-40°F to +122°F).
Power Usage Effectiveness (PUE): Annual average PUE from 1.12 to 1.18 (Climate dependent).
Ingress Protection & Thermal Casing: IP55 / NEMA 4X weather-proof with EN 1886 Class TB1/T2 thermal break insulation.
Structural Durability: Cor-Ten structural steel chassis designed for standard ocean, rail, and heavy truck freight transport (CSC safety approved).
Container data centers are designed for rapid, flexible deployment anywhere in the world. Open cooling towers consume thousands of liters of fresh water daily and require complex chemical water treatment. CSTHEATEXCHANGER closed-loop dry coolers consume zero water, require minimal maintenance, and operate reliably in remote, arid, or urban rooftop environments.
In arctic and cold climates, the dry cooler loop operates with a 35%–40% inhibited propylene glycol solution and features integrated automated thermal bypass valves and variable-speed EC fans, maintaining optimal coolant return temperatures without risk of freezing.
Yes. Every CSTHEATEXCHANGER 40ft modular data center is built within a certified ISO High-Cube shipping container frame with standard corner castings and CSC certification, allowing cost-effective transport via standard container ships, flatbed trailers, or rail cars.
Contact CSTHEATEXCHANGER today with your modular data center project parameters:
Target IT Compute Load (kW) & Number of Server Racks (14 to 20 Racks)
Power Density per Rack (kW/rack) & AI Accelerator Hardware Types
Deployment Geographic Location & Site Ambient Temperature Range (°C/°F)
Power Distribution Preference: N+1 or 2N Redundant UPS Architecture
Cooling Architecture: In-Row DX Air-Cooled with Dry Cooler, Chilled Water, or Liquid CDU Hybrid
Our mission-critical modular data center engineering team will provide comprehensive CFD thermal airflow simulations, single-line electrical schematics, 3D CAD architectural layouts, and factory-direct equipment proposals.
