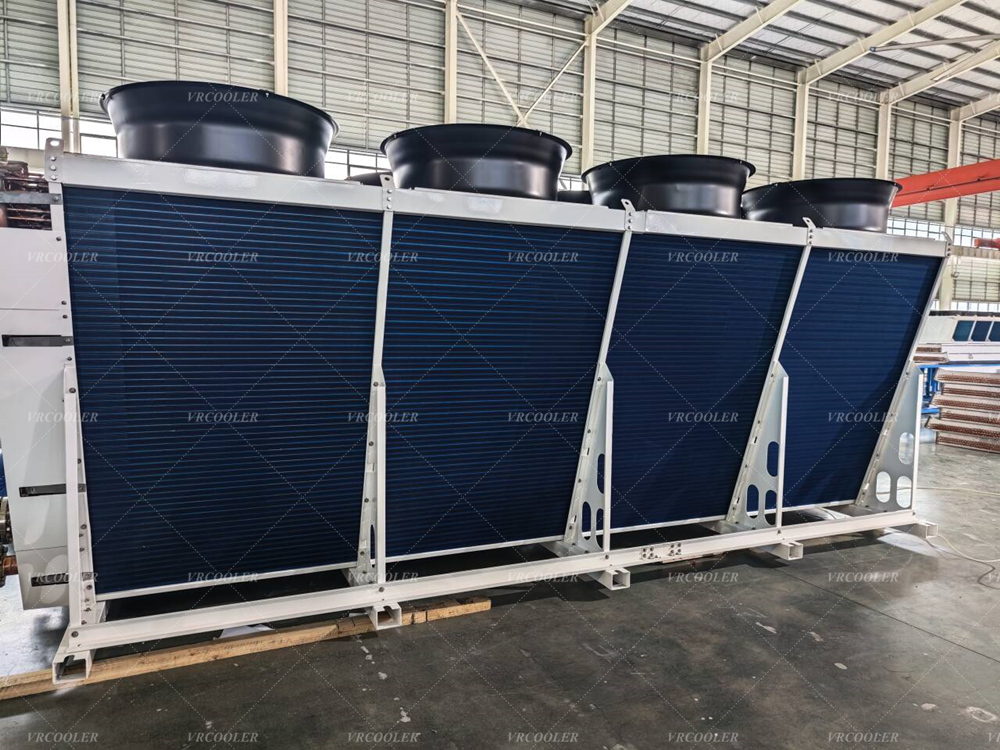

At CSTHEATEXCHANGER, we design and manufacture heavy-duty combination dual-circuit dry coolers (integrated aftercooler and lube oil cooler radiators) engineered specifically for industrial rotary screw, centrifugal, and reciprocating gas and air compressors. Compressing air or process gases generates intense thermal energy: hot discharge gas exiting compression stages at 80°C to 180°C requires rapid aftercooling to condense out bulk moisture, while circulating compressor lubrication oil (85°C to 110°C) must be cooled to a precise 55°C–65°C window to prevent oil breakdown without causing internal water condensation. CSTHEATEXCHANGER combination dry coolers integrate high-pressure gas aftercoolers and hydraulic oil coolers into a unified, high-efficiency V-bank or horizontal radiator matrix, delivering compact footprint, zero water consumption, and continuous closed-loop reliability up to 50°C ambient temperatures.
In heavy industrial manufacturing, mining, chemical processing, and natural gas booster stations, large compressors consume megawatts of electrical power. Approximately 80% to 90% of the electrical energy input into a compressor is converted directly into heat that must be dissipated continuously:
1. Hot Compressed Gas / Air Aftercooling (Airside Condensation Load):
Gas discharge temperatures leaving compression chambers typically range from 85°C to 120°C in oil-injected screw compressors, and up to 150°C–200°C in oil-free screw and multi-stage reciprocating compressors.
Saturated compressed air must be cooled down to within 5K5K to 10K10K of ambient temperature before entering downstream desiccant or refrigerated air dryers. Rapid cooling condenses up to 70%–80% of airborne water vapor, which must be separated to prevent pipe corrosion and pneumatic tool damage.
The aftercooler core must withstand continuous high internal operating pressures (typically 0.7 MPa to 4.0 MPa / 7 bar to 40 bar, with high-pressure booster designs reaching 10 to 25 MPa).
2. Compressor Lubrication Oil Temperature Management:
Compressor oil performs critical multi-functional duties: lubricating bearings, sealing rotor clearances, and absorbing direct heat of compression.
Lubricating oil enters the oil cooler at 85°C–105°C and must return to the injection port at a tightly regulated 55°C–65°C.
The Overcooling Hazard: If oil is cooled below 50°C, atmospheric moisture in the compressed gas condenses inside the oil separator vessel, forming an acidic water-in-oil emulsion that rusts bearings, ruins synthetic lubricants, and causes rotor seizure.
The Overheating Hazard: If oil temperatures exceed 100°C–110°C, synthetic and mineral lubricants suffer rapid thermal oxidation, viscosity breakdown, and varnish formation, triggering high-temperature emergency shutdowns.
At CSTHEATEXCHANGER, we engineer combination dry cooler systems that integrate both gas aftercooling and lube oil cooling into a single, aerodynamically balanced package:
CSTHEATEXCHANGER® COMBINATION COMPRESSOR DRY COOLER TOPOLOGY
┌────────────────────────────────────────────────────────────────────────┐
│ 1. High-Pressure Gas / Air Aftercooler Circuit (0.7 MPa - 4.0 MPa) │
│ • Hot Compressed Air Inflow (90°C - 180°C) ──► Discharge (35°C - 45°C)│
│ • Deep Condensation Drainage with Heavy-Wall Alloy Tubes / Plates │
├────────────────────────────────────────────────────────────────────────┤
│ 2. Compressor Lube Oil Cooler Circuit (With Thermal Bypass Control) │
│ • Hot Lube Oil Inflow (90°C - 105°C) ──► Regulated Return (55°C - 65°C)│
│ • Internal High-Shear Turbulators (Prevents Viscous Laminar Drag) │
├────────────────────────────────────────────────────────────────────────┤
│ ◄◄◄ Ambient Airflow Induced by Variable-Speed Fan Array (Up to 50°C) │
├────────────────────────────────────────────────────────────────────────┤
│ Direct-Drive Low-Noise EC / VFD Fans with Aerodynamic Venturi Cowls │
│ Heavy-Gauge Structural Steel Housing (Powder-Coated / C5M Protection) │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Continuous Full-Load Compressor Uptime (Zero Water Consumption)
(Precise Oil Viscosity · Maximum Moisture Drop · Zero Overheating)CSTHEATEXCHANGER manufactures combination compressor coolers across two proven industrial platforms:
Vacuum-Brazed Aluminum Bar-and-Plate Cores: All-aluminum monolithic cores integrating gas and oil passages in a shared compact block. Internal corrugated fins and parting sheets provide extreme burst pressure containment (up to 10.0 MPa) and high volumetric thermal density within minimal equipment space.
Heavy-Duty Finned Tube Radiator Bundles: Heavy-wall seamless deoxidized copper or stainless steel tubes mechanically expanded into corrugated aluminum fins, engineered for severe mining dust and aggressive chemical environments.
Compressor lubricants (such as synthetic polyalphaolefin PAO, polyol ester POE, or mineral oils) exhibit high kinematic viscosity. In smooth passages, slow-moving oil forms a thick, insulating laminar boundary layer along tube walls. CSTHEATEXCHANGER integrates internal offset-strip turbulators that continuously disrupt boundary layers, generating high-shear turbulent mixing that multiplies internal oil heat transfer coefficients by up to 250%.
To eliminate cold-startup water condensation in the compressor oil sump, our units feature integrated thermostatic mixing valves (thermal bypass valves). During winter startups or low-load operation, cold oil bypasses the dry cooler core and returns directly to the compressor until normal operating temperatures (above 60°C) are reached.
Equipped with direct-drive, high-efficiency electronically commutated (EC) fans or inverter-driven AC motors, CSTHEATEXCHANGER combination dry coolers dynamically modulate airflow based on real-time oil and discharge gas temperature sensors, slashing parasitic fan electrical consumption during cool nighttime and winter periods.
Stationary Industrial Rotary Screw Compressors: Factory-integrated and remote roof-mounted dual-circuit cooling packages for 50 kW to 1,500 kW stationary air compressor skids.
Large Multi-Stage Centrifugal Air Compressors: High-capacity intercooler and aftercooler dry cooler arrays for 1 MW to 10 MW industrial centrifugal compressor plants.
High-Pressure Reciprocating Gas Boosters: Multi-stage gas aftercoolers and frame lube oil coolers for CNG filling stations, nitrogen boosters, and hydrogen compression packages.
Mining & Mobile Drill Rig Portable Compressors: Ruggedized, high-vibration resistant combination coolers for diesel-driven portable rotary screw compressors operating in extreme desert and mining environments.
Biogas & Flare Gas Recovery Compressors: Corrosion-resistant 316L stainless steel aftercooler circuits handling sour biogas containing hydrogen sulfide (H2SH2S) and moisture.
Compressor Power Range: Suitable for 30 kW to 2,500+ kW compressor drive systems.
Gas / Air Aftercooler Pressure Range: Standard 0.7 MPa to 4.0 MPa (7 bar to 40 bar / 100 to 580 PSI); high-pressure gas designs up to 25.0 MPa (250 bar).
Lube Oil Circuit Pressure Range: Rated up to 1.6 MPa to 2.5 MPa (16 bar to 25 bar).
Operating Ambient Temperature Range: -30°C to +50°C (-22°F to +122°F).
Core Metallurgy: High-purity Vacuum Brazed Aluminum, Heavy-Wall Deoxidized Copper, or AISI 304/316L Stainless Steel.
Fin Topologies: Louvered, Serrated, Wavy, or Corrugated Heavy-Gauge Marine Fins.
Protective Coatings: Full-Immersion Cathodic E-Coat, Marine Blygold, or Hydrophilic Blue Fin treatments.
Quality & NDT Testing: 100% helium mass spectrometer vacuum chamber leak testing and hydrostatic testing up to 1.5x design pressure.
An integrated combination cooler houses both the aftercooler and oil cooler in a single compact structural frame served by a shared fan array. This minimizes installation footprint, eliminates duplicate fan wiring, reduces total electrical power consumption, and simplifies piping manifolds.
CSTHEATEXCHANGER units incorporate integrated thermostatic bypass valves that monitor oil temperature. When ambient air is freezing or the compressor starts up cold, oil bypasses the cooling core, ensuring oil temperature quickly reaches 60°C–65°C to vaporize any internal moisture before cooling begins.
Yes. We manufacture exact dimensional replacement bar-and-plate and finned-tube cooler blocks matching existing compressor chassis mounts, oil port orientations, and high-pressure air flanged connections for fast, single-shift overhauls.
Contact CSTHEATEXCHANGER today with your compressor system parameters:
Compressor Type & Motor Power (kW or HP): Rotary Screw, Centrifugal, or Reciprocating
Compressed Gas Flow Rate (Nm3/hNm3/h, SCFM, or m3/minm3/min) & Operating Pressure (bar/PSI)
Gas In/Out Temperatures: (e.g., 95°C ──► 40°C)
Lube Oil Flow Rate (L/min or GPM) & Heat Rejection Duty (kW)
Oil Type & Viscosity Grade (ISO VG 32, 46, 68, etc.)
Peak Ambient Design Temperature (°C/°F): (e.g., 45°C to 50°C)
Our industrial compressor thermal engineering team will provide detailed thermodynamic calculations, pressure drop simulations, 3D CAD dimensional models, and factory-direct equipment proposals.
