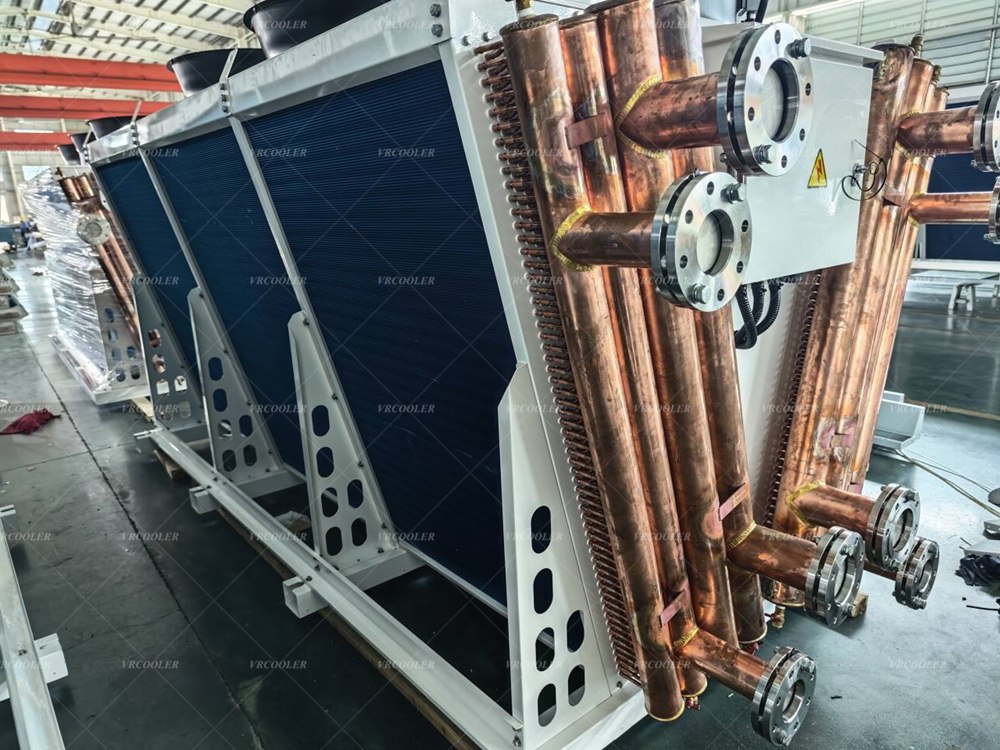

CSTHEATEXCHANGER HT/LT Dual-Circuit Dry Coolers for 18V46 Diesel Generator Sets: Power Plant Thermal Engineering Guide

At CSTHEATEXCHANGER, we design and manufacture high-capacity industrial HT/LT (High Temperature / Low Temperature) dual-circuit dry coolers engineered specifically for utility-scale 18V46 medium-speed diesel and heavy fuel oil (HFO) generator sets (17 MW to 19 MW power class). Large medium-speed power plants operating in baseload, peak-shaving, and island grid environments discharge massive thermal heat loads across two distinct engine cooling circuits: the High Temperature (HT) jacket water and first-stage charge air loop (90°C–98°C), and the Low Temperature (LT) lube oil and second-stage charge air loop (45°C–55°C). CSTHEATEXCHANGER V-bank dual-circuit dry coolers provide closed-loop, zero-water heat rejection engineered to withstand extreme ambient temperatures up to 48°C–50°C, delivering maximum engine availability, low parasitic fan power, and full structural durability in harsh desert, mining, and coastal power generation environments.

The Critical Thermal Architecture of 18V46 Power Generation Gensets

The 18V46 medium-speed four-stroke engine is an industrial workhorse for stationary power plants and marine propulsion, delivering up to 17,100 kW to 18,900 kW of continuous electrical output. Dissipating the thermal byproduct of an 18-cylinder, 460 mm bore engine requires dissipating between 12 MW and 16 MW of thermal energy across two separate temperature levels:

• The High-Temperature (HT) Circuit (~8 MW to 10 MW Thermal Duty):

  • Cools the cylinder liners, cylinder heads, exhaust valve housings, and the 1st-stage charge air cooler (CAC).

  • Circulates engine jacket water entering the dry cooler at 90°C–98°C and returning to the engine at a regulated 80°C–85°C.

• The Low-Temperature (LT) Circuit (~4 MW to 6 MW Thermal Duty):

  • Cools the engine lubricating oil plate heat exchanger and the 2nd-stage charge air cooler.

  • Requires cold return water (typically 38°C to 42°C) entering from the dry cooler. In hot tropical and desert regions with ambient dry-bulb temperatures reaching 40°C–48°C, achieving the necessary 3K to 5K approach temperature without engine de-rating is the most demanding engineering challenge in power plant thermal design.

Why Power Plants Are Shifting from Open Cooling Towers to Closed-Loop Dry Coolers

Historically, large diesel power plants utilized open evaporative cooling towers. However, open systems introduce severe operational liabilities in modern utility projects:

• Massive Water Consumption & Scarcity: A 100 MW diesel power plant equipped with open cooling towers consumes over 2,000 m³ of fresh water daily through continuous evaporation and blowdown. In arid mining, desert, and island locations, sourcing makeup water is cost-prohibitive or physically impossible.

• Severe Scale Deposition & Corrosive Attack: Evaporation concentrates dissolved minerals, forming insulating calcium scale on engine charge air coolers and jacket passages, triggering catastrophic engine over-temperature shutdowns.

• Biocidal Chemical Costs & Legionella Risks: Open towers require continuous dosing of scale inhibitors, acids, and toxic biocides to control biological fouling and airborne Legionella bacteria.

The CSTHEATEXCHANGER HT/LT Dual-Circuit Dry Cooler Architecture

At CSTHEATEXCHANGER, we engineer modular V-bank dual-circuit dry cooler radiators specifically matched to the dynamic thermal profile of 18V46 diesel engines:

            CSTHEATEXCHANGER® HT/LT DUAL-CIRCUIT V-BANK ARCHITECTURE

   ┌────────────────────────────────────────────────────────────────────────┐
   │ 1. High-Temperature (HT) Circuit: Jacket Water & 1st-Stage Intercooler │
   │    • Hot Engine Water Inflow (95°C) ──► Regulated Return (82°C)        │
   │    • Heavy-Wall Seamless Deoxidized Copper / 316L Stainless Tubes      │
   ├────────────────────────────────────────────────────────────────────────┤
   │ 2. Low-Temperature (LT) Circuit: Lube Oil Cooler & 2nd-Stage CAC       │
   │    • Warm Water Inflow (52°C) ──► Tight Approach Return (38°C - 42°C)  │
   │    • High-Density Enhanced Extruded Aluminum Fins (Zero Delamination)  │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Ambient Airflow Induced by Multi-Fan Array (Ambient up to 50°C)    │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Direct-Drive Low-Noise EC / Inverter AC Fans with Venturi Nozzles      │
   │ Hot-Dip Galvanized Heavy Structural Steel Frame (C5M Marine Coating)   │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Continuous Full-Load 18.9 MW Engine Output (Zero De-Rating)
             (Zero Water Consumption · Closed-Loop Maintenance-Free)

1. Integrated Dual-Circuit V-Bank Modular Topology

CSTHEATEXCHANGER combines both HT and LT cooling blocks into an integrated V-bank modular structure. Dedicated internal hydraulic headers keep HT and LT fluid streams completely independent, while balanced airflow distribution ensures both circuits receive optimal air face velocity, minimizing overall plant plot area.

2. High-Integrity Metallurgy & Extruded Bimetallic Fins

• Base Tubes: Precision-drawn seamless deoxidized copper tubes (TP2/C12200) or heavy-wall AISI 304/316L stainless steel tubes, expanded with high mechanical interference into fin collars.

• Extruded Bimetallic Aluminum Fins: Solid aluminum outer sleeves are extruded over the base tubes, forming a continuous protective aluminum sheath. Unlike crimped L-foot fins that loosen under intense thermal expansion, extruded fins maintain 100% metallurgical contact efficiency and resist sand abrasion and marine salt fog.

3. Variable-Speed Intelligent EC Fan Arrays

Equipped with high-efficiency, aerodynamically optimized direct-drive axial fans (diameters up to 1,600 mm to 2,000 mm), our units utilize variable frequency drives (VFD) or EC brushless motors. Fans automatically modulate speed based on real-time engine load and ambient temperature, slashing auxiliary electrical consumption during night and winter operations.

4. Optional High-Efficiency Adiabatic Pre-Cooling System

For power plants located in extreme desert regions (Middle East, North Africa, Australia) where peak summer temperatures exceed 45°C, CSTHEATEXCHANGER equips dry coolers with automated evaporative pre-cooling pads or high-pressure water misting nozzles. Adiabatic pre-cooling humidifies incoming air during peak hours, lowering air wet-bulb temperature by 8K to 12K, ensuring the LT circuit maintains full engine cooling without de-rating.

Applications Across Global Power Generation Facilities

• Utility Baseload & Peaking Diesel Power Plants: Dedicated cooling radiator fields for multi-engine 50 MW to 300 MW diesel/HFO generation stations.

• Mining & Remote Industrial Microgrids: Heavy-duty off-grid power stations powering isolated copper, gold, and lithium mines under high dust and extreme ambient conditions.

• Island & Coastal Energy Grids: Marine-grade C5M corrosion-resistant cooling arrays operating on Caribbean, Pacific, and Mediterranean island utilities.

• Dual-Fuel & Gas Engine Power Stations: Precision cooling for gas-converted or dual-fuel medium-speed generator sets.

Technical Specifications & Operating Parameters

• Thermal Heat Dissipation: 10,000 kW to 18,000 kW per complete 18V46 engine dry cooler bay.

• HT Circuit Design: Water Flow: 150 to 280 m³/h; In/Out Temps: 95°C / 82°C; Design Pressure: 1.0 MPa (10 bar).

• LT Circuit Design: Water Flow: 120 to 220 m³/h; In/Out Temps: 52°C / 38°C–42°C; Design Pressure: 1.0 MPa (10 bar).

• Design Ambient Temperature: -20°C up to +50°C (+122°F).

• Fan Configuration: Multi-fan V-bank arrays (12 to 24 modular fans per engine bay).

• Structural Material: Hot-dip galvanized structural steel (ISO 1461) or C5M marine-grade multi-coat epoxy polyurethane.

• Acoustic Performance: Low-noise fan blade design compliant with industrial noise limits (<65 dB(A) at 10m).

Frequently Asked Questions — CSTHEATEXCHANGER HT/LT Dry Coolers

How does the dual-circuit HT/LT design improve power plant efficiency?

By managing the high-temperature jacket water (HT) and low-temperature intercooler (LT) circuits in an aerodynamically optimized V-bank layout, CSTHEATEXCHANGER dry coolers ensure charge air temperatures remain low, maximizing intake air density and preventing engine knocking and power de-rating during summer peaks.

How does CSTHEATEXCHANGER handle sand abrasion in desert mining power plants?

We utilize extruded bimetallic aluminum fins with heavy-gauge fin thicknesses and smooth leading edges. The monolithic aluminum collar completely covers the base tube, protecting the copper or stainless core from abrasive sand scouring and dust accumulation.

Can CSTHEATEXCHANGER provide drop-in replacement radiator banks for existing power stations?

Yes. Our engineering department specializes in custom retrofits, manufacturing exact dimensional drop-in replacement HT/LT radiator modules matching existing piping header connections, foundation anchor bolts, and pump station capacities.

Specify Your HT/LT Generator Set Dry Cooler with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your power plant project parameters:

• Engine Model & Rated Output (kW / MW)

• HT Circuit Heat Duty (kW), Flow Rate (m3/hm3/h), and Target In/Out Temperatures (°C)

• LT Circuit Heat Duty (kW), Flow Rate (m3/hm3/h), and Target In/Out Temperatures (°C)

• Site Altitude (MASL) & Peak Ambient Design Temperature (°C/°F)

• Available Footprint Dimensions & Acoustic Noise Limits (dB(A))

Our power generation thermal engineering team will provide comprehensive thermodynamic simulations, parasitic fan power analyses, 3D CAD dimensional layouts, and factory-direct equipment proposals.
