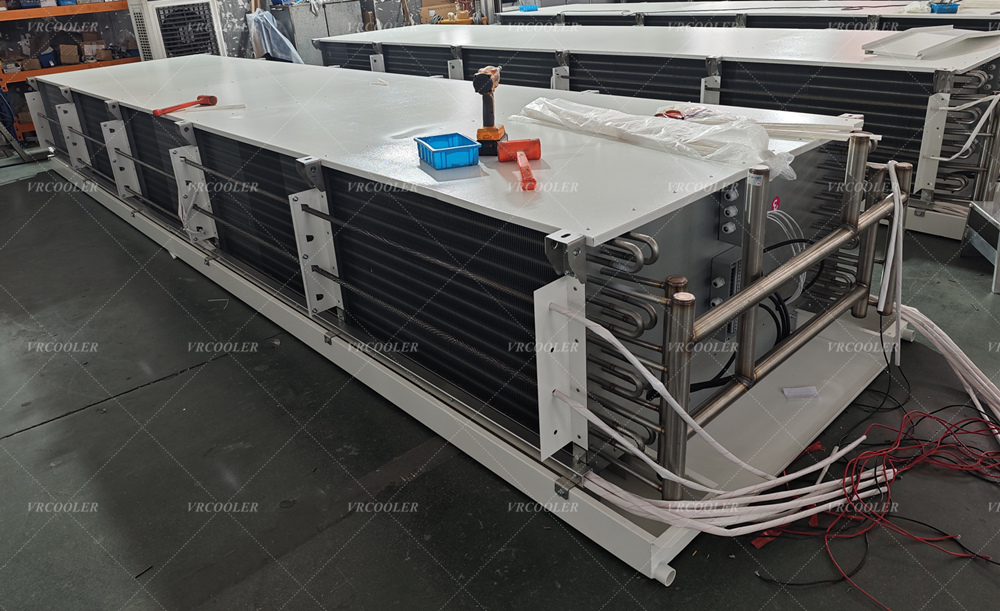

At CSTHEATEXCHANGER, we design and manufacture high-performance industrial ripening air coolers and post-harvest precooling evaporators engineered specifically for commercial banana packhouses, logistics distribution centers, and pressurized banana ripening rooms. Bananas are among the most delicate climacteric tropical fruits in global trade, exhibiting extreme sensitivity to chilling injury at temperatures below 13.0°C and severe weight loss from moisture dehydration. CSTHEATEXCHANGER ripening air coolers deliver high-volume reversible airflow, tight temperature uniformity (±0.5∘C pulp temperature across pallet stacks), narrow thermodynamic approach temperatures (ΔT≤2.5K) to sustain 90%–95% relative humidity without artificial misting, and integrated heating loops for precise multi-day ripening cycle management.
From tropical plantation harvest through ocean reefer transport, wholesale ripening, and retail distribution, bananas undergo intense physiological transformations:
Strict Chilling Injury Threshold (The 13.3°C Boundary): Unlike temperate fruits that tolerate near-freezing temperatures, green bananas suffer permanent chilling injury if exposed to temperatures below 13.0°C–13.3°C for even a few hours. Chilling injury damages cellular membranes, causing sub-epidermal vascular browning, a dull grayish-smoky peel color, astringent off-flavors, and complete failure to ripen into bright yellow fruit.
Explosive Climacteric Respiration & Heat Generation: When bananas are triggered with ethylene gas to initiate ripening, their biological respiration rate increases up to five-fold within 24 to 48 hours. A single 24-pallet ripening room (approximately 20 to 24 metric tons of fruit) generates up to 4 to 6 kW4 to 6 kW of biological metabolic heat at peak climacteric, requiring rapid thermal heat extraction to prevent fruit runaway overheating.
Peel Dehydration & Weight Shrinkage: The banana peel has a high surface area and porous stomatal structure. If the ripening room air cooler operates with a large temperature difference (ΔT>4KΔT>4K) between the evaporator coil surface and room air, the coil continuously strips moisture from the air, driving room relative humidity below 80%. This causes rapid fruit weight loss (1.5% to 3.0% mass shrink), limp fruit fingers, crown rot, and weak peel strength.
Airflow Bypass in Non-Pressurized Rooms: In conventional cold storage rooms, air naturally flows around the exterior of pallet rows rather than through the compact vent holes of corrugated cardboard banana boxes, leaving warm cores and creating uneven ripening across the room.
At CSTHEATEXCHANGER, we engineer our ripening air coolers specifically to integrate with modern single-tier and multi-tier pressurized ripening systems (utilizing overhead inflatable airbags or suction tarpaulins):
CSTHEATEXCHANGER® PRESSURIZED BANANA RIPENING ROOM DYNAMICS
┌────────────────────────────────────────────────────────────────────────┐
│ CSTHEATEXCHANGER Top-Mounted Ripening Air Cooler Unit │
│ • Reversible High-Static EC Fans (1,200 - 1,500 m³/h per ton of fruit) │
│ • Deep-Row Copper/Aluminum Evaporator Coil (Narrow ΔT ≤ 2.5K) │
│ • Integrated Hot Water / Stainless Electric Reheat Coil │
├──────────────────────────────────┬─────────────────────────────────────┤
│ Inflatable Overhead Airbag Seal │ Inflatable Overhead Airbag Seal │
├──────────────────────────────────┴─────────────────────────────────────┤
│ │
│ ◄◄◄ High-Pressure Conditioned Air Forced Horizontally Through │
│ Banana Box Side Vents (Uniform Pulp Temperature ±0.5°C) │
│ │
│ ┌──────────────────────────────┐ ┌──────────────────────────────┐ │
│ │ Pallet Row 1 (Boxed Bananas) │ │ Pallet Row 2 (Boxed Bananas) │ │
│ │ [Ethylene Gassing 100-1000ppm│ │ [Controlled Temp 14.5°-18.0°C│ │
│ │ Target RH: 90% - 95%] │ │ Stages 1 ──► 7 Ripening] │ │
│ └──────────────────────────────┘ └──────────────────────────────┘ │
├────────────────────────────────────────────────────────────────────────┤
│ Central Return Air Suction Plenum (Zero Airflow Bypassing) │
└────────────────────────────────────────────────────────────────────────┘CSTHEATEXCHANGER ripening coils are designed with extra-deep tube row configurations and expanded secondary fin surface areas. By operating with an ultra-low temperature difference (ΔT=2.0K to 2.5KΔT=2.0K to 2.5K) between the evaporating refrigerant and return air, our coils minimize surface moisture condensation, naturally sustaining room humidity at 90%–95% RH throughout the ripening cycle without relying on ultrasonic foggers that can leave water droplets on fruit crowns.
Equipped with aerodynamically optimized, dynamically balanced reversible axial fans, our units generate static pressures up to 250–350 Pa. High volumetric air circulation (1,200 to 1,500 m3/h1,200 to 1,500 m3/h per metric ton of fruit) forces conditioned air directly through every pallet box ventilation slot. Reversing airflow direction periodically ensures pulp temperature variation across all boxes remains within ±0.5∘C±0.5∘C.
Banana ripening cycles require active heating to warm green fruit from 13.5∘C13.5∘C up to 16.5∘C–18.0∘C16.5∘C–18.0∘C prior to ethylene gas injection, followed by rapid high-capacity refrigeration to extract the subsequent biological respiration heat spike. CSTHEATEXCHANGER units incorporate integrated hot water, hot gas bypass, or stainless steel electric heating elements directly within the coil casing, switching seamlessly between heating and cooling modes via automated PLC controls.
Ripening rooms operate under high humidity and periodic ozone/chemical sanitation treatments. CSTHEATEXCHANGER manufactures coils with heavy-gauge deoxidized copper tubes, blue hydrophilic or epoxy-coated aluminum fins, and full SS304 stainless steel casings and drain pans, guaranteeing zero corrosion and long operational lifespans.
CSTHEATEXCHANGER precooling and ripening air coolers support all standard commercial post-harvest programs:
Immediately after field harvest and washing, tropical packhouses utilize CSTHEATEXCHANGER forced-air precooling tunnels to extract core field heat (30∘C→13.5∘C30∘C→13.5∘C) within 12 to 18 hours. Rapid precooling arrests ethylene biosynthesis and preserves green-life longevity for 25 to 40 days of ocean transit.
In distribution ripening centers, CSTHEATEXCHANGER air coolers precisely execute standardized commercial ripening schedules:
4-Day Fast Ripening Program: Rapid heating to 18.0°C, 24-hour ethylene exposure (100–500 ppm), followed by rapid pulldown to 15.0°C and holding at 14.0°C.
6-Day & 7-Day Premium Ripening Programs: Gentle warming to 15.5°C–16.0°C, ethylene gassing, and controlled step-down cooling (0.5∘C0.5∘C per day) down to 14.5°C, developing superior peel brightness, firm pulp texture, and maximum retail shelf life.
Cooling Capacity Range: 10 kW to 120 kW per room module (Sized for 12, 24, 36, and 48-pallet rooms).
Airflow Circulation Rate: 8,000 m³/h to 45,000 m³/h per unit (Inverter VFD speed controlled).
External Static Pressure: Up to 350 Pa (High-pressure airbag and tarpaulin systems).
Operating Temperature Range: +12.0°C to +25.0°C (Precise heating and cooling modulation).
Refrigerant Compatibility: Direct Expansion (DX) R448A, R449A, R134a, R407C, Natural CO2CO2 (R744), and Secondary Chilled Water / Propylene Glycol loops.
Fin Spacing Range: 4.5 mm to 7.0 mm (Optimized for high sensible heat ratio and easy cleaning).
When an evaporator operates with a large ΔTΔT (e.g., 6K–8K), the coil surface temperature drops well below the air dew point, condensing and removing moisture from the room. CSTHEATEXCHANGER ripening coils utilize large heat transfer surface areas to operate with a ΔT≤2.5KΔT≤2.5K, keeping the coil surface above the dew point and naturally maintaining room relative humidity between 90% and 95%.
As conditioned air flows through pallet boxes, it absorbs heat, causing boxes at the exhaust end to be slightly warmer than boxes at the intake end. CSTHEATEXCHANGER reversible fans reverse airflow direction at scheduled intervals, equalizing thermal distribution and ensuring all bananas in the room reach the exact same color stage simultaneously.
Yes. Our ripening air coolers are engineered for all climacteric tropical and subtropical fruits requiring high-humidity precision ripening, including mangoes, avocados, papayas, and tomatoes.
Contact CSTHEATEXCHANGER today with your facility layout and capacity targets:
Room Capacity & Pallet Count (e.g., 12, 24, 36, or 48 Pallets)
System Configuration (Single-Tier, Two-Tier, or Overhead Pressure System)
Target Ripening Cycles (4, 5, 6, or 7-Day Programs)
Refrigeration System Type (Direct Expansion Freon, CO2, or Glycol Chilled Water)
Room Dimensions (Length × Width × Ceiling Height)
Our agricultural thermal engineering team will provide detailed cooling and heating load calculations, CFD airflow schematics, 3D CAD dimensional drawings, and factory-direct equipment proposals.
