U-Tube Bundle with Tubesheet | CSTHEATEXCHANGER

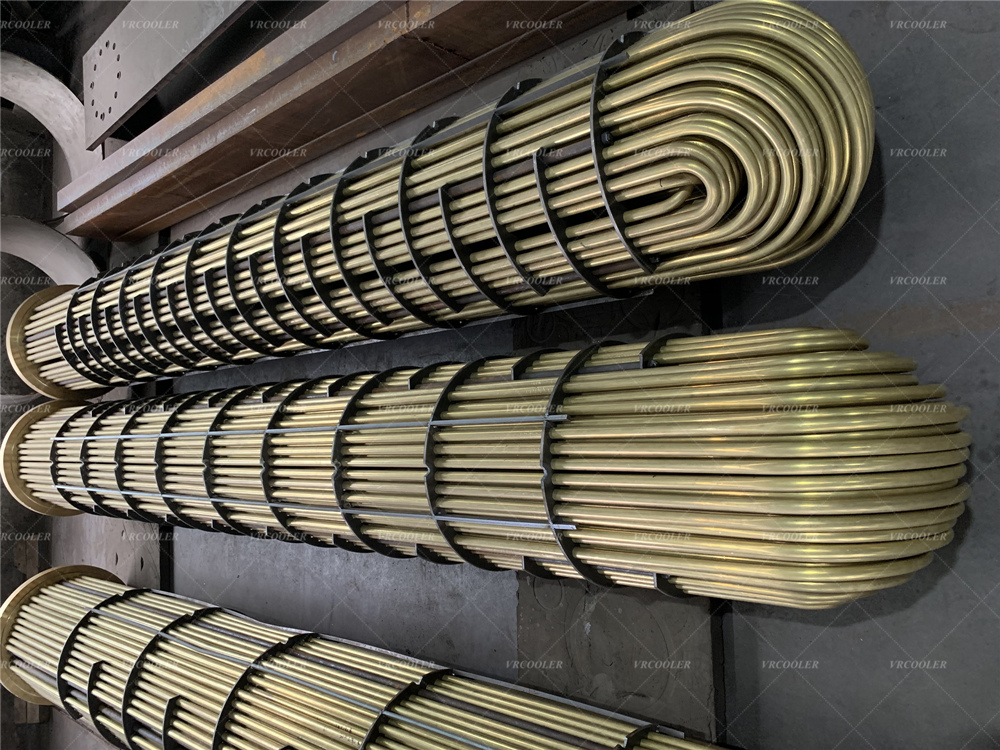

At CSTHEATEXCHANGER, we design, engineer, and manufacture custom-built U-tube bundles with precision-machined tubesheets for shell and tube heat exchangers, boilers, steam condensers, and chemical process vessels. U-tube bundle configurations (TEMA Types BEU, AEU, CFU) provide the ultimate thermodynamic solution for applications with extreme temperature differentials and severe thermal cycling. Because each U-tube is fixed at only one end to a single tubesheet, the bend ends are completely free to expand and contract independently, eliminating differential thermal expansion stresses, tube-to-tubesheet joint fatigue, and shell expansion joints. CSTHEATEXCHANGER supplies complete new and exact 1-to-1 dimensional drop-in replacement U-tube bundles in carbon steel, stainless steel, duplex, copper-nickel, and titanium alloys.

Why Industrial Processes Rely on U-Tube Bundle Configurations

In high-pressure and high-temperature thermal systems—such as steam heaters, thermal oil exchangers, boiler feed water heaters, and chemical reboilers—temperature differences between the tube side fluid and shell side fluid frequently exceed 100°C to 250°C.

In traditional fixed tubesheet heat exchangers, severe temperature differentials create intense thermal stress because the tubes and shell expand at different rates, leading to bowed tubes, sheared tube-to-tubesheet joints, or costly shell expansion joint failures.

The U-tube bundle design solves this fundamental mechanical challenge:

• Zero Thermal Expansion Stress: Both the inlet and outlet of each continuous tube terminate at the same tubesheet. As the tubes heat up and elongate during rapid startup or thermal cycling, the floating U-bend end expands freely into the shell space with zero structural restraint.

• Single Tubesheet Simplicity: Requiring only one tubesheet eliminates the floating head gaskets, internal packing glands, and potential shell-to-tube internal leakage points associated with floating head exchangers.

• Easy Bundle Removability & Shell Cleaning: The entire U-tube bundle can be easily withdrawn from the shell casing for mechanical or chemical cleaning of the shell interior, inspection of baffle plates, or complete bundle replacement during scheduled plant maintenance turnarounds.

• High Pressure Containment: Fewer flanged gasket joints allow U-tube bundles to safely operate under extreme tube-side and shell-side working pressures (up to 25 MPa / 250 bar).

How CSTHEATEXCHANGER Manufactures Precision U-Tube Bundles

At CSTHEATEXCHANGER, every U-tube bundle and tubesheet assembly is fabricated in our dedicated pressure vessel facility to strict TEMA (Classes R, B, C) and ASME Section VIII Division 1 standards:

                  CSTHEATEXCHANGER® U-TUBE BUNDLE ARCHITECTURE

   ┌────────────────────────────────────────────────────────────────────────┐
   │ Precision CNC Machined Tubesheet (Single Stationary Tubesheet)         │
   │ • Double-Grooved Serrated Tube Holes / Precision Orbital Welds         │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Segmental Baffle Cage Assembly (Tie Rods & Precision Spacers)          │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Tube Inflow / Outflow                                              │
   │ Continuous Seamless U-Tubes (Cold-Drawn & Solution Annealed Bends)     │
   │                                                                        │
   │ ═══════════════════════════════════════════════╗ (Free-Floating        │
   │ ═══════════════════════════════════════════════╝  U-Bend Zone)         │
   └────────────────────────────────────────────────────────────────────────┘

1. Precision CNC Tubesheet Machining & Hole Tolerances

The tubesheet is the structural foundation of the bundle. CSTHEATEXCHANGER machines tubesheets from forged disks or heavy rolled plates using multi-spindle CNC drilling centers:

• Tight Hole Clearance & Annular Grooves: Tube holes are reamed to exact TEMA tolerances and machined with double annular serration grooves to maximize mechanical pull-out strength during hydraulic or roller expansion.

• Pass Partition Grooves: High-precision milling of pass partition gasket grooves ensures perfect sealing against channel heads, preventing inter-pass fluid bypassing.

2. High-Integrity Tube-to-Tubesheet Joint Methods

Depending on operating pressure, temperature, and fluid toxicity, CSTHEATEXCHANGER employs advanced tube-to-tubesheet joining technologies:

• Strength-Welded & Seal-Welded Joints: Automated orbital TIG (GTAW) welding delivers deep-penetration, defect-free welds between tube ends and tubesheets.

• Hydraulic & Torque-Controlled Roller Expansion: Tubes are expanded uniformly into tubesheet serrations over calculated contact lengths to ensure helium-tight leak integrity and high fatigue strength.

3. Precision CNC Mandrel Bending & Bend Stress Relief

• Controlled Wall Thinning & Ovality: Our CNC mandrel tube benders form smooth, wrinkle-free U-bends even at tight center-to-center radii (R≥1.5DR≥1.5D or 2D2D), strictly maintaining bend thinning within TEMA limits (<17%).

• Post-Bend Heat Treatment: Stainless steel, duplex, and alloy U-bends undergo localized or full-furnace solution annealing / stress relief heat treatment to restore ductility and prevent chloride stress corrosion cracking (SCC) in the high-strain bend zone.

4. Advanced Baffle Cage & Anti-Vibration Design

CSTHEATEXCHANGER engineers heavy-gauge segmental baffles, rod baffles, and solid stainless steel tie rods with precision spacer tubes to support the tube bundle. Impingement plates are integrated directly below the shell inlet nozzle to protect outer tubes from fluid erosion and flow-induced vibration (FIV).

Comprehensive Metallurgy Options by CSTHEATEXCHANGER

We fabricate U-tube bundles and tubesheets in a wide spectrum of certified materials to suit diverse chemical, thermal, and corrosive operating environments:

• Carbon & Low-Alloy Steels: SA516 Gr. 70, SA105, SA106B, SA214, SA179, and 16MnCr.

• Austenitic Stainless Steels: 304/304L, 316/316L, 310S, 321, and 347 (for high temperatures and general chemical processing).

• Duplex & Super Duplex Alloys: 2205 (UNS S32205) and 2507 (UNS S32750) (exceptional strength and hot chloride pitting resistance).

• Copper-Nickel Alloys: CuNi 90/10 (C70600) and CuNi 70/30 (C71500) (proven marine and seawater duty).

• Titanium & Nickel Alloys: Titanium Gr. 2, Monel 400, Inconel 625/825, and Hastelloy C-276.

• Clad & Overlay Tubesheets: Explosively bonded or weld-overlay clad tubesheets (e.g., Stainless Steel or Titanium clad on Carbon Steel base) for cost-effective high-corrosion duty.

1-to-1 Drop-In Replacement Bundles for Plant Turnarounds

Plant shutdowns and refinery turnarounds require fast, dimensionally exact replacement bundles to minimize downtime:

• Precision Dimensional Reverse Engineering: CSTHEATEXCHANGER fabricates exact drop-in replacement U-tube bundles from client drawings, OEM equipment tags, or physical field measurements.

• Guaranteed Flange & Baffle Alignment: Tubesheet outer diameter, bolt circle drilling, pass partition layout, baffle spacing, and overall bundle length match existing shell casings with 100% precision.

• Fast-Track Emergency Fabrication: We maintain comprehensive inventories of certified tubes and forged tubesheets to support urgent turnaround replacement schedules.

Technical Specifications & Inspection Standards

• TEMA Types Supported: BEU, CFU, AEU, BKU, AKU, and custom process configurations.

• Tube Diameters: 12.7 mm (1/2"), 15.88 mm (5/8"), 19.05 mm (3/4"), 25.4 mm (1"), and 38.1 mm (1.5") OD.

• Tubesheet Diameters: Up to 2,500 mm (100 inches).

• Bundle Lengths: Custom continuous lengths up to 12 meters (40 feet).

• Design Pressure: Up to 25.0 MPa (250 bar / 3,600 PSI).

• Quality & NDT Testing: 100% hydrostatic pressure testing, pneumatic testing, helium mass spectrometer leak testing, dye penetrant inspection (PT) of all tube-to-tubesheet welds, and tube wall thickness ultrasonic / eddy current testing.

Frequently Asked Questions — CSTHEATEXCHANGER U-Tube Bundles

Why are U-tube bundles preferred for steam heaters and thermal oil systems?

Steam and thermal oil systems operate with extreme temperature differences between the inlet fluid and shell fluid. U-tube bundles allow each tube to expand freely without mechanical constraint, completely eliminating thermal stress cracking at the tubesheet joints.

How does CSTHEATEXCHANGER verify the integrity of tight U-bends?

We perform precision wall thickness ultrasonic testing and liquid penetrant inspection on all tight-radius bends. For stainless steel and alloy tubes, post-bending heat treatment is performed to eliminate residual mechanical stresses and prevent stress corrosion cracking.

Can CSTHEATEXCHANGER provide replacement bundles without original manufacturer drawings?

Yes. Our engineering team can create full manufacturing CAD drawings from your old bundle dimensional survey data or site measurement sheets, guaranteeing exact fit inside your existing heat exchanger shell.

Request a Custom U-Tube Bundle Quotation from CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your replacement or new project specifications:

• Tubesheet Outer Diameter & Thickness (mm/in)

• Tube Outside Diameter, Wall Thickness & Pitch Layout (Triangular / Square)

• Number of U-Tubes & Number of Tube Passes

• Operating Temperature (°C/°F) & Design Pressure (bar/PSI)

• Metallurgy Requirements (Tubes, Tubesheet, Baffles, Tie Rods)

Our engineering team will provide detailed thermal and mechanical TEMA datasheets, 3D CAD fabrication drawings, and factory-direct pricing.
