Steam-to-Air Heating Coils & Finned Heaters | CSTHEATEXCHANGER

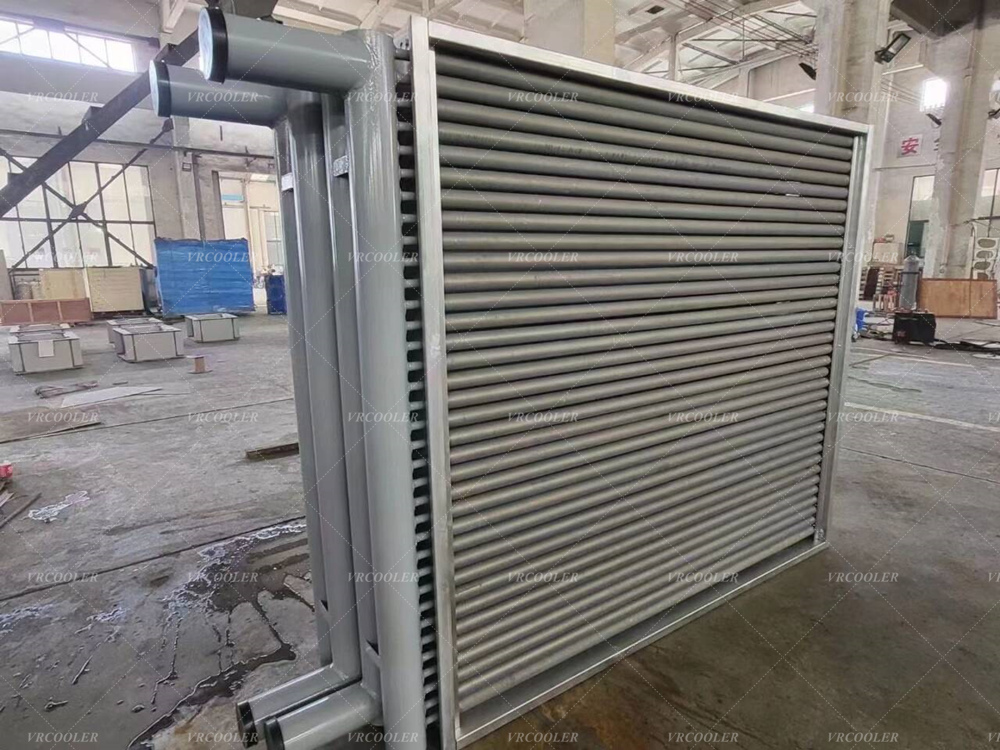

At CSTHEATEXCHANGER, we design and manufacture heavy-duty steam-to-air heating coils (finned tube air heaters) engineered for demanding industrial process drying, ventilation air heating, and high-temperature thermal curing systems. Steam is an exceptionally potent heating medium due to its high latent heat of vaporization (hfg≈2,000 to 2,250 kJ/kg), allowing rapid transfer of large thermal loads into high-velocity airflow streams within a compact envelope. CSTHEATEXCHANGER finned tube steam air heaters utilize heavy-wall seamless tubes, extruded bimetallic or high-frequency welded (HFW) helical fins, and advanced condensate drainage geometry, delivering reliable high-pressure steam containment (up to 4.0 MPa / 40 bar) with complete protection against water hammer, thermal fatigue, and freeze ruptures.

The Thermodynamics of Steam Condensation Inside Finned Tubes

Unlike liquid-to-air heat exchangers (where sensible heat transfer causes fluid temperature to drop along the circuit), steam-to-air heating coils operate primarily via isothermal phase-change condensation. Saturated steam enters the coil header and condenses along the internal tube walls at constant temperature, releasing immense latent heat.

However, harnessing steam's thermal power introduces critical thermodynamic and mechanical challenges:

• Massive Airside Heat Transfer Resistance: The heat transfer coefficient of condensing steam inside tubes (hi≈6,000 to 12,000 W/m2⋅Khi​≈6,000 to 12,000 W/m2⋅K) is 50 to 100 times higher than that of forced air on the outside (ho≈50 to 120 W/m2⋅Kho​≈50 to 120 W/m2⋅K). Adding external extended fin surfaces (increasing external surface area by 8 to 20 times) is mandatory to balance heat transfer resistance and achieve compact coil sizing.

• Condensate Evacuation & Water Hammer: As steam condenses, it shrinks into water occupying less than 1/1,000th of its vapor volume. If condensate fails to drain rapidly by gravity, incoming high-velocity steam pushes trapped condensate slugs into tube bends and headers, creating destructive hydraulic shock (water hammer) that fractures joints.

• Thermal Expansion & Thermal Shock: Industrial steam coils undergo severe thermal expansion during rapid boiler steam valve modulation (transitioning from 20°C to over 200°C in seconds), causing immense mechanical stress at header joints.

• Vacuum Formation & Freezing Risks: In HVAC makeup air applications where sub-zero outdoor air enters the coil, modulating steam control valves can create internal partial vacuums, stalling condensate and causing instantaneous ice expansion tube ruptures.

How CSTHEATEXCHANGER Steam-to-Air Heating Coils Excel

At CSTHEATEXCHANGER, we engineer every steam air heater with specialized mechanical and aerodynamic features to ensure decades of trouble-free operation:

                  CSTHEATEXCHANGER® STEAM AIR HEATER ARCHITECTURE

   ┌────────────────────────────────────────────────────────────────────────┐
   │ High-Pressure Saturated / Superheated Steam Header (SA106B / 316L)      │
   │ • Heavy-Wall Pipe Manifold with Integrated Steam Distribution Orifices │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ High-Velocity Airflow Passing Over Finned Tube Matrix               │
   │ (Cold Intake Air -20°C - 30°C ──► Heated Process Air 80°C - 250°C)     │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Heavy-Gauge Seamless Base Tubes (Heavy-Wall Carbon Steel / Stainless)   │
   │ Monolithic Extruded Aluminum Fins / HFW Solid Helical Steel Fins       │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Pitched Condensate Header with Gravity Drainage Flange                 │
   │ (Continuous Subcooled Condensate Evacuation to Steam Trap)             │
   └────────────────────────────────────────────────────────────────────────┘

1. Robust Metallurgy & Heavy-Wall Pressure Containment

We manufacture steam coil base tubes from heavy-wall seamless carbon steel (ASME SA106B / 20G), stainless steel (304/304L, 316/316L, 310S), or deoxidized copper. Extra wall thickness provides an essential corrosion and erosion allowance, easily handling operating steam pressures up to 4.0 MPa (40 bar) and temperatures up to 400°C.

2. High-Performance Fin Bonding Technologies

CSTHEATEXCHANGER offers two primary fin topologies engineered for specific temperature and environmental thresholds:

• Bimetallic Extruded Fins (Mono-Aluminum Sleeves): A heavy aluminum outer sleeve is mechanically rolled and extruded over the base tube under high pressure. The solid aluminum base completely seals the inner tube from ambient air, eliminating atmospheric corrosion and maintaining 100% thermal contact efficiency up to 280°C.

• High-Frequency Welded (HFW) Helical Fins: Solid or serrated steel/stainless steel fins are continuously welded directly to the base tube using high-frequency resistance welding. This creates a monolithic metallurgical bond capable of withstanding extreme thermal shock, cyclic vibration, and operating temperatures exceeding 400°C.

3. Pitched Core Geometry for Rapid Condensate Drainage

All CSTHEATEXCHANGER steam coils feature built-in tube pitching toward the condensate return header. Coupled with oversized bottom condensate manifolds, this design ensures rapid, free gravity drainage, permanently preventing condensate backup and water hammer.

4. Non-Freeze Steam Distributing Tube (Dual-Tube) Options

For low-temperature fresh air makeup applications, we build dual-tube (tube-in-tube) steam distributing coils. Inner perforated directional tubes distribute high-temperature steam evenly along the entire active length of outer finned tubes, preventing cold dead spots and freeze ruptures even with 100% outdoor air at -30°C.

Primary Industrial Applications of CSTHEATEXCHANGER Steam Air Heaters

• Industrial Drying Systems: High-temperature air heating for spray dryers, rotary drum dryers, fluidized bed dryers, conveyor tunnel dryers, flash dryers, and starch dryers.

• Paper & Textile Manufacturing: Paper machine Yankee hood air heating, felt dryers, and textile stenter frame heat setting lines.

• Coating & Surface Finishing: Automotive paint curing ovens, powder coating baking booths, and coil coating drying lines.

• Lumber & Agricultural Processing: High-capacity timber drying kilns, bulk grain drying towers, and tobacco curing barns.

• Power Plant & Boiler Air Preheating: Steam coil air preheaters (SCAPH) installed prior to primary combustion air preheaters to prevent acid dew-point corrosion.

• Heavy Commercial & Mine Ventilation: Air Handling Units (AHU), Makeup Air Units (MAU), and underground mine shaft freeze-protection air heating.

Technical Specifications & Manufacturing Capabilities

• Heating Duty Range: 20 kW to 15,000+ kW per assembled coil bank.

• Airflow Capacity: 1,000 m³/h to 250,000+ m³/h.

• Steam Pressure Range: 0.1 MPa to 4.0 MPa (1 bar to 40 bar / 15 to 580 PSI).

• Operating Air Temperature: Discharge air temperatures from 40°C up to 260°C.

• Base Tube Diameters: 15.88 mm (5/8"), 19.05 mm (3/4"), 25.4 mm (1"), 31.75 mm (1.25"), and 38.1 mm (1.5") OD.

• Fin Density Range: 3 to 12 Fins Per Inch (FPI) / 120 to 470 fins per meter.

• Casing Construction: Heavy-gauge galvanized steel, 304/316L stainless steel, or Corten steel with structural mounting flanges.

• Testing & Quality Assurance: 100% hydrostatic testing up to 1.5x design pressure and helium leak testing prior to dispatch.

Frequently Asked Questions — CSTHEATEXCHANGER Steam Heating Coils

How does CSTHEATEXCHANGER prevent steam coil water hammer?

Water hammer occurs when steam travels over trapped condensate pools. CSTHEATEXCHANGER prevents this by engineering sloped tube circuits, large-diameter bottom condensate manifolds, and proper steam trap piping recommendations that ensure immediate gravity evacuation of all liquid condensate.

What is the advantage of extruded bimetallic fins over crimped or L-foot fins?

Extruded bimetallic fins feature a continuous, seamless aluminum base sleeve that completely covers the underlying steel or copper tube. Unlike wound L-foot or crimped fins, extruded fins cannot loosen during thermal expansion cycles and completely protect the base tube from ambient moisture and chemical corrosion.

Can CSTHEATEXCHANGER manufacture exact drop-in replacement steam coils for existing ductwork?

Yes. We specialize in custom dimensional replacement coils. Our engineering team can duplicate existing casing dimensions, tube row counts, connection flange centerlines, and steam piping orientations for any existing air handling unit or drying oven.

Specify Your Steam-to-Air Heating Coil with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your process parameters:

• Airflow Volume (m3/hm3/h or CFM) & Air Velocity (m/sm/s)

• Inlet Air Temperature (°C/°F) & Required Outlet Air Temperature (°C/°F)

• Available Saturated Steam Pressure (bar / PSI) or Temperature

• Duct Dimension Constraints (Height × Width × Max Depth)

• Preferred Metallurgy (Carbon Steel, Stainless Steel, or Copper Tube)

Our thermal engineering team will provide comprehensive thermodynamic sizing calculations, airside and steam pressure drop profiles, 2D/3D CAD drawings, and competitive factory-direct pricing.
