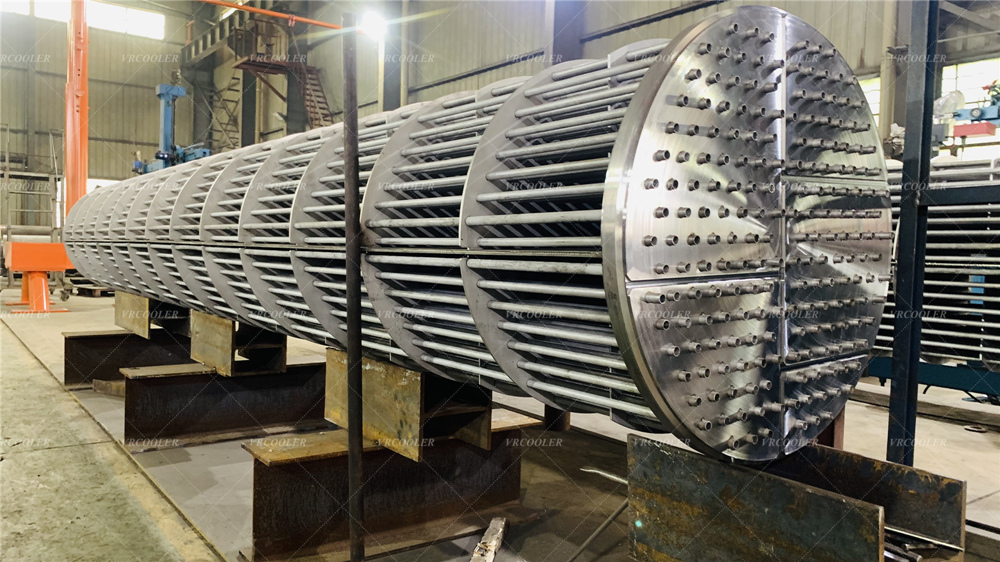

At CSTHEATEXCHANGER, we design and manufacture precision 1-to-1 drop-in replacement tube bundles for commercial, industrial, and marine hot water calorifiers. Calorifiers generate domestic hot water (DHW) and process heating for hospitals, hotels, universities, district heating networks, and marine vessels using primary steam or high-temperature hot water (HTHW/LPHW). Over years of continuous thermal cycling, original calorifier tube bundles suffer from heavy limescale thermal insulation, pitting corrosion from potable water chlorides, and tube-to-tubesheet joint leaks. CSTHEATEXCHANGER manufactures custom replacement U-tube bundles and straight-tube batteries in heavy-wall copper, CuNi 90/10, 316L stainless steel, and titanium, restoring 100% hot water heating capacity with zero vessel shell modifications and fast turnaround times.
A calorifier is an indirect storage water heater where a removable heating battery (tube bundle) is submerged inside a potable water storage vessel. The primary heating medium (boiler steam or pressurized hot water) passes through the internal tubes, transferring heat into the surrounding domestic water to maintain storage temperatures between 60°C and 65°C (essential for preventing Legionella pneumophila bacterial colonization).
Because of severe operating conditions, calorifier tube bundles have a finite operating lifespan (typically 8 to 15 years) and encounter four primary failure modes:
Heavy Limescale Accumulation & Thermal Degradation: Hard domestic water contains dissolved calcium and magnesium bicarbonates. When cold water contacts hot tube surfaces (often >120°C with steam), minerals precipitate into dense, insulating calcium carbonate (CaCO3CaCO3) scale. A 1.5 mm layer of limescale reduces heat transfer by over 40%, causing severe hot water recovery lag and skyrocketing boiler fuel consumption.
Pitting Corrosion & Potable Water Cross-Contamination: Potable water contains dissolved oxygen, chlorine disinfectants, and chloride ions. Over time, oxygen concentration cells and chloride attack create localized pinhole leaks in copper or low-grade stainless tubes. Pinhole leaks allow pressurized boiler steam or chemically treated heating water to contaminate domestic drinking and shower water lines.
Thermal Fatigue & Loose Tubesheet Joints: Calorifiers endure violent daily thermal cycling—cycling between cold morning intake surges (10°C) and standby high temperatures. Continuous expansion and contraction loosen mechanical tube-to-tubesheet roller joints, causing persistent joint weeping and pressure loss.
Erosion-Corrosion at Tube Inlets: High steam or water velocities entering the tube bundle headers cause turbulence and localized erosion thinning on the first 150 mm of tube inlets.
At CSTHEATEXCHANGER, we engineer every replacement calorifier tube bundle to provide superior thermal efficiency, corrosion resistance, and fast mechanical drop-in fit:
CSTHEATEXCHANGER® CALORIFIER REPLACEMENT TUBE BUNDLE
┌────────────────────────────────────────────────────────────────────────┐
│ Precision CNC Machined Tubesheet (Single Stationary Tubesheet) │
│ • Exact Bolt Circle (PCD), Gasket Raised Face & Pass Partition Matching│
├────────────────────────────────────────────────────────────────────────┤
│ Primary Steam / LPHW Inflow (0.2 MPa - 1.0 MPa / 80°C - 160°C) │
├────────────────────────────────────────────────────────────────────────┤
│ ◄◄◄ Potable Domestic Cold Water Submerging the Bundle (10°C) │
│ │
│ ══════════════════════════════════════════════════════════════════════ │
│ Heavy-Wall Deoxidized Copper (C12200) / CuNi 90/10 / 316L Tubes │
│ Free-Floating Continuous U-Bends (Zero Thermal Expansion Stress) │
│ Heavy-Duty Baffle Supports with Anti-Vibration Spacers │
│ ══════════════════════════════════════════════════════════════════════ │
│ │
│ ►►► Rapid Domestic Hot Water Recovery (60°C - 65°C Legionella Safe) │
├────────────────────────────────────────────────────────────────────────┤
│ Primary Condensate Return Manifold to Boiler Hotwell │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Fast Drop-In Installation into Existing Calorifier Vessel
(Restoring 100% Thermal Duty · 10+ Year Operating Life)Replacing a complete calorifier vessel requires destructive demolition, rigging, and pipework rerouting. CSTHEATEXCHANGER manufactures exact drop-in replacement tube bundles that slide directly into your existing calorifier shell:
Tubesheet PCD & Bolt Alignment: Outer diameter, thickness, bolt circle diameter (PCD), bolt hole count, and gasket seating faces match existing vessel flanged necks perfectly.
Bundle Insertion Depth: Overall bundle reach and baffle outside diameters are precision-matched to ensure smooth insertion without fouling internal vessel supports or baffles.
We offer specialized tube and tubesheet metallurgy selected specifically for your water chemistry and heating medium:
Heavy-Wall Solid Copper (C12200 / TP2): High thermal conductivity (k≈390 W/m⋅Kk≈390 W/m⋅K) for rapid steam heat transfer, with increased wall thickness for extended corrosion allowance.
Copper-Nickel 90/10 (C70600) & 70/30 (C71500): Exceptional resistance to erosion-corrosion and brackish water, widely specified for marine shipboard and coastal calorifiers.
Hygienic 316L Stainless Steel: Food-grade, electropolished stainless steel offering total resistance to chemical sanitizers, chlorine dioxide disinfection, and high-temperature thermal pasteurization regimes.
Tubesheet Options: Heavy forged Naval Brass, 316L Stainless Steel, or SA516 Gr. 70 Carbon Steel with explosively bonded copper/stainless cladding.
Double Annular Serration Grooves: Tubesheet holes are CNC drilled and reamed with dual annular grooves to maximize mechanical pull-out strength during hydraulic or torque-controlled roller expansion.
Orbital TIG Strength Welding: For high-pressure steam and high-temperature water applications, tube ends are strength-welded using automated orbital TIG welding, eliminating joint leakage permanently.
Our U-tube design allows each continuous tube to expand and contract freely into the vessel space during thermal cycling, completely eliminating thermal stress fractures at tubesheet joints.
Hospitals & Healthcare Campuses: Continuous, hygienic high-volume domestic hot water generation maintaining strict 60°C–65°C pasteurization to eradicate Legionella.
Hotels, Resorts & Commercial High-Rises: Rapid-recovery calorifiers handling heavy morning and evening domestic hot water demand spikes.
Marine Vessels & Offshore Platforms: Seawater-resistant CuNi 90/10 and 316L calorifier heating batteries supplying crew living quarters and galleys.
Universities, Prisons & Sports Facilities: Heavy-duty steam-to-water calorifiers with high recovery rates.
Industrial Process Washing & Food Processing: Sanitary hot water calorifier bundles providing clean hot utility water for clean-in-place (CIP) operations.
To order an exact replacement calorifier bundle from CSTHEATEXCHANGER without original manufacturer drawings, our engineering team requires five primary dimensional measurements:
Tubesheet Dimensions: Outer diameter (OD), total thickness, bolt hole count, bolt hole diameter, and Pitch Circle Diameter (PCD).
Insertion Length (Bundle Reach): Distance from the rear gasket face of the tubesheet to the outermost tip of the U-tube bends.
Tube Specifications: Tube outside diameter (typically 1/2", 5/8", or 3/4" OD), wall thickness, and total number of U-tubes (or tube holes in the tubesheet).
Baffle Outside Diameter & Spacing: Outer diameter of intermediate support baffles to ensure clearance inside the vessel shell.
Operating Parameters: Heating medium (Steam pressure or Hot Water temperatures in/out) and required hot water recovery rate (liters per hour).
Thermal Capacity Range: 50 kW to 5,000 kW (1,000 to 100,000+ Liters/Hour hot water recovery).
Primary Heating Media: Saturated Steam (0.1 MPa to 1.6 MPa / 1 to 16 bar), Low/Medium/High Pressure Hot Water (up to 160°C), or Thermal Oil.
Secondary Water Side: Potable Domestic Hot Water (Design pressure up to 1.6 MPa / 16 bar).
Standards Compliance: Built strictly to TEMA (Classes C, B, R), ASME Section VIII Division 1, and BS 853 / BS EN 12897.
Quality & Pressure Testing: 100% hydrostatic pressure testing up to 1.5x design pressure and helium mass spectrometer leak detection.
Yes. In over 85% of calorifier failures, the outer storage vessel shell remains structurally sound. Replacing only the internal tube bundle with a CSTHEATEXCHANGER drop-in unit saves up to 70% of total project costs and eliminates destructive building demolition.
We maintain extensive raw material inventories of forged tubesheets, seamless copper, and 316L stainless steel tubes, allowing us to fast-track emergency replacement bundle fabrication and dispatch within tight turnaround windows for hospitals and hotels.
Yes. By utilizing enhanced inner-finned copper tubes or optimizing the tube pitch layout and tube count, our thermodynamic engineers can increase the recovery rate of your existing calorifier by 15% to 30% within the same physical shell dimensions.
Contact CSTHEATEXCHANGER today with your calorifier nameplate data or dimensional survey:
Tubesheet Outer Diameter (OD), Thickness & Bolt PCD
Bundle Insertion Length (Reach from Tubesheet to U-Bend Tip)
Tube Material (Copper, CuNi 90/10, or 316L Stainless Steel) & Tube OD
Primary Heating Medium (Steam Pressure in bar/PSI or Water In/Out Temps)
Required Hot Water Output (kW, BTU/h, or Liters/Hour recovery)
Our pressure vessel engineering team will provide detailed TEMA datasheets, 3D CAD dimensional confirmation drawings, and a competitive factory-direct proposal.
