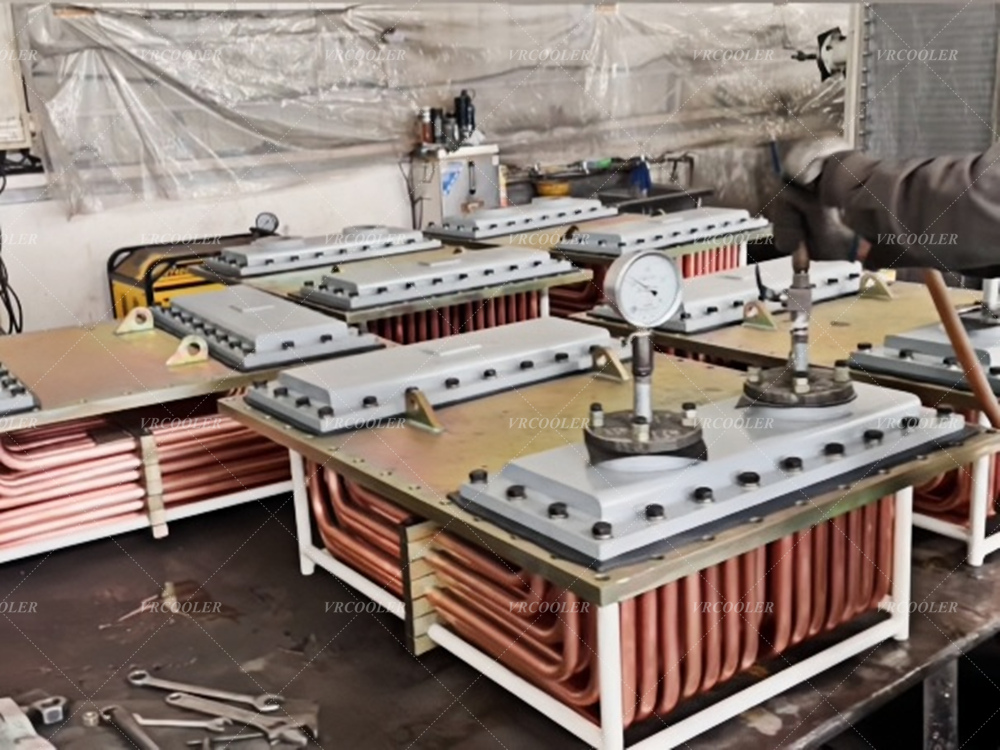

At CSTHEATEXCHANGER, we design and manufacture heavy-duty marine box coolers (sea chest heat exchangers) engineered specifically for high-horsepower Caterpillar propulsion engines, auxiliary generator sets, and dredge pump drives operating onboard trailing suction hopper dredgers (TSHD) and cutter suction dredgers (CSD) in the Maldives and Indian Ocean atoll reclamation projects. Marine dredging in tropical coral reef environments presents extreme thermal and hydrodynamic challenges: high ambient seawater temperatures (32°C to 34°C in shallow lagoons), massive concentrations of suspended abrasive coral sand and carbonate silt, and aggressive biofouling. CSTHEATEXCHANGER marine box coolers install directly inside the vessel's hull sea chest, providing 100% closed-loop engine cooling without raw seawater piping or vulnerable raw water pumps, utilizing heavy-wall Copper-Nickel (CuNi 90/10 & CuNi 70/30) U-tubes and integrated Impressed Current Anti-Fouling (ICAF) systems to ensure uninterrupted full-load dredging without thermal derating.
Land reclamation, resort atoll expansion, and deep navigation channel deepening across the Republic of Maldives subject vessel cooling systems to some of the most aggressive marine operating conditions on Earth.
Dredgers powered by high-horsepower Caterpillar engines (such as 3512, 3516, C32, C175, and 3600/C280 series) encounter three critical operational hazards:
Extreme Tropical Seawater Temperatures (32°C to 35°C): Shallow Maldivian atoll lagoons and equatorial Indian Ocean waters frequently reach 32°C to 35°C during daytime dredging operations. Because engine Low-Temperature (LT) aftercooler loops require coolant supply temperatures below 40°C–45°C to maintain intake air density, the box cooler must achieve an exceptionally narrow approach temperature (3K3K to 5K5K) to prevent engine thermal derating under 100% continuous dredge pump loads.
Catastrophic Abrasive Coral Sand & Silt Slurry: Cutter suction and trailing hopper dredging continuously churn up dense clouds of abrasive calcium carbonate coral sand and volcanic silt. In traditional open-loop cooling systems (using plate or shell-and-tube exchangers with raw seawater pumps), this abrasive slurry rapidly destroys pump impellers, cuts through pipe elbows, and chokes plate heat exchanger channels within days.
Rapid Tropical Marine Biofouling & Coral Encrustation: The warm, nutrient-rich, sunlit shallow waters of Maldivian lagoons promote explosive growth of barnacles, calcareous tubeworms, and macro-algae. Biofouling forming on heat exchanger surfaces acts as an insulating barrier, causing severe thermal collapse within weeks if not actively suppressed.
A marine box cooler is a complete U-tube bundle submerged directly inside a dedicated sea chest built into the ship's hull. The engine's treated closed-loop coolant circulates through the internal tubes, while external natural seawater circulates across the tube bundle via natural thermal convection (thermosyphon effect) and vessel movement through the water.
CSTHEATEXCHANGER® DREDGER SEA CHEST BOX COOLER TOPOLOGY
┌────────────────────────────────────────────────────────────────────────┐
│ Closed-Loop Engine Coolant Inlet (HT Jacket: 90°C / LT Intercooler: 50°C)│
├────────────────────────────────────────────────────────────────────────┤
│ Heavy-Duty Forged Steel / Marine Bronze Channel Cover & Tubesheet │
├────────────────────────────────────────────────────────────────────────┤
│ ◄◄◄ Vessel Hull Sea Chest Placed Below Waterline (Submerged in Ocean) │
│ │
│ ══════════════════════════════════════════════════════════════════════ │
│ Heavy-Wall CuNi 90/10 / CuNi 70/30 Stepped U-Tube Bundle │
│ Thermal Convection Upward Draft (Thermosyphon Seawater Flow 32°C-35°C) │
│ Integrated Copper / Aluminum ICAF Antifouling Anodes in Sea Chest │
│ ══════════════════════════════════════════════════════════════════════ │
│ │
│ Abrasive Coral Sand & Silt Slurry Bypasses Out Bottom Hull Grids │
├────────────────────────────────────────────────────────────────────────┤
│ Cooled Closed-Loop Return to Caterpillar Engine (HT: 80°C / LT: 38°C) │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Continuous Full-Load Dredging in Maldivian Atoll Lagoons
(Zero Raw Seawater Pumps · Zero Silt Clogging · Zero Derating)Complete Elimination of Raw Seawater Pumps & Internal Sea Piping: Because cooling occurs inside the hull sea chest, no raw seawater enters the engine room. This permanently eliminates seawater pump maintenance, pipe corrosion, valve seizing, and sea strainer clogging.
Immunity to Silt & Coral Sand Blockage: Heavy coral sand and debris fall harmlessly through the bottom sea chest intake grids by gravity. The open, smooth-tube exterior of the box cooler cannot be choked by sand or mud slurries.
Reduced Hull Penetrations & Low Vessel Maintenance: Eliminates multiple through-hull suction and discharge overboard valves, drastically improving vessel safety and lowering dry dock maintenance costs.
At CSTHEATEXCHANGER, we engineer every dredger box cooler with specialized metallurgy, thermosyphon flow modeling, and marine biological defense systems:
We manufacture our box cooler bundles from certified seamless Copper-Nickel 90/10 (C70600) or Copper-Nickel 70/30 (C71500) tubes:
Inherent Biofouling Resistance: The controlled release of natural copper ions from the CuNi 90/10 matrix provides natural resistance against marine micro-organisms and algae.
Erosion-Corrosion Durability: High nickel content in CuNi 70/30 provides exceptional resistance to scouring abrasion from suspended coral silt and high water velocity.
Stepped U-Tube Layout: Multi-tier stepped U-bend geometries maximize active surface area within the confined sea chest volume while maintaining optimal spacing for buoyant convective water currents.
For Caterpillar engines utilizing split-circuit cooling (e.g., Cat 3516 or C175), CSTHEATEXCHANGER builds integrated dual-circuit box coolers. High-Temperature (HT) jacket water and Low-Temperature (LT) aftercooler loops are housed on a single tubesheet with internal partition baffles, providing independent temperature control within a single sea chest cut-out.
To prevent coral biofouling in warm 34°C Maldivian waters, CSTHEATEXCHANGER supplies integrated ICAF antifouling systems. Copper and aluminum anodes mounted directly beneath the box cooler release micro-concentrations of copper ions into the rising seawater flow, permanently preventing barnacle, mussel, and tube worm larvae from settling on the tube bundle.
Every CSTHEATEXCHANGER marine box cooler is manufactured in strict compliance with major marine classification societies (DNV, ABS, Bureau Veritas, CCS, and Lloyd's Register), featuring 100% hydrostatic testing up to 1.5x design pressure and helium mass spectrometer leak detection.
Trailing Suction Hopper Dredgers (TSHD): Cooling primary Caterpillar propulsion engines (Cat 3600 / C280), high-power auxiliary dredge pump generator sets, and jet pump drives.
Cutter Suction Dredgers (CSD): Robust cooling for heavy-duty cutter head drive engines and submerged dredge pump motors operating in dense sand slurry conditions.
Workboats, Split Hopper Barges & Anchor Handling Tugs: Compact box coolers for auxiliary gen sets (Cat C18, C32, 3512) operating in shallow tropical waters.
Land Reclamation & Island Construction Barges: Stationary power barge generator cooling operating in stagnant, high-temperature atoll lagoons.
Thermal Capacity Range: 100 kW to 6,000 kW per box cooler unit (Modular multi-bundle sea chest installations).
Coolant Circuits: High-Temperature (HT) Jacket Water, Low-Temperature (LT) Aftercooler, Hydraulic Oil, or Reverse Reduction Gearbox.
Design Seawater Temperature: Sized for peak tropical waters up to +35°C (+95°F).
Approach Temperature Capability: Tight 3.0K3.0K to 5.0K5.0K approach between coolant return and ambient seawater.
Tube Metallurgy: Seamless CuNi 90/10 (C70600), CuNi 70/30 (C71500), or Titanium Grade 2.
Tubesheet Metallurgy: Heavy Carbon Steel with CuNi 90/10 Weld Overlay / Cladding, or Solid Marine Naval Brass.
Operating Design Pressure: 0.6 MPa to 1.6 MPa (6 to 16 bar) on closed-loop engine side.
Classification Compliance: Certified for DNV, ABS, BV, CCS, LR, and RINA marine vessel surveys.
A marine box cooler relies on the natural thermosyphon effect. As heat from the engine tubes warms the adjacent seawater, the water density decreases, creating a natural buoyant upward draft that pulls cold seawater in through the bottom hull intake grid and discharges warm water out the upper hull opening, ensuring continuous cooling even when the dredger is anchored.
Plate heat exchangers require raw seawater pumps and contain narrow 2 mm–3 mm plate gaps that choke instantly with coral sand and shell debris. Box coolers have no raw water pumps, no internal seawater piping, and generous open tube spacing, making them completely immune to silt clogging.
Yes. We specialize in custom marine retrofits, fabricating exact dimensional replacement box coolers matching existing hull sea chest flanged openings, bolt pitch circles, and engine coolant piping orientations for all major dredger fleets.
Contact CSTHEATEXCHANGER today with your dredging vessel specifications:
Engine Model & Rating: (e.g., Cat 3512B, 3516C, C32, C175-16, 3608, 3612)
Engine Thermal Heat Rejection (kW): HT Jacket Water & LT Intercooler Circuits
Engine Coolant Flow Rates (m3/hm3/h or L/min) & Target Return Temperatures
Operating Seawater Temperature: (e.g., 32°C to 35°C Maldivian Atoll Conditions)
Available Sea Chest Dimensions: (Length × Width × Depth below waterline)
Target Marine Classification Society: (DNV, ABS, BV, CCS, LR)
Our marine thermodynamic engineering team will provide comprehensive thermosyphon CFD simulations, sea chest sizing layouts, 3D CAD dimensional models, and factory-direct equipment proposals.
