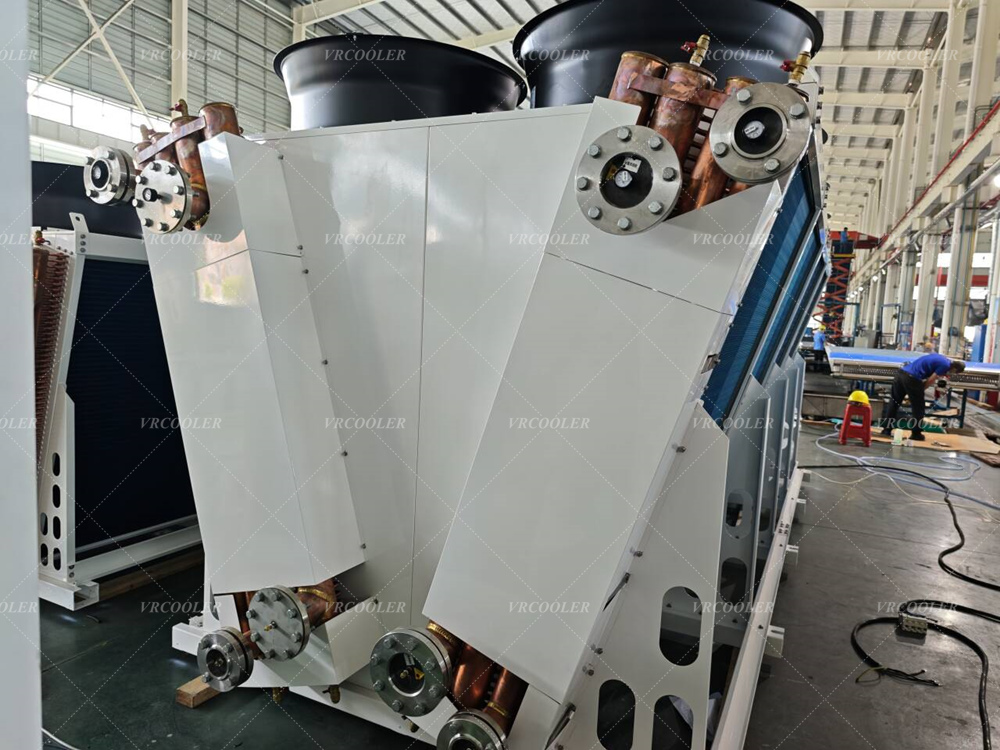

At CSTHEATEXCHANGER, we design and manufacture heavy-duty HT/LT (High Temperature / Low Temperature) dual-circuit remote radiators engineered specifically for C175-16 high-horsepower diesel generator sets (2,500 ekW to 3,100 ekW / 3,000 kVA to 4,000 kVA). The 16-cylinder, 84.7-liter C175-16 engine serves as the critical emergency standby and prime power backbone for hyperscale data centers, healthcare facilities, and remote mining sites. Dissipating over 2.2 MW to 2.7 MW of total engine heat rejection requires a dual-circuit cooling system: the High-Temperature (HT) jacket water loop (98°C–102°C) and the Low-Temperature (LT) separate circuit aftercooler (SCAC) loop (55°C–60°C). CSTHEATEXCHANGER remote radiators provide closed-loop, low-noise V-bank and horizontal modular cooling platforms, engineered to maintain 100% full-load engine output under extreme ambient temperatures up to 50°C without engine derating.
The C175-16 engine represents state-of-the-art power density in high-speed reciprocating diesel generation. Sizing outdoor cooling infrastructure for a 3,000+ kVA genset involves managing two distinct thermodynamic cooling circuits:
The High-Temperature (HT) Circuit (~1,400 kW to 1,800 kW Heat Rejection):
Dissipates heat from cylinder liners, cylinder heads, engine block jacket passages, and turbocharger high-stage zones.
Coolant enters the remote radiator at 98°C–102°C and returns to the engine water pump at a regulated 88°C–92°C with flow rates between 1,200 and 1,600 L/min.
The Low-Temperature (LT / SCAC) Circuit (~700 kW to 950 kW Heat Rejection):
Dissipates heat from the engine oil cooler and the two-stage intake air charge air coolers (Separate Circuit Aftercooling - SCAC).
Coolant enters the radiator at 55°C–60°C and must return to the aftercooler at 40°C–45°C. In hot summer climates with ambient air reaching 40°C–46°C, achieving the narrow 3K3K to 5K5K approach temperature without thermal throttling is essential to ensure maximum combustion air density and prevent engine power derating.
While engine-mounted, belt-driven radiators are common in small commercial generators, large 3 MW+ gensets in data centers and hospitals face severe physical limitations:
Excessive Parasitic Horsepower Loss: An engine-driven mechanical fan on a 3 MW engine consumes over 120 to 180 horsepower of mechanical output, directly reducing salable electrical kW output.
Severe Acoustic & Noise Restrictions: Direct engine-driven fans generate deafening sound pressure levels (>105 dB(A)), violating strict urban and hospital boundary noise regulations.
Basement & Indoor Acoustic Enclosure Constraints: In urban high-rises and data center campuses, generators are housed in soundproofed indoor rooms or underground basements where direct airflow intake and exhaust ducts are physically impossible.
Rooftop & Remote Separation: Remote radiators allow the cooling cores to be positioned outdoors on facility rooftops or grade-level equipment yards, hundreds of feet away from the indoor genset room.
At CSTHEATEXCHANGER, we engineer modular V-bank and horizontal remote radiators specifically matched to the hydraulic and thermodynamic curves of C175-16 diesel engines:
CSTHEATEXCHANGER® HT/LT DUAL-CIRCUIT REMOTE RADIATOR
┌────────────────────────────────────────────────────────────────────────┐
│ 1. High-Temperature (HT) Core: Jacket Water Cooling (~1,600 kW Duty) │
│ • Inflow: 100°C ──► Outflow: 90°C (Flow: 1,400 L/min) │
│ • Heavy-Wall Seamless Deoxidized Copper / 316L Stainless Tubes │
├────────────────────────────────────────────────────────────────────────┤
│ 2. Low-Temperature (LT) Core: SCAC Aftercooler & Oil (~850 kW Duty) │
│ • Inflow: 58°C ──► Tight Approach Return: 42°C (Flow: 750 L/min) │
│ • High-Density Extruded Aluminum Fins with Marine Blygold / E-Coat │
├────────────────────────────────────────────────────────────────────────┤
│ ◄◄◄ Ambient Airflow Induced by Multi-Fan Array (Ambient up to 50°C) │
├────────────────────────────────────────────────────────────────────────┤
│ Direct-Drive Low-Noise EC Fans with Aerodynamic Diffuser Cones │
│ Integrated Expansion Surge Tank, Level Switches & Air Eliminators │
└──────────────────────────────────┬─────────────────────────────────────┘
│
▼
Continuous Full-Load 3.1 MW Standby Power Output (Zero Derate)
(Ultra-Quiet Operation <65 dB(A) · Zero Parasitic Engine Drag)CSTHEATEXCHANGER integrates both HT and LT cooling circuits into a unified modular V-bank or flat-table horizontal structure. Separate internal hydraulic manifolds prevent any cross-circuit contamination, while balanced airflow distribution ensures both circuits receive optimum air velocity across all ambient conditions.
Our remote radiators utilize direct-drive, high-efficiency electronically commutated (EC) brushless fans or inverter-duty AC motors paired with aerodynamic diffuser cowls. Fans modulate speed continuously based on coolant return temperature sensors:
Eliminates mechanical belts, pulleys, and fan bearing grease maintenance.
Slashes parasitic electrical consumption by up to 60% at partial load or cool nighttime conditions.
Achieves ultra-low acoustic sound levels (<60 to 68 dB(A) at 7 meters) compliant with municipal hospital and data center sound codes.
When remote radiators are located on rooftops multi-stories above the engine room, high static head pressures and air entrainment can cause cavitation at engine water pumps. CSTHEATEXCHANGER integrates full-height expansion deaeration tanks with optical sight glasses, low-level warning telemetry, automatic air eliminators, and pressure relief caps directly onto the radiator frame.
Core Tubes: Precision seamless copper tubes (TP2/C12200) mechanically expanded into corrugated aluminum fins, or all-stainless steel 316L tubes for aggressive industrial environments.
Fin Protection: Monolithic extruded bimetallic aluminum fins, blue hydrophilic coating, or marine Blygold anti-corrosion treatments capable of enduring over 4,000 hours of ASTM B117 salt fog testing.
Heavy-Duty Chassis: Hot-dip galvanized structural steel or C5M marine-grade epoxy polyurethane coating designed to withstand 150 mph hurricane wind loads.
Hyperscale & Enterprise Data Centers: N+1 and 2N redundant rooftop remote radiator fields ensuring continuous emergency standby power for multi-megawatt server halls.
Healthcare & Hospital Emergency Facilities: Ultra-quiet remote radiators meeting stringent nocturnal acoustic ordinances while providing instantaneous black-start cooling.
Mining & Heavy Industrial Microgrids: Ruggedized off-grid power stations supporting continuous baseload prime power in desert and high-altitude mining operations.
Financial & Telecommunications Hubs: Zero-downtime rooftop heat rejection for central urban backup generators.
Total Thermal Heat Dissipation: 2,200 kW to 2,800 kW per complete C175-16 radiator module.
HT Circuit Performance: Coolant Flow: 1,200 to 1,600 L/min; In/Out: 98°C–102°C / 88°C–92°C; Pressure Rating: 1.0 MPa (10 bar).
LT (SCAC) Circuit Performance: Coolant Flow: 650 to 900 L/min; In/Out: 55°C–60°C / 40°C–45°C; Pressure Rating: 1.0 MPa (10 bar).
Design Ambient Temperature: -30°C up to +50°C (+122°F).
Fan Configuration: Multi-fan V-bank or flat horizontal arrays (6 to 14 modular direct-drive fans).
Sound Power Options: Standard, Low-Noise, and Ultra-Quiet Hospital-Grade acoustic configurations (<65 dB(A) at 7m).
Controls & Telemetry: Modbus RTU, BACnet IP, or dry contacts for seamless integration into central Data Center Infrastructure Management (DCIM) and Building Management Systems (BMS).
Remote radiators remove the high fan horsepower drag from the engine shaft, eliminate turbulent airflow restrictions inside indoor sound attenuators, and allow the radiator to be placed outdoors where sound levels can be managed independently with variable-speed EC fans.
Our engineering software custom-sizes the Low-Temperature (LT) core with expanded surface area and high air face velocity, maintaining a tight approach temperature (3K3K to 5K5K) that keeps SCAC aftercooler air temperatures low, maximizing oxygen charge density inside the cylinders and preventing thermal derating.
Yes. We provide complete factory-packaged remote cooling skids including dual HT and LT circulating pump stations, expansion tanks, 3-way thermostatic mixing valves, and integrated VFD control panels.
Contact CSTHEATEXCHANGER today with your mission-critical generator project parameters:
Genset Model & Rating: Standby (3,100 ekW), Mission-Critical (3,000 ekW), or Prime (2,500 ekW)
HT & LT Circuit Heat Rejection Data & Target Return Temperatures
Peak Summer Ambient Design Temperature (°C/°F) & Site Altitude (MASL)
Acoustic Noise Limit at Facility Boundary (dB(A) at distance)
Available Rooftop / Grade Footprint Dimensions & Structural Weight Limits
Our power generation thermal engineering team will provide comprehensive thermodynamic simulations, acoustic sound level calculations, 3D CAD dimensional drawings, and factory-direct equipment proposals.
