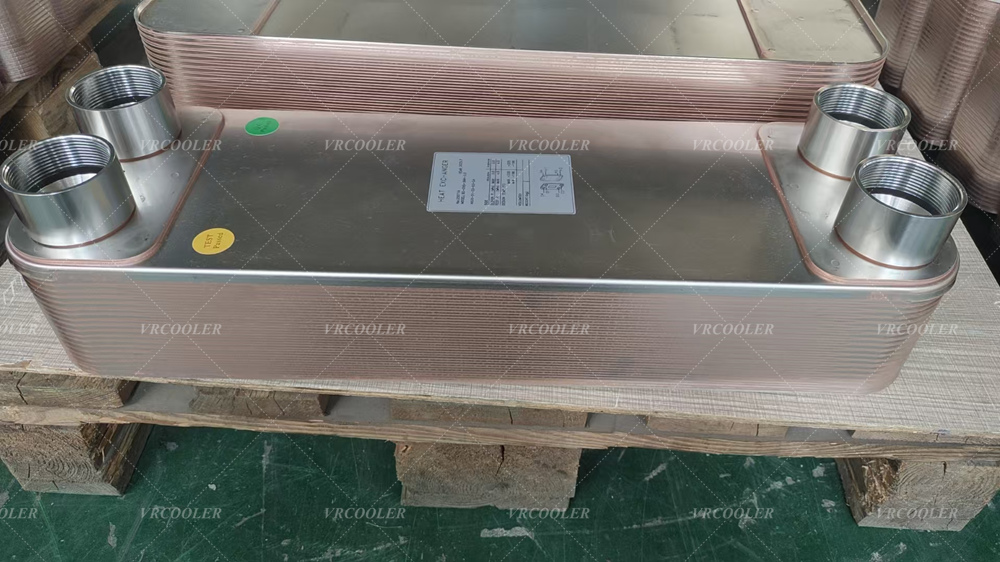

At CSTHEATEXCHANGER, we design and manufacture high-efficiency gasketed and semi-welded plate heat exchangers (PHE) engineered specifically for cane sugar mills, beet sugar processing plants, and commercial sugar refineries. Sugar processing involves viscous, non-Newtonian fluids laden with abrasive bagasse fibers, suspended soil particulates, and scaling mineral salts (calcium oxalate and silica). CSTHEATEXCHANGER wide-gap (free-flow) plate heat exchangers provide unhindered fluid passages with zero inter-plate contact points, delivering up to 95% heat recovery from evaporator bleed vapors, condensate streams, and flash steam to preheat raw juice, limed juice, and clarified juice while permanently eliminating clogging and shortening clean-in-place (CIP) turnaround times.

The Demanding Thermal Challenges in Modern Sugar Processing

From initial cane crushing or beet diffusion through juice clarification, evaporation, crystallization, and molasses handling, thermal management directly dictates raw sugar mill profitability and steam economy.

Traditional tubular juice heaters and shell-and-tube exchangers suffer from severe operational bottlenecks:

• Rapid Fibrous Clogging & Particle Bridging: Raw cane juice contains coarse bagasse fibers (typically 1 mm to 3 mm in length) and sand particles. Standard narrow-corrugation plate heat exchangers trap these fibers at plate contact points, causing rapid channel choking, steep pressure drops, and forced production shutdowns within hours.

• Heavy Mineral Fouling & Severe Scaling: Heating limed juice to 100°C–105°C and clarified juice to 115°C–120°C precipitates calcium salts (calcium sulfate and oxalate) onto heat transfer surfaces. Low-velocity tubular heaters develop hard scale layers that reduce heat transfer rates by over 50%, requiring harsh, labor-intensive manual rodding.

• Low Energy Efficiency & High Live Steam Consumption: Traditional tubular heaters require high-pressure live boiler steam. Refineries wasting lower-grade bleed vapors (from multiple-effect evaporators V1, V2, V3) or hot condensate experience high fuel consumption and bagasse shortages.

• High-Viscosity Handling in Molasses Cooling: Final blackstrap molasses and crystallization massecuites exhibit high viscosities (thousands of centipoises). If cooled improperly, non-uniform temperatures trigger localized crystallization, pump cavitation, and dangerous spontaneous Maillard reaction foaming in bulk storage tanks.

How CSTHEATEXCHANGER Sugar Plate Heat Exchangers Excel

At CSTHEATEXCHANGER, we engineered our sugar industry plate heat exchangers with specialized wide-gap corrugations, high-turbulence shear geometry, and rugged food-grade construction:

               CSTHEATEXCHANGER® WIDE-GAP SUGAR JUICE HEAT EXCHANGER

     Low-Pressure Evaporator Bleed Vapor / Hot Condensate Inlet
                                    │
                                    ▼
   ┌────────────────────────────────────────────────────────────────────────┐
   │ Heavy-Duty Carbon Steel / Stainless Clad Frame (Fixed Frame Plate)     │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Fiber-Laden Raw / Limed Cane Juice (1.5 m/s High-Shear Velocity)   │
   │     • Wide-Gap Coarse Corrugation (8 mm - 12 mm Unrestricted Channels) │
   │     • Zero Metal-to-Metal Contact Points (No Fiber Bridging)           │
   │     • Continuous Self-Scouring Turbulent Flow Eliminates Scaling       │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ►►► Pure Hot Water / Condensate / Bleed Vapor Stream                   │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Food-Grade Glueless EPDM-HT Gaskets (Rated to 160°C / 1.6 MPa)         │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
            Preheated Juice to Clarifier / Multiple-Effect Evaporators
            (Precision Temperature Uniformity: Up to 95% Thermal Recovery)

1. Free-Flow Wide-Gap Corrugation Technology

CSTHEATEXCHANGER wide-gap plates feature generous channel depths ranging from 8 mm to 12 mm. Unlike conventional plate designs that rely on hundreds of cross-touching contact points across the plate field, our wide-gap profile provides an open, continuous flow path. Fibers and suspended particulates pass through without mechanical bridging or channel blockage.

2. High-Shear Self-Cleaning Turbulent Action

Even with wide channels, CSTHEATEXCHANGER engineered wave corrugations generate high fluid shear stresses along plate walls at operational juice velocities (1.2 to 1.8 m/s1.2 to 1.8 m/s). This turbulent scouring action continuously sweeps boundary-layer minerals away, drastically slowing scale deposition and extending continuous operation between CIP cleanings by 3 to 5 times compared to shell-and-tube heaters.

3. Utilization of Low-Pressure Evaporator Bleed Vapors

With exceptionally close approach temperatures (2.0K2.0K to 3.0K3.0K LMTD), CSTHEATEXCHANGER plate heaters operate efficiently on low-pressure, low-temperature vapors bled from the 2nd, 3rd, or 4th evaporator effects (0.02 to 0.15 MPa abs). This captures free waste thermal energy, slashing live boiler steam consumption across the sugar boiling house.

4. Food-Grade Metallurgy & Glueless High-Temp Gaskets

• Plate Alloys: High-purity AISI 304, AISI 316L, 254 SMO, and Titanium Grade 1, electropolished to prevent sugar adhering and resist sulfurous acid corrosion during juice bleaching.

• Glueless Clip-On Gaskets: High-temperature food-grade EPDM-HT and NBR elastomer gaskets rated up to 160°C and 1.6 MPa (16 bar), designed for fast, tool-free replacement during off-season overhauls.

Primary Process Applications Across Sugar Refineries

• Raw Cane Juice Preheating: Elevating crushed juice from 30°C to 50°C–70°C using hot condensate or 3rd-effect evaporator vapor prior to liming and sulfitation.

• Limed Juice Heating (Primary & Secondary): Rapidly heating treated juice up to 102°C–105°C prior to flash tanks and settling clarifiers to accelerate protein flocculation.

• Clarified Juice Heating: Heating settled juice from 95°C to 115°C–120°C immediately before entering the first effect of the multiple-effect evaporator station.

• Concentrated Sugar Syrup (Meladura / Thick Juice) Preheating: Maintaining optimal viscosity and temperature entering vacuum boiling pans.

• Final Molasses Cooling: Cooling final A, B, and C heavy molasses from 65°C down to 40°C–45°C prior to bulk storage tanks, preventing spontaneous chemical Maillard reactions, microbial fermentation, and tank foaming.

• Ethanol Distillation & Fermentation Cooling: Wort cooling and vinasse/stillage heat recovery in integrated sugar-ethanol distilleries.

Technical Specifications & Operating Capabilities

• Thermal Duty Range: 200 kW to 25,000+ kW per single plate pack assembly.

• Juice Flow Rates: 20 m3/h20 m3/h to 1,500+ m3/h1,500+ m3/h per unit.

• Channel Gap Width: 8.0 mm to 12.0 mm (Wide-Gap / Free-Flow channel geometry).

• Operating Design Pressure: 1.0 MPa to 1.6 MPa (10 to 16 bar / 145 to 230 PSI).

• Operating Design Temperature: -20°C to +160°C.

• Plate Metallurgy: AISI 304, AISI 316L (Standard), 254 SMO, Titanium Gr. 1.

• Gasket Materials: Food-Grade EPDM-HT, FDA-compliant NBR, FKM (Viton).

• Frame Options: Solid Carbon Steel with Epoxy Coating, Stainless Steel Clad Frame, Motorized Compression Systems.

Frequently Asked Questions — CSTHEATEXCHANGER Sugar Plate Heat Exchangers

How does a wide-gap plate heat exchanger handle bagasse fibers without clogging?

Conventional plate heat exchangers have narrow gaps (2–3 mm) with hundreds of contact points where fibers accumulate. CSTHEATEXCHANGER wide-gap plates provide 8–12 mm clear channels with zero cross-touching contact points, allowing bagasse fibers up to 3 mm in length to pass through without bridging.

How is clean-in-place (CIP) performed on CSTHEATEXCHANGER sugar heaters?

Because of high internal plate turbulence, CIP is performed quickly by circulating a 1%–2% sodium hydroxide (caustic soda) solution at 80°C followed by a mild nitric or sulfamic acid rinse. Scale is dissolved and flushed out in under 2 hours without opening the plate pack.

Can CSTHEATEXCHANGER supply replacement plate packs and gaskets for existing frames?

Yes. We manufacture exact replacement plate packs, wide-gap conversion plate sets, and clip-on food-grade gaskets matching all standard port sizes (DN100 to DN500) for fast refitting during off-season mill maintenance.

Optimize Your Sugar Mill Energy Efficiency with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your sugar refining parameters:

• Process Stage: Raw Juice, Limed Juice, Clarified Juice, Syrup, or Molasses Cooling

• Juice Flow Rate (m3/hm3/h or TPH) & Fiber Concentration (%)

• Inlet & Target Outlet Temperatures (e.g., 32°C ──► 72°C)

• Heating / Cooling Medium: Evaporator Bleed Vapor (Pressure/Temp), Steam, Hot Condensate, or Cooling Water

• Available Pressure Drop Constraints (kPa / PSI)

Our sugar engineering team will deliver comprehensive thermodynamic simulations, vapor mass-balance calculations, 3D CAD drawings, and factory-direct proposals.
