How Dry Fluid Coolers Work for Transformer Cooling Systems

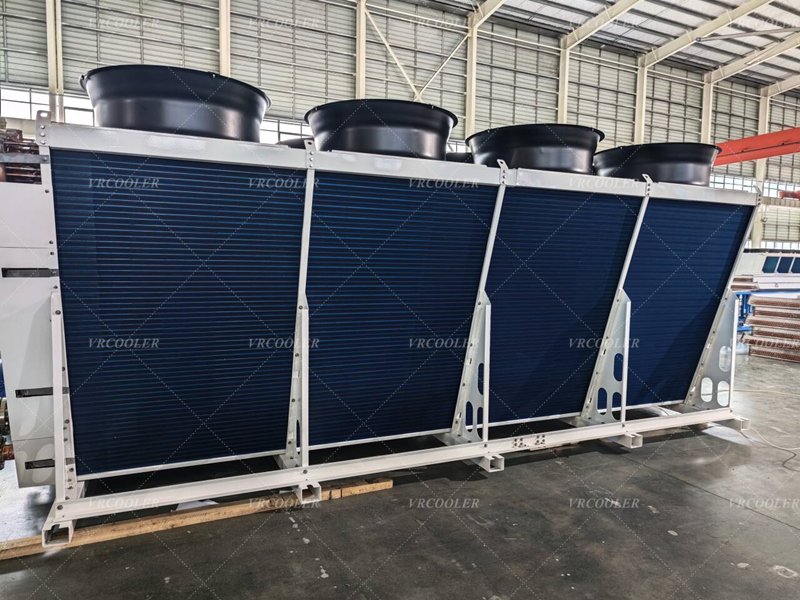

A dry fluid cooler serves as a closed‑loop heat rejection device for power transformers, removing excess heat generated during transformer operation without water‑intensive cooling tower circuits. It creates a thermal bridge between the transformer hot fluid loop and the surrounding ambient air.

Hot transformer oil or glycol‑mixed heat transfer fluid flows from the transformer winding and tank into the fin‑and‑tube coil of the dry fluid cooler. Heat transfers from the circulating fluid to the metal tube walls and extended fin surfaces. Fans force large‑volume ambient air across the fin coil, carrying waste heat out into the atmosphere. After releasing heat, the cooled fluid circulates back to the transformer tank to absorb heat again, completing the continuous cooling cycle.

Most field‑installed units use EC variable‑speed fans. Fan speed automatically ramps up or down based on real‑time fluid temperature readings. When the transformer runs under light load, fans slow down or stop to cut power consumption; under heavy load, fans run at higher speed to maintain safe operating temperature for transformer windings.

For locations with extremely high summer ambient temperature, an optional adiabatic spray pre‑cooling system can be fitted. It sprays fine water mist onto air intake before air passes over the coil, lowering incoming air temperature and improving heat rejection capacity, while still running as a dry‑mode system for most of the operating year.

Unlike open cooling towers, the fluid circuit inside a dry fluid cooler stays fully sealed. This prevents contamination, oxidation and sediment build‑up inside transformer oil loops, reducing maintenance work and protecting transformer service life. It is widely used for substations, remote power sites and coastal transformer installations where water supply is limited.
