Seafood processing facilities (shrimp‑processing plants, fish‑processing workshops, IQF tunnels, blast freezers and cold storage rooms) create one of the harshest atmospheres for tube‑fin heat‑exchanger coils. Air carries salt‑spray, brine mist, seafood‑protein particles plus residues from food‑grade sanitation chemicals. Standard copper‑tube aluminum‑fin coils often corrode and develop refrigerant leaks within 1‑3 years without proper protection.
Chloride‑rich salt‑brine mist Seafood washing, peeling, thawing and brining release fine salt‑laden droplets into air. Salt deposits stick tightly to fin surfaces and fin‑tube collar gaps. Salt‑moisture forms conductive electrolyte film and triggers galvanic pitting corrosion between copper tubes and aluminum fins.
Organic fouling (protein & fat residues) Fish / shrimp protein and grease stick in fin gaps. Trapped organic deposits absorb moisture and salt, build stagnant crevice zones and accelerate under‑deposit corrosion. Bio‑fouling also blocks airflow and reduces cooling capacity.
Frequent high‑pressure wash‑down sanitation Regular factory cleaning sprays water and alkaline / mild‑acid food‑grade detergents onto coil surfaces. High‑pressure jets scratch or chip coil coatings, opening entry points for chloride ions. Improper chemical selection further speeds metal degradation.
High‑humidity low‑temperature operating environment Cold room / blast‑freezer evaporators run continuously under high relative humidity. Condensate or melted frost keeps coil surfaces wet for long periods, which is ideal for electrochemical corrosion progress.
White‑grey powdery corrosion deposits appear on aluminum fin collars.
Fin material pitting, fin flaking, fin‑tube contact loosening; heat transfer performance drops.
Corrosion migrates from fin collars to copper tube outer wall, forming micro‑pin‑holes.
Slow refrigerant leakage, system pressure deviation, unexpected unit shutdown and production downtime.
Note: Corrosion can happen even inland seafood factories, not only coastal seaside sites. Brine mist from processing itself creates high‑chloride atmosphere independent of ocean wind.
Coil Configuration | Performance in Seafood‑plant Salt‑Mist Environment | Remarks |
|---|---|---|
Standard copper tube + bare aluminum fin | Very poor, short service life (1‑3 years) | Not recommended for seafood processing area |
Copper tube + epoxy‑coated aluminum fin | Fair‑good (3‑6 years) | Barrier protection; strictly avoid coating scratch during wash‑down; fit for light‑salt cold‑storage; not for heavy‑mist IQF tunnel zones |
Copper‑nickel (Cu‑Ni) tube + epoxy‑coated fin | Very good (7‑12 years) | Strong chloride‑ion resistance; for medium‑heavy brine‑mist workshops |
SS316 / SS316L tube + stainless steel fin | Excellent (8‑15+ years) | Best for heavy‑corrosion zones: blast freezer, IQF tunnel freezers, frequent wash‑down area; food‑hygiene compliant for seafood production |
Coil specification selection
Cold storage with low salt exposure: Copper tube + high‑quality epoxy pre‑coated aluminum fins.
Blast freezer / IQF tunnel / heavy brine‑mist workshop: Upgrade to Cu‑Ni or SS316L tube + stainless‑steel fin construction.
Optimize fin spacing: Wider fin spacing reduces protein‑salt fouling accumulation and simplifies cleaning.
Drain pan, support frame and fasteners should also use SS304 / SS316 to avoid secondary corrosion contamination.
Cleaning best practices
Use low‑pressure spray (≤4 bar), never high‑pressure jet washing which damages fins and coating layer.
Apply food‑grade mild‑alkaline cleaner to dissolve protein‑grease; neutralize salt residue with diluted food‑grade acid agent, then fully rinse away all chemical residues. Never let cleaning liquid dry inside fin gaps.
Set fixed inspection & cleaning cycle according to processing load.
Filtration improvement Install pre‑filters upstream of evaporator coils to capture salt droplets and seafood‑protein particles before reaching heat‑exchange surfaces, slowing fouling‑triggered corrosion.

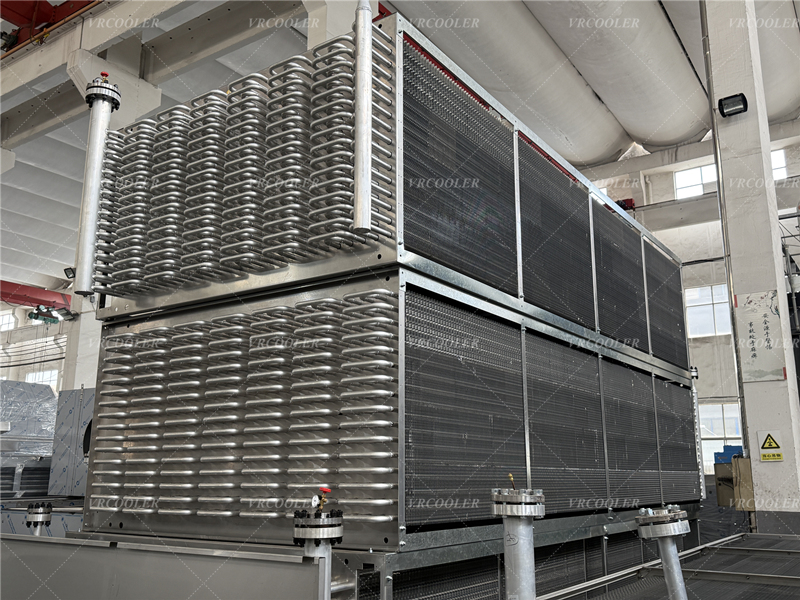

Custom replacement coils VRCOOLER produces seafood‑plant anti‑corrosion tube‑fin coils. We can replicate according to your old coil sample or technical drawings for direct 1:1 replacement for cold room evaporators, blast freezer coils and IQF tunnel freezer heat exchangers.
Seafood‑plant coil corrosion is driven by combined attack of salt‑brine mist, organic protein fouling, high humidity and sanitation‑wash‑down chemicals. Standard bare copper‑aluminum coils fail rapidly. Epoxy‑coated fins work for light‑corrosion cold‑storage; Cu‑Ni or SS316L stainless‑steel tube‑fin coils are preferred for heavy‑brine‑mist IQF and blast‑freezer zones. Combine correct material selection with proper low‑pressure chemical‑cleaning maintenance to extend coil service life and prevent unplanned production stops.
VRCOOLER (cstheatexchanger.com) delivers custom anti‑corrosion evaporator coils for seafood‑processing cold‑room, blast freezer and IQF‑tunnel‑freezer projects. Submit your drawing or old‑coil dimension data for quotation.
