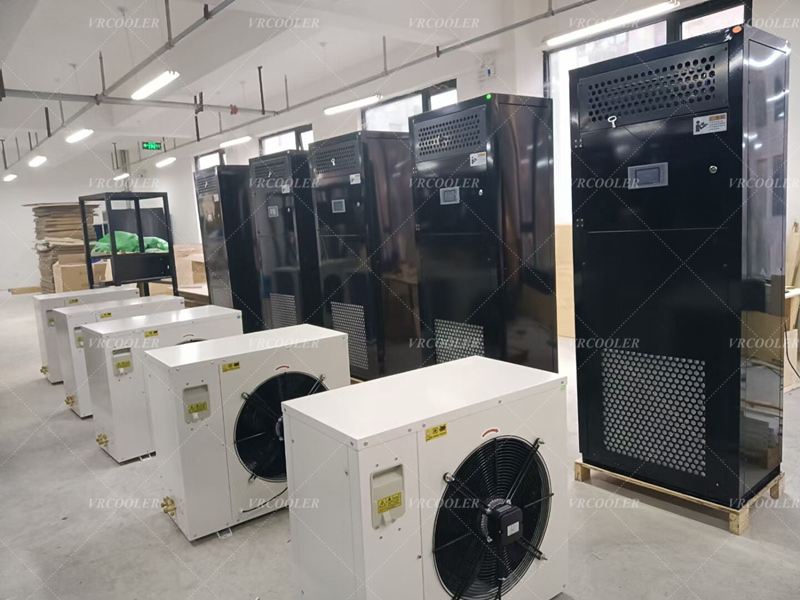

Ducted Split vs Self-Contained Wine Cellar Cooler – Which is Right for Your Project?

Self-Contained Wine Cellar Cooler: All components (compressor, evaporator, condenser, fan) are integrated into a single unit, including: Through-the-Wall, Wall Mount, and Cabinet Style. No external copper piping or ductwork is required; simply plug in to operate.

Ducted Split Wine Cellar Cooler: Consists of an indoor evaporator unit and an outdoor condenser unit, with refrigerant copper piping and insulated ductwork running between them. Cool air is delivered to every corner of the wine cellar through the ductwork, forming a professional central temperature and humidity control system.

Installation and Layout

Self-Contained Type: Simple and quick installation; wall opening/direct wall mounting required. No ductwork or long copper pipes needed. Fixed location; can only provide localized airflow. Suitable for small-area, small-volume wine cellars.

Ducted Split Type: Complex construction; requires ceiling installation, ductwork, copper pipes, insulation, and soundproofing. Can be concealed in the ceiling/equipment room; only the air outlet is visible inside the cellar. Allows for multi-point airflow; more uniform temperature and humidity in large spaces. Suitable for medium to large-sized, irregularly shaped, and high-end custom wine cellars.

Temperature & Humidity Control

Self-Contained Wine Cellar Cooler: Sufficient basic temperature and humidity control. Small temperature difference at close range, but uneven heating/cooling at long distances. Basic dehumidification, weak humidification, only meets general wine storage needs.

Ducted Split Wine Cellar Cooler: Precise temperature and humidity control, temperature ±0.5℃, accurate and stable humidity. Uniform airflow throughout the room, no dead corners, no localized overheating or dryness.

Supports professional wet film humidification and intelligent dehumidification, ideal for long-term wine storage/premium wine collecting.

Applicable Area & Cooling Capacity

Self-Contained Wine Cellar Cooler

Suitable for: Small private wine cellars of 10–60 cubic meters

Fixed cooling capacity, cannot be expanded later

Ducted Split Wine Cellar Cooler

Suitable for: Medium to large-sized commercial wine cellars and wineries of 60 cubic meters or more

Can be configured with cooling capacity as needed, can be controlled by multiple air vents in different zones

Cost & Maintenance

Self-Contained Wine Cellar Cooler: Low equipment and installation costs. Simple maintenance; whole-machine overhaul, no need for professional HVAC personnel. Medium lifespan; higher wear and tear with long-term 24/7 continuous operation.

Ducted Split Wine Cellar Cooler: High equipment + ceiling + ductwork + installation costs. Requires professional HVAC personnel for regular duct cleaning and leak detection. Industrial-grade configuration; supports 24/7/365 operation, longer lifespan.

How to Choose?

Choose Self-Contained Wine Cellar Cooler if:

Small wine cellar area, limited budget

Don't want complex ceilings or extensive construction

Ordinary home wine storage, not high-end long-term aging

Desire quick installation and simple maintenance.

Choose Ducted Split Wine Cellar Cooler if:

Medium to large wine cellars, commercial wineries, high-end villa customization

Requires extreme quietness, vibration-free operation, and concealed decoration

Collecting fine wines, requiring precise temperature and humidity control for long-term aging

Irregularly shaped wine cellars, requiring multi-point airflow and no temperature or humidity dead zones.
