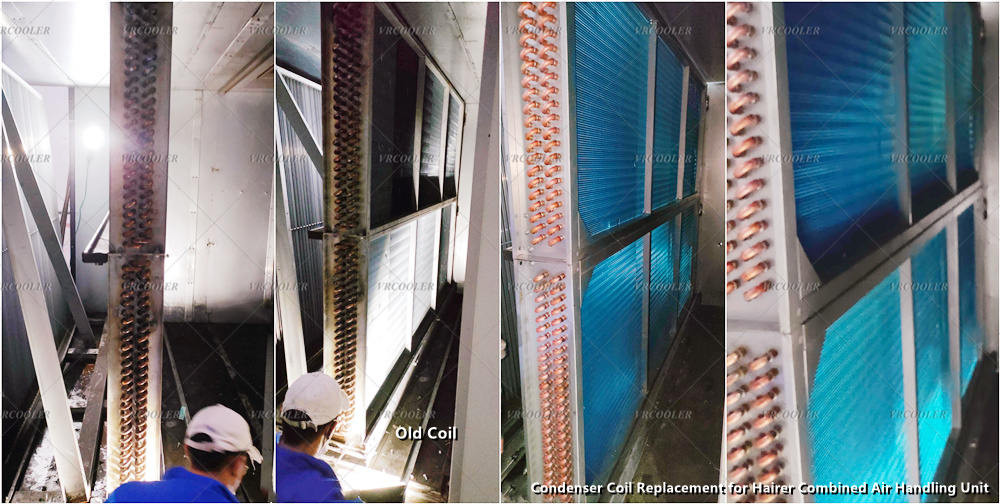

Condenser Coil Replacement for Hairer Combined Air Handling Unit

Structure and Design

Coil Material: The condenser coil is typically made of copper or aluminum tubing. Copper is a popular choice due to its excellent thermal conductivity, which allows for efficient heat transfer. The tubing is usually arranged in a serpentine or multi - row configuration. For example, in a typical commercial air - handling unit, the copper tubing may be arranged in a series of parallel rows to maximize the surface area available for heat exchange.

Fins: Fins are attached to the tubing to further increase the surface area. These fins are often made of aluminum, which is lightweight and also has good heat - conducting properties. The fins can be in the form of flat plates or corrugated structures. The corrugated design helps to disrupt the air - flow pattern around the coil, increasing the turbulence and thus enhancing the heat transfer rate. In a well - designed condenser coil, the fins can increase the effective heat transfer area by several times compared to a coil without fins.

Working Principle

Refrigerant Flow: The refrigerant, which has absorbed heat from the evaporator coil (located in the cooled space), enters the condenser coil as a high - pressure, high - temperature vapor. As it passes through the coil, the refrigerant releases its heat to the surrounding air. The refrigerant's temperature and pressure gradually decrease as it gives up its heat.

Heat Transfer to the Air: The air passing over the condenser coil absorbs the heat from the refrigerant. This is achieved through a combination of conduction (from the refrigerant through the coil tubing and fins to the air in contact with them) and convection (the movement of the air carrying away the heat). The air - flow can be either natural (due to the density differences caused by temperature gradients) or forced (using a fan). In most combined air - handling units, a fan is used to blow air over the condenser coil to ensure a sufficient rate of heat transfer.

Importance in the Air Handling Unit

Energy Efficiency: An efficient condenser coil is essential for the overall energy efficiency of the air - handling unit. If the coil is not able to release heat properly, the refrigerant will not cool down effectively, leading to increased energy consumption by the compressor (which has to work harder to maintain the desired pressure and temperature conditions). For example, a dirty or clogged condenser coil can reduce the heat transfer efficiency by up to 30%, resulting in higher energy bills.

System Performance: It affects the performance of the entire air - conditioning or refrigeration system. A properly functioning condenser coil ensures that the refrigerant cycle operates smoothly, maintaining the correct temperature and humidity levels in the conditioned space. In a combined air - handling unit used for a data center, for instance, the condenser coil helps to maintain the optimal temperature for the servers, preventing overheating and equipment failure.
