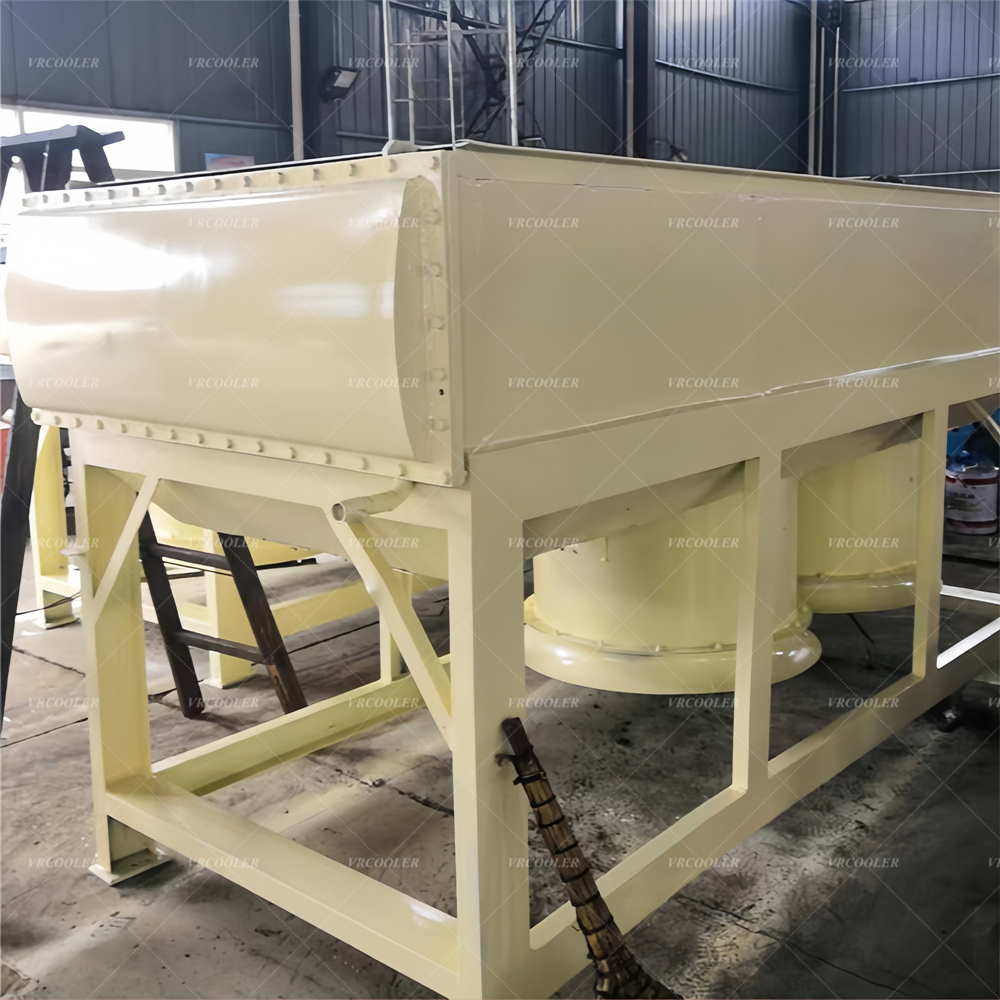

An air cooled heat exchanger for natural gas removes heat from a gas stream by passing air over a finned tube bundle. Natural gas flows inside the tubes, while ambient air moves across the external fins. Heat crosses the tube wall and fins, then leaves with the air. Fans may force the airflow when natural draft is not enough for the required duty.
This arrangement can cool natural gas without a cooling-water circuit or cooling tower. That can be useful where water is limited, water treatment is difficult or the plant prefers an air-side heat-rejection system. The design still depends on gas composition, flow, pressure, inlet temperature, required outlet temperature, ambient condition, allowable pressure drop, materials and process safety.
At CSTHEATEXCHANGER, we build air-cooled heat exchangers, dry coolers, finned-tube bundles, gas coolers, remote radiators and industrial air-cooling equipment. Our public air-cooling category includes air-cooled heat exchangers and CO₂ gas coolers, while related product information covers gas-engine remote radiators and air-cooler tube bundles.
Natural gas is a pressurized and potentially flammable process medium. An air cooler is not automatically a hazardous-area certified package, gas detector, relief system or complete process-safety system. We keep those boundaries clear. The exchanger, fan, electrical equipment, piping, controls and site layout must be reviewed by qualified process and safety engineers.
The heat exchanger has two separated flow paths. Natural gas travels through tubes designed for the gas-side pressure and temperature. Ambient air flows across the finned outside surface. The fins extend the external area so the air can remove heat from the gas with a practical coil size.
The basic cycle is:
Hot natural gas enters the tube-side header.
The gas distributes through parallel tubes or circuits.
Heat moves from the gas to the tube wall.
Heat conducts through the tube and fins.
Fans draw or push ambient air across the finned bundle.
Cooled gas leaves through the outlet header.
The warm air discharges to the surrounding atmosphere.
The gas and air do not mix during normal operation. A leak in the tube wall or header could change that separation, so leak testing and inspection are important parts of the design.
CSTHEATEXCHANGER’s Air Cooling Unit category includes air-cooled heat exchangers, dry coolers, gas coolers, remote radiators and air-cooler tube bundles. The company’s Air Cooler Tube Bundles page describes the use of ambient air to cool or condense process fluid inside tubes.
An air-cooled heat exchanger can be considered when the plant wants to reject heat without consuming cooling water. The air is available at the site, and the equipment can be installed outdoors with suitable access, structure and weather protection.
Potential reasons to consider an air cooler include:
Limited cooling-water availability.
High water-treatment cost.
Desire to avoid a cooling tower.
Remote pipeline or gas-processing installation.
Outdoor process equipment layout.
Need for a dry cooling circuit.
Integration with gas-engine or generator cooling.
Cooling or condensing a gas stream before downstream equipment.
The trade-off is ambient-air dependence. On a hot day, the air temperature may be close to the required gas outlet condition, reducing the available temperature difference. Fans also consume electricity and create noise. The equipment requires land, structural support and clearance around the coil.
We compare air cooling with water cooling or a secondary glycol loop using the full operating profile. A water-cooled exchanger may offer a different approach temperature or footprint, but it needs water, pumps, treatment and a cooling-water system. An air cooler avoids that water circuit but must be sized for the design ambient and fouled condition.
The phrase “natural gas” does not provide enough information to size the exchanger. Gas composition and operating conditions can vary between pipeline gas, wellhead gas, processed gas, fuel gas, biogas mixtures and other streams.
We request:
Gas composition and molecular weight.
Flow rate at minimum, normal and maximum load.
Inlet temperature and required outlet temperature.
Operating pressure and design pressure.
Gas compressibility and density basis.
Water vapor, condensable hydrocarbon or liquid content.
Hydrogen sulfide, carbon dioxide or other corrosive components.
Allowed gas-side pressure drop.
Ambient temperature range and design summer condition.
Fouling, dust, salt spray and site contamination.
Fan power, noise and electrical requirements.
Required operating hours and turndown.
Piping, header and maintenance constraints.
The design pressure is a mechanical requirement, while the gas flow and temperature determine the thermal duty. A small change in gas flow, inlet temperature or ambient condition can change the required tube surface and fan airflow.
CSTHEATEXCHANGER’s About Us page states that the company builds standard and heavy industrial heat exchangers for process applications, including new and replacement equipment, and can provide design data and production drawings. We use those documents after the project data is defined; we do not treat a general gas cooler image as a finished design basis.
The finned tube bundle provides the gas-to-air heat-transfer surface. The tubes hold the natural gas, while the fins expose more external area to ambient air. Tube diameter, wall thickness, tube spacing, fin material, fin pitch, number of rows and circuiting all affect heat transfer and pressure drop.
We review:
Tube-side gas velocity.
Air-side face velocity.
Fin pitch and fouling allowance.
Number of rows and coil depth.
Header and circuit arrangement.
Clean and fouled pressure drop.
Fan airflow and static pressure.
Thermal expansion and supports.
Inspection access and tube plugging strategy.
Tight fin spacing may reduce the coil footprint but can collect dust, leaves, salt and oil mist. Wider spacing may simplify cleaning but require more tube surface. The right choice depends on the air quality, heat duty, fan capacity and maintenance plan.
CSTHEATEXCHANGER’s finned-tube information includes air-cooler tube bundles, industrial coils and air-cooled equipment. Its Finned Tube Heat Exchanger category covers related finned-tube applications, including air cooling and process heat exchange.
Fans supply the air-side flow required to remove heat from the natural gas. Depending on the layout, the fans may blow air upward through the bundle or draw air across it. Forced-draft and induced-draft arrangements each affect maintenance access, fan exposure, hot-air recirculation and equipment layout.
We check:
Fan airflow and static pressure.
Fan speed control and turndown.
Motor power and electrical classification.
Fan noise and vibration.
Air recirculation around adjacent equipment.
Wind direction and seasonal performance.
Fan guards and maintenance access.
Failure response and duty/standby arrangement.
Control logic for gas temperature and high-pressure alarms.
Air recirculation can reduce cooling performance if hot discharge air returns to the coil inlet. The site layout should allow sufficient inlet and outlet clearance. Nearby walls, roofs, structures and other coolers can change the airflow pattern.
Fan controls can reduce power at part load, but the control sequence must respect the gas process. The fan may respond to outlet temperature, gas flow or plant control signals. A fan failure should create a defined alarm and process response rather than leaving the gas system without protection.
The electrical equipment, fan motor and instrumentation must meet the site’s area classification and project requirements. CSTHEATEXCHANGER’s heat exchanger product does not by itself establish hazardous-area compliance for the complete package.
Natural-gas pressure drop is a key design limit. The gas must enter and leave the exchanger without creating unacceptable compressor, regulator, pipeline or process losses.
We assess:
Tube-side pressure drop at minimum and maximum flow.
Header and nozzle losses.
Control-valve and piping losses.
Fouled and partially blocked conditions.
Gas density changes with temperature and pressure.
Startup and low-flow behavior.
Compressor or regulator operating limits.
Relief, isolation and depressurization arrangements.
The cooler should not be treated as an isolated coil. A lower gas outlet temperature may affect condensation, pressure control, downstream separators, regulators or metering equipment. The design team should confirm whether water or hydrocarbon condensate can appear as the gas cools.
A bypass may allow the process to continue when the cooler is isolated, the gas temperature is already low enough, the fan is unavailable or maintenance is in progress. The bypass arrangement must be evaluated for leakage, control response, isolation, relief and safe venting.
CSTHEATEXCHANGER supplies the exchanger and project documentation defined in the quotation. The process engineer remains responsible for the complete gas piping, relief, isolation, venting and control system.
Cooling natural gas can change the phase of water vapor or heavier hydrocarbon components. Condensation may be acceptable in a controlled separator system, or it may be undesirable if liquid reaches a regulator, compressor, meter or downstream process.
We review:
Water content and hydrocarbon dew point.
Required gas outlet temperature.
Expected condensate location.
Drainage and liquid separation.
Carbon dioxide, hydrogen sulfide or other corrosive components.
Salt spray and external atmospheric corrosion.
Tube, header, fin and casing materials.
Coatings, gaskets and joining methods.
Cleaning chemicals and inspection approach.
Stainless steel, carbon steel, copper alloys, aluminum and other materials may be considered depending on the gas composition, pressure, temperature, corrosion basis and external environment. The material selection must cover the tube wall, header, nozzle, fin, casing and all wetted or exposed parts.
CSTHEATEXCHANGER’s personalized-product information describes customization of materials, coatings and fin surfaces. The final grade, wall thickness, corrosion allowance, testing and coating should appear in the approved datasheet and fabrication documents.
An air cooler is not automatically suitable for sour gas, wet gas or corrosive gas. We need the composition and operating conditions before recommending the exchanger materials.
Air-cooled heat exchangers can be used in different natural-gas and gas-engine systems, subject to the process design.
Potential applications include:
Natural-gas process cooling.
Fuel-gas cooling before an engine or turbine.
Gas cooling after compression.
Pipeline and station gas cooling.
Gas-processing package cooling.
Condensation or partial cooling before separation.
Gas-engine and generator radiator circuits.
Biogas or treated-gas engine cooling.
Compressor aftercooler and intercooler service.
Oil and gas process air-cooler systems.
The required exchanger type depends on whether the gas is the fluid being cooled, a closed engine-water circuit is being cooled, or a separate oil or glycol circuit is rejecting heat to ambient air. These are different duties even when the site describes all of them as “natural-gas cooling.”
CSTHEATEXCHANGER’s Gas Cooler and Air-Cooling Unit information includes gas-cooler and remote-radiator categories. Its About Us page also describes heat exchangers for water, steam, refrigerant, glycol, ammonia, CO₂ and other media. We match the equipment to the actual fluid path.
We plan installation around gas piping, supports, lifting, access, fan clearance, electrical connections, instruments, insulation, drains and emergency isolation. The tube bundle should be supported for thermal expansion and structural loads, while the header and piping should not impose excessive nozzle loads.
Before commissioning, we verify:
Gas-flow direction and tube-side connections.
Design and pressure-test records.
Leak-test and inspection documentation.
Relief, isolation and depressurization interfaces.
Fan rotation, airflow and vibration.
Electrical and area-classification requirements.
Temperature, pressure and flow instrumentation.
Condensate drains or downstream separators.
Bypass and control response.
Gas detection, alarm and emergency shutdown signals.
We start at a controlled gas flow and monitor gas inlet/outlet temperature, tube-side pressure drop, fan status, ambient temperature, vibration and any condensate. Testing at more than one load point reveals how the exchanger behaves when flow and ambient conditions change.
Maintenance includes fin cleaning, fan and motor inspection, tube-bundle inspection, corrosion review, header and nozzle checks, vibration monitoring, sensor verification, gas leak testing and drain inspection. Dust, salt, insects, leaves and oil mist can reduce air-side performance.
If gas-side pressure drop rises or outlet temperature increases, we investigate fouling, fan degradation, airflow blockage, gas-flow change, condensate, control settings and tube-side restrictions. A falling performance trend is more useful than a single temperature reading.
When we review an air-cooled heat exchanger for natural gas, we ask for gas composition, flow, pressure, inlet and outlet temperature, dew-point information, allowable pressure drop, ambient condition, corrosion basis, hazardous-area requirements, fan power, noise limit, layout, cleaning access and project documentation.
CSTHEATEXCHANGER’s Air Cooling Unit category includes air-cooled heat exchangers, dry coolers, gas coolers, remote radiators and air-cooler tube bundles. Its Air Cooler Tube Bundles page describes ambient-air cooling of process fluid inside tubes. The Personalized Products page provides related customization information.
We support new and replacement gas coolers, finned-tube bundles, dry coolers and remote radiators. Contact CSTHEATEXCHANGER to discuss an air cooled heat exchanger for natural gas.
An air cooled heat exchanger for natural gas transfers heat from pressurized gas inside tubes to ambient air flowing across a finned tube bundle. The arrangement avoids a direct cooling-water circuit, but it must be designed for gas pressure, gas composition, flow, temperature, pressure drop, condensation, corrosion, fan airflow, materials and process-safety requirements. Final capacity and safe operation must come from project calculations and approved documents.
