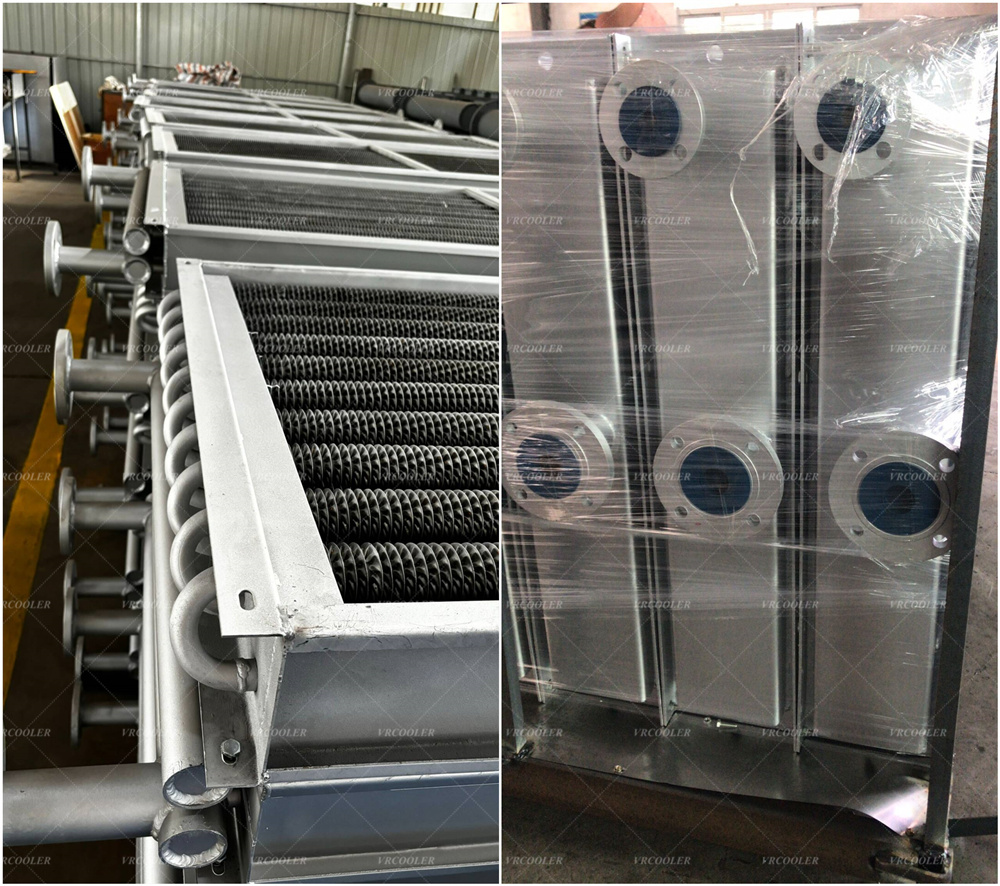

A finned tube heat exchanger for air heating transfers heat from a hot fluid inside the tubes to air flowing over the fins. The heating medium may be steam, hot water, thermal oil, refrigerant discharge gas or another process fluid. Fins increase the external surface area, which is important because air normally transfers heat less effectively than the liquid or steam inside the tubes.
At CSTHEATEXCHANGER, we build finned-tube heat exchangers, tube-and-fin coils, steam air heaters, flue-gas air heaters, air preheaters, industrial coils and customized heat-transfer equipment. The company’s public product categories cover air-side heating and cooling for HVAC, industrial processes, drying systems, combustion-air preheating and waste-heat recovery.
The basic idea is straightforward: hot fluid enters the tube circuit, air moves across the extended surface, and heat passes through the tube wall and fins into the air stream. The final coil is more than a row of tubes. We need to match heating duty, air volume, entering air condition, pressure drop, fin pitch, materials, controls and cleaning access.
Air-side heat transfer is often the limiting part of an air-heating coil. A liquid or steam circuit can transfer heat effectively inside the tube, while the air outside the tube may require a larger surface to absorb that heat. A bare-tube bank may become too large for the available casing or duct.
Fins extend the external surface. Heat moves from the tube into the fin and then from the fin surface into the air. This allows the designer to package more air-side surface into the coil face and depth.
Finned tubes are useful when:
Air is the heated process medium.
Steam, hot water or thermal oil is available.
The system has a defined airflow and temperature rise.
The plant needs a compact air heater.
A fan can provide the required airflow and static pressure.
The fin surface can be cleaned and protected.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam air heaters, flue-gas air heaters, air-cooler tube bundles, air preheaters and boiler economizers. Its Tube and Fin Coil category covers related coil arrangements.
The added surface is helpful, but it also creates resistance to airflow. A good design balances heat transfer against pressure drop, fan power, fouling and maintenance.
A typical air heater has a tube-side heating circuit and an air-side flow path. Steam, water or thermal oil enters a header and travels through one or more tube circuits. Air passes over the tubes and fins, usually in a crossflow arrangement.
The heat-transfer sequence is:
The heating medium enters at a higher temperature than the air.
Heat crosses from the internal fluid to the tube wall.
Heat conducts through the tube wall and into the fins.
The fins transfer heat to the air stream.
The warmed air leaves the coil and enters the room, duct, dryer or process equipment.
If the heating medium is condensing steam, the design must manage steam distribution, condensate drainage and non-condensable gases. If hot water or thermal oil is used, the design must manage fluid flow, temperature difference, pump head and expansion.
We check air distribution across the coil face. Maldistribution can leave some sections underheated while other sections see higher velocity and pressure drop. Headers, circuits, baffles, casing, seals and upstream duct transitions all affect the final result.
CSTHEATEXCHANGER’s published industrial-coil information states that it can build heat exchangers using water, steam, refrigerant, glycol, ammonia, CO₂ or other media. The actual heating medium, pressure and material combination must be confirmed in the project quotation and datasheet.
Steam is widely used for air heating because it can release heat during condensation. A steam finned-tube coil receives steam through a header, transfers heat through the tube wall and fins, and drains condensate through the outlet system.
A steam air heater may serve:
Industrial drying air.
HVAC air-handling units.
Process ventilation.
Combustion-air preheating.
Textile, paper or wood-drying equipment.
Food-processing air systems.
Workshops and plant heating.
The steam side needs proper distribution and drainage. We review inlet pressure, steam quality, control-valve selection, condensate return, vacuum-breaker requirements and freeze protection where applicable. A coil that cannot drain properly may lose capacity or experience water hammer and freeze damage in cold conditions.
On the air side, we calculate airflow, entering-air temperature, desired leaving-air temperature and allowable pressure drop. The fin spacing needs to reflect air cleanliness. Clean HVAC air can tolerate a different coil arrangement from dusty drying air.
CSTHEATEXCHANGER lists steam heaters and steam air heaters within its finned-tube product range. We use the heating-medium data and the air-side requirements to select tube circuits, fins, headers, casing and controls.
A hot-water air heater uses a water circuit as the heating medium. The water pump drives flow through the tubes while air passes over the fins. The water leaves cooler than it entered, and the air leaves warmer.
Hot-water coils can connect to:
Boilers.
Heat pumps.
CHP or generator heat-recovery systems.
District-heating loops.
Industrial hot-water circuits.
Solar-assisted heating systems.
Waste-heat-recovery systems.
We review entering and leaving water temperatures, water flow, pressure, water treatment, pump head and freezing risk. A low-temperature water source may need a larger coil or a lower air-side temperature rise. A high-temperature source may require materials, controls and safety devices suitable for the design condition.
The water circuit needs air removal, isolation, draining and pressure protection. The air side needs filtration, access and airflow control. If the coil is installed outdoors or in a cold unheated space, the project should define how the water circuit will be protected during shutdown.
A hot-water air heater can be simple to operate, but its performance still depends on water flow. A partially closed valve, air pocket or fouled tube circuit can reduce the temperature rise even when the water supply temperature appears correct.
A finned-tube heat exchanger can also transfer heat from flue gas to clean air. This creates a gas-to-air recovery or air-preheating system. The hot gas flows through one passage, the receiving air flows through another, and the finned surface separates the streams.
The warmed air may be used for:
Boiler combustion air.
Dryer air.
Process air.
Workshop heating.
Material preheating.
Ventilation make-up air.
CSTHEATEXCHANGER’s published finned-tube category includes flue-gas air heaters, flue-gas waste-heat recovery, air preheaters and boiler economizers. The company also publishes gas-to-gas and gas-to-water recovery routes.
We review gas composition, flow, temperature, moisture, dust, soot, ash, oil mist and corrosive components. A dirty flue gas can foul a dense finned coil quickly. A moist gas may produce condensate when cooled, which affects tube, fin, casing and drain materials.
Gas-side pressure drop is equally important. The exchanger must fit the existing fan, draft, burner, furnace or engine exhaust arrangement. A bypass may be required when the receiving-air load is unavailable, the gas is too hot or the exchanger is isolated for cleaning.
Air heating begins with the air side. We need the airflow, inlet temperature, humidity, target outlet condition and available fan pressure. The heating duty depends on the air mass flow and the required temperature increase, along with air properties and operating conditions.
We check:
Air volume or mass flow.
Entering-air temperature and humidity.
Required leaving-air temperature.
Heating-medium flow and temperature.
Coil face velocity.
Coil depth and number of rows.
Air-side pressure drop.
Fan capacity and control range.
Noise and vibration.
Clean and fouled conditions.
A deeper coil may provide more heat-transfer area but can add pressure drop. A tight fin pitch may increase surface area while making the coil more sensitive to dust. A low face velocity may reduce pressure drop but require a larger face area.
We do not use a generic capacity number without the operating conditions. The same finned-tube coil can produce different results when airflow, heating-medium temperature or entering-air condition changes.
CSTHEATEXCHANGER provides design data and production drawings for its projects, according to its published company information. We use those documents to show the selected connection, circuiting, face dimensions, supports, materials and design conditions.
Fin pitch controls the spacing between fins. Tight spacing packs more area into the coil but can raise pressure drop and collect dust. Wider spacing gives air more open passage and can make cleaning easier, although the coil may need more volume.
We choose fin pitch according to:
Air cleanliness.
Dust, fibers, ash or soot.
Coil face velocity.
Cleaning method.
Expected operating hours.
Corrosion and humidity.
Required heat duty.
Available coil depth.
Material selection includes the tube, fins, headers, casing, brazed or welded joints, gaskets, coatings and drain pan where one is needed. Aluminum, copper, carbon steel, stainless steel and other materials may be considered for different air-heating services. The right choice depends on temperature, pressure, fluid chemistry, moisture, corrosion and cleaning chemicals.
A finned coil exposed to salt air, flue gas, chemical vapors or high humidity needs a corrosion review. Coatings can help in some environments, but they do not replace proper material selection and cleaning.
CSTHEATEXCHANGER’s Personalized Products page describes customization of materials, coatings and fin surfaces. Final material and coating requirements should be stated in the approved technical documents.
Finned-tube air heaters appear in many systems because the air side is often difficult to heat with a compact bare-tube surface.
Common applications include:
Air-handling units.
Industrial drying lines.
Food and agricultural dryers.
Textile and paper machinery.
Wood and leather drying.
Spray-drying support systems.
Paint and coating booths.
Greenhouse heating.
Combustion-air preheating.
Boiler and furnace air preheating.
Process ventilation.
Generator and compressor heat-recovery air systems.
The application changes the design. A food or pharmaceutical air system may require hygiene, cleanability and material documentation. A dryer may prioritize high-temperature service and open fin spacing. An outdoor air heater may need weather protection and freeze protection. A flue-gas air heater may need soot cleaning and corrosion control.
The name “air heater” is not enough to select a coil. We need the source fluid, air quality, airflow, temperature, pressure, available space and control strategy.
We plan installation around airflow, tube-side connections, supports, expansion, access, valves, drains and insulation. The coil should sit squarely in the air path, with enough clearance for inspection and cleaning. Poor sealing around the coil can allow air to bypass the heat-transfer surface.
Before commissioning, we verify:
Airflow direction and coil orientation.
Steam, water, thermal-oil or gas connection direction.
Tube-side pressure and leak-test records.
Steam traps or water pumps where applicable.
Condensate drain and air vent arrangements.
Isolation valves and control valves.
Temperature and pressure sensors.
Fan capacity and static pressure.
Bypass damper response.
Freeze and high-temperature protection.
We start the heating circuit gradually and compare entering and leaving temperatures on both sides. A low air temperature rise may indicate low heating-medium flow, air bypass, wrong valve position, trapped air, steam drainage problems, fouling or inadequate design duty.
Maintenance includes fin cleaning, filter inspection, tube-side fluid checks, header and connection inspection, corrosion review, sensor verification and control-valve testing. A finned coil should not be cleaned with a method that bends fins or attacks the coating.
The schedule depends on air cleanliness, operating hours, humidity, heating-medium chemistry and the importance of the process. We record pressure drop and temperature performance so a gradual decline can be identified before the process loses control.
When we review a finned-tube air-heating request, we ask for the heating-medium type, inlet and outlet condition, air volume, entering and target air temperature, allowable pressure drop, air quality, materials, fin pitch, footprint, controls and maintenance plan.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam air heaters, flue-gas air heaters, waste-heat-recovery exchangers, air preheaters and boiler economizers. The Tube and Fin Coil category provides related air-heating coil options. CSTHEATEXCHANGER’s About Us page states that the company builds standard and heavy industrial heat exchangers for process applications and can provide design data and production drawings.
We support new and replacement finned-tube coils for steam, hot-water, thermal-oil and flue-gas air-heating systems. Contact CSTHEATEXCHANGER to discuss a finned-tube heat exchanger for air heating.
A finned tube heat exchanger heats air by transferring energy from a hotter tube-side medium through the tube wall and fins into the air stream. Fins provide the extended surface needed for practical air-side heat transfer. The final coil depends on airflow, heat duty, heating medium, pressure drop, fin pitch, fouling, corrosion, controls and maintenance access.
