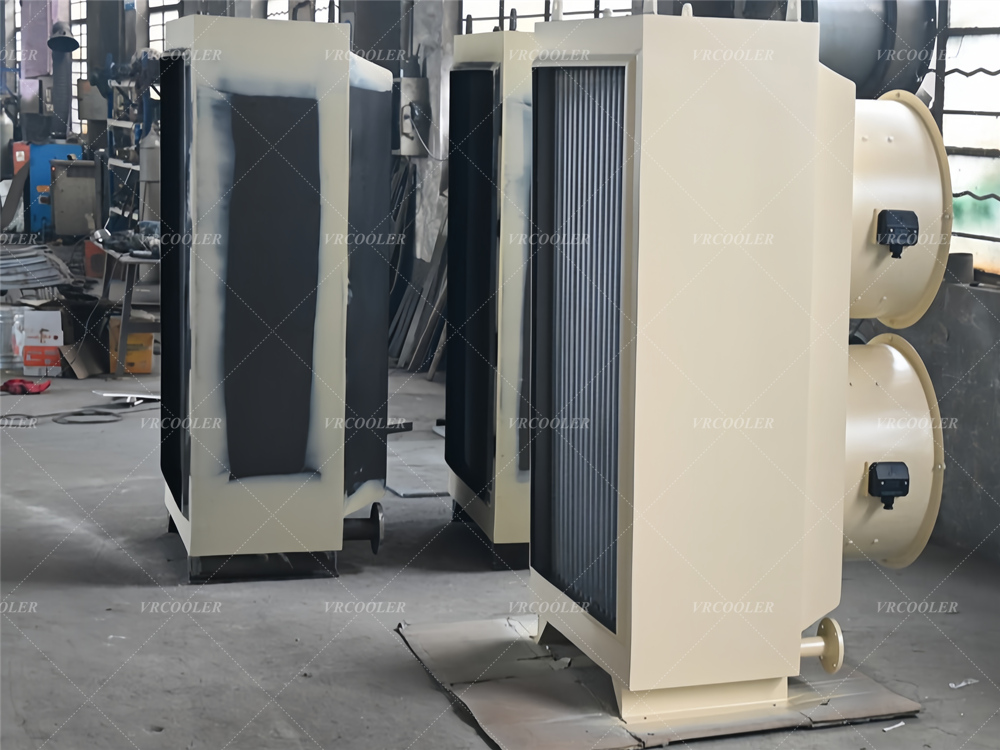

An air cooled heat exchanger for a power plant rejects heat from a closed process-fluid circuit to ambient air. A hot fluid from a generator, engine, turbine auxiliary system or other plant component flows through finned tubes. Fans move air over the external surface, and the air carries the heat away from the plant.
This dry-cooling arrangement can reduce dependence on cooling water and cooling towers. CSTHEATEXCHANGER’s published power-plant information describes an industrial dry-cooling generator system with finned-tube dry-cooler banks, circulation pumps, an expansion tank, PLC control, temperature/pressure/flow monitoring and anti-freeze protection. The system can serve generators and related auxiliary equipment, subject to project design.
The exchanger is only one part of the cooling system. We must match the cooler with the circulating fluid, pump, expansion volume, piping, fans, controls, protection and the equipment being cooled. The final result depends on heat load, ambient temperature, airflow, fluid conditions, fouling, elevation and plant operating mode.
The basic cycle uses a closed circulating loop. Hot water, glycol solution, engine coolant or another approved fluid absorbs heat from the generator or auxiliary equipment. A pump sends that fluid to the air-cooled heat exchanger. Fans draw or push ambient air across the finned tube bundle, and the fluid returns to the plant after releasing heat.
The sequence is:
The generator or auxiliary equipment adds heat to the closed-loop fluid.
The circulation pump moves the hot fluid toward the dry cooler.
The fluid passes through finned tubes inside the cooler bank.
Fans move ambient air across the fins.
Heat transfers from the fluid to the tubes, fins and air.
The cooled fluid returns to the equipment.
Controls adjust fan speed, pump operation or auxiliary equipment to maintain the required condition.
The fluid and air remain separated. The air-cooled heat exchanger does not normally consume process water for heat rejection, although a site may still have other water systems for steam production, treatment, cleaning or auxiliary services.
CSTHEATEXCHANGER’s Air Cooling Unit category includes air-cooled heat exchangers, dry coolers, remote radiators and generator-cooling products. Its published large-scale power-plant dry-cooling article describes forced air as the heat-transfer medium and a closed circulating fluid loop for generator and auxiliary-system cooling.
An air-cooled heat exchanger can be designed for different power-plant cooling duties. The fluid circuit and required temperature range change with the equipment, so the same cooler cannot be assumed suitable for every plant area.
Potential applications include:
Generator jacket-water or engine-coolant circuits.
Gas-engine and diesel-generator remote radiators.
Generator air or hydrogen cooler secondary circuits.
Turbo-generator auxiliary equipment.
Lube-oil cooler secondary loops.
Compressor and charge-air cooling systems.
Hydraulic and lubrication skids.
Transformer or electrical-equipment cooling loops.
Combined-cycle plant auxiliary systems.
Thermal-management upgrades for existing power stations.
CSTHEATEXCHANGER’s power-plant dry-cooling information describes centralized thermal management for generators and auxiliary systems. Whether one cooler can serve multiple loads depends on the heat balance, circuit temperatures, fluid compatibility, redundancy and hydraulic design.
We first identify which equipment adds heat and which circuit carries it. Generator coolant, lube oil, transformer oil, glycol and process water have different properties and must not be mixed simply because they share an air-cooling concept.
The main reason many plants consider an air-cooled heat exchanger is water availability. Dry cooling rejects heat to ambient air instead of depending on a cooling tower or once-through water supply for the same circuit.
A dry cooler may be useful where the plant faces:
Water scarcity.
High water-treatment cost.
Restrictions on wastewater discharge.
Remote location without reliable utility water.
Difficulty controlling scaling and biological growth.
Desire for a closed cooling-fluid circuit.
A retrofit project that cannot add a cooling tower.
The air-cooled option has its own requirements. It needs fan power, outdoor space, support steel, access around the coil and enough ambient temperature difference. On hot days, the air enters the cooler at a higher temperature, leaving less temperature difference for heat rejection. The plant must be designed for the selected ambient condition, not an average weather value alone.
CSTHEATEXCHANGER’s published dry-cooling article describes negligible water consumption, no cooling-tower scaling or chemical-treatment issues for the dry-cooling circuit, and suitability for water-limited power-plant sites. These are system-level advantages, not a guarantee that every plant will have the same operating cost or water profile.
The air-cooled heat exchanger must reject the heat produced by the connected equipment at the specified operating condition. We request a heat balance rather than sizing the cooler from the generator nameplate alone.
Important inputs include:
Equipment type and operating load.
Heat rejected to the cooling fluid.
Fluid type, flow rate and specific heat.
Fluid inlet and target outlet temperature.
Minimum, normal and maximum load.
Design ambient temperature.
Elevation and air density.
Fan airflow and available static pressure.
Fouling and coil-cleanliness allowance.
Required redundancy and turndown.
Pump head, expansion volume and pipe losses.
Winter freeze-protection requirements.
The plant may operate at full load during a hot afternoon, partial load at night and emergency or standby conditions at other times. The cooler should be reviewed across those modes. A design that works at moderate ambient may not provide the same fluid outlet condition at the selected summer design temperature.
CSTHEATEXCHANGER’s published generator-cooling information states that customized solutions can be developed according to unit capacity, site layout, local climate and technical standards. We use those variables in the thermal calculation and equipment layout.
The core of an air-cooled heat exchanger is usually a tube bundle with extended external fins. The plant fluid passes through the tubes, while fans move air over the finned surface. The fins increase the external heat-transfer area and allow a practical air-side cooler package.
We review:
Tube material and wall thickness.
Fin material, height and pitch.
Tube spacing and coil depth.
Number of rows and circuiting.
Header arrangement and nozzle direction.
Clean and fouled air-side pressure drop.
Fluid-side pressure drop.
Thermal expansion and support points.
Coil cleaning access and replacement route.
A tight fin pitch can provide more area in a compact coil but may collect dust, pollen, leaves, oil mist or salt. A more open pitch may improve cleanability and reduce blockage, though it can increase the required coil volume. The correct choice depends on the site air quality and maintenance plan.
CSTHEATEXCHANGER’s Air Cooler Tube Bundles page describes ambient-air cooling of process fluid inside tubes. Its Finned Tube Heat Exchanger category provides related finned-tube solutions for industrial air cooling and heat transfer.
Fans supply the air needed to carry heat away from the bundle. Fan arrangement affects access, noise, hot-air recirculation, electrical consumption and winter operation.
We assess:
Fan airflow and static pressure.
Fan motor rating and electrical requirements.
Variable-speed control or staged operation.
Duty/standby fan arrangement.
Fan guards and safe access.
Noise near plant boundaries.
Wind direction and discharge-air recirculation.
Vibration monitoring.
Fan failure alarms and fallback logic.
Air recirculation is a common layout risk. If hot discharge air returns to the coil inlet, the effective ambient temperature becomes higher and cooling performance declines. Nearby buildings, walls, stacks and other coolers can change the airflow pattern.
A PLC can coordinate fans, pumps, bypass valves, alarms and temperature signals. CSTHEATEXCHANGER’s published dry-cooling generator system lists an intelligent PLC control cabinet and temperature, pressure and flow monitoring modules. The control sequence must still be developed around the plant’s equipment-protection logic and operating philosophy.
Fan control should not hide a mechanical or hydraulic problem. If the fans run at full speed but the fluid remains too hot, we investigate airflow blockage, coil fouling, pump flow, incorrect valves, air recirculation, high ambient or a change in connected heat load.
An air-cooled heat exchanger normally forms part of a closed fluid circuit. The circuit may use treated water, glycol solution, engine coolant or another fluid specified for the equipment.
The system usually needs:
Circulation pump or pump set.
Expansion tank or expansion vessel.
Isolation and balancing valves.
Air separator or vent points.
Drain and fill connections.
Strainer or filtration where appropriate.
Pressure, temperature and flow instruments.
Anti-freeze or heat-tracing provisions.
Relief and protection devices.
The fluid must remain compatible with tubes, headers, seals, pumps and the connected equipment. Inadequate water treatment can cause corrosion or deposits. Excessive glycol concentration can change viscosity, heat transfer and pump power. The correct fluid and concentration belong in the project design, not in a generic equipment label.
We also check air removal and filling. Trapped air can reduce flow through part of the coil, increase pump noise and create inaccurate temperature readings. A clean, balanced circuit usually performs more predictably than a larger cooler with poor hydraulic commissioning.
A power plant may experience cold ambient conditions even when the process normally operates at high load. A dry-cooling loop that contains water can freeze if pumps stop, the circuit is isolated or the heat source is unavailable.
We review:
Minimum ambient temperature.
Fluid freezing point.
Glycol or antifreeze selection.
Low-temperature circulation.
Drain-down arrangements.
Heat tracing and insulation.
Fan control during cold weather.
Standby and emergency modes.
Restart after an extended shutdown.
The heat exchanger casing, fins, headers, valves and supports also face outdoor weather. Coastal sites may need a corrosion review for salt spray. Dusty or agricultural locations may require more open fin spacing and frequent cleaning. High-altitude sites need an air-density adjustment in the fan and thermal calculations.
CSTHEATEXCHANGER’s published generator dry-cooling information lists anti-freeze pipelines and safety-protection components. The exact freeze strategy depends on fluid, climate, piping layout and the plant’s shutdown sequence.
We plan installation around lifting, foundation or support steel, coil-bank access, fan clearance, piping, electrical connections, drainage and maintenance routes. The support structure must accommodate equipment weight, wind loads, vibration and thermal movement according to the project requirements.
Before commissioning, we verify:
Cooler orientation and fluid-flow direction.
Tube-side pressure-test and leak-test records.
Pump rotation, flow and suction conditions.
Expansion-tank charge and fluid level.
Air removal and circuit filling.
Fan rotation, airflow, vibration and guards.
Temperature, pressure and flow sensors.
PLC sequence, alarm and interlock logic.
Anti-freeze and low-temperature protection.
Duty/standby changeover and emergency response.
We start at a controlled load and record fluid inlet/outlet temperature, ambient temperature, pump status, fan speed, pressure drop and flow. Testing at multiple load points helps confirm that the system responds to both heat-load changes and ambient conditions.
The air cooler should be commissioned with the generator or connected equipment under a defined operating procedure. It should not be accepted solely because the fans rotate. The plant team needs stable fluid flow, correct controls, acceptable vibration, tested alarms and documented operating values.
Dry cooling removes many wet-cooling tasks, but it does not eliminate maintenance. Finned coils collect outdoor contamination. Fans, motors, bearings, pumps, valves, sensors and fluid quality still affect availability.
A practical maintenance plan includes:
Coil-face inspection and fin cleaning.
Fan, motor, bearing and guard inspection.
Vibration and unusual-noise checks.
Pump, valve and strainer inspection.
Fluid concentration and water-quality checks.
Expansion-tank and pressure review.
Corrosion and coating inspection.
Sensor calibration or functional checks.
Bypass and alarm testing.
Winter-protection inspection.
Pressure-drop and temperature-trend review.
Cleaning must suit the fin material and coating. Excessive water pressure can bend fins. Salt, oil mist and sticky dust may require a defined cleaning chemical and wastewater procedure. The maintenance team should keep access around the coil and fan deck clear.
A rising fluid outlet temperature or air-side pressure drop may point to fouling, fan degradation, pump-flow loss, air recirculation or higher plant load. Trend data helps the team find the cause before the equipment reaches a protective limit.
When we review an air-cooled heat exchanger for a power plant, we request equipment heat loads, fluid data, design ambient, site elevation, operating modes, required outlet conditions, fan power, noise limits, corrosion exposure, freeze risk, layout, redundancy and project standards.
CSTHEATEXCHANGER’s Industrial Dry Cooling Generator System article describes finned-tube dry-cooler banks, circulation pumps, an expansion tank, PLC control, monitoring modules and anti-freeze protection for large power-plant thermal management. The Air Cooling Unit category lists air-cooled heat exchangers, dry coolers, remote radiators and generator-cooling products.
We support new and replacement air coolers, dry coolers, remote radiators, generator coolers and finned-tube bundles. Contact CSTHEATEXCHANGER to discuss an air cooled heat exchanger for your power plant.
An air cooled heat exchanger for a power plant transfers heat from a closed fluid circuit to ambient air through finned tubes and fans. It can support generators and auxiliary equipment while reducing dependence on a water-cooling circuit. The design must still account for heat load, ambient temperature, airflow, fluid chemistry, pressure drop, freeze protection, redundancy, controls, maintenance and plant-protection requirements.
