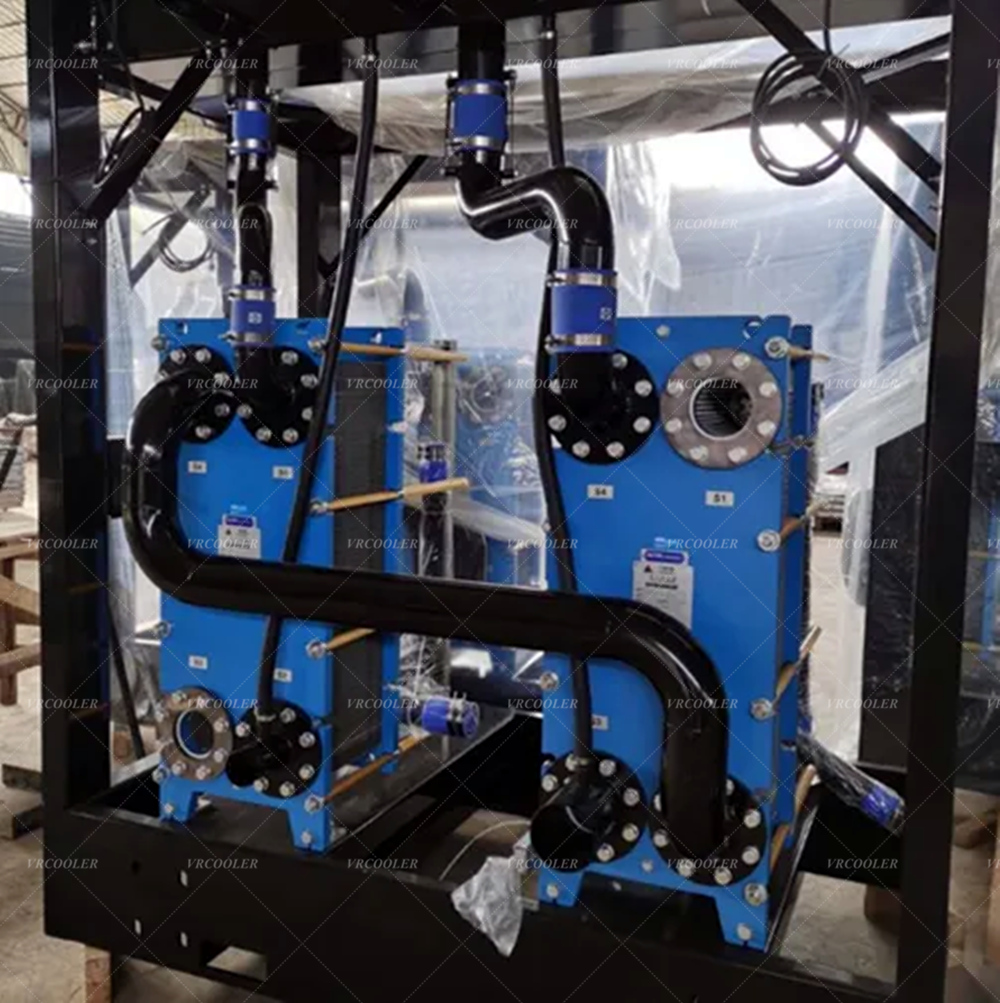

An engine cooling skid for a gas generator with dual-circuit HT/LT jacket-water radiators separates two cooling duties: the HT circuit removes heat from the engine block and cylinder heads, while the LT circuit handles lower-temperature components such as charge-air or intercooler cooling. A skid brings the pumps, heat exchangers, valves, instruments and connections into a coordinated package. A remote radiator then rejects the heat to ambient air, or a separate cooling-water circuit removes it through a heat exchanger.
At CSTHEATEXCHANGER, we work with generator cooling skids, plate and shell-and-tube heat exchangers, remote radiators, air coolers and generator-cooling equipment. Our published generator cooling skid information describes diesel-generator jacket-water cooling using a plate heat exchanger or shell-and-tube heat exchanger. CSTHEATEXCHANGER’s published MTU gas-engine references identify independent HT and LT closed cooling circuits, with the HT circuit serving jacket water and the LT circuit serving a lower-temperature engine circuit.
The two circuits should not be combined simply because both carry water or glycol. They have different temperature levels, flow requirements and engine connections. In this guide, we explain how a dual-circuit skid works, how the radiator and heat exchangers fit together and what we check before a project is released for fabrication.

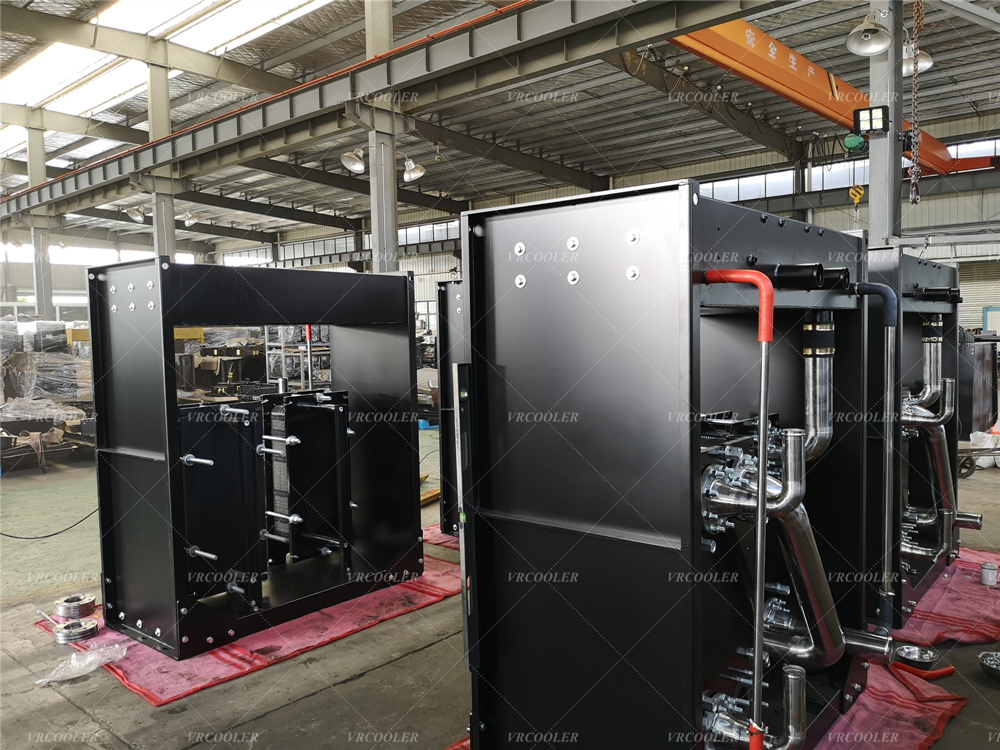

An engine cooling skid is a packaged module that manages heat transfer between the gas engine and the final heat-rejection equipment. It may include pumps, plate heat exchangers, shell-and-tube heat exchangers, expansion vessels, valves, strainers, sensors, control panels and pipe headers on a common frame.
A skid can connect the engine to a remote radiator when the generator cannot use a local engine-mounted radiator. It can also separate the engine’s closed cooling circuits from a plant or remote radiator circuit. The heat exchanger provides hydraulic separation while transferring heat from the engine coolant to water or glycol on the radiator side.
Typical skid functions include:
Circulating HT jacket water through the engine block and cylinder heads.
Circulating LT coolant through the intercooler or low-temperature engine circuit.
Transferring heat through plate or shell-and-tube heat exchangers.
Feeding a remote radiator or dry cooler.
Managing expansion, filling, venting and draining.
Monitoring flow, pressure and temperature.
Protecting the engine during pump, fan or radiator faults.
Providing service isolation and connection points.
CSTHEATEXCHANGER’s Generator Cooling Skid page describes a diesel-generator jacket-water skid using a plate heat exchanger or shell-and-tube heat exchanger. For a gas generator, the same packaged concept may be developed for the engine manufacturer’s HT/LT diagram, but the final pump, exchanger and radiator duty must be calculated from the actual engine.
HT and LT refer to two temperature levels or cooling circuits. The exact definition varies by engine manufacturer, but the general arrangement is clear: the HT loop serves higher-temperature engine components, while the LT loop serves lower-temperature components.
The HT circuit normally cools the engine block, cylinder liners, cylinder heads and other high-temperature areas. It keeps the engine structure and combustion-zone components within their approved cooling range. The jacket water absorbs heat and travels to the skid or radiator interface.
The HT circuit may include a pump, thermostat, expansion vessel, deaeration path, safety valve, temperature sensor and heat exchanger. We confirm the engine’s required flow, temperature control, pressure and connection locations before selecting these components.
The LT circuit commonly cools charge air through an intercooler or aftercooler and may serve other low-temperature engine components. Lower coolant temperature can support the intake-air cooling arrangement, but the actual target belongs to the engine design.
The LT circuit may require a separate pump, heat exchanger, radiator section and control valve. It may also have a different glycol concentration, flow rate or temperature condition from the HT loop. Mixing the circuits can reduce control accuracy and may cause one circuit to operate outside its intended condition.
CSTHEATEXCHANGER’s published MTU gas-engine remote-radiator reference describes two independent closed cooling coils inside one unit. It identifies the HT circuit with jacket water for the engine block and cylinder heads and the LT circuit with a lower-temperature engine circuit. We use this as an application reference, not as a universal engine specification.
The dual-circuit system has two separate coolant paths, even when both circuits reject heat through one remote radiator frame. The radiator can contain independent coil banks, or the skid can use separate heat exchangers connected to a common radiator or dry-cooler arrangement.
A typical HT path works like this:
The HT pump circulates coolant through the engine jacket-water circuit.
The coolant absorbs heat from the engine block and cylinder heads.
Hot HT coolant returns to the cooling skid.
A plate or shell-and-tube heat exchanger transfers the heat to the radiator-side fluid, or the HT radiator coil rejects heat directly to air.
Cooled HT coolant returns to the engine.
The LT path follows the same general sequence, but the coolant serves the lower-temperature circuit:
The LT pump circulates coolant through the intercooler or LT engine circuit.
The coolant absorbs charge-air or component heat.
Hot LT coolant returns to the skid or LT radiator section.
Heat transfers to ambient air or a secondary fluid.
Cooled LT coolant returns to the engine circuit.
The two circuits operate independently. Controls can modulate fans, pumps or valves according to each circuit’s temperature and flow condition. The radiator frame may be shared, but the coil connections, headers and control signals must remain identifiable and serviceable.
There are two common project arrangements.
In a direct arrangement, HT and LT coolant flow from the engine through separate radiator coils. The radiator is usually a dry cooler or remote radiator with independent coil banks and fan sections. This reduces the number of intermediate heat exchangers, but the radiator coolant circuits must match the engine coolant requirements.
We review coil material, pressure, glycol concentration, flow, fan airflow, ambient condition, expansion and pipe distance. Long pipe runs add resistance, heat loss and air-venting requirements.
In an indirect arrangement, engine-side HT and LT coolant circuits exchange heat through plate or shell-and-tube heat exchangers. A separate water or glycol circuit connects the skid to the remote radiator. This can isolate the engine from the remote loop, simplify plant-side fluid treatment and make the radiator circuit easier to maintain.
The heat exchanger adds pressure drop and a second fluid circuit. We therefore check pump head, flow, heat-transfer area, leakage protection, service access and control response. A plate heat exchanger may be compact, while a shell-and-tube exchanger may be selected for a different pressure, material, service or maintenance requirement.
CSTHEATEXCHANGER’s generator cooling skid page identifies both plate heat exchanger and shell-and-tube heat exchanger options. The selection depends on the engine data, coolant, pressure, temperature, fluid quality and project requirements.
The main reason is temperature control. The HT circuit and LT circuit do not remove the same type of heat at the same temperature. If the circuits are combined without proper hydraulic and thermal analysis, the low-temperature circuit may become too warm or the high-temperature circuit may lose its intended control range.
Separate circuits allow us to manage:
Different coolant temperatures.
Different flow rates and pump duties.
Separate fan or valve control.
Independent alarms and protective limits.
Distinct radiator coil banks.
Different fouling or maintenance conditions.
Engine-manufacturer-specific connection requirements.
A separate LT circuit can also improve charge-air cooling control. If the LT coolant becomes too warm, intake-air temperature may rise and affect engine operation. The engine controls and cooling skid must work together; the radiator alone cannot guarantee engine performance.
The two circuits may share a frame, fan bank, electrical panel or expansion arrangement where approved, but shared parts need a clear failure analysis. If one fan fails, we determine how it affects the HT and LT coil sections. If a common pump or control panel fails, the engine protection system must respond correctly.
We size each circuit from its own heat load and hydraulic condition. Generator electrical output alone does not tell us the required radiator capacity. We need engine fuel, load, coolant flow, temperature, ambient condition, radiator location and pipe arrangement.
The design review normally includes:
Engine model and manufacturer cooling diagram.
Electrical output and operating load profile.
HT coolant type, flow and temperature.
LT coolant type, flow and temperature.
Heat duty for each circuit.
Design ambient temperature and altitude.
Glycol concentration and water quality.
Pipe length, diameter and elevation.
Allowable pressure drop.
Pump head and motor data.
Radiator coil material and circuiting.
Fan airflow, speed control and redundancy.
Expansion, fill, vent and drain requirements.
Control-system and alarm interfaces.
We do not add the HT and LT heat duties and assume the resulting total can be handled by any radiator with the same nominal size. The two circuits must retain their own flow and temperature performance. The radiator’s overall capacity is only meaningful when its coil split, fan airflow and operating conditions are defined.
For a replacement radiator or skid, we also request drawings, photographs, connection dimensions, nameplate data, pipe route and maintenance history. A new dual-circuit unit must fit the existing engine and plant interfaces, not only match the outside frame.
The skid’s pumps establish flow through the HT and LT circuits. Pump selection affects pressure, temperature distribution, electrical consumption, seal reliability and engine protection. We check whether the project needs separate duty pumps, standby pumps or a common pump arrangement with isolation.
The heat exchangers separate engine coolant from radiator-side fluid when an indirect system is used. We select plate or shell-and-tube construction from fluid quality, pressure, temperature, materials, cleaning access and project specification.
The radiator fans move ambient air across the HT and LT coil banks. Fan speed can be fixed, staged or variable. Control may respond to the warmer circuit, each circuit separately or the engine control philosophy. We check whether the fan bank can maintain sufficient airflow when one module is unavailable.
Sensors may include:
HT supply and return temperature.
LT supply and return temperature.
HT and LT flow status.
Pump status and differential pressure.
Radiator-side supply and return temperature.
Ambient air temperature.
Heat-exchanger pressure drop.
Expansion-tank level or pressure.
Fan status, speed and motor protection.
The skid control panel should clearly identify HT and LT connections and alarms. A common control signal that hides which circuit is overheating makes fault finding harder.
We install the cooling skid and remote radiator according to the approved layout, engine piping diagram and lifting plan. The frame needs suitable support, vibration control, pipe flexibility, drain access and maintenance clearance. Long vertical pipe runs require careful venting and expansion management.
Before commissioning, we check:
HT and LT connections against the approved drawings.
Pipe size, flow direction and valve position.
Heat-exchanger orientation and service clearance.
Radiator coil identification and fan guards.
Pump rotation, isolation and standby arrangement.
Expansion vessels, vents, drains and fill points.
Coolant concentration and cleanliness.
Sensor location, wiring and control signals.
Fan staging and response to HT/LT temperatures.
High-temperature, low-flow and pump/fan-failure alarms.
Leak and pressure-test records.
Engine response at approved operating loads.
We fill and vent the circuits carefully. Air pockets can reduce flow, create noise, cause pump cavitation and make temperature readings unreliable. The HT and LT circuits should be commissioned separately before they are tested together under generator load.
The final test should record each circuit’s inlet and outlet temperature, flow, pressure and radiator-side conditions. A single ambient reading or total frame capacity does not confirm that both circuits are working correctly.
A dual-circuit cooling skid needs a maintenance plan that identifies HT and LT equipment separately. We monitor temperatures and flow trends so a small change in one circuit does not remain hidden behind an acceptable total radiator temperature.
Routine checks include:
Inspecting HT and LT coolant levels and concentration.
Checking pump operation, seals and vibration.
Cleaning radiator coil surfaces and fan guards.
Checking fan blades, motors and control response.
Inspecting headers, valves, fittings and supports.
Checking heat-exchanger pressure drop and leakage.
Testing flow switches and temperature sensors.
Inspecting insulation, drains, vents and expansion equipment.
Reviewing alarm and shutdown history.
Comparing current data with commissioning records.
If the HT circuit runs hot while LT remains normal, we check HT flow, pump condition, air pockets, radiator coil fouling, valve position and engine load. If LT runs hot, we check the intercooler circuit, LT pump, heat-exchanger performance, fan control and charge-air load.
If both circuits rise together, we review ambient temperature, fan operation, common radiator airflow, coolant condition, remote pipe resistance and any shared control or electrical problem. The fault may be in the radiator, skid, engine, sensors or operating condition.
CSTHEATEXCHANGER supports new and replacement heat-exchanger projects. We use inspection findings and operating history to decide whether the repair should address a pump, fan, heat exchanger, coil, valve, sensor or complete skid.
When we review a gas-generator HT/LT cooling request, we ask for the engine model, cooling diagram, HT and LT flow/temperature data, coolant, ambient design condition, radiator location, pipe routing, controls, required redundancy and installation space.
CSTHEATEXCHANGER’s Generator Cooling Skid page describes jacket-water cooling using a plate heat exchanger or shell-and-tube heat exchanger. The Generator Cooler category includes generator air coolers, lube-oil coolers, hydrogen coolers and related power-equipment cooling products. CSTHEATEXCHANGER’s published MTU 20V4000L64FNER HT/LT remote-radiator reference describes independent HT and LT closed cooling coils, with the HT circuit for jacket water and the LT circuit for the lower-temperature engine loop.
We support new and replacement heat-exchanger projects, custom coil and radiator design, plate or shell-and-tube heat-exchanger selection and production drawings. Contact CSTHEATEXCHANGER to discuss a dual-circuit gas-generator cooling skid and HT/LT jacket-water radiator.
A dual-circuit gas-generator cooling skid separates the HT jacket-water duty from the LT intercooler or low-temperature duty, then transfers each circuit’s heat to a remote radiator or secondary cooling loop. The most important design work is matching each circuit’s flow, temperature, pressure drop, radiator coil, pump, fan and control logic to the engine manufacturer’s requirements. Final ratings and protection settings must come from the approved engine data and project documents.
