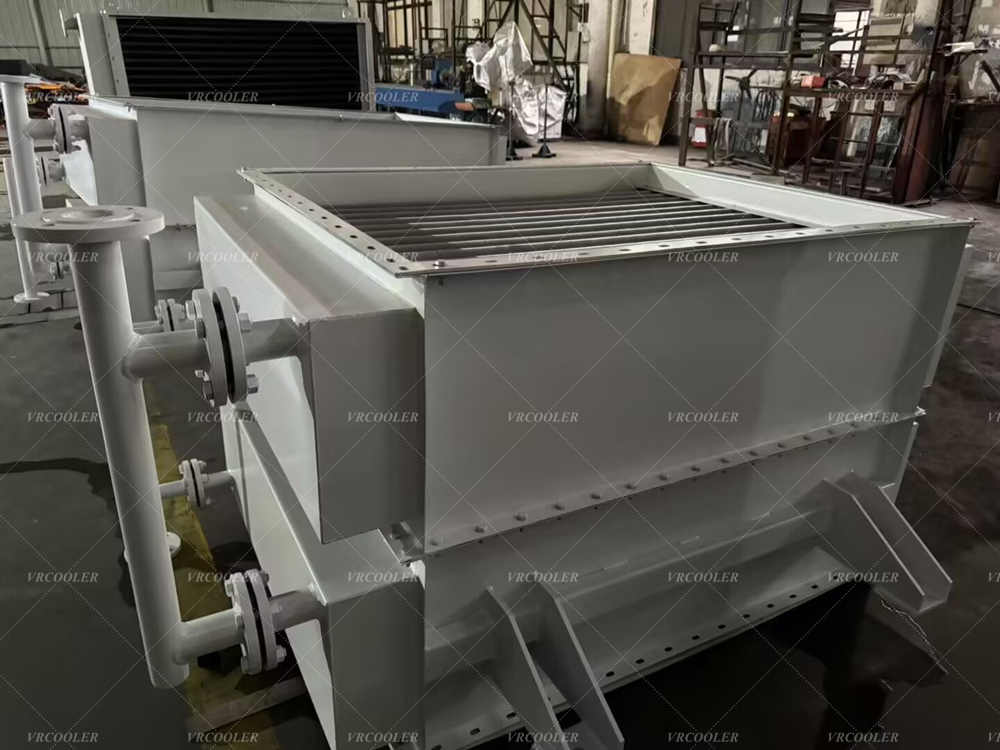

A finned steam coil air preheater uses condensing steam inside tubes to heat air flowing over a finned external surface. Steam enters the coil, releases latent heat as it condenses, and the tube wall and fins transfer that heat to the air. The warmed air then moves to an air-handling unit, dryer, combustion system, process chamber or ventilation zone.
The fins matter because air is usually the limiting heat-transfer side. A bare tube exposes less outside area, while a finned coil provides a larger surface in the same general casing. This helps the air preheater deliver a useful temperature rise without relying on an unnecessarily long or bulky bare-tube bank.
At CSTHEATEXCHANGER, we build finned-tube heat exchangers, steam heaters, steam-air heaters, tube-and-fin coils, air preheaters and industrial heat-transfer equipment. We treat the coil, steam circuit, condensate system, airflow, fan and controls as one package. A steam coil cannot be selected from steam pressure alone.
The final design depends on air volume, entering air temperature, required outlet condition, steam pressure and quality, condensate drainage, air-side pressure drop, fin pitch, materials, fouling and maintenance access.
A finned steam coil air preheater has two separate flow paths. Steam flows inside the tubes. Air moves across the outside of the tubes and fins. The two media do not mix.
The heat-transfer sequence is:
Steam enters the tube circuit through a header.
Steam condenses and releases heat inside the tubes.
Heat conducts through the tube wall and into the fins.
The fins transfer heat to air moving across the coil.
Condensate leaves through the drain connection.
Warmed air exits the coil and enters the downstream process.
Because condensing steam can release a large amount of heat at a relatively stable saturation condition, steam coils are common for air heating. The result still depends on steam distribution, condensate removal and air-side flow. A coil with poor drainage can lose useful surface and experience unstable operation even when the steam supply is available.
We check steam entry, tube circuiting, air vents, drain points, traps, control valves and downstream air distribution. The coil face should receive a reasonably even airflow; otherwise, part of the surface may be underused while other parts see higher velocity and pressure drop.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters and steam-air heaters alongside flue-gas heaters, air preheaters and other industrial finned equipment.
The heating medium inside a steam coil transfers heat to the tube wall effectively during condensation. The external air side usually presents a greater thermal resistance. Fins increase the area that contacts the air and help the coil transfer heat without adding a full additional tube for every increment of surface.
Fins can help with:
Compact coil layout.
Higher external heat-transfer area.
Practical air-side heat transfer.
Reduced bare-tube length for a selected duty.
Flexible coil depth and face-area design.
Heating air with limited installation space.
Fins also introduce trade-offs. A tight fin pitch can increase pressure drop and collect dust, fibers or oil mist. A deeper coil can increase fan power. A damaged fin can restrict airflow or reduce local heat transfer. The material, fin thickness, attachment method and coating must suit the steam temperature, air quality, humidity and cleaning method.
We select fins as part of the coil calculation. We do not assume that adding the highest possible fin density produces the best air preheater. The fan, duct, filter, coil, steam valve and condensate system have to work together.
The steam side provides the heat source. We need to know steam pressure, temperature or saturation condition, quality, flow availability and whether the supply is steady during the complete operating range.
We also review:
Steam inlet connection and circuit arrangement.
Steam control valve and turndown range.
Condensate outlet location.
Trap type and return pressure.
Air venting and non-condensable removal.
Water hammer risk.
Freeze protection on the air side.
Pressure-test requirements.
The steam pressure does not by itself define the coil capacity. Air volume and inlet condition determine how much heat the air stream needs. A large steam supply cannot compensate for poor airflow, bypass around the coil, restricted condensate drainage or an undersized heat-transfer surface.
If the air preheater operates at low outdoor temperature, the coil and drain system need protection against freezing. Even though the heating medium is steam, cold air, a closed valve, a fan trip or trapped condensate can create a vulnerable condition.
CSTHEATEXCHANGER provides design data and production drawings for its heat-exchanger projects, according to its published company information. We use the approved steam and air conditions to determine the tube circuit, fin pattern, headers, casing and connections.
A steam coil must remove condensate as it forms. The condensate outlet cannot be treated as an afterthought. Poor drainage can flood part of the tube circuit, reduce heat-transfer area, cause temperature instability, create water hammer or contribute to freezing during shutdown.
We review:
Coil orientation and tube slope.
Condensate outlet location.
Trap selection and differential pressure.
Return-system pressure.
Drain pipe size and routing.
Air venting.
Vacuum-breaker requirements.
Shutdown and freeze-protection sequence.
Access for trap inspection.
The control sequence should coordinate steam admission, air fan operation and condensate drainage. For example, closing the steam valve without considering trapped condensate can create a difficult restart condition in a cold air stream.
The final trap and return arrangement belongs to the plant steam engineer and approved piping design. CSTHEATEXCHANGER supplies the coil and connection data defined in the technical documents; the complete steam and condensate network must be integrated at site.
A well-drained coil normally responds more predictably to the control valve. If leaving-air temperature is unstable, we check steam pressure, valve position, trap condition, air vents, airflow, sensor location and coil cleanliness instead of assuming the finned surface is the only problem.
The air side determines how much heat the preheater must transfer. We request the air volume or mass flow, entering temperature, humidity, target outlet temperature and allowable pressure drop.
We also check:
Coil face velocity.
Number of rows and coil depth.
Fin pitch and external surface.
Air-side pressure drop.
Fan static pressure and control range.
Filter pressure drop.
Duct transitions and mixing quality.
Bypass leakage around the coil.
Noise and vibration.
Operating conditions at minimum and maximum airflow.
A deeper finned coil can provide more surface but may require more fan pressure. A tight fin pitch can increase area while reducing open airflow passages. A low face velocity can improve distribution but may require a larger coil face.
We calculate clean and fouled conditions. Dust, fibers, flour, paper particles, oil mist and outdoor contamination can reduce airflow through a finned coil. Filters may protect the coil, but the filter itself adds pressure drop and needs scheduled maintenance.
Air preheater performance should be assessed at the actual operating points. A test at full airflow and full steam does not describe every part-load condition.
Material selection covers tubes, fins, headers, casing, supports, gaskets, drain pans and coatings. Copper, aluminum, carbon steel, stainless steel and other materials may be considered depending on steam conditions, air quality, humidity, corrosion exposure and cleaning chemicals.
We review the external air environment:
Clean conditioned air.
Outdoor air with salt spray.
Dust from a factory or warehouse.
Fibers from textile or paper production.
Flour or food-process particles.
Chemical vapors.
High humidity and condensation.
Oil mist or sticky deposits.
Fin pitch should match that environment. Open spacing can be easier to clean in dirty air, while a tighter arrangement may support a compact clean-air coil. Coatings may help in selected conditions, but they do not replace correct material choice or maintenance.
CSTHEATEXCHANGER’s Tube and Fin Coil category and Personalized Products page provide related coil and customization information. The final material, coating, fin spacing and joining method should be stated in the approved datasheet.
A finned steam coil air preheater can serve any process that needs controlled warm air and has a suitable steam supply.
Typical applications include:
Air-handling units.
Industrial ventilation and make-up air.
Drying chambers and drying lines.
Food and agricultural processing.
Textile and paper machinery.
Wood and leather drying.
Paint and coating rooms.
Greenhouses and controlled-environment spaces.
Boiler or furnace combustion-air preheating.
Process-air heating.
Workshops, warehouses and plant heating.
The application determines the coil specification. A food or pharmaceutical air system may require cleanable surfaces and material documentation. A dryer may need high-temperature operation and an open fin pitch. A combustion-air preheater must be evaluated with the burner and draft system. An outdoor make-up-air unit needs weather protection and freeze control.
The phrase “steam coil air preheater” describes the basic arrangement, not a universal product size. We need the air system data and steam data before recommending the coil face, rows, circuiting or material.
We plan the installation around air distribution, steam piping, condensate drainage, supports, expansion, valves, insulation and access. The coil should seal against its casing so air cannot bypass the finned surface. Upstream duct transitions should avoid severe turbulence across the coil face.
Before commissioning, we verify:
Coil orientation and airflow direction.
Steam inlet and condensate outlet connections.
Tube-side pressure and leak-test records.
Steam trap, vent and return arrangement.
Control-valve operation and fail position.
Fan interlock and freeze-protection sequence.
Airflow and static-pressure readings.
Temperature-sensor placement.
Coil casing, seals and access doors.
Alarm and shutdown signals.
We open the steam circuit gradually and monitor steam pressure, condensate discharge, entering-air temperature, leaving-air temperature, airflow and pressure drop. A large temperature difference across one section of the face can indicate air maldistribution, trapped air, low steam flow, blocked tubes or a sensor problem.
The air preheater should be tested at several airflow and control-valve positions. The plant team should document the normal operating range, startup sequence, shutdown sequence and freeze response.
Finned surfaces collect dust when filters are dirty or the air stream carries particles. We inspect and clean the coil according to air quality and operating hours. The cleaning method must suit the fin material and coating; aggressive pressure can bend the fins and reduce airflow.
Maintenance includes:
Visual inspection of fins, tubes, headers and casing.
Filter inspection and replacement.
Fin cleaning and straightening where appropriate.
Steam-trap and condensate-drain inspection.
Control-valve and sensor testing.
Leak checks and corrosion review.
Air-side pressure-drop trending.
Steam-pressure and temperature review.
Freeze-protection test before cold weather.
Verification of insulation and seals.
A falling air temperature rise may result from reduced steam flow, poor condensate drainage, low airflow, coil fouling, sensor drift, air bypass or a process change. We use trend records to separate those causes.
CSTHEATEXCHANGER states that it builds new and replacement heat exchangers and can provide production drawings. A replacement steam coil should be checked against the current airflow, steam condition, connection locations, casing dimensions and maintenance findings rather than copied blindly from an old nameplate.
When we review a finned steam coil air-preheater request, we ask for steam pressure and quality, air volume, entering and target air temperature, allowable pressure drop, fin pitch, air cleanliness, materials, coil dimensions, control sequence, condensate arrangement and maintenance access.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam-air heaters, flue-gas air heaters, air preheaters, boiler economizers and related finned equipment. The Tube and Fin Coil category provides a related coil route, while the About Us page describes standard and industrial heat exchangers, replacement work, design data and production drawings.
We support new and replacement finned steam coils for HVAC, drying, process air, combustion-air preheating and industrial ventilation. Contact CSTHEATEXCHANGER to discuss a finned steam coil air preheater.
A finned steam coil air preheater uses condensing steam inside tubes and extended fins outside the tubes to transfer heat into an air stream. The finned surface makes practical air-side heat transfer possible, while steam distribution and condensate drainage determine whether the coil operates steadily. Final selection depends on steam conditions, airflow, temperature rise, pressure drop, fin pitch, corrosion, controls and maintenance access.
