We use fins on heat exchanger tubes to increase the external surface area available for heat transfer. This is especially useful when air or gas flows outside the tube, because air usually transfers heat less readily than a liquid flowing inside the tube. By attaching fins to the outside of the tube, we expose more metal to the air and can transfer the required heat with a more compact coil than a comparable bare-tube design.
CSTHEATEXCHANGER manufactures finned-tube heat exchangers, tube-and-fin coils, air heaters, dry-cooler coils, flue-gas recovery equipment and other industrial heat-transfer products. The fins are not added simply to make the tube look larger. Their purpose is to reduce the external air-side thermal resistance and package more useful heat-transfer area into the available space.
Fins also add trade-offs. They can increase air-side pressure drop, collect dust, complicate cleaning and create material or corrosion concerns. The right fin geometry depends on the air or gas condition, fluid temperature, flow, heat duty, available space and maintenance plan.
A heat exchanger moves heat from a warmer fluid to a cooler fluid through a separating wall. In a tube-and-air coil, one fluid flows inside the tube while air passes over the outside. Heat must cross several resistances:
Convection from the internal fluid to the tube wall.
Conduction through the tube wall.
Conduction through the fin and tube attachment.
Convection from the external surface to the air.
Fouling layers on either side where they exist.
The external air-side resistance can dominate the overall heat-transfer performance. A liquid flowing inside the tube may transfer heat relatively effectively, while still air or a low-velocity gas outside the tube transfers heat more slowly. Increasing only the tube length may make the equipment too large or expensive.
Fins address the external side of the problem. They add surface area without requiring every extra square meter of heat-transfer surface to be another full-length tube. The fin receives heat from the tube, spreads it through the metal and releases it to the air.
CSTHEATEXCHANGER’s public finned-tube information covers industrial coils, steam heaters, flue-gas heat recovery, air heaters, tube bundles, air preheaters and boiler economizers. These applications use extended surfaces where air or gas is an important heat-transfer side.

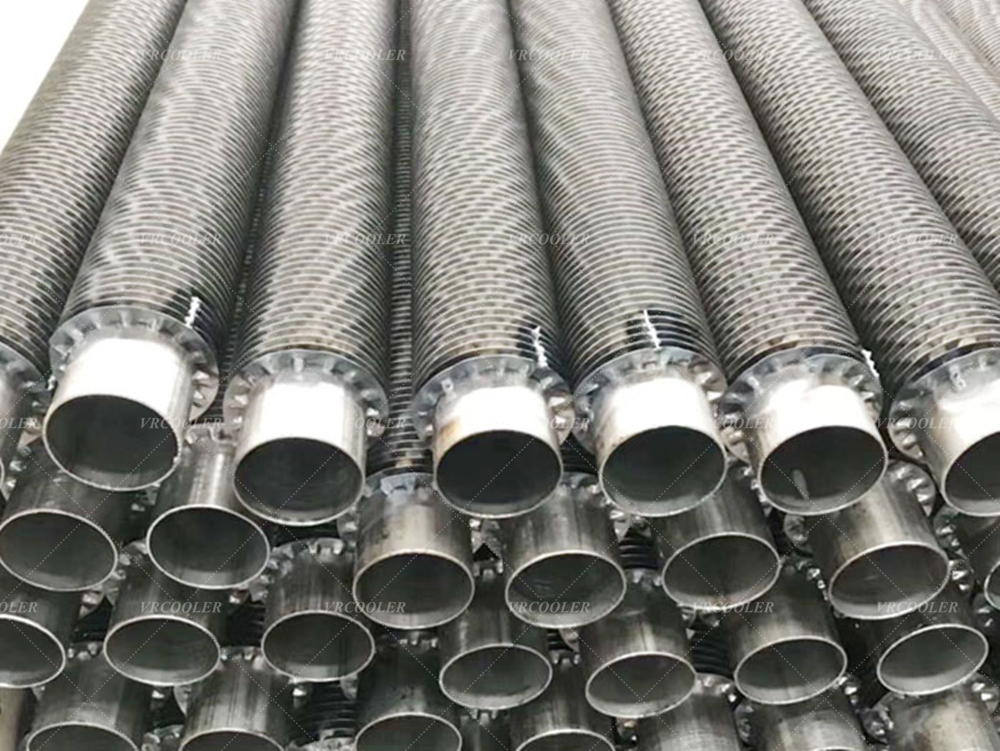

A bare tube exposes only its cylindrical outside surface. A finned tube adds metal plates, collars, strips or other shapes that extend away from the tube. The air touches both the original tube surface and the added fin surface.
For the same tube length, a finned tube can present much more external area than a smooth tube. That does not mean every part of the fin performs exactly like the tube wall. Heat must conduct from the tube into the fin, and the fin temperature gradually falls with distance from the tube. This is why engineers consider fin efficiency rather than counting the entire geometric area as equally effective.
A useful fin design balances:
Added area.
Fin thickness and conductivity.
Tube-to-fin contact.
Air velocity.
Fin pitch and blockage risk.
Manufacturing method.
Corrosion and cleaning exposure.
If fins are too thin, damaged or poorly attached, their practical contribution may be lower than the drawing suggests. If they are packed too closely, the air-side pressure drop and fouling may outweigh the area benefit.
We therefore size the tube, fin and airflow as one coil. The fins are part of a heat-transfer system, not an isolated accessory.
Fins are particularly useful when the external medium is air or gas. Air has a lower density and usually a lower heat-transfer coefficient than water or other liquids. A liquid-to-liquid heat exchanger may achieve a high duty with smooth tubes or plates, while an air-to-liquid exchanger often needs a larger external surface.
Typical finned-tube applications include:
Air-conditioning and air-handling coils.
Dry coolers and air-cooled heat exchangers.
Generator and compressor coolers.
Steam-to-air heaters.
Process-air heaters and coolers.
Flue-gas heat recovery.
Boiler economizers and air preheaters.
Refrigeration unit coolers.
The fins let the coil transfer heat between the internal fluid and air without making the bare tube bank excessively large. They can reduce the required coil face area or tube length for a given design duty, although the final dimensions depend on the heat-transfer calculation.
CSTHEATEXCHANGER’s finned-tube product category includes steam air heaters, flue-gas air heaters, air-cooler tube bundles, surface air coolers and other air-side equipment. The common feature is the need to exchange heat between a tube-side fluid and a moving gas.
Space and weight matter in many industrial systems. Dry coolers, generator coolers, air compressors, HVAC units and air preheaters often have a limited installation footprint. Fins allow the designer to increase external area within a compact coil package.
A compact finned coil can reduce the size of a casing, platform or equipment room compared with a bare-tube alternative designed for the same broad duty. It may also reduce pipe length, support size or transport volume. Those benefits must be checked against fan power, cleaning access, material cost and lifecycle service.
We compare the complete package rather than assuming “smaller” means “better.” A compact coil may need tighter fin spacing, higher air velocity or a more powerful fan. A larger, open coil may run with lower pressure drop and be easier to clean. The right layout depends on whether land, fan power, noise, maintenance access or transport is the main constraint.
CSTHEATEXCHANGER supports customized fin pitch, coil configuration, material and surface options. We use those choices to adapt the exchanger to the plant layout and operating environment.
Fin pitch is the spacing between fins. A tight pitch places more fins in a given length and may increase the geometric area. It can also increase air-side pressure drop and reduce the open space available for dust, leaves, fibers or soot.
A wider pitch provides more open space for air and may make cleaning easier. It may require more tube length or a larger coil face to deliver the same heat duty. The best pitch depends on the air quality, heat load, fan capacity, material and service interval.
We review the expected contamination:
Clean conditioned air.
Outdoor air with pollen and leaves.
Dust from manufacturing or packaging.
Flour, textile fibers or paper particles.
Oil mist and sticky deposits.
Soot, ash or flue-gas deposits.
Salt spray and corrosive moisture.
A fin pitch designed for a clean HVAC room may not suit a dusty industrial exhaust stream. A finned tube can still be used in a contaminated process if the design includes suitable spacing, filtration, cleaning access, coatings or a cleaning system.
The fin pitch also affects the coil’s face velocity and fan selection. We calculate the clean and fouled conditions instead of choosing the densest fin pattern by default.
The entire fin is not at the same temperature as the tube. Heat travels from the tube into the fin and then outward through the metal. The part closest to the tube is generally more effective than the outer edge. Fin efficiency describes how effectively the added fin area participates in heat transfer.
Fin efficiency depends on:
Fin material conductivity.
Fin thickness.
Fin shape and height.
Tube-to-fin contact quality.
Air-side heat-transfer coefficient.
Temperature difference.
Fin surface condition.
Aluminum is common in many air-side coils because it conducts heat well and has relatively low weight. Copper, stainless steel, carbon steel and other materials may be selected for different temperature, corrosion, pressure or mechanical requirements. The correct material must also work with the tube, coating, joining method and cleaning process.
A fin can lose effectiveness if it becomes loose, corroded, crushed or separated from the tube. We inspect the attachment method and surface condition as part of maintenance.
CSTHEATEXCHANGER’s personalized-product information describes material, coating and fin-surface choices for different conditions. The selected fin material should be recorded so the maintenance team can use compatible cleaning methods.
Fins help heat transfer, but they obstruct the air path. The fan must push air through the coil, and the resulting pressure drop requires electrical power. As fin density, coil depth and air velocity increase, pressure drop may increase as well.
We compare:
Clean coil pressure drop.
Fouled coil pressure drop.
Fan airflow and static pressure.
Fan motor power and speed control.
Noise and vibration.
Required heat duty at design ambient.
The effect of dirty filters or upstream screens.
A finned coil with low pressure drop may require more area. A very compact coil may need a stronger fan. The best design minimizes total lifecycle cost while meeting the heat-transfer requirement.
CSTHEATEXCHANGER’s V-type dry-cooler and finned-coil products use fan and coil configurations selected for the application. We do not assume that adding more fins always improves the complete system; the fan and coil must be matched.
The same fins that improve heat transfer can create narrow passages where contamination accumulates. A dirty finned coil may show reduced airflow, higher fan speed, higher fluid temperature and increased pressure drop.
We recommend maintenance that matches the environment:
Inspect the coil face for dust, leaves and fibers.
Clean with a method suitable for the fin material and coating.
Avoid bending fins with excessive water pressure.
Remove oil or sticky contamination with an approved cleaner.
Check fin attachment, corrosion and crushed areas.
Inspect filters and screens upstream of the coil.
Record temperature and pressure-drop trends.
Repair damaged fins where the method is appropriate.
The cleaning interval is not universal. An outdoor dry cooler, a generator cooler in a dusty yard and an HVAC coil in filtered air will accumulate contamination at different rates.
CSTHEATEXCHANGER’s published finned-tube applications include dry coolers, air heaters, flue-gas recovery and industrial coils. Each service needs its own cleaning plan. If the external gas is heavily fouling, a bare-tube design or more open fin pitch may be a better choice.
Fins are not automatically suitable for every heat exchanger. We question the finned design when:
The external gas contains heavy sticky deposits.
The coil cannot be cleaned safely.
The available fan pressure is very limited.
The application needs frequent mechanical washing.
The surface is exposed to severe corrosion or impact.
The liquid-to-liquid duty already has adequate smooth-tube transfer.
The coil must handle a material or temperature condition unsuitable for fins.
A bare-tube exchanger may be easier to clean and inspect in some dirty-gas applications. A shell-and-tube exchanger or plate heat exchanger may be better for liquid-to-liquid service. Fins work best when the external air-side resistance is high enough to justify the added surface and the plant can maintain it.
The choice depends on the limiting thermal resistance. If the tube-side liquid is the bottleneck, adding external fins may have little value. If clean air is the bottleneck, fins may substantially improve the package.
When we design a finned-tube heat exchanger, we ask for both-fluid conditions and the operating environment. We need:
Internal fluid type, flow and pressure.
Internal inlet and outlet temperatures.
External air or gas flow and composition.
External inlet temperature and humidity.
Required heat duty and approach temperature.
Allowable air-side pressure drop.
Fouling and cleaning conditions.
Corrosion and material requirements.
Available footprint and service clearance.
Fan capacity, noise limit and control method.
Fin pitch, coating and surface preference.
Required testing, drawings and replacement dimensions.
We then select tube diameter, wall thickness, fin material, fin height, fin pitch, tube spacing, rows, circuiting, headers, casing and supports. For a replacement coil, connection location and face dimensions may be as important as the heat-transfer area.
CSTHEATEXCHANGER builds new and replacement heat exchangers and provides design data and production drawings according to its published company information. We use the design basis to decide whether fins improve the specific application and how much extended surface is appropriate.
When we review a finned-tube request, we compare the internal and external heat-transfer resistances, fluid conditions, airflow, fouling, material, footprint and maintenance plan. We do not add fins as a universal upgrade without checking pressure drop and cleaning.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category covers steam heaters, flue-gas air heaters, waste-heat-recovery exchangers, air-cooler tube bundles, air preheaters, boiler economizers and other finned equipment. Its Tube and Fin Coil category provides related coil solutions, and the Personalized Products page describes customization of materials, coatings and fin surfaces.
We support new and replacement finned-tube coils and can review tube, fin, airflow, pressure-drop, corrosion and cleaning requirements. Contact CSTHEATEXCHANGER to discuss a finned-tube heat exchanger for your application.
Fins are used on heat exchanger tubes mainly to increase the external heat-transfer area where air or gas is the limiting side. They can make an air-side exchanger more compact and help transfer the required heat with less bare-tube surface. The trade-offs are pressure drop, fan power, fouling, cleaning, corrosion and material cost. The right fin design comes from the heat-transfer calculation and the maintenance conditions, not from fin density alone.
