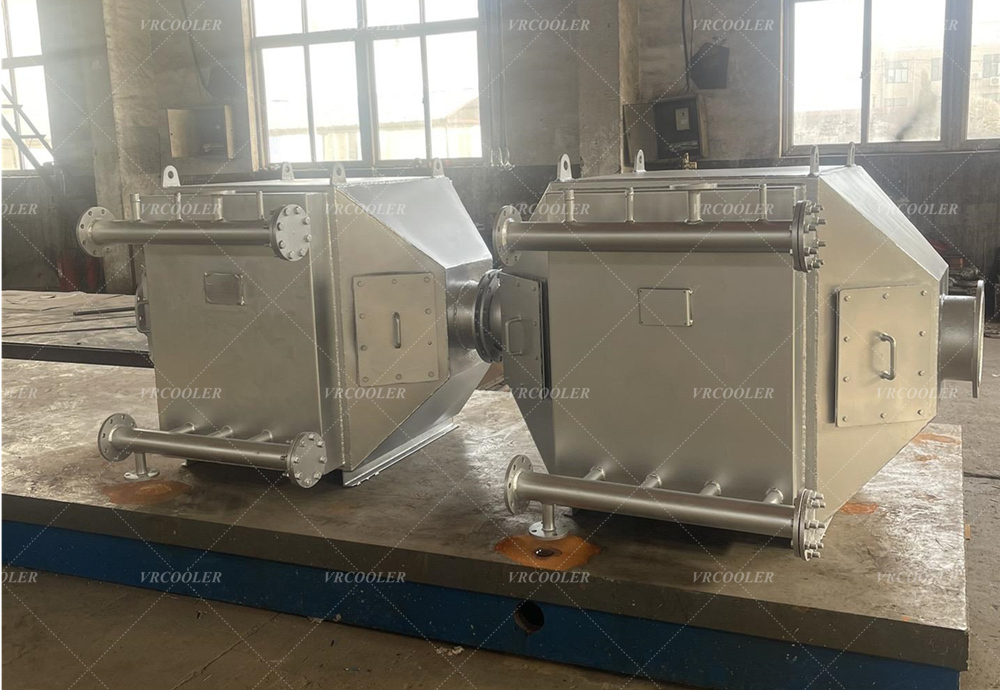

An exhaust heat exchanger for an 800 kW Cummins genset transfers heat from engine exhaust gas to water, steam, thermal oil or air. The exhaust flows through one side of the exchanger, while the receiving medium flows through tubes or another sealed circuit. Heat crosses the metal surface without mixing the exhaust with the useful heating medium.
The recovered heat can be used for hot water, boiler make-up water, process preheating, combustion air or drying air. It cannot be selected from generator electrical rating alone. An 800 kW electrical output identifies the requested genset context, but the exhaust exchanger must be sized from the actual Cummins engine model, exhaust mass flow, temperature, fuel, load profile, allowable back pressure and heat-use demand.
At CSTHEATEXCHANGER, we work with industrial heat exchangers, exhaust heat-recovery equipment, generator coolers and customized new or replacement heat exchangers. Our published information includes a Cummins-generator exhaust heat-recovery reference and industrial flue-gas recovery applications. We use those references to define the design route, then request the actual engine and project data before selecting the exchanger.
A gas engine releases high-temperature exhaust after combustion. That exhaust contains sensible heat that would normally leave through the silencer and stack. An exhaust heat exchanger places a heat-transfer surface in the exhaust path and captures part of that heat for a useful load.
The receiving medium may be:
Water for process heating or domestic hot water.
Boiler make-up water or feedwater.
Steam in a waste-heat boiler arrangement.
Thermal oil for a plant heating circuit.
Combustion air for an engine or furnace.
Drying air for a production process.
The useful heat depends on the exhaust temperature and flow at the actual generator load. A genset operating at low load may provide a different heat source from the same genset at full load. Heat demand also changes with production schedules, weather and plant operation.
CSTHEATEXCHANGER’s published Cummins generator heat-recovery page provides a project reference, but it does not establish the recovered heat for every 800 kW Cummins genset. We treat the requested electrical rating as a starting point, not as a substitute for the engine exhaust datasheet.
The system has an exhaust-gas path and a heat-recovery path. The two streams remain separated by tubes, plates or another pressure boundary.
A typical gas-to-water sequence is:
Exhaust leaves the Cummins engine and passes through the exhaust pipe.
A controlled bypass and isolation arrangement directs gas through the exchanger when recovery is available.
Hot exhaust flows across the gas-side heat-transfer surface.
Water enters the tube or secondary-fluid circuit.
Heat transfers from exhaust gas through the metal wall into the water.
Hot water leaves the exchanger for a tank, process load or heating circuit.
Cooled exhaust passes through the silencer and stack.
The exhaust side must maintain acceptable pressure drop. The water or steam side must remain within its design pressure, temperature and flow limits. Sensors, bypass dampers, relief devices, drains and alarms protect both circuits.
An exhaust heat exchanger is not a free-standing generator control system. The engine controls, exhaust back-pressure limit, emissions equipment, stack arrangement and heat-use controls all influence whether the recovery system can operate safely.
The phrase “800 kW Cummins genset” does not uniquely identify the engine, alternator, fuel, duty cycle or exhaust conditions. Different packages can use different engine models and operating conditions while delivering a similar electrical rating.
Before we size the exchanger, we request:
Exact Cummins engine model and serial or project identification.
Electrical output and operating load profile.
Fuel type and fuel composition where relevant.
Exhaust-gas mass flow at minimum, normal and maximum load.
Exhaust temperature at the proposed recovery point.
Permitted exhaust back pressure from the engine manufacturer.
Existing turbocharger, silencer, catalyst and stack arrangement.
Heat-use medium, flow and required outlet condition.
Operating hours and heat-demand schedule.
Condensation, corrosion and fouling information.
Ambient condition, installation space and access.
Required codes, inspections and documents.
We also need to know whether the exhaust exchanger will be installed before or after the silencer, catalyst or other exhaust equipment. The location affects pressure drop, temperature, access, emissions equipment and cleaning.
A capacity number based only on 800 kW can create a misleading quotation. The exchanger may have too much pressure drop, too little useful heat or an unsuitable material if the actual engine data is not used.

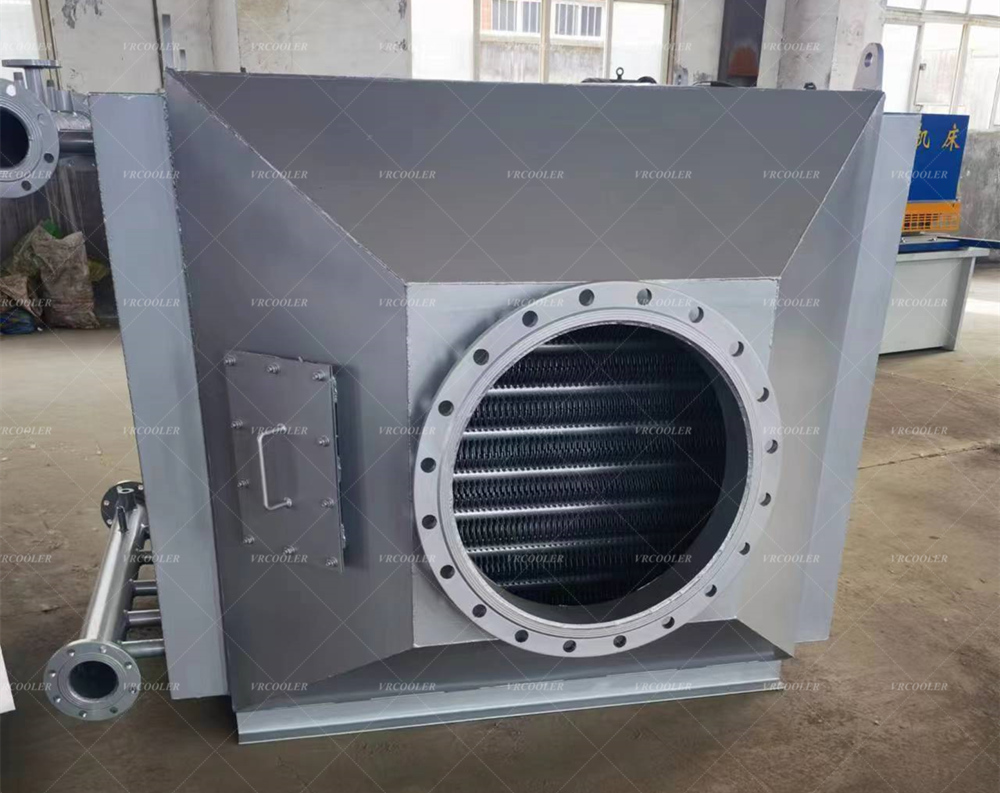

The correct recovery arrangement depends on what the plant can use.
Gas-to-water is often considered when the plant needs hot water. Water flows through tubes or a sealed secondary circuit while exhaust passes over the heat-transfer surface. The heated water may preheat boiler make-up water, feed a storage tank or supply a process loop.
We check water flow, inlet temperature, outlet target, pressure, water quality, pump capacity and storage. A closed secondary loop can keep treated water separate from the engine exhaust system and make control easier.
Gas-to-air recovery transfers heat to combustion air, drying air or another process-air stream. We review the air volume, fan pressure, filter condition, ductwork, receiving-equipment temperature limit and the consequence of any exchanger leak.
The air system may require a fan, damper, filter, bypass and temperature-control section. The added air-side pressure drop should be included in the fan selection.
A waste-heat boiler or steam-producing exchanger can be considered when the plant has a real steam demand. This introduces pressure-equipment, water-treatment, feedwater, level-control and relief requirements. It should be engineered as a complete steam system, not treated as a simple water coil.
CSTHEATEXCHANGER’s industrial heat-recovery capability can be applied to gas-to-water and gas-to-gas arrangements. The final choice comes from the plant heat load, exhaust conditions, water or air conditions and project safety requirements.
An exhaust heat exchanger adds resistance to the engine exhaust path. If that resistance exceeds the Cummins engine’s permitted back-pressure limit, the engine, turbocharger, combustion system or emissions performance may be affected.
We calculate or verify:
Exchanger gas-side pressure drop.
Existing pipe, silencer and catalyst pressure drop.
Exhaust pipe diameter and length.
Elbows, reducers, expansion joints and dampers.
Soot or fouling allowance.
Back pressure at minimum and maximum engine load.
Bypass-damper capacity and fail-safe position.
Stack discharge and support arrangement.
The bypass allows exhaust to avoid the recovery exchanger during start-up, low-load operation, heat-demand interruption, over-temperature conditions or maintenance. The engine must always have a safe exhaust path.
A low-pressure-drop exchanger is not automatically the best exchanger if it cannot transfer enough heat. We balance heat-transfer area, gas velocity, pressure drop, fouling, cleaning access and material.
The final acceptable back pressure must come from the Cummins engine documentation or responsible engine engineer. We do not assign a universal pressure limit to an 800 kW genset in a general article.
When exhaust gas is cooled, water or acid-forming condensate may appear. Condensation can be part of an intentional condensing heat-recovery design, but it can also damage an exchanger or stack if the materials and drainage are not suitable.
We review:
Fuel and combustion chemistry.
Exhaust moisture and acid-forming components.
Gas temperature at the exchanger outlet.
Whether operation will remain above the condensation limit.
Whether condensate will be intentionally collected.
Stainless-steel or other corrosion-resistant material options.
Drainage, neutralization and safe discharge.
Soot and ash deposition.
Cleaning access and inspection openings.
CSTHEATEXCHANGER’s flue-gas recovery information identifies stainless-steel construction as an option for reducing corrosion effects. The required grade and thickness still depend on the exhaust composition, temperature, condensation condition and project specification.
Soot and deposits reduce heat transfer and increase gas-side pressure drop. A clean commissioning test cannot represent long-term performance if the engine operates with variable fuel, oil carryover, dust or incomplete combustion. We include a cleaning and inspection plan in the design review.
The recovery circuit should operate only when the exhaust system, engine and receiving load can accept it. We normally review a control sequence with engine, exhaust and plant engineers.
Possible control points include:
Exhaust inlet and outlet temperature.
Water or steam supply and return temperature.
Gas-side pressure or back-pressure indication.
Water flow, pressure and level.
High-temperature and low-flow alarms.
Bypass-damper position.
Heat-demand availability.
Condensate detection or drain condition.
Engine trip or emergency shutdown signal.
If the hot-water tank is full, the water pump fails or the process heat load stops, the exchanger must not force the engine to operate outside its approved exhaust condition. The system should bypass, divert heat or return to the original exhaust route.
A control valve on the water side does not replace an exhaust bypass. If the receiving side closes, the gas-side pressure drop and temperature must still remain safe.
CSTHEATEXCHANGER supplies the exchanger and project information defined in the quotation. The engine control system, emissions controls, fuel system and site emergency logic must be integrated by the responsible project team.
The exhaust side experiences hot gas, thermal cycling, vibration and possible condensate. The recovery side may contain water, glycol, steam or thermal oil. We select materials and construction from both fluid paths.
The design review covers:
Tube, shell or plate material.
Casing and header material.
Welds and expansion allowance.
Gaskets and high-temperature seals.
Insulation and personnel protection.
Flexible exhaust connections.
Supports and thermal movement.
Drain, vent and inspection points.
Cleaning doors or removable sections.
Corrosion allowance and surface treatment.
CSTHEATEXCHANGER’s About Us information states that the company builds new and replacement heat exchangers and provides design data and production drawings. Its products cover water, steam, glycol, ammonia, CO₂ and other media. Those capabilities support customization, but the final material and construction must be approved for the Cummins exhaust and heat-recovery service. We also confirm thermal expansion, access for inspection and the cleaning method before fabrication.
We plan the installation around generator access, exhaust support, lifting, piping, insulation, water or steam connections, drains and service clearance. The exchanger should be supported independently where required and should not transfer excessive weight or thermal movement to the engine exhaust manifold or turbocharger.
Before commissioning, we verify:
Engine model and exhaust drawing against the approved design.
Exchanger orientation, flow direction and support.
Exhaust expansion joints and pipe alignment.
Water, steam or air connections.
Bypass-damper operation and fail-safe position.
Pressure-test and leak-test documentation.
Drain and condensate arrangements.
Temperature, pressure and flow sensor wiring.
Silencer, catalyst and stack pressure drop.
Alarm, trip and emergency-shutdown signals.
We start at a controlled engine load and record exhaust inlet/outlet temperature, back pressure, receiving-fluid flow, inlet/outlet temperature and bypass position. The system should be tested at more than one load condition where the project permits.
A commissioning test at one point does not establish annual fuel savings or guaranteed recovered heat. It confirms the installed system under that test condition. The operator should continue trending performance after start-up.
Maintenance combines exhaust-side cleaning, receiving-fluid service, controls inspection and structural checks. The interval depends on fuel quality, engine loading, soot, oil carryover, operating hours and the importance of the recovered heat.
Routine checks include:
Reviewing exhaust back pressure and temperature trends.
Inspecting soot and deposit accumulation.
Checking the exchanger casing, tubes, headers and welds.
Inspecting insulation, expansion joints and supports.
Checking water, steam or air flow.
Inspecting drains, valves and relief protection.
Testing bypass-damper movement and alarms.
Checking for water-to-gas or gas-to-water leakage.
Inspecting corrosion and condensate damage.
Cleaning the heat-transfer surface according to the material.
If the recovered-water temperature falls, we check engine load, exhaust temperature, flow, fouling, bypass position and sensor accuracy. If back pressure rises, we check deposits, dampers, pipe restrictions and exchanger passages before increasing the engine load.
A repair or replacement decision should use the operating history and inspection results. CSTHEATEXCHANGER supports new and replacement heat-exchanger projects, but the replacement must match the Cummins engine’s exhaust limit and the plant heat-use design.
When we review an exhaust heat exchanger for an 800 kW Cummins genset, we ask for the exact engine model, exhaust data, load profile, heat-use medium, operating temperature, permitted back pressure, existing exhaust layout, fuel, corrosion basis, installation space and required documents.
CSTHEATEXCHANGER’s Cummins generator heat-recovery reference provides a relevant Cummins application example. Its Generator Cooler category covers related generator cooling equipment, and the About Us page describes new and replacement heat-exchanger work, design data, production drawings and OEM/ODM support.
We support gas-to-water, gas-to-air and other industrial heat-recovery arrangements after reviewing the actual project data. Contact CSTHEATEXCHANGER to discuss an exhaust heat exchanger for your 800 kW Cummins genset.
An exhaust heat exchanger can recover useful heat from an 800 kW Cummins genset, but the electrical rating does not define the exchanger by itself. We need the exact engine model, exhaust flow, exhaust temperature, load profile, permitted back pressure and heat-use requirement. The final system must include suitable materials, bypass protection, condensate management, pressure testing, commissioning and maintenance.
