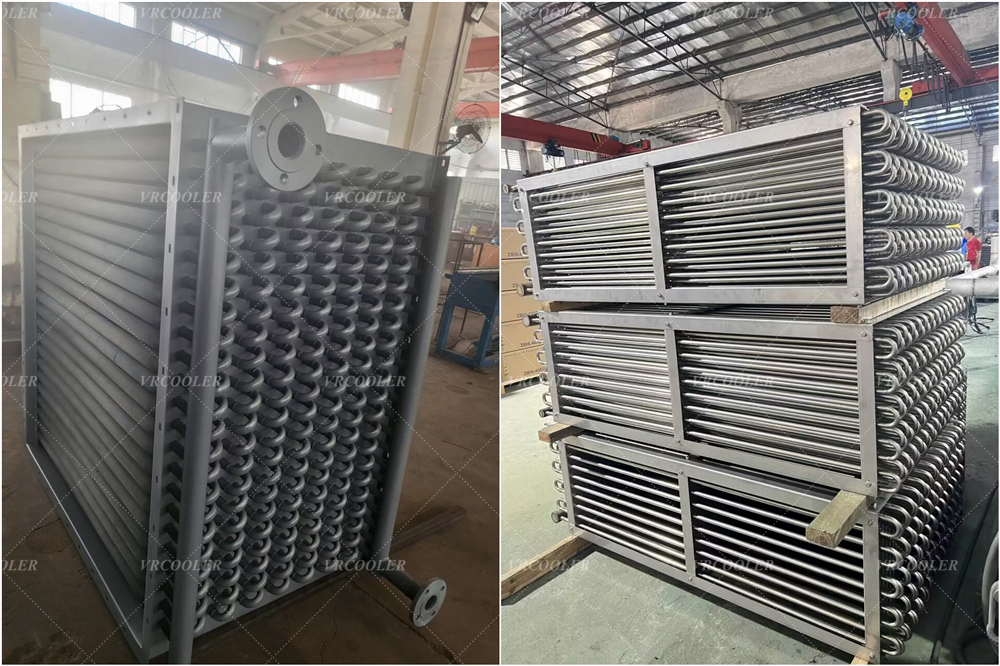

The main difference between a finned-tube and a bare-tube heat exchanger is the surface outside the tubes. A finned-tube exchanger adds metal fins to increase the external heat-transfer area, which is useful when air or gas provides the larger thermal resistance. A bare-tube exchanger uses smooth tubes without external fins. It generally offers a simpler gas-side surface, easier washing and lower risk of fin blockage.
At CSTHEATEXCHANGER, we work with finned-tube heat exchangers, tube-and-fin coils, bare-tube exchangers, gas coolers and customized industrial heat-transfer equipment. We select the tube surface from the two fluids, heat-transfer resistance, fouling, pressure drop, cleaning method, material and available space.
A finned tube is often considered when a large amount of heat must pass between a liquid inside the tube and air or gas outside it. A bare tube is often considered when the external gas is dirty, sticky or difficult to clean, or when the gas-side heat-transfer resistance does not justify additional fins. Neither type is automatically better. The correct choice follows the application.
A finned-tube heat exchanger has fluid flowing inside tubes and fins attached to the outside surface. The fins extend the area exposed to air or gas. Heat moves from the internal fluid through the tube wall and into the fins, then from the fins to the external air or gas.
The fins can be continuous plates, individual collars, spirally wound strips, extruded surfaces or another geometry. Their material and spacing depend on the fluid, temperature, corrosion exposure, air velocity and cleaning requirements.
Fins are most useful when the external side has a lower heat-transfer coefficient than the internal fluid side. Air is a common example. A large fin area allows the exchanger to transfer the required heat without using an extremely long or large bare-tube surface.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes finned-tube heat exchangers, steam heaters, flue-gas recovery equipment, air heaters, tube bundles, air preheaters and boiler economizers. The range covers air-side and gas-side applications where extended surface can help package the required heat transfer.
A finned-tube exchanger still needs correct fin spacing and airflow. Dense fins may increase area but can collect dust and create a higher air-side pressure drop. A fin design for clean HVAC air may not suit a dusty exhaust stream.
A bare-tube heat exchanger uses smooth tubes without external fins. One fluid flows inside the tubes and air, gas or another fluid flows over the outside surface. Heat transfers through the tube wall and the exposed tube surface.
The external area is lower than that of a comparable finned tube, but the smooth tube can be easier to wash, brush or inspect. There are no fin gaps to trap fibers, sticky deposits or particulate matter. That makes bare tubes attractive for some dirty-gas and gas-conditioning applications.
CSTHEATEXCHANGER’s published bare-tube biogas cooler reference describes smooth bare tubes for gas-side heat transfer and notes that the design can avoid fouling blockage associated with finned surfaces. It positions the bare-tube arrangement for gas conditioning where fouling and cleaning are important design concerns.
Bare tubes do not automatically resist every kind of fouling. Deposits can still build on the tube surface, and corrosion or erosion can occur. The tube diameter, spacing, gas velocity, fluid chemistry, access and cleaning method still need to be designed.
The finned-tube advantage is extended external area. If the internal fluid has a strong heat-transfer coefficient and air or gas is the limiting side, fins can make the exchanger more compact for a given duty.
The bare-tube advantage is a simple external surface. When the gas-side heat-transfer coefficient is adequate, or when fouling makes fins impractical, smooth tubes may offer a more robust operating surface.
We compare the two designs using:
Internal and external heat-transfer coefficients.
Fluid flow and inlet/outlet temperatures.
Required heat duty.
Tube and fin material.
Air-side or gas-side pressure drop.
Fouling allowance.
Surface temperature and condensation risk.
Cleaning access and maintenance method.
A finned tube does not guarantee higher total heat transfer. The final exchanger must have enough clean surface, airflow and fluid flow at the project conditions. A compact finned coil can lose capacity if its fins become blocked. A bare-tube bank can perform well when the gas is clean enough and the design has enough tube area.
CSTHEATEXCHANGER uses design software and project data for customized heat exchangers, according to its public company information. We calculate the coil rather than comparing finned and bare tubes from surface area alone.
Fouling is one of the most important differences in practical operation. Fins create narrow spaces that can trap dust, fibers, oil mist, soot or sticky particles. If the deposits are not removed, the air-side pressure drop rises and airflow through the coil falls.
A bare-tube surface has fewer narrow passages. It may be easier to wash, brush, scrape or inspect. This is one reason smooth-tube exchangers appear in biogas cooling, dirty gas conditioning and other applications where deposits are expected.
We ask:
What particles or vapors are present in the air or gas?
Are deposits dry, wet, oily, sticky or corrosive?
Can the exchanger be removed or opened for cleaning?
Is water washing allowed at the site?
Is compressed-air cleaning available?
How often can the plant stop for service?
What pressure drop can the fan or blower tolerate?
Finned tubes are not unsuitable for dirty gas by definition. A wider fin pitch, suitable coating, pre-filter, soot blower, access door or cleaning system may make them workable. Bare tubes are not maintenance-free either; deposits can reduce the exposed area and affect pressure drop.
CSTHEATEXCHANGER’s bare-tube biogas cooler reference and finned-tube product range illustrate why the gas condition should drive the surface choice. The more frequently the exchanger must be cleaned, the more important access and cleaning cost become in the comparison.
Fins increase external surface, but they also introduce more resistance to air or gas flow. Fin pitch, fin height, tube spacing, coil depth, air velocity and fouling determine the air-side pressure drop.
A compact finned coil may require a larger fan or higher fan speed than a more open bare-tube bank. If the available fan has limited static pressure, the fin arrangement must be checked carefully. If the gas is dirty, deposits can increase pressure drop over time.
Bare tubes usually have a more open external flow path, but achieving the same heat duty may require more tube rows, a larger casing or more airflow. A larger exchanger can also add structural, piping and installation cost.
We compare the clean and fouled pressure drop, not only the initial value. The plant should know the alarm or cleaning trigger for differential pressure and the expected fan operating range.
Neither finned nor bare tubes have a universal fan-power advantage. The result depends on the heat-transfer duty, coil geometry, air velocity, fluid temperatures and fouling allowance. The fan and exchanger should be designed together.
Material selection affects tube life, fin durability, thermal expansion, corrosion and maintenance. Common materials may include copper, aluminum, stainless steel, carbon steel, Cu-Ni, brass or titanium depending on the service.
We review:
Internal fluid chemistry and pressure.
External air or gas composition.
Moisture and condensation.
Chloride, sulfur or acid-forming components.
Operating and design temperature.
Galvanic contact between tube and fin.
Coating, surface treatment and cleaning chemicals.
Thermal expansion and support details.
Fins can increase the exposed surface area that is vulnerable to corrosion or mechanical damage. Bare tubes may tolerate certain cleaning methods better, but the tube material still needs to match the gas and condensate condition.
CSTHEATEXCHANGER’s About Us information identifies heat exchangers for water, steam, refrigerant, glycol, ammonia, CO₂ and other media, as well as new and replacement projects. The material listed in a general product category does not define a suitable material for every service. We specify the tube, fin, header, casing, gasket and coating from the project conditions.
Finned tubes often provide more external area in a smaller and lighter package than bare tubes for the same general air-side duty. CSTHEATEXCHANGER’s published advantages-and-disadvantages material states that finned-tube exchangers can be significantly smaller and lighter than bare-tube exchangers for the same heat-transfer requirement, although the final result depends on the design.
That compactness can help with:
Limited plant-room space.
Rooftop or platform installation.
Mobile or packaged equipment.
Air-handling and refrigeration coils.
Generator, compressor and dry-cooler applications.
Bare-tube exchangers may need more coil length or casing area to provide equivalent external surface. They can still be practical when the gas is dirty, the plant has enough room or cleaning access is more important than compactness.
We compare the entire installed package: exchanger, fan, ductwork, supports, access doors, cleaning system, insulation and connected piping. A smaller coil does not necessarily mean a lower installed cost if it needs a more powerful fan, frequent chemical cleaning or a complex service platform.
Finned-tube heat exchangers are commonly considered for applications where air or clean gas is the limiting heat-transfer side. Examples include:
HVAC coils and air handlers.
Dry coolers and air-cooled heat exchangers.
Steam air heaters.
Generator and compressor coolers.
Flue-gas heat recovery with controlled fouling.
Boiler economizers and air preheaters.
Process-air heating and cooling.
Bare-tube heat exchangers may be considered where the external gas is dirty, sticky or difficult to clean, or where a smooth external surface is preferred. Examples include:
Biogas gas conditioning.
Dirty-gas coolers.
Gas preheating or cooling.
Exhaust streams with high fouling risk.
Applications requiring washing or mechanical cleaning.
Processes where the available fan pressure is limited by an open tube bank.
The application labels are not rules. A finned exchanger may be appropriate for a controlled exhaust stream, and a bare-tube exchanger may be appropriate for a clean gas if the layout and duty support it.
The purchase price depends on tube material, fin material, surface area, casing, headers, fan, supports, controls, testing, cleaning access and documentation. We do not say that one type is always cheaper.
Finned-tube costs may increase with fin material, coating, fin geometry and cleaning provisions. Bare-tube costs may increase because more tube area, larger casing, stronger supports or additional gas-side volume is required.
Lifecycle cost includes:
Initial exchanger and fan cost.
Electrical power for air movement.
Cleaning labor and chemicals.
Production downtime.
Replacement fins, tubes or modules.
Corrosion and leak repairs.
Access platform and lifting equipment.
Energy loss from rising pressure drop.
We choose the type that remains usable between planned cleanings and delivers the required heat duty at an acceptable pressure drop. The cheapest surface at purchase can be the wrong choice if the plant cannot clean it or if fouling quickly reduces capacity.
We ask five questions before making a recommendation:
Is the external air or gas clean enough for fins?
Is compact size more important than open cleaning access?
What pressure drop and fan power can the plant accept?
How will the exchanger be cleaned?
What materials and coatings suit the fluid and corrosion risk?
A finned-tube exchanger is often a good starting point for clean air, HVAC, dry-cooler and compact process applications. A bare-tube exchanger deserves closer consideration when external fouling, washing, open flow or gas-conditioning reliability dominates the project.
If the gas contains fibers, soot, oil mist or sticky condensate, we focus first on fouling and cleaning. If the plant has little space and clean air, we focus on extended surface and air-side pressure drop. The final decision must come from the heat-transfer calculation and maintenance plan. We also confirm the expected service interval and spare-part strategy.
When we review a finned-tube or bare-tube request, we ask for the two fluids, flow rates, inlet and outlet temperatures, pressure limits, air or gas cleanliness, corrosion exposure, available space, fan or pump data, cleaning method and service schedule.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category covers finned-tube heat exchangers, steam heaters, flue-gas recovery, air heaters, tube bundles, air preheaters and boiler economizers. Its Bare Tube Biogas Cooler reference describes smooth bare tubes for gas-side heat transfer where fouling blockage is a consideration. The About Us page describes new and replacement heat exchangers, design data, production drawings and OEM/ODM support.
We support new and replacement coil projects and can review tube, fin, material, pressure-drop, airflow and cleaning requirements. Contact CSTHEATEXCHANGER to compare a finned-tube or bare-tube heat exchanger for your application.
The short answer is that finned tubes add external area and often package air-side heat transfer into a smaller exchanger. Bare tubes provide a simpler, more open external surface and can be easier to clean when gas fouling is the main concern. We choose between them from heat duty, fluid properties, air-side resistance, fouling, materials, space, fan power and the maintenance plan—not from surface type alone.
