A glycol cooling system is a liquid-cooling system that circulates a mixture of glycol and water through a closed secondary loop. A chiller or refrigeration plant cools the glycol mixture in one heat exchanger. Pumps then send the cooled fluid to process equipment, cold-room evaporators, air coils, tanks or other loads. The glycol absorbs heat and returns to the chiller, where the cycle starts again.
The glycol is not usually the refrigerant that expands inside the compressor circuit. It is a secondary heat-transfer fluid. This arrangement lets one central refrigeration system serve several cooling loads while keeping direct refrigerant piping away from production areas, cold rooms or equipment that needs a stable liquid circuit.
At CSTHEATEXCHANGER, we build heat exchangers for water, glycol, refrigerant, ammonia, CO₂, steam and other media. We also support custom glycol evaporators and unit coolers for cold-room and industrial applications. We select the exchanger and coil from the actual fluid, temperature, flow, heat load, pressure drop, material and installation conditions.
Glycol is a liquid additive mixed with water to change the fluid’s freezing behavior and operating properties. The most common system choices are propylene glycol and ethylene glycol, but the correct fluid depends on the application, health requirements, regulations, operating temperature and equipment manufacturer’s instructions.
Adding glycol can protect a secondary loop from freezing when the system operates below the freezing point of water or when parts of the circuit are exposed to low ambient conditions. The mixture also carries heat between the chiller and the load.
Glycol concentration affects more than freezing protection. It can change:
Viscosity and pump pressure drop.
Specific heat and heat-carrying capacity.
Heat-transfer coefficient.
Required pump power.
Expansion behavior.
Corrosion-inhibitor requirements.
Operating cost and fluid replacement interval.
We do not recommend choosing a concentration from a generic table without checking the system design. Too little glycol may not provide the required freeze protection. Too much glycol may reduce heat-transfer performance, increase viscosity and require a larger pump or heat exchanger.
CSTHEATEXCHANGER’s About Us information states that the company can build heat exchangers using glycol and other media. The actual glycol type and concentration must be confirmed in the approved project documents and with the fluid supplier.
A glycol system normally has two linked circuits: a primary refrigeration circuit and a secondary glycol circuit.
The primary refrigeration circuit uses a compressor, condenser, expansion device and evaporator or chiller heat exchanger. Refrigerant removes heat from the glycol. The refrigerant and glycol remain separated by the heat-transfer surface.
The secondary circuit uses a pump, insulated pipework, valves, expansion equipment, sensors and the cooling load. The pump sends chilled glycol to the load. The glycol absorbs heat and returns warmer to the chiller.
The basic operating sequence is:
Refrigeration equipment removes heat from the glycol in a chiller or evaporator.
A pump circulates the cooled glycol through the secondary loop.
The glycol enters a cold-room evaporator, process coil, jacket or heat exchanger.
Heat moves from the process or room air into the glycol.
Warmer glycol returns to the chiller.
The refrigeration circuit removes the collected heat.
The cooled glycol is circulated again.
The system controller adjusts compressor capacity, pump speed, valves or staging to maintain the required supply condition. The final control sequence depends on the chiller and the connected loads.
The primary loop is the refrigeration side. It contains the refrigerant and the components that compress, condense, expand and evaporate it. The secondary loop contains the glycol mixture and carries cooling to multiple loads.
Keeping the loops separate has several practical advantages:
Refrigerant piping can be concentrated near the refrigeration plant.
Several rooms or process loads can use one central glycol circuit.
The load side can use pumps and valves suited to the plant layout.
A leak on the load side does not necessarily release refrigerant into the room.
Glycol can provide freeze protection in exposed or low-temperature sections.
Maintenance can be divided between refrigeration and fluid-circuit work.
The secondary loop also introduces additional equipment. It needs a pump, expansion vessel, air separator, valves, strainers, insulation, fluid monitoring and sometimes a buffer tank. The glycol circuit must be designed so that the pump can deliver the required flow to the most remote load without excessive pressure drop.
CSTHEATEXCHANGER’s glycol evaporator and heat-exchanger work supports the separation between the refrigeration side and the cooling-load side. We review the full circuit rather than sizing the evaporator alone.
Glycol systems are used where a central cooling plant needs to serve one or more loads through a pumped liquid circuit. Common applications include:
Food and beverage processing.
Cold rooms and freezer rooms.
Ice-cream and frozen-food storage.
Chocolate and confectionery temperature control.
Fermentation and brewing.
Dairy and process tanks.
Winery and beverage cooling.
Air-conditioning and air-handling coils.
Industrial machinery and process heat exchangers.
Data and equipment cooling where a secondary loop is preferred.

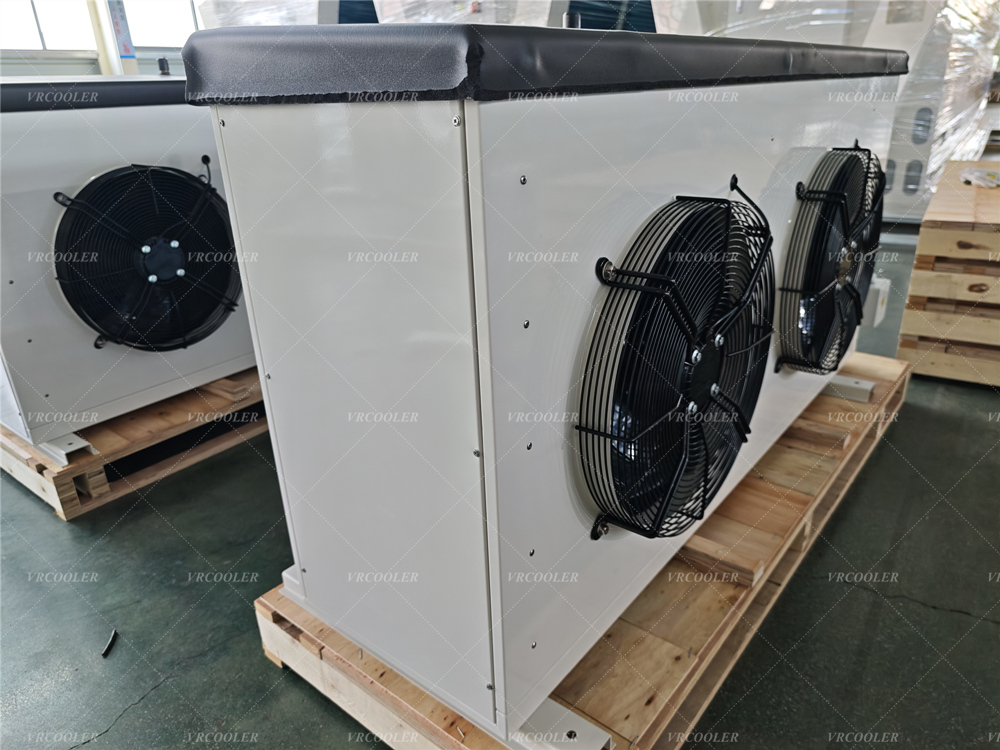

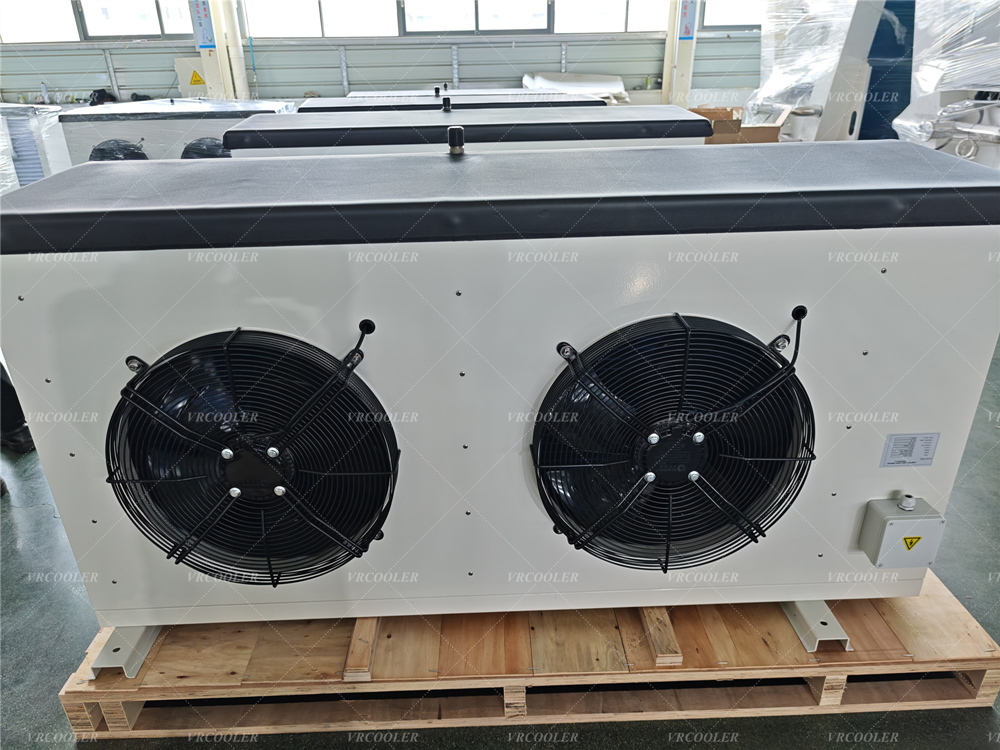

A glycol evaporator inside a cold room cools air in the same way an ordinary evaporator does, but chilled glycol flows through the coil instead of direct-expansion refrigerant. A process jacket or heat exchanger can use the same secondary fluid for indirect cooling.
The application determines the fluid, temperature, flow, material, hygiene requirements and controls. A food process may require a particular glycol type and separation standard. A low-temperature freezer may require a different concentration and defrost arrangement. An industrial loop may need corrosion protection and a fluid compatible with seals and metals.
A working system is made up of several parts. We select them together because a change in one part affects the rest of the circuit.
The chiller removes heat from the glycol. It may use a plate heat exchanger, shell-and-tube exchanger, brazed exchanger, shell-and-coil construction or another evaporator arrangement. The refrigerant side and glycol side remain separated.
The exchanger must match glycol viscosity, flow, freezing protection, pressure, temperature and fouling risk. A design based on water alone may not deliver the same performance with a glycol mixture.
The pump moves glycol from the chiller to the cooling loads. We size it from required flow, pipe length, fittings, elevation and pressure drop. Pump selection also considers glycol viscosity, operating temperature, seal compatibility and variable-flow control.
The load may be a cold-room evaporator, air coil, process jacket, tank coil, plate heat exchanger or machinery cooler. The terminal unit transfers heat from air, product, process fluid or equipment into the glycol.
Glycol expands as its temperature changes. The expansion vessel provides room for volume change and helps maintain circuit pressure. An air separator or venting arrangement removes trapped air, which can reduce flow and create pump noise or corrosion.
Isolation valves support maintenance. Balancing and control valves regulate flow. Strainers protect pumps and heat exchangers from debris. Temperature, pressure and flow sensors provide the information needed for control and alarms.
Insulation limits unwanted heat gain and prevents surface condensation. The vapor barrier must remain continuous, especially on low-temperature lines. Poor insulation can increase compressor run time and create water damage around the pipe.
A direct-expansion system sends refrigerant directly to the evaporator at the load. A glycol system cools a secondary fluid at a central chiller and pumps that fluid to the load.
Glycol systems may be attractive when a site has multiple cooling points, long distances between the plant room and loads, or a preference for keeping direct refrigerant lines concentrated in one area. They also allow different terminal units to share a central fluid circuit.
Direct expansion may be simpler for a small, self-contained cold room with a short refrigerant path. A glycol system adds pumps, fluid, expansion equipment and a secondary heat exchanger. It may also have higher pumping energy and a temperature difference across the chiller and terminal coil.
We compare:
Number and location of cooling loads.
Required temperature and flow.
Distance between refrigeration plant and load.
Freeze-protection requirement.
Refrigerant safety and site rules.
Maintenance capability.
Pumping energy and pressure drop.
Expansion and future capacity.
Glycol type, concentration and fluid cost.
CSTHEATEXCHANGER can provide glycol evaporators and other heat exchangers, but the choice between direct expansion and glycol belongs to the complete refrigeration design.
We start with the heat load and the required fluid condition. The cooling load may include product heat, room transmission, door infiltration, process heat, equipment heat and operating peaks.
The design review normally includes:
Required cooling capacity.
Glycol type and concentration.
Supply and return temperature.
Required flow rate.
Allowable temperature difference.
Pump head and circuit pressure drop.
Minimum ambient temperature.
Heat exchanger material and pressure rating.
Terminal-unit coil area and air or process flow.
Expansion vessel and relief arrangement.
Insulation and vapor barrier.
Fluid filling, sampling and maintenance method.
Control valves, sensors and alarm limits.
We also ask whether the glycol loop is closed, open to a tank, exposed to outdoor conditions or connected to food-related equipment. The answer affects fluid quality, corrosion protection, hygiene and maintenance.
The glycol concentration should be selected from the required freeze protection and fluid properties. We do not publish one concentration as suitable for every system. The final value must be calculated and confirmed by the project engineer and fluid supplier.
Installation begins with an approved piping and instrumentation diagram. We check pipe sizes, flow direction, pump position, valve access, expansion equipment, air vents, drain points and terminal-unit connections.
Before filling the system, we inspect the pipework and heat exchangers for cleanliness. Welding debris, scale or construction material can damage the pump and clog strainers. The circuit should be pressure-tested according to the project procedure before insulation is completed.
Our commissioning sequence includes:
We verify the chiller, pump and terminal-unit connections.
We confirm valve positions, strainers, vents and drains.
We flush the circuit using the approved method.
We fill the system with the specified glycol mixture.
We remove trapped air and confirm expansion-vessel pressure.
We start the pump and check flow, noise and differential pressure.
We start cooling and record supply and return temperatures.
We balance the branches and confirm flow at remote loads.
We test high-temperature, low-flow, pump-failure and freeze alarms.
We inspect insulation, vapor barriers and condensation control.
A glycol system should not be commissioned by adding an unknown quantity of concentrate to the pipe and assuming the mixture is correct. We use measured concentration, clean water where specified and the filling procedure approved for the chosen fluid.
A glycol system needs routine fluid, pump, heat-exchanger and control maintenance. We record the initial concentration, pH or inhibitor condition where relevant, supply and return temperatures, flow and pressure so later changes can be identified.
Routine checks include:
Sampling glycol concentration and fluid condition.
Checking for leaks at pumps, valves, flanges and coils.
Inspecting strainers and cleaning them when pressure drop rises.
Checking pump seals, bearings, vibration and electrical load.
Inspecting heat exchangers for fouling and leakage.
Checking expansion-vessel pressure and relief devices.
Verifying temperature and flow sensors.
Inspecting insulation and vapor barriers.
Checking air vents, drains and freeze protection.
Reviewing alarms and temperature trends.
If a cooling load becomes warm, we check pump operation, branch valves, trapped air, glycol concentration, heat-exchanger fouling and sensor accuracy before changing the chiller setpoint. If the pump runs continuously, we check heat load, flow balance, valve position, insulation and whether the fluid properties match the design.
Glycol should be replaced or treated according to the fluid supplier’s guidance and the project maintenance plan. Mixing different glycol products or corrosion-inhibitor packages without compatibility confirmation can damage the circuit or reduce protection.
When we review a glycol-cooling request, we ask for the cooling load, glycol type, concentration, supply and return temperatures, flow rate, pressure drop, terminal units, pump details, materials, ambient conditions and control requirements.
CSTHEATEXCHANGER’s About Us page states that the company can build heat exchangers using glycol, water, steam, refrigerant, ammonia, CO₂ and other media. The same page describes new and replacement heat exchangers, design data, production drawings and OEM/ODM support. The Unit Cooler category is relevant where glycol feeds cold-room air coolers, and the Personalized Products page covers customized materials, coatings and fin surfaces for different applications.
We can support glycol evaporator, unit cooler, process coil and replacement heat-exchanger projects. Contact CSTHEATEXCHANGER to discuss a glycol cooling system for your cold room or industrial process.
A glycol cooling system uses a water-glycol mixture as a pumped secondary heat-transfer fluid. A chiller or glycol evaporator cools the mixture, pumps send it to the loads and heat exchangers transfer heat back to the refrigeration plant. The right design depends on glycol properties, heat load, flow, pressure drop, freezing protection, materials, controls and maintenance. Final concentration and operating limits should come from the approved project design and fluid supplier.
