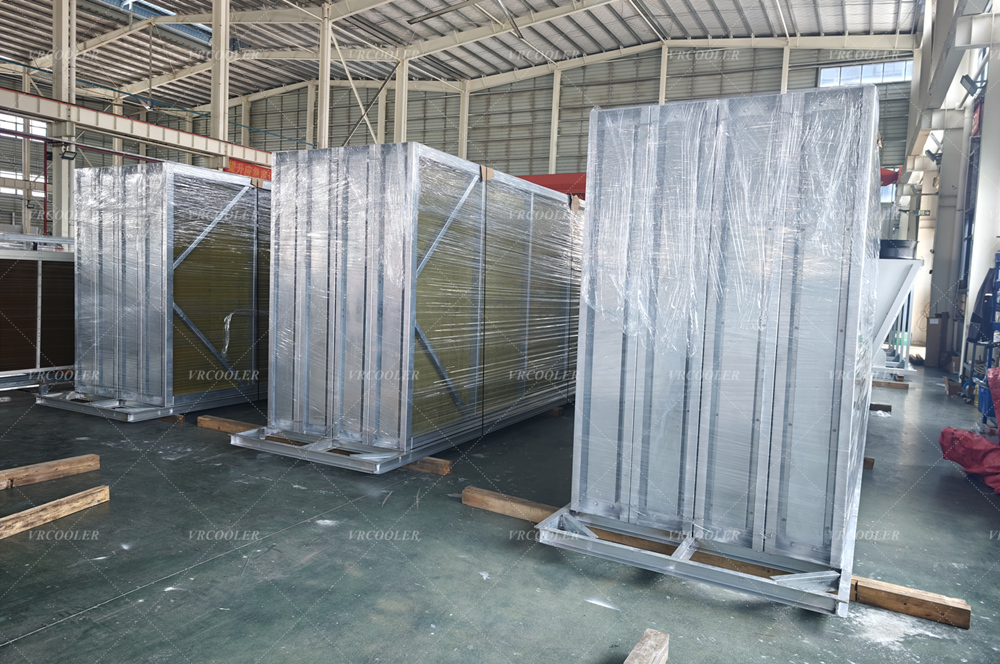

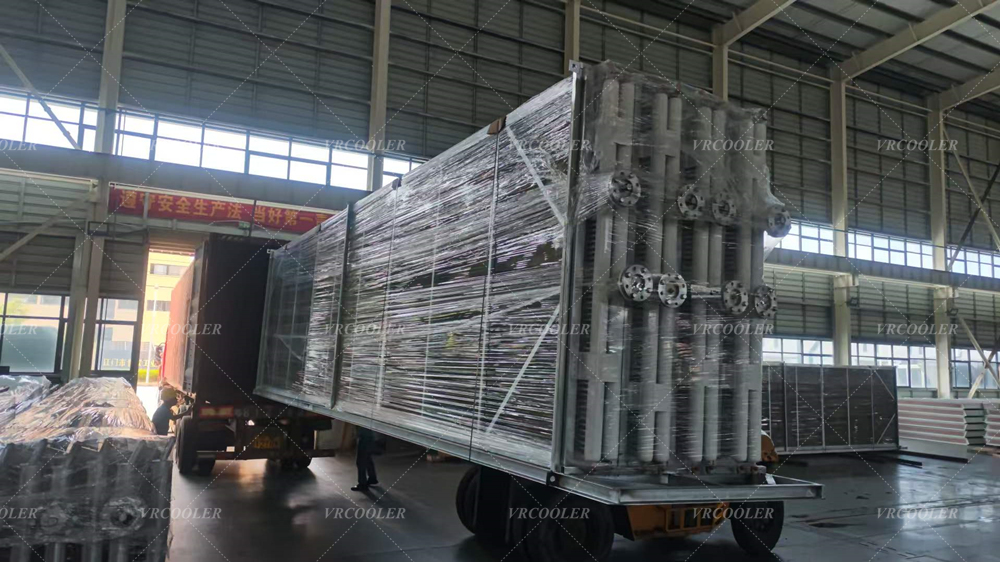

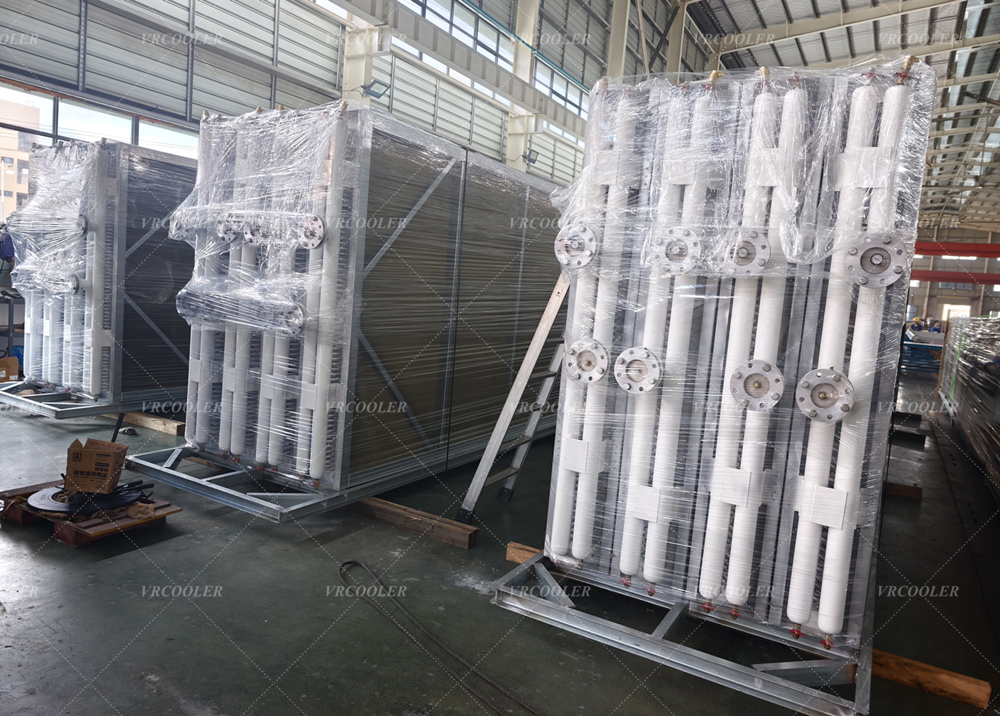

A modular water-to-air dry cooler can be assembled locally from factory-supplied heat exchanger coil modules and correctly matched axial fans, provided that the coil, fan, frame, airflow path, water circuit, controls, and safety requirements are designed as one system.
At CSTHEATEXCHANGER, we supply dry-cooler coils, air-to-liquid heat exchanger modules, axial-fan cooler assemblies, and customized components for modular water-to-air heat-rejection systems. We can review the heat load, fluid conditions, ambient design data, airflow, fan static pressure, module dimensions, and local assembly plan before finalizing the coil and fan package.
A water-to-air dry cooler rejects heat from a circulating fluid to outdoor air without evaporative water consumption at the coil. Hot water, water-glycol, or another compatible fluid enters the finned coil. Axial fans move ambient air across the coil surface. Heat transfers from the fluid through the tube and fin assembly to the air, and the cooled fluid returns to the process or building loop.
A modular unit normally includes:
One or more finned heat exchanger coil modules;
Axial fans with guards and suitable motors;
A structural frame and coil supports;
Fluid headers, branch connections, valves, and drains;
Air inlet and discharge clearances;
Electrical power, fan starters or drives, and controls;
Temperature, pressure, flow, and fault sensors;
Access panels, lifting points, and maintenance provisions.
The modules can be arranged side by side, in a flat bank, in a V configuration, or in another layout that matches the capacity, footprint, airflow, and transport requirements. The final arrangement should be checked for air recirculation, uneven flow, fan interaction, and water-side balancing.
A ready-made component strategy can be attractive when the local integrator has fabrication, piping, electrical, and commissioning capabilities but does not want to manufacture the heat exchanger coil or fan assembly from the beginning.
Potential benefits include:
Shorter local fabrication scope: The integrator focuses on frames, headers, piping, controls, and final assembly.
Scalable capacity: Additional modules can be added as the required heat load increases.
Reduced transport volume: Flat-pack frames and separate coil/fan modules may be easier to ship than a fully packaged dry cooler.
Regional adaptation: Local teams can match supports, electrical standards, pipe routing, access doors, and site constraints.
Common replacement strategy: Standardized coil and fan modules can simplify future service.
Project flexibility: The same basic module can be used across several dry-cooler capacities.
These advantages depend on clear interface control. A “ready-made” coil is not necessarily a universal drop-in part. The coil and fan must be selected for the same air-side pressure drop, heat duty, operating fluid, ambient condition, and mechanical envelope.
Before local assembly begins, the supplier and integrator should define exactly what is included in the package.
Package item | Key information to confirm |
|---|---|
Heat exchanger coil | Heat duty, fluid, flow rate, inlet/outlet temperatures, pressure drop, tube/fin materials |
Headers and connections | Connection size, position, pressure rating, drain and vent points |
Axial fans | Airflow, static pressure, motor power, speed control, voltage, protection, noise |
Fan guard and mounting | Guard dimensions, mounting pattern, vibration isolation, service access |
Frame interface | Coil supports, fan openings, module width, lifting and transport points |
Controls | Temperature sensors, fan staging, variable-speed control, alarms, interlocks |
Documentation | Drawings, performance data, wiring information, pressure-test records, maintenance instructions |
Local assembly boundaries | Which parts are supplied, fabricated, wired, tested, and commissioned locally |
The interface document should be approved before fabrication. It should identify the coil face dimensions, fan cut-out, airflow direction, header locations, pipe loads, electrical connections, service clearance, and allowable installation tolerances.
Fan matching is more than selecting a motor with a certain airflow rating. The fan must provide the required air volume at the pressure drop created by the coil, guards, screens, casing, louvers, filters, and discharge arrangement.
The selection process should review:
Required heat rejection at the design ambient condition;
Airflow needed across the selected coil;
Coil air-side pressure drop at that airflow;
Additional pressure drop from guards, louvers, and casing;
Fan curve at the combined system resistance;
Motor power and efficiency;
Voltage, frequency, enclosure, and environmental protection;
Fixed-speed, staged, EC, or VFD control;
Noise, vibration, and fan-array interaction;
Redundancy and operation with one fan unavailable.
CSTHEATEXCHANGER’s dry-cooler product information describes axial fans with compact direct-drive motors, guards, complete-unit balancing, sealed bearings, and motor encapsulation for long service life. The exact fan model still needs to be selected from the project’s airflow and static-pressure duty.
A fan that provides high free-air volume but cannot overcome the coil pressure drop will not deliver the specified heat rejection. Conversely, an oversized fan may increase noise, power use, and air velocity without improving lifecycle performance.
The coil should be selected from the fluid-side and air-side design conditions together. A typical water-to-air dry-cooler selection requires:
Design input | Why it matters |
|---|---|
Heat-rejection duty | Establishes required capacity |
Fluid type | Affects thermal properties, viscosity, corrosion, and freeze protection |
Fluid inlet and outlet temperatures | Defines the available temperature difference |
Fluid flow rate | Determines water-side heat transfer and pressure drop |
Design ambient temperature | Sets the worst-case air-side condition |
Required leaving-fluid temperature | Defines approach and coil surface area |
Airflow and face velocity | Controls heat transfer, pressure drop, noise, and fan size |
Tube and fin materials | Address corrosion, temperature, pressure, and service life |
Fin spacing | Balances heat transfer against fouling and cleanability |
Circuiting and headers | Support water-side distribution and balancing |
Working and test pressure | Defines mechanical and inspection requirements |
For a preliminary liquid-side estimate, the heat removed can be expressed as:
[ Q = \dot{m}{fluid} \times c_p \times (T{in} - T_{out}) ]
The actual coil selection must also account for the air-side capacity, ambient temperature, approach temperature, fin efficiency, fouling allowance, fluid properties, and pressure-drop limits.
A modular dry cooler can divide the total heat-rejection duty across multiple coil-and-fan sections. This supports staged operation and can allow the system to run at part load without operating every fan at full speed.
A modular approach may provide:
Capacity expansion by adding modules;
Fan staging for low-load operation;
N+1 or partial redundancy where specified;
Easier transport and lifting;
Smaller replacement sections;
Simplified cleaning and maintenance isolation;
Standard module drawings for repeated projects.
However, modularization introduces design requirements for headers, hydraulic balancing, control logic, and air distribution. A bank of modules should not be treated as a collection of independent fans without checking how neighboring fans and coils interact.
The local integrator should define whether the system is designed for full-load operation with all modules, reduced-capacity operation with selected modules disabled, or redundant operation with one module unavailable. The control sequence should reflect the actual performance guarantee.
Material selection depends on fluid chemistry, ambient conditions, corrosion exposure, pressure, temperature, cleaning method, and transport requirements.
CSTHEATEXCHANGER’s published dry-cooler information identifies:
Seamless copper tubes in selected diameters;
Corrugated or rippled aluminum fins;
Aluminum fin options for normal and aggressive environments;
Copper fin options for selected demanding conditions;
Thick copper headers;
Threaded steel connections;
Hot-dip galvanized structural steel and panels.
Alternative tube, fin, header, casing, or coating options may be required for salt air, chemical exposure, glycol service, high-temperature operation, or aggressive cleaning. The local assembly environment should also be considered: galvanic compatibility, weld procedures, fasteners, lifting, sealing, and field touch-up protection can affect long-term reliability.
Local assembly is most reliable when the supplier provides controlled interfaces and the integrator follows an approved assembly and test procedure.
Confirm coil orientation, supports, expansion clearance, fan mounting, guard installation, vibration isolation, lifting points, and access for cleaning. Do not impose unapproved pipe loads on the coil headers.
Install headers, branch pipes, valves, vents, drains, strainers, flexible connections, and balancing devices according to the approved flow arrangement. Check that each module receives the intended fluid flow.
Confirm fan motor voltage, frequency, protection, grounding, rotation, cable routing, control signals, emergency stops, and isolation points. For EC or variable-speed fans, verify the control protocol and minimum operating speed.
Maintain the required coil face clearance and fan inlet/discharge clearance. Avoid short-circuiting hot discharge air back to the coil inlet. Check that louvers, screens, and casing panels do not create unexpected pressure drop.
Record water flow, fluid inlet and outlet temperatures, ambient temperature, fan speed, fan current, air temperature, pressure drop, vibration, noise, and alarms. The commissioning record should establish a clean baseline for future maintenance.
Factory and site testing should be divided clearly between the coil supplier and the local assembler.
Dimensional inspection;
Material and component verification;
Tube and header pressure testing;
Leak testing;
Fin and casing inspection;
Fan balance and motor checks where fans are supplied;
Performance documentation for the agreed design conditions.
CSTHEATEXCHANGER’s quality policy states that coils are leak tested at the applicable pressure before delivery. The dry-cooler product information also describes a 15-bar pressure test for the listed dry-cooler construction. The final test pressure must be confirmed against the actual project design, materials, code requirements, and purchase specification.
Header and pipe pressure testing;
Flushing and water-quality checks;
Electrical insulation and grounding checks;
Fan rotation and control verification;
Airflow and temperature measurements;
Flow balancing across modules;
Leak detection and alarm testing;
Vibration and noise inspection;
Full-load and part-load functional tests;
Safe shutdown and restart checks.
A local assembly model can work well, but the project should actively control these risks:
Coil and fan are selected independently and do not meet the same duty;
The fan free-air rating is mistaken for delivered airflow;
Local casing, guards, or louvers add unaccounted pressure drop;
Modules receive uneven water flow;
Headers are exposed to excessive pipe loads;
Outdoor air recirculates into the fan inlet;
Controls cannot stage or modulate fans correctly;
The local frame does not provide sufficient coil support;
Field brazing or welding damages the coil or coating;
Testing responsibilities are unclear;
Spare modules are not standardized.
An approved interface drawing and responsibility matrix are as important as the coil and fan selection itself.
At CSTHEATEXCHANGER, we support customers that need ready-made heat exchanger coils, air-cooled fluid cooler modules, and matching axial-fan cooling components for locally assembled systems. We can help define the component boundaries around your frame design, fluid loop, ambient conditions, electrical standard, and capacity plan.
Our project workflow can include:
Reviewing the heat load and operating envelope;
Selecting a coil geometry, tube material, fin design, circuiting, and connection layout;
Matching the coil air-side pressure drop to the axial-fan operating point;
Confirming module dimensions and local assembly interfaces;
Providing drawings, performance information, and testing requirements;
Supporting sample or pilot-module approval;
Completing applicable coil pressure and leak testing before shipment;
Reviewing start-up data from the locally assembled dry cooler.
This approach allows a local equipment builder to focus on the enclosure, piping, controls, and final integration while using repeatable heat-transfer modules from CSTHEATEXCHANGER.
Yes. A modular water-to-air dry cooler can be built locally from factory-supplied coils and matched axial fans, provided that the heat duty, airflow, pressure drop, fluid circuit, structure, controls, and testing responsibilities are defined together.
No. The fan must deliver the required airflow at the total system resistance, including the coil, guards, casing, louvers, screens, and discharge path. Fan free-air airflow is not sufficient for final selection.
Provide heat duty, fluid type, inlet and outlet fluid temperatures, fluid flow rate, design ambient temperature, required leaving-fluid temperature, coil dimensions, allowable pressure drop, fan voltage, control method, noise target, module quantity, and local assembly interfaces.
Yes, if the original frame, headers, controls, electrical system, and cooling loop are designed for modular expansion. Future modules should use standardized coil dimensions, fan interfaces, connection layouts, and control points.
Water-glycol can be used when the coil materials, flow rate, viscosity, pressure drop, pump capacity, and freeze-protection requirements are selected for that fluid. Glycol concentration can change the thermal and hydraulic performance and must be included in the coil selection.
It can reduce shipping volume, local fabrication scope, and integration cost, but the result depends on labor, testing, controls, frame fabrication, logistics, and quality-management requirements. A total installed-cost comparison is needed for each project.
The number depends on the heat load, module capacity, design ambient, required redundancy, transport limits, available footprint, airflow, and desired part-load control. The module count should be set after coil and fan performance calculations.
CSTHEATEXCHANGER can review the required module dimensions, coil connections, fan interfaces, supports, and test requirements for a local assembly project. The exact drawing and documentation package should be defined in the quotation and technical agreement.
Ready-made heat exchanger coils and matching axial fans can form a practical foundation for modular water-to-air dry coolers assembled locally. The key is to match the coil and fan at the real operating point, define the mechanical and hydraulic interfaces, control air recirculation and water distribution, and assign testing responsibilities before fabrication begins.
