At CSTHEATEXCHANGER, we develop industrial heat exchanger and cooling-coil solutions around the actual process conditions. We do not select equipment from temperature alone. For textile wastewater, we first establish the heat duty, then address fouling, corrosion, cleanability, materials, and control requirements before finalizing the design.
Textile wastewater may leave dyeing, washing, finishing, or other process steps at an elevated temperature. Cooling it before biological treatment, equalization, filtration, discharge, or reuse can help the downstream process operate within its required temperature range.
Cooling from 55°C to 35°C means a 20°C temperature reduction. The actual heat-removal duty is determined by the wastewater mass flow rate and its thermal properties:
[ Q = \dot{m} \times C_p \times \Delta T ]
Where:
Q is the required cooling duty;
m is the wastewater mass flow rate;
Cₚ is the wastewater specific heat capacity;
ΔT is the temperature reduction, here 20°C.
For illustration only, if the wastewater flow is 1 m³/h and its density and specific heat are close to those of water, the duty is approximately 23.2 kW. This is not a final equipment rating. Textile wastewater properties can differ significantly from clean water, so CSTHEATEXCHANGER sizes the exchanger from measured or confirmed process data.
The U.S. Environmental Protection Agency’s textile wastewater references describe heat exchangers as a method for controlling wastewater temperature, while the U.S. Department of Energy identifies heated liquids and cooling-water streams as potential industrial heat sources. These principles support a practical approach: treat the 55°C wastewater as a controlled process stream and recover or reject its heat through an engineered secondary circuit.
Our design review starts with the information that directly affects thermal performance and service life:
Design input | Why it matters |
|---|---|
Wastewater flow rate and variation | Determines heat duty and exchanger area |
Inlet and outlet temperature | Defines the required cooling load |
Cooling-water or air temperature | Establishes the available temperature difference |
pH, conductivity, salts, dyes, oils, and chemicals | Guides material and corrosion assessment |
Suspended solids, fibers, and sludge | Determines fouling risk and cleaning strategy |
Operating hours and seasonal conditions | Helps size for continuous and peak operation |
Available pressure drop | Influences channel, tube, coil, and pump selection |
Installation space and connection standards | Determines the practical configuration |
A stable laboratory analysis is useful, but operating variation is equally important. If the wastewater temperature or contaminant load changes during production, we account for the expected range rather than designing only for a single ideal reading.
The exchanger should match the cleanliness of the process stream, not simply its target temperature.
Plate heat exchanger: A compact option when the wastewater has been adequately screened or pretreated and the plate passages can be protected from fibers and solids. An accessible design may simplify inspection and cleaning.

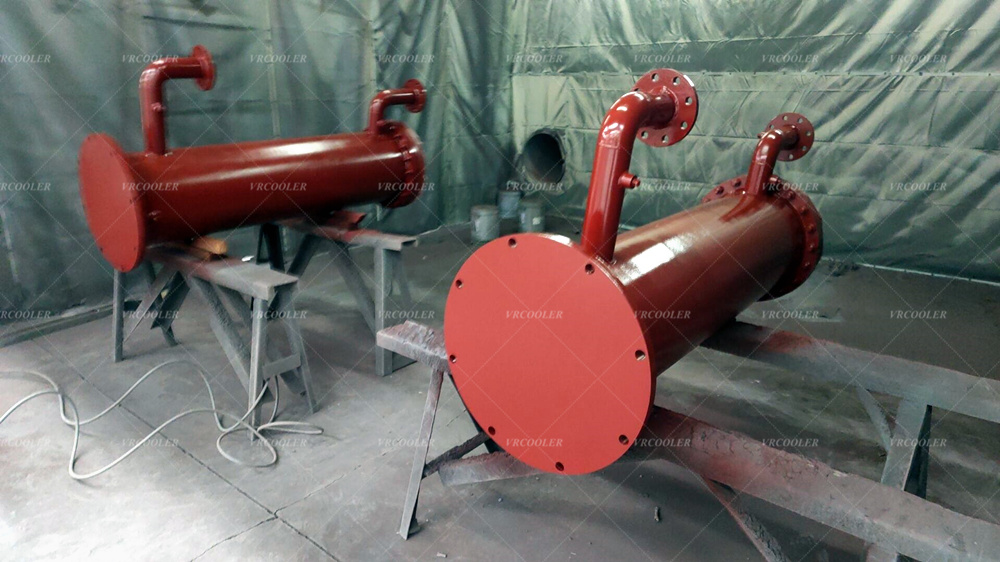

Shell-and-tube or bare-tube heat exchanger: A practical direction when the stream contains more solids, fibers, or variable contaminants and a more robust flow path is required.
Industrial cooling coil: Suitable for a tank, basin, or dedicated cooling section when the process layout favors coil-based indirect cooling.
Air-cooled or finned-tube solution: An option when a plant wants to reject heat to ambient air rather than consume a large cooling-water flow. Its feasibility depends on ambient temperature, airflow, footprint, and the required outlet temperature.
CSTHEATEXCHANGER supplies industrial coils, stainless steel cooling coils, anti-corrosive cooling-coil options, finned-tube heat exchangers, tube-and-fin coils, air-cooling units, and other customized heat-transfer equipment. The final recommendation depends on the wastewater analysis and the complete process arrangement.
Fouling is one of the main reasons a wastewater heat exchanger loses performance over time. Fibers, suspended solids, scale, dye residues, biological growth, and chemical deposits can reduce the effective heat-transfer area and increase pressure drop.
Our design discussion therefore includes:
Upstream screening or filtration to reduce fibers and larger solids before they enter the exchanger.
A flow path that supports practical cleaning, with access, isolation, drains, vents, and suitable flushing connections where required.
Material selection based on the actual chemistry, including pH, chloride concentration, temperature, and cleaning chemicals.
A realistic fouling allowance, rather than treating clean-water performance as the operating result.
Monitoring points for inlet and outlet temperature, pressure drop, and flow so the operator can identify performance loss early.
The U.S. Department of Energy notes that corrosion, scaling, and fouling can increase maintenance costs and reduce productivity in heat-exchange applications. For textile wastewater, these risks should be addressed at the specification stage instead of being left to corrective maintenance after commissioning.
To reach 35°C consistently, the cooling medium must be sufficiently cooler than the wastewater. If the available cooling water is already close to 35°C, the exchanger may require a larger surface area, a different arrangement, or an additional cooling stage. If the cooling medium is much cooler, the required area may be reduced, but the design still has to control thermal stress, condensation, flow velocity, and pressure drop.
We evaluate:
Counter-current or cross-flow arrangement;
Wastewater and cooling-medium flow rates;
Log mean temperature difference;
Heat-transfer coefficient and fouling resistance;
Pump capacity and allowable pressure drop;
Peak production load and turndown requirements;
Instrumentation and automatic temperature control.
The result is a system designed around the requested 55°C inlet and 35°C outlet condition, not a generic exchanger catalogue value.
There is no universal material choice for every textile wastewater stream. Stainless steel may be appropriate for some applications, while coated or specially selected materials may be more suitable when the stream contains aggressive chemicals or has a high corrosion risk.
Material selection should consider:
Wastewater pH and conductivity;
Chloride and other corrosive ions;
Dyes, auxiliaries, oils, and surfactants;
Cleaning and chemical-treatment procedures;
Operating temperature and thermal cycling;
Required service life and inspection policy.
CSTHEATEXCHANGER reviews these conditions before proposing stainless steel, coated cooling-coil, finned-tube, or other construction details. We also use design and simulation support to evaluate technical parameters with customers before samples, pilot production, or serial production where applicable.
A maintenance plan should be based on actual process behavior and should include:
Recording wastewater inlet and outlet temperatures;
Tracking cooling-medium flow and temperature;
Comparing pressure drop with the clean baseline;
Inspecting strainers, screens, and filters;
Flushing or chemically cleaning the exchanger according to material compatibility;
Checking for leaks, corrosion, vibration, and gasket or connection damage;
Reviewing the cleaning interval after the first operating period.
A rising pressure drop combined with a falling temperature difference can indicate fouling, insufficient flow, or a control problem. Cleaning frequency should be determined from measured conditions rather than an arbitrary calendar interval.
At CSTHEATEXCHANGER, we build heat exchangers for water, steam, refrigerant, glycol, ammonia, carbon dioxide, and other process media. For a textile wastewater cooling project, our value is the combination of thermal design, industrial-coil experience, customization, and customer-oriented engineering support.
Our quality process includes reviewing the customer RFQ, understanding technical constraints, using design and simulation tools, sharing technical results for design finalization, and supporting sample, pilot, and production stages when required. Our quality policy also states that coils are leak tested before delivery according to the applicable inspection arrangement.
Most importantly, we keep the design decision connected to the process: 55°C in, 35°C out, known wastewater chemistry, controlled fouling risk, serviceable construction, and verifiable performance.
Yes, an indirect heat exchanger can be designed for this temperature reduction when the flow rate, wastewater properties, cooling-medium conditions, and available heat-transfer area are suitable. Final sizing requires process data; temperature alone is not enough.
It can, but only when the wastewater quality, solids content, fiber load, channel size, filtration, and cleaning plan are appropriate. For heavily contaminated or fibrous streams, a different configuration or stronger pretreatment may be more suitable.
The duty is calculated from mass flow, specific heat capacity, and the 20°C temperature reduction. As an illustration, 1 m³/h of water-like fluid requires about 23.2 kW of heat removal. Textile wastewater should be tested or specified before using this estimate for equipment selection.
They can collect on heat-transfer surfaces, restrict passages, increase pressure drop, and reduce the outlet-temperature performance. Screening, filtration, a cleanable flow path, monitoring, and a suitable fouling allowance help manage the risk.
It may be suitable when ambient air is sufficiently cooler than the required outlet temperature and the system can provide the necessary airflow and heat-transfer area. In hot ambient conditions, air cooling may not consistently achieve 35°C without additional stages or a different cooling medium.
Please provide wastewater flow rate, inlet and target outlet temperatures, pH, suspended solids and fiber content, chemical composition, cooling-medium conditions, allowable pressure drop, operating schedule, connection details, available space, and any cleaning requirements. Photos, process sketches, and laboratory data are also useful.
Yes. We can review an existing unit or a new process requirement. Existing drawings, nameplate data, operating records, temperature trends, pressure-drop readings, and photos help us evaluate replacement compatibility and possible performance improvements.
Cooling textile wastewater from 55°C to 35°C is a heat-transfer and process-reliability project, not just a temperature specification. The best solution balances thermal duty, cooling-medium availability, fouling, corrosion, cleanability, pressure drop, controls, and maintenance access.
CSTHEATEXCHANGER can help you develop a customized industrial heat exchanger or cooling-coil solution for this duty. Send us your flow rate, wastewater analysis, temperature requirements, and installation information, and our team will review the application and recommend a practical design direction.
